Connects2 CAM-NS2 Reversing Camera

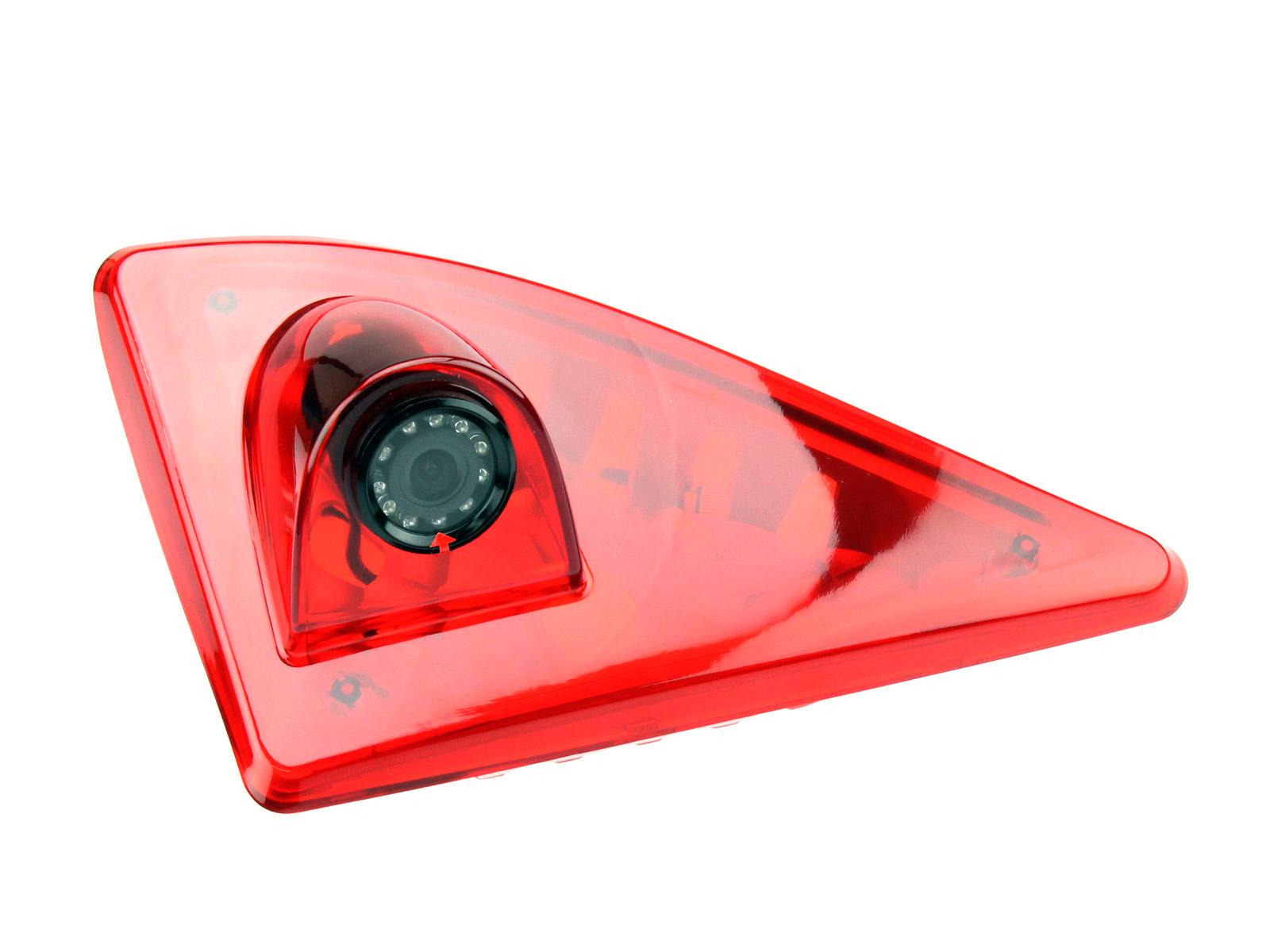

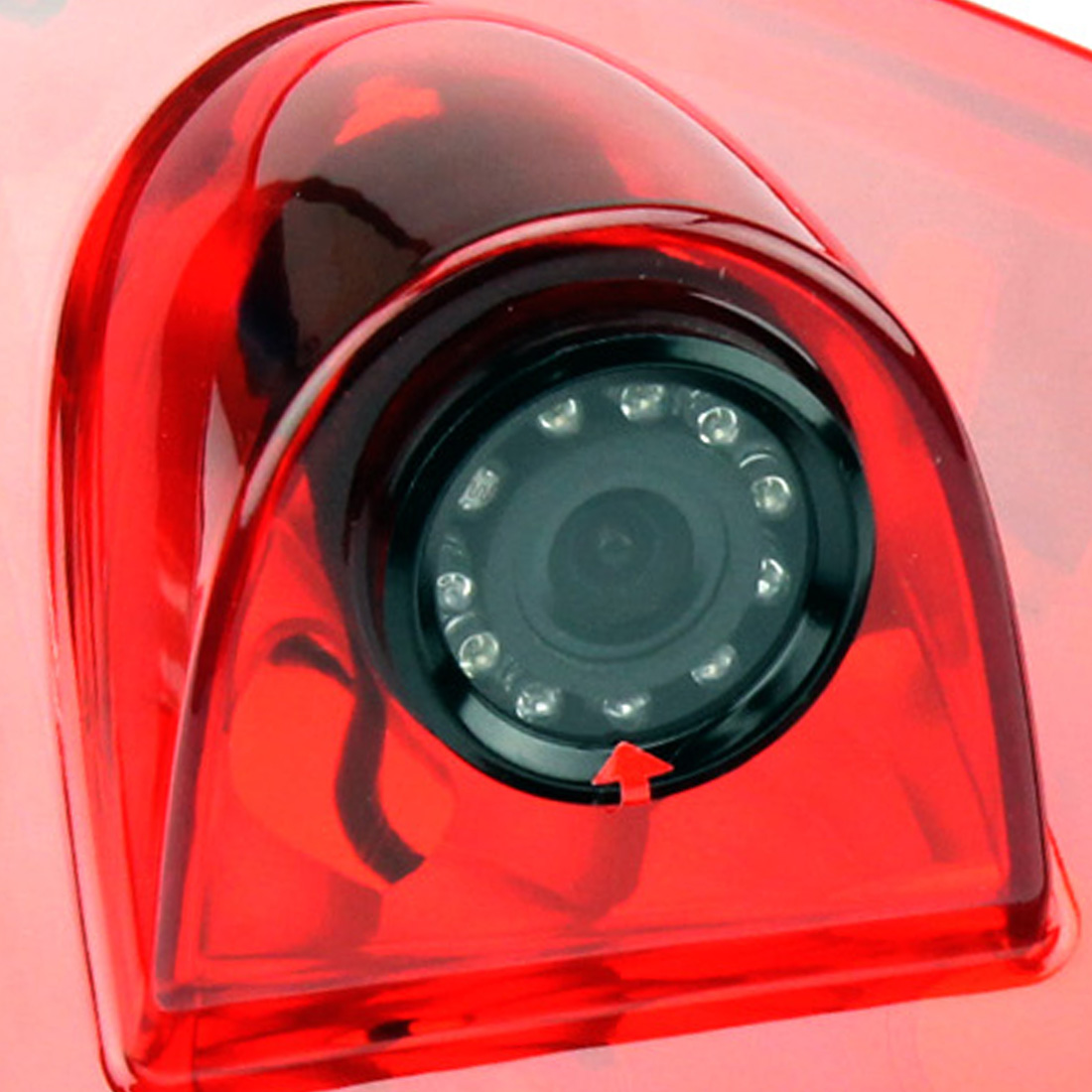

The CAM-NS2 is a Replacement Brake Light Reversing Camera for the Nissan NV400. The Camera replaces the vehicles original third brake light with a combined camera brake light unit. The CAM-NS2 features Infra-red LEDs for night vision of 35ft, along with 1/3” CCD image sensor and 976 x 494 resolution giving the driver excellent rear views not only adding visual safety to the rear /of the vehicle but also keeps the original aesthetics.

Specifications

• Image Sensor: 1/3” CCD
• TV Lines: 700
• Resolution: 976 x 494 (NTSC) 976 x 582 (PAL)
• Minimum Illumination: 0 Lux (LED’s on)
• TV System: NTSC/PAL
• Waterproof Rating: IP68
• Infra-Red LED’s: Yes
• Night Vision: 35ft
• Viewing Angle: 170 Degrees
• Image: Mirror
• Enhanced Performance In Low Light: Yes
• Operating Voltage: 12V DC (Negative Ground)
• Current Consumption: 80mA @ 13.8V
• Operating Temperature: -20 Degrees C to +70 Degrees C
