Connects2 CAM-FD7 Reversing Camera

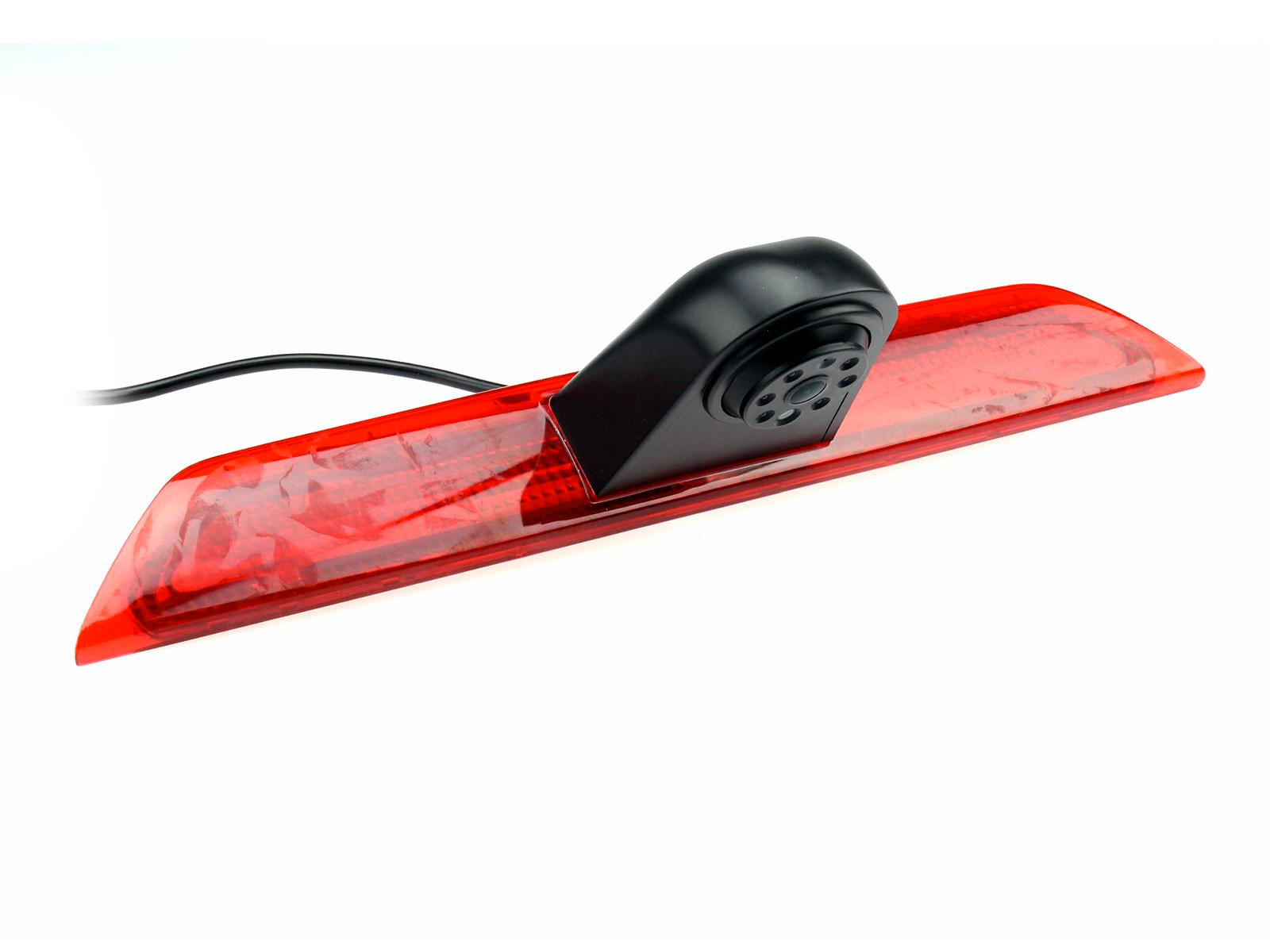

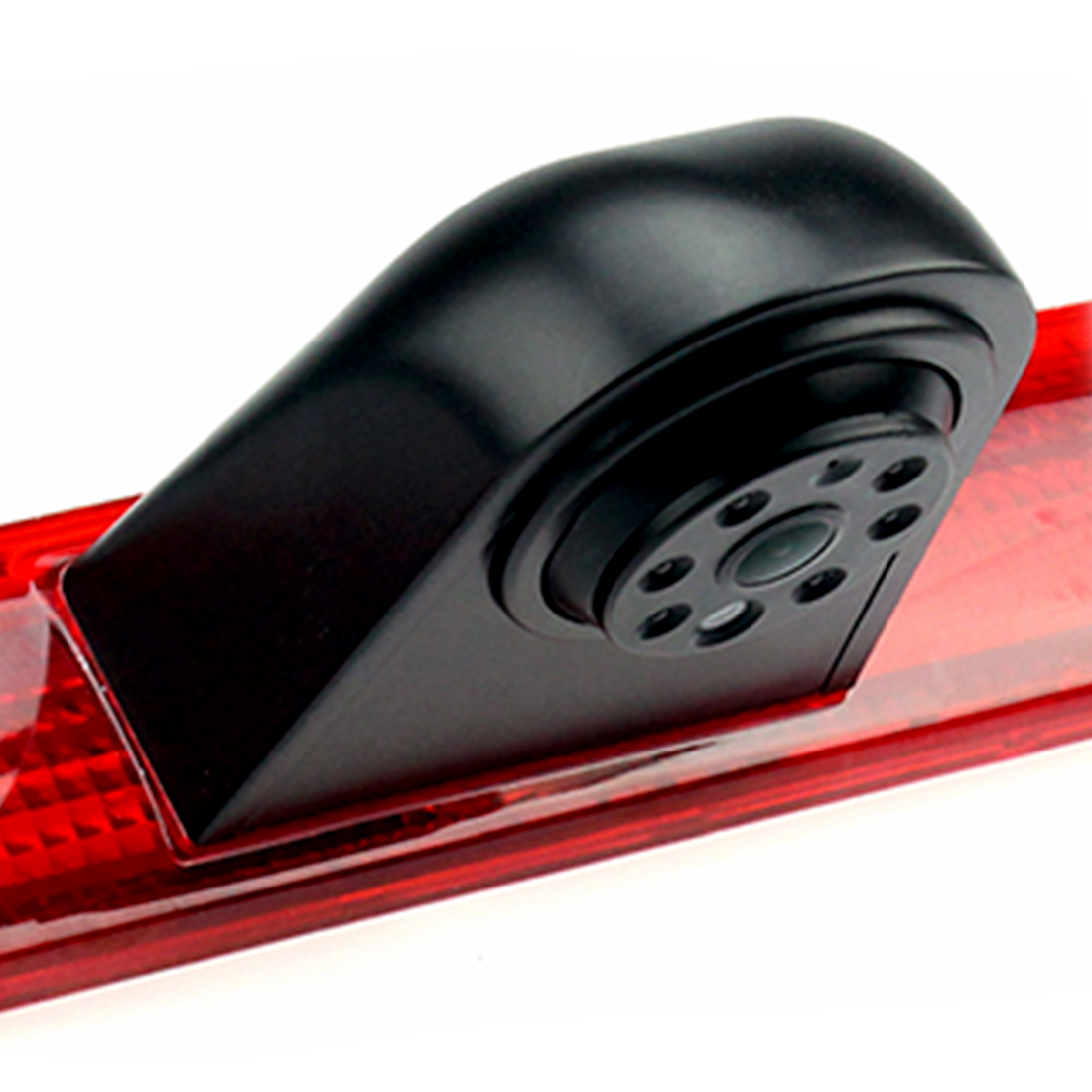

The CAM-FD7 is a Replacement Brake Light AHD Reversing Camera with infra-red LEDs to improve night vision capabilities for the 2014 to 2021 Ford Transit. This unit replaces the vehicles original third brake light. Featuring 1/3” CCD image sensor, 170 degree viewing angle and impressive IP68 weatherproof rating, the CAM-FD7 camera and brake light combination not only adds visual safety to the rear of the vehicle but also keeps the original aesthetics.

Specifications:

• Image Sensor: 1/3” CCD
• Cam Signal: AHD
• Resolution: NTSC 976 x 494, PAL 976 x 596
• TV Lines: 700
• Lens: 1.7mm
• Minimum Illumination: 0 Lux (LED’s on)
• Infra-Red LED’s: Yes
• Night Vision Distance: 35ft
• Waterproof Rating: IP68
• Viewing Angle: 170
• Degrees Operating Voltage: 12V DC (Negative Ground)
• Current Consumption: 90-135mA @ 13.8V
• Operating Temperature: -20 Degrees C to +70 Degrees C
• Audio: Yes
• Image: Mirror
