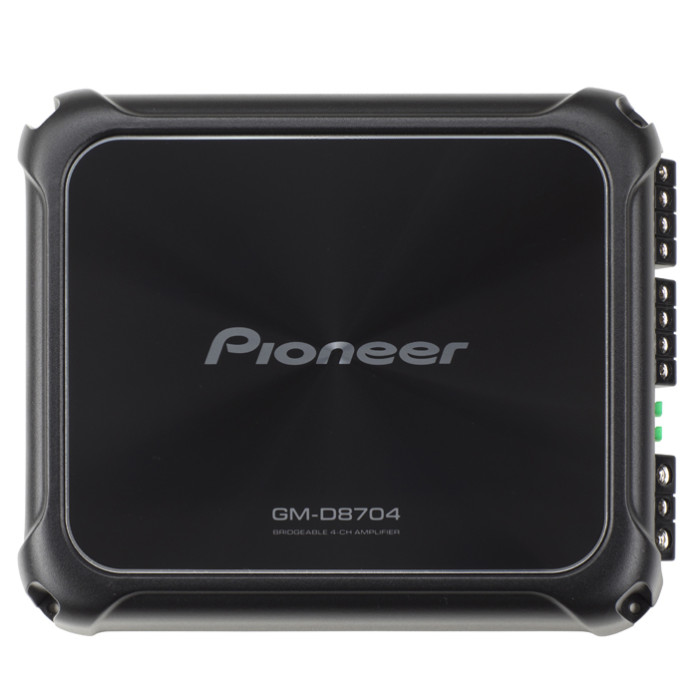

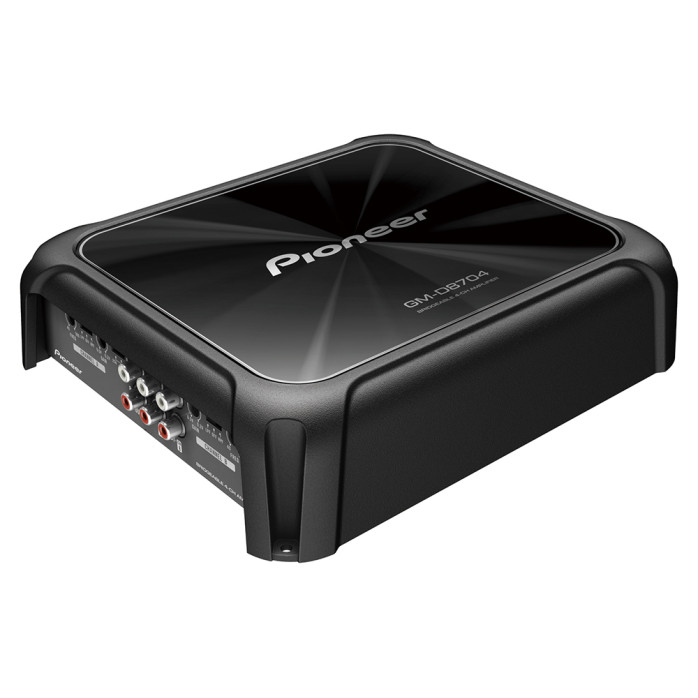

Compact 4 Channel Power

An amplifier shouldn’t take up too much space, especially in your car. This Class-D amps might just be what you’re looking for. It combines a 1-Ohm stable circuit, installation flexibility and a superior high-power output.

Speaker line input sensor

connect your existing OEM unit without the hassle of add-on adapters

Variable LPF

adjust your low-pass filter frequency for greater audio system flexibility

Variable HPF

adjust your high-pass filter frequency for greater audio system flexibility

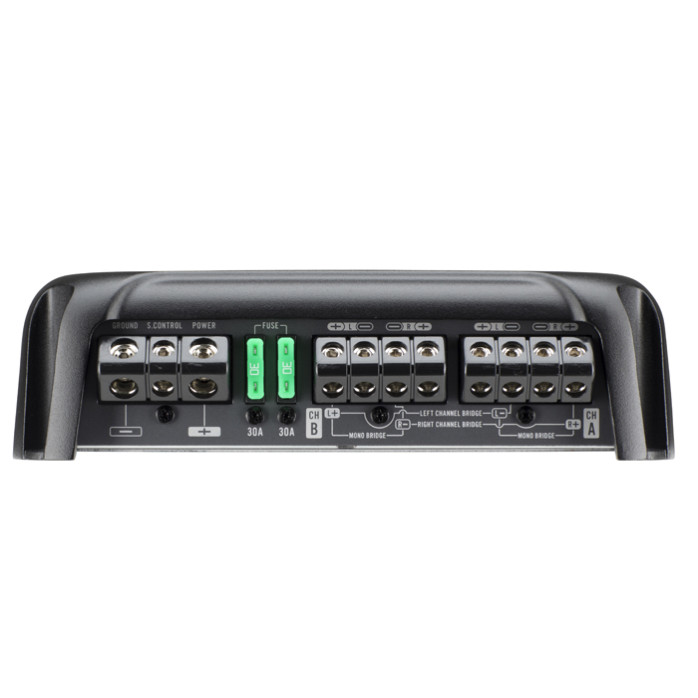

Multi-block Terminal

smoothly connect up to 4 subs for high-power audio output

D-class

enjoy first class sound and powerful volume on a versatile system at half the size of other units

Main Features

• Variable LPF
• D-class
• Channel(s) 4 / 2 / 1
• RCA terminals
• Speaker Terminals Block-type
• LPF
• HPF
• Maximum power
  • 4 x 200W (4Ω)
  • 4 x 300W (2Ω)
  • 1200W Total
• Continuous power output
  • 4 x 100W RMS (4Ω)
  • 4 x 150W RMS (2Ω)
  • 4 x 125W RMS (1Ω)
  • 2 x 300W RMS (4Ω bridged)
• Frequency response 10 Hz - 50 Hz
• Input level control
  • RCA (0.2V - 6.5V)
  • SP (0.8V - 16V)
• Distortion < 0.05 %
• S/N ratio > 95 dB
• Chassis size (W x H x D) 252 x 60 x 215 mm
• Crossover Frequency 40 - 500Hz (-12 dB/oct) Hz

Audio

• Variable HPF

Connections

• Multi-block Terminal
