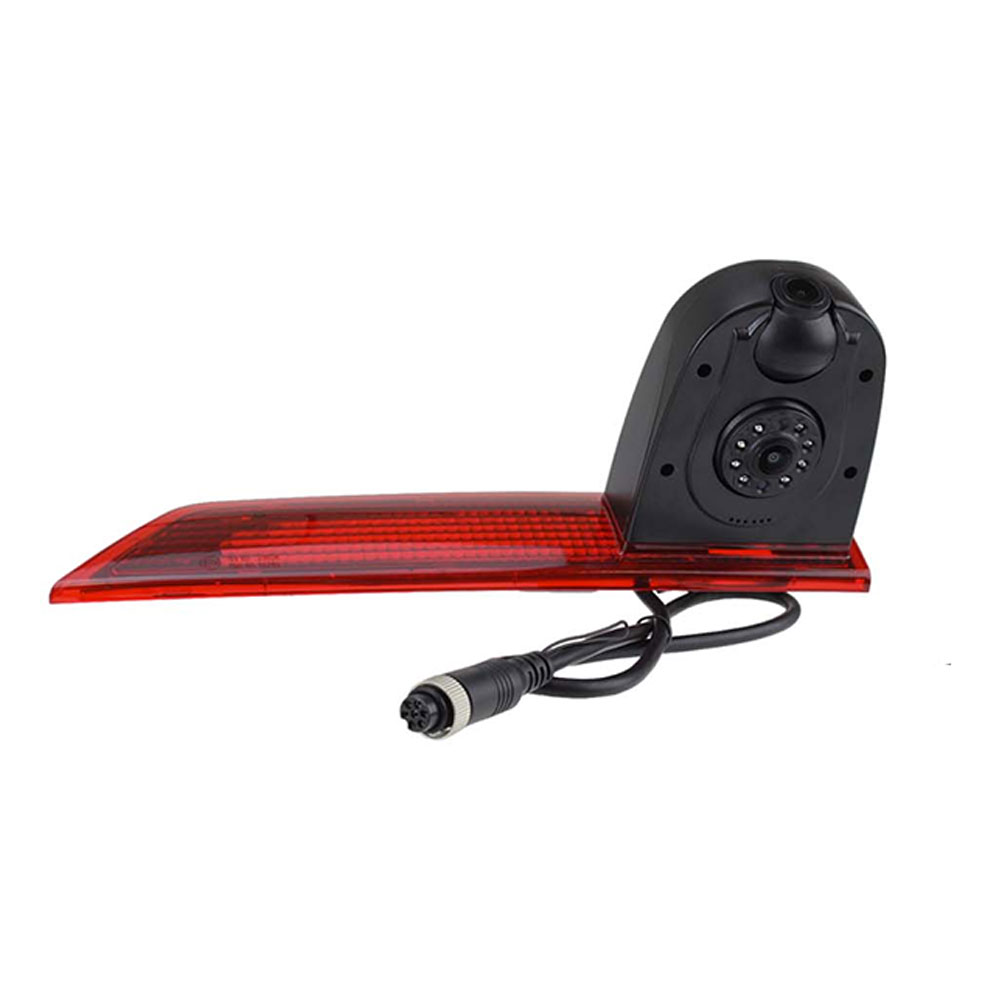

CAM-FD24 Ford Dual Lens Car Reversing Camera

The CAM-FD24 is a dual-lens reversing and driving camera specially designed for the 2012-2015 Ford Transit-Custom. The camera features a special Livestream feature that gives the driver a live view of the rear of the vehicle when in motion. The system replaces the original vehicle’s rear brake light enhancing safety whilst retaining the vehicle’s original aesthetics. Please note: this product is for vehicles which feature rear barn doors.

Product Specifications

• Image Sensor: Colour 1/3” CMOS
• TV Lines: 700
• Resolution: 976 x 592 pixels
• Illumination: 0.1 Lux
• TV System: NTSC
• Waterproof Rating: IP68
• Viewing Angle: Vertical: 80° Horizontal: 145° Diagonal: 170°
• Video Output: 1.0 Vp-p/75 Ohm
• Parking Lines: Yes (Removable)
• Image Adjustment: No
• Power Rating: 12V
• Operating Temperature: -20 Degrees C to +70 Degrees C

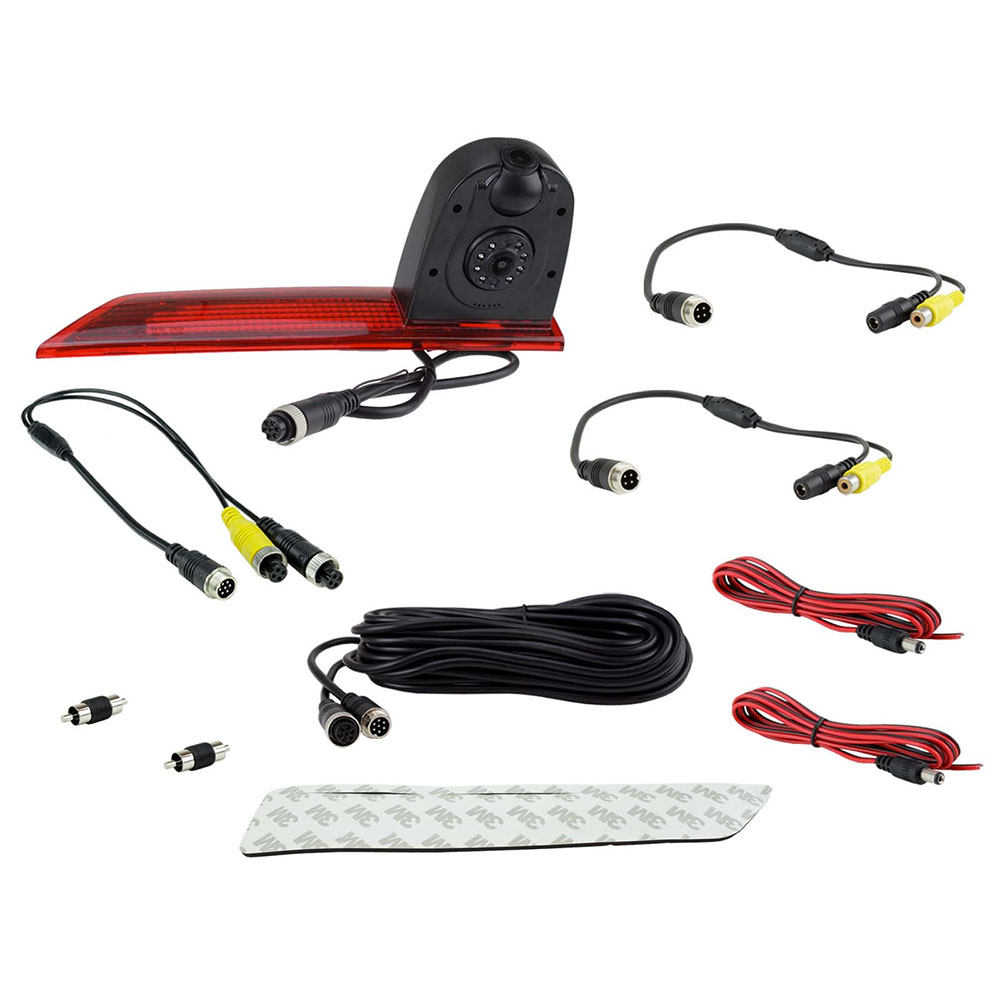

2x CAM-RCA1 needed for installation, Sold separately.
