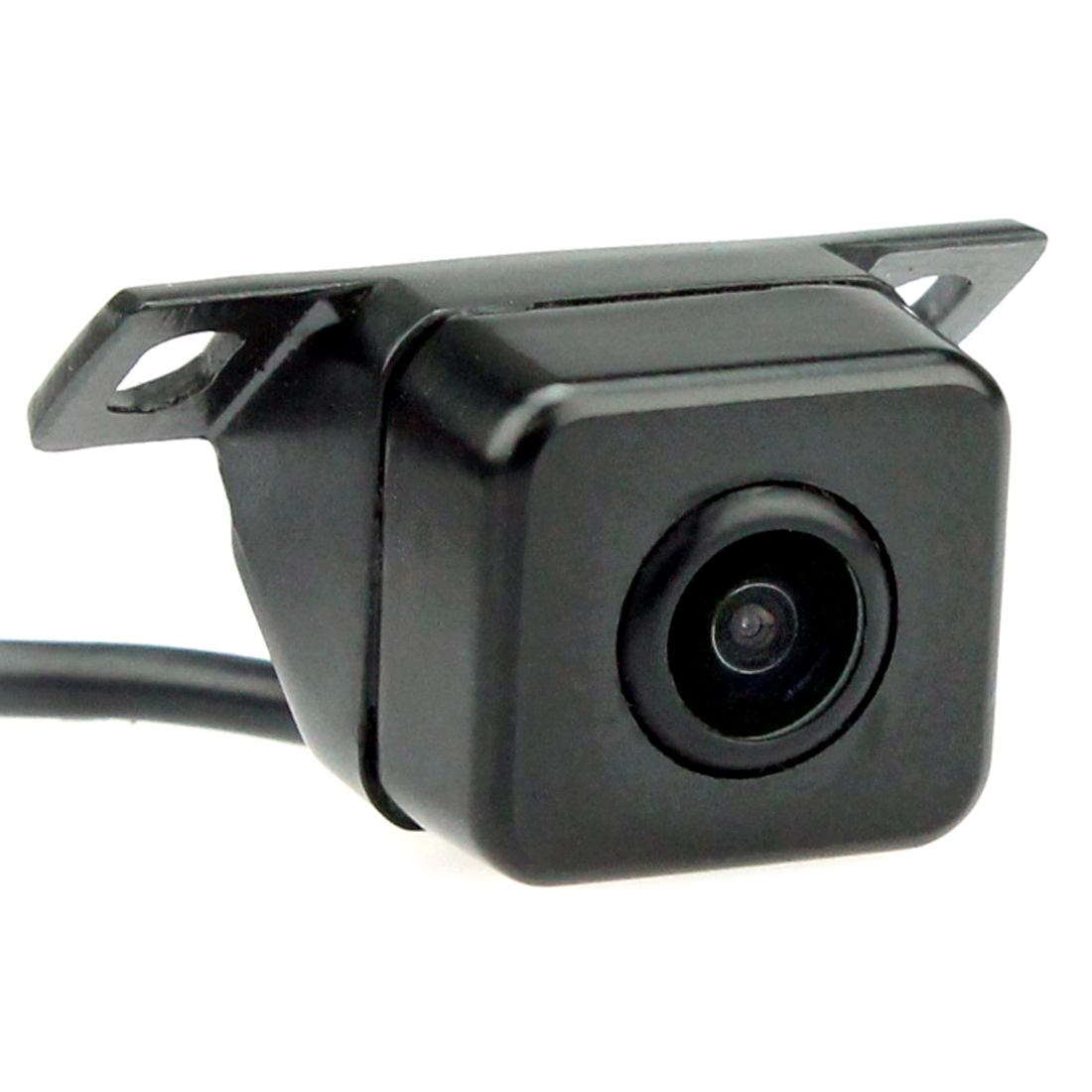

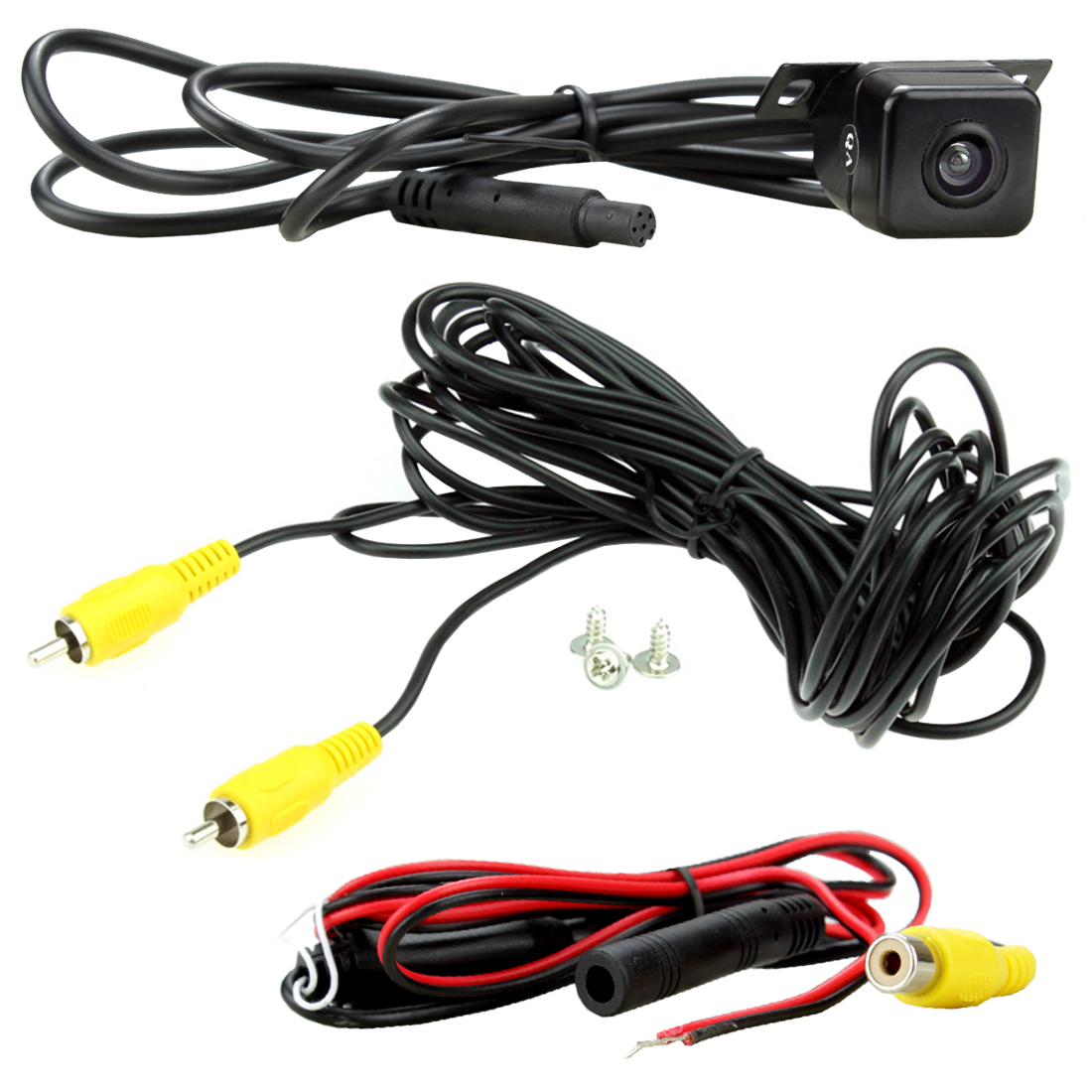

The CAM-16 is a universal surface mounted, fixed angle reversing camera, compatible with most vehicles (cars and vans), it requires minimal illumination to operate and comes with a 170-degree viewing angle. This easy-fit rear-view camera’s 1099 HD CCD, 480 TV Lines and 976x496pix resolution allow for a full-colour high-res image display. The CAM-16 is also IP68 rated, meaning it is protected against all standard weather conditions and will continue to operate in temperatures ranging from -20 degrees C to +70 degrees C.

Specifications:

• Image Sensor: 1099 HD CCD
• TV Lines: 480
• Resolution: 976 x 496
• Minimum Illumination: 0.1 Lux
• Horizontal Angle: 170 Degrees
• Vertical Angle: 120 Degrees
• TV System: NTSC
• Video Output: 1.0V p-p 75 ohm
• Operating Voltage: 12V DC (Negative Ground)
• Current Consumption: 120mA @ 13.8V
• Waterproof Rating: IP68
• Operating Temperature: -20 Degrees C to + 70 Degrees C
• Removable Parking Lines: Yes
• Enhanced Performance In Low Light: Yes
