Package Includes

• Pioneer 16.5cm 6.5" 2-Way Component Car Audio Speaker System 350W
• Speaker Adaptor Plugs

Kit consists of 2 Mids / 2 Tweeters Speaker brackets and wiring harness for main door speaker. Tweeter wiring will need manual connection to existing wiring by using suitable connectors. Please be sure to use the provided tweeter protection as damage to tweeter will arise if no protection is used.

Suitable For Below Door and Tweeter Layout

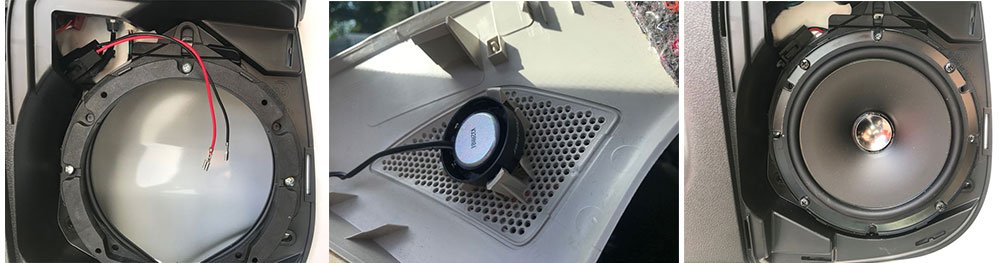

Speaker brackets supplied are universal so break off tabs not required so it fits comfortably inside. 3 new screw mount holes will need to be drilled in to secure the bracket as in photo.

It Just Got Easier to Upgrade Your Genuine OEM Sound.

Upgrade the original sound system of your car. Our A-series line up can give you the easy to install sound upgrade solution that you have been looking for.

The A-series line up has carefully selected materials to improve bass response and high frequencies, whilst delivering Pioneer's famous Open & Smooth sound concept, all in an easy to install package. Specific models also include a custom fit adaptor for quick and easy installation.

For an even greater experience, please download Pioneer's free CarSoundFit application, to hear what your car could sound like before and after it has been upgraded with Pioneer.

Car Sound Fit App

Car sound simulator application for an improved in-car sound experience

Custom Fit Adaptor

Multi-fit adaptor expands installation flexibility and improves acoustic performance

Open & SmoothTM

OPEN and SMOOTH delivers smooth frequency response and an expansive soundstage

IMPPTM

Enjoy outstanding midbass response with the Blue Injection Molded Polypropylene Cone

Main Features

• CarSoundFit App
• Custom Fit Adaptor
• Open & SmoothTM
• IMPPTM
• Speaker Size 16.5 cm
• Type 2-Way Component System
• Max Power 350 Watt
• Continuous power output 80 W
• Frequency response 34 Hz – 49 KHz
• Sensitivity 85 dB
• Impedance 4 Ω
• Woofer material IMPP™ Composite Cone
• Voice Coil type Copper
• Voice Coil bobbin type KAPTON
• Tweeter Cut-Out Hole 144 mm
• Tweeter Type DOME
• 2-Way Component
