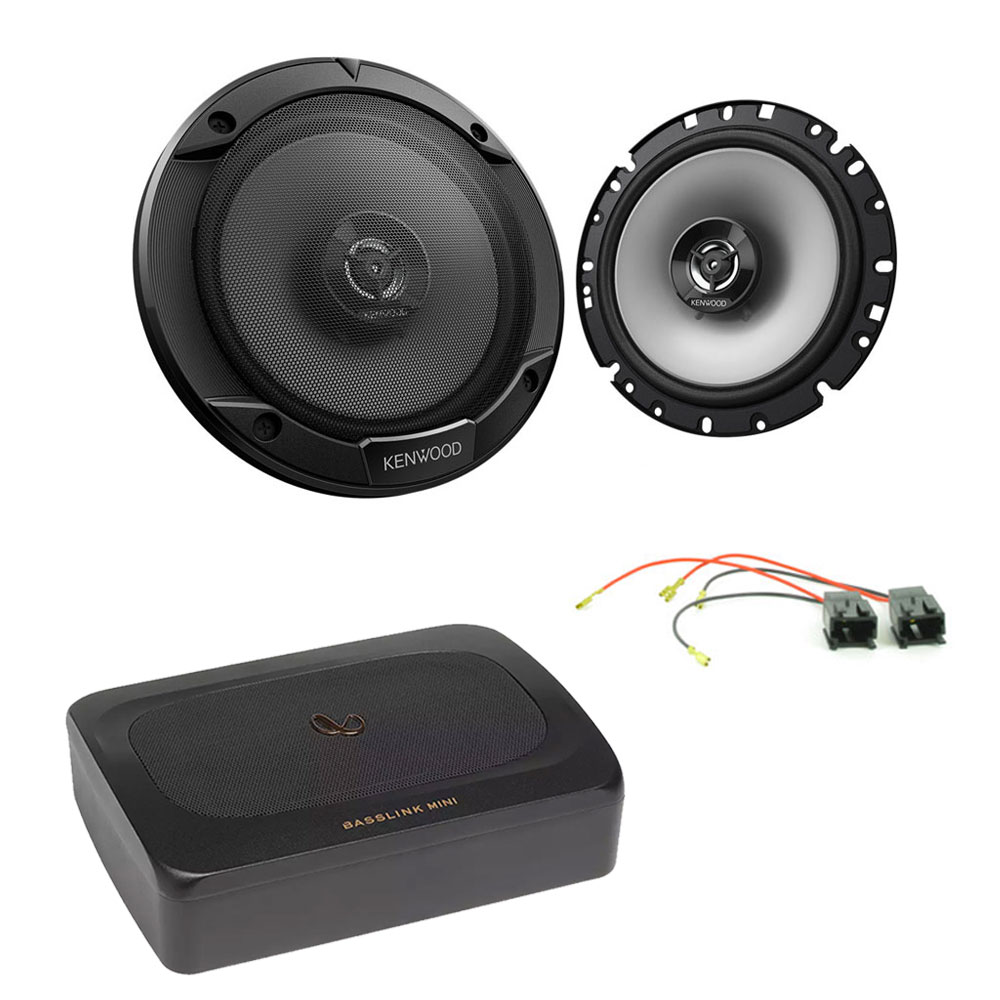

Package Includes

• Kenwood Stage Sound Series 17cm 6.5" 2-Way Coaxial Car Speaker 300 Watts
• Infinity BASSLINK MINI Compact Under Seat Powered Subwoofer System
• Speaker Adaptor Plugs

Kenwood KFC-S1766 Stage Sound Series 17cm 6.5" 2-Way Coaxial Car Speaker 300 Watts

Key Features

• Stage Sound Series
• Flush Mount Speaker
• 2-Way 2-Speaker System
• 17 cm Polypropylene Woofer Cone
• Heavy-Duty Woofer Magnet Circuit
• 25mm Blanced Dome Tweeter
• Tweeter Sound Field Enhancer & Electro-Dynamic Driver
• 300W Peak Power
• 30W RMS Power
• Speaker grill included

Speaker/woofer Specifications

• Peak Input Power 300W
• Rated Input Power 30W
• Woofer Cone material Polypropylene (PP) Cone
• Speaker Basket Steel
• Speaker Surround Cloth
• Sensitivity 89dB/W/m
• Frequency Response 35Hz ~ 22000Hz
• Speaker Impedance 4Ω
• Dimensions with Grill (WxHxD) 176 x 176 x 70mm
• Dimensions w/o Grill (WxHxD) 165 x 165 x 44.2mm
• Mounting Depth 44.2mm
• Mouting Hole Diameter Ø 142mm
• Tweeter Height 7mm
• Speaker Weight with Grille (pc.) 602gr
• Speaker Weight w/o Grille (pc.) 536gr
• Gross Weight 1305gr
• Weight of Magnet 220gr

Tweeter Specifications

• Cone Size 25mm
• Cone Material Balanced Dome

Accessories

• Screws (Parker-type) Ø 4 x 25mm, 8 pieces
• Speed nut φ 4, 8 pieces
• Speaker grille included
• Speaker cable 0.3m

BASSLINK MINI Compact Under Seat Powered Subwoofer System

Infinity BassLink MINI delivers deep bass and takes up little space. Infinity's smallest powered subwoofer can be hid in the most compact of locations and deliver exceptional performance to any car audio system. Powered by a 100Watts Amplifier, Basslink MINI delivers accurate, tight bass you would expect from Infinity, all while running cool and drawing minimal current from your vehicles charging system.

Features

Big Bass, Small Space
Infinity BassLink MINI delivers deep bass and takes up minimal space. Its on-board 100Wrms amplifier has been performance matched to subwoofer to deliver tight, accurate bass.

Intelligent Electronic Design for Reliable and Extraordinary Performance
The BassLink MINI employs high-pass filters and limiters that deliver exceptional at-the-limits performance.

Die-Casting Aluminum Enclosure Design
The all-die-cast aluminum enclosure design not only minimizes size but also eliminates rattles to deliver clear bass from tiny space.

Bass Volume Remote Control
Bass Volume Remote control is included to let you adjust the sound from the driver's seat.

General Specifications

• Driver Complement 6"x8"(152mmx203mm) Subwoofer
• Amplifier Power 100Wrms; 200W Max
• Frequency Response 30Hz – 150Hz
• Fuse 15A
• Maximum Current Draw 13 A
• Quiescent Current Draw <600 mA
• Input Sensitivity 0.1 V – 4.0 V Low-Level Input; 0.25 V – 20V High-Level Input
• Crossover Frequency 50 Hz – 150 Hz
• Crossover Slope 12 dB/octave
• Bass Boost 0dB to + 12dB @ 50Hz
• Dimensions (L x W x H) 11-7/16" x8-5/16" x 3" (289.6mm x 209.6mm x 75.0mm)
• Weight 8.22 lbs (3.73kg)

In The Box

• 1 x Under seat subwoofer
• 4 x Screws
• 4 x Small metal plate
• 1 x Wiring harness
• 1 x Bass volume remote control (with cable)
• 1 x 15A Fuse
