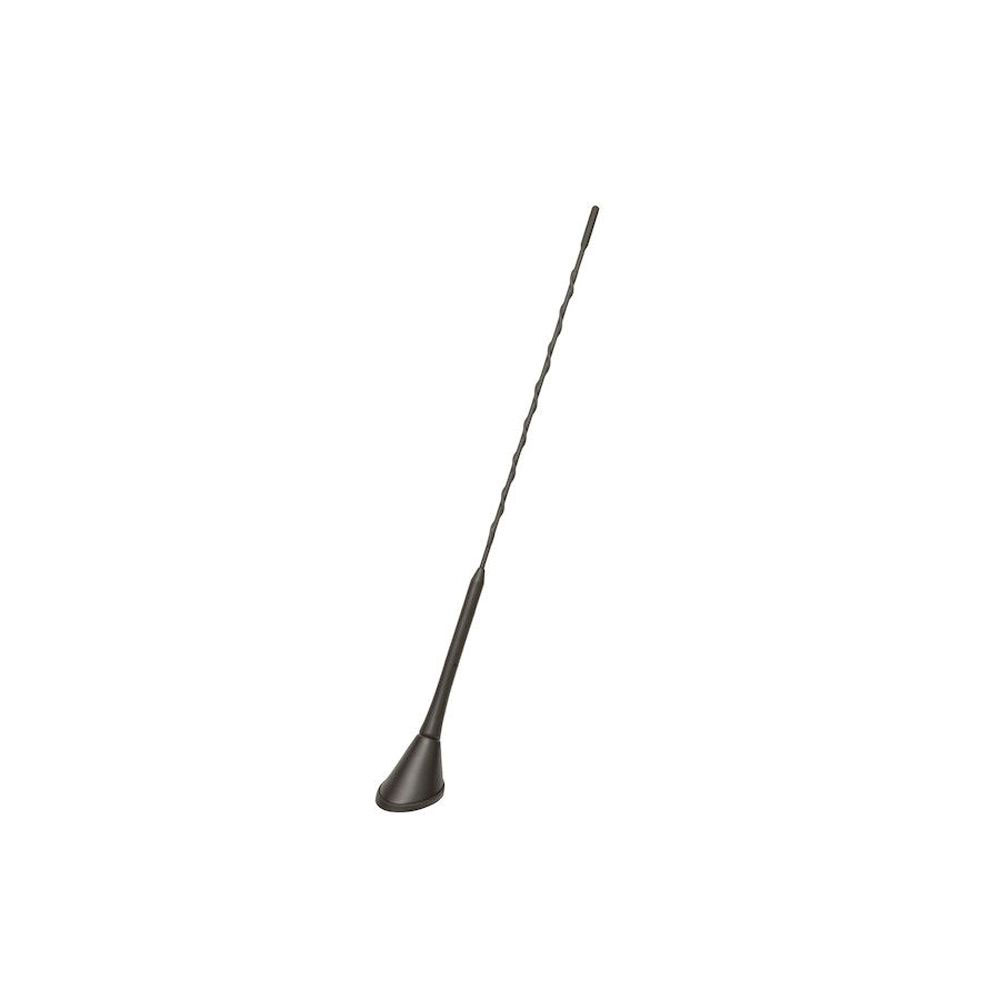

Calearo antennas are designed and manufactured in Italy with a focus on unmatched performance and factory styling. This particular model is a roof mount whip antenna designed for AM/FM and DAB/DAB+ reception.

• Whip length: 41cm
• Angle: 60° fixed

The two signals each have a separate wire, denoted by the colour of Fakra connector. Extension cables are available for each signal where required, outlined below.

• AM/FM - White Fakra - ANC7581185 Extension
• DAB - Black Fakra - ANC7581012 Extension

Specifications

• Purpose AM/FM, DAB/DAB+
• Install Location Roof
• Active
• Mast Angle 60°
• Mounting Hole Diameter (cm) 1.9
• Connection Fakra
• Cable Length (m) 0.18-0.20
• Cable Type Coaxial
• Waterproof Rating IP68
• Height (cm) 45.0
• Width (cm) 4.3
• Depth (cm) 6.0
