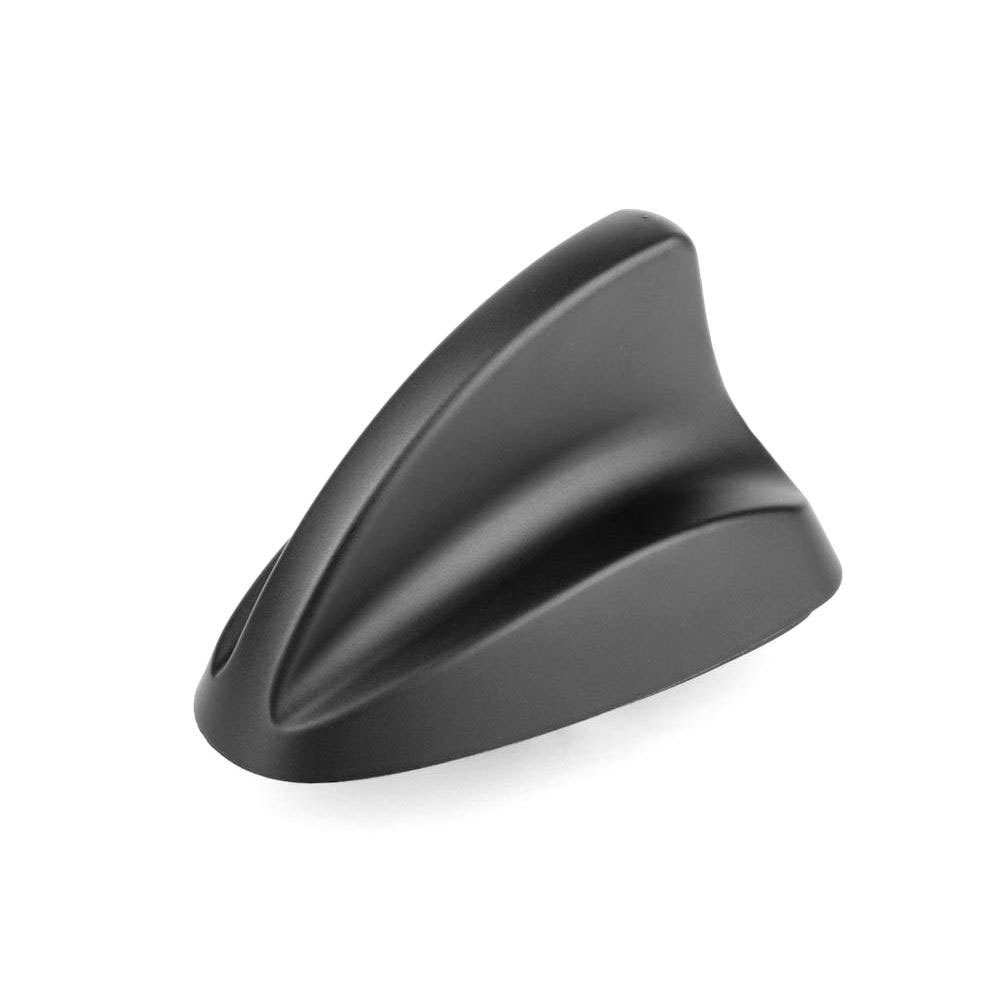

Calearo have long produced top performing shark fin antennas capable of receiving multiple signals. This particular model is a Shark 2 style antenna designed for AM/FM and DAB/DAB+ use.

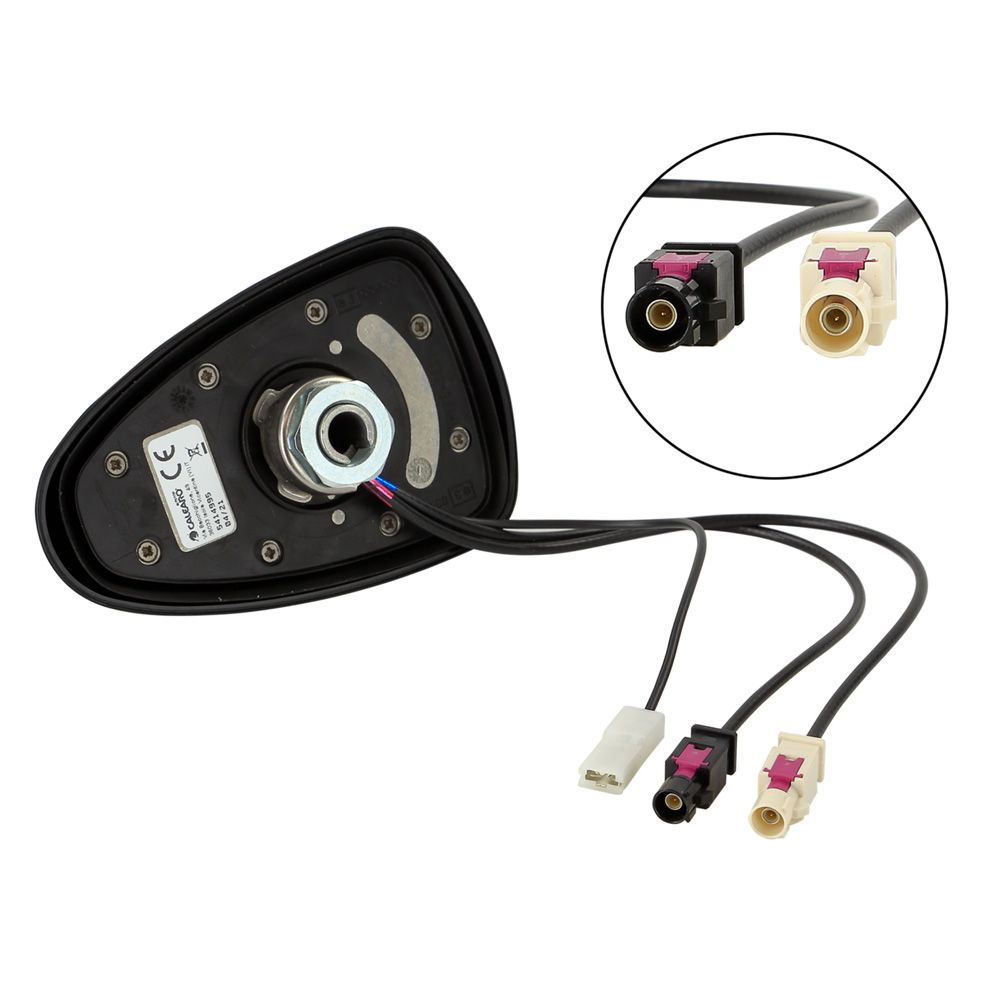

The various signals each have a separate wire, denoted by the colour of Fakra connector. Extension cables are available for each signal where required, outlined below.

• High performance AM/FM & DAB shark fin antenna
• Extensions required - see below
• AM/FM - White Fakra - ANC7581185 Extension
• DAB - Black Fakra - ANC7581012 Extension

Specifications

• Purpose AM/FM, DAB/DAB+
• Install Location Roof
• Active
• Phantom Feed
• Mounting Hole Diameter (cm) 1.9
• Connection Fakra
• Cable Length (m) 0.25
• Cable Type Coaxial
• Waterproof Rating IP68

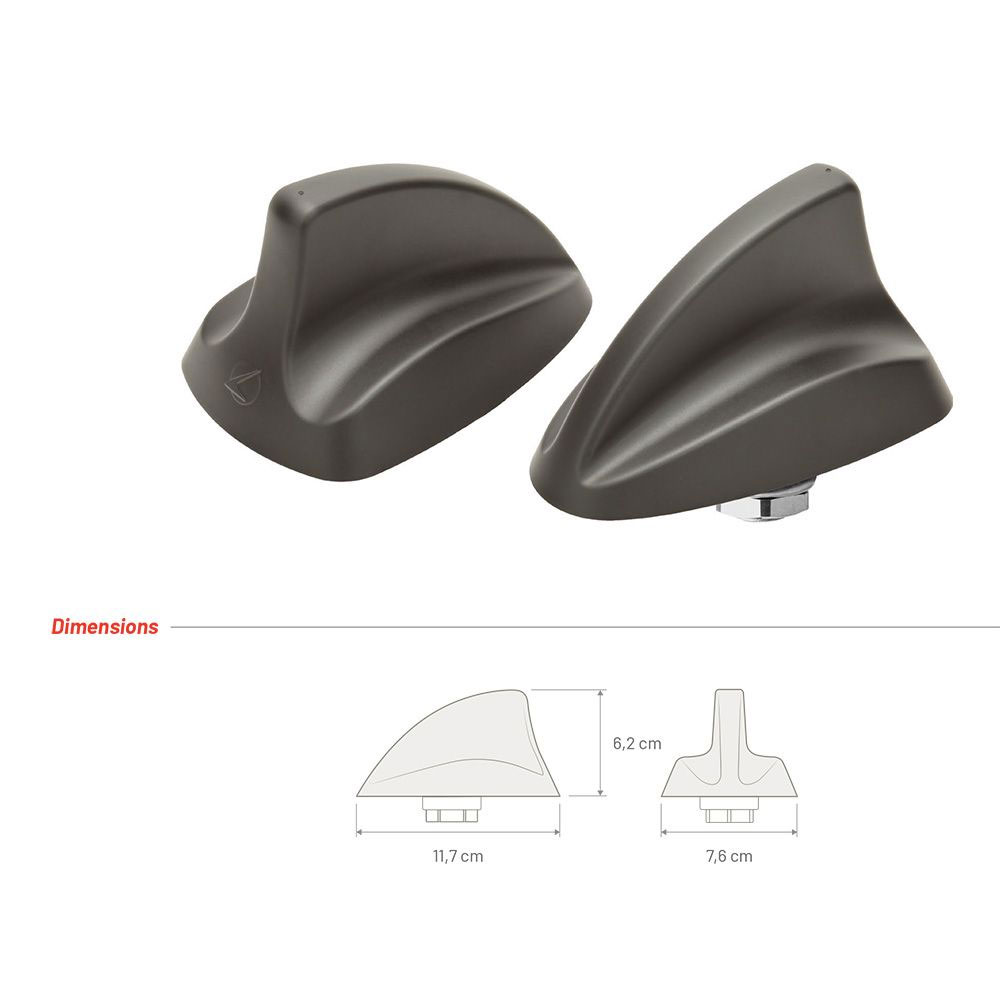

• Height (cm) 6.2
• Width (cm) 7.6
• Depth (cm) 11.7
