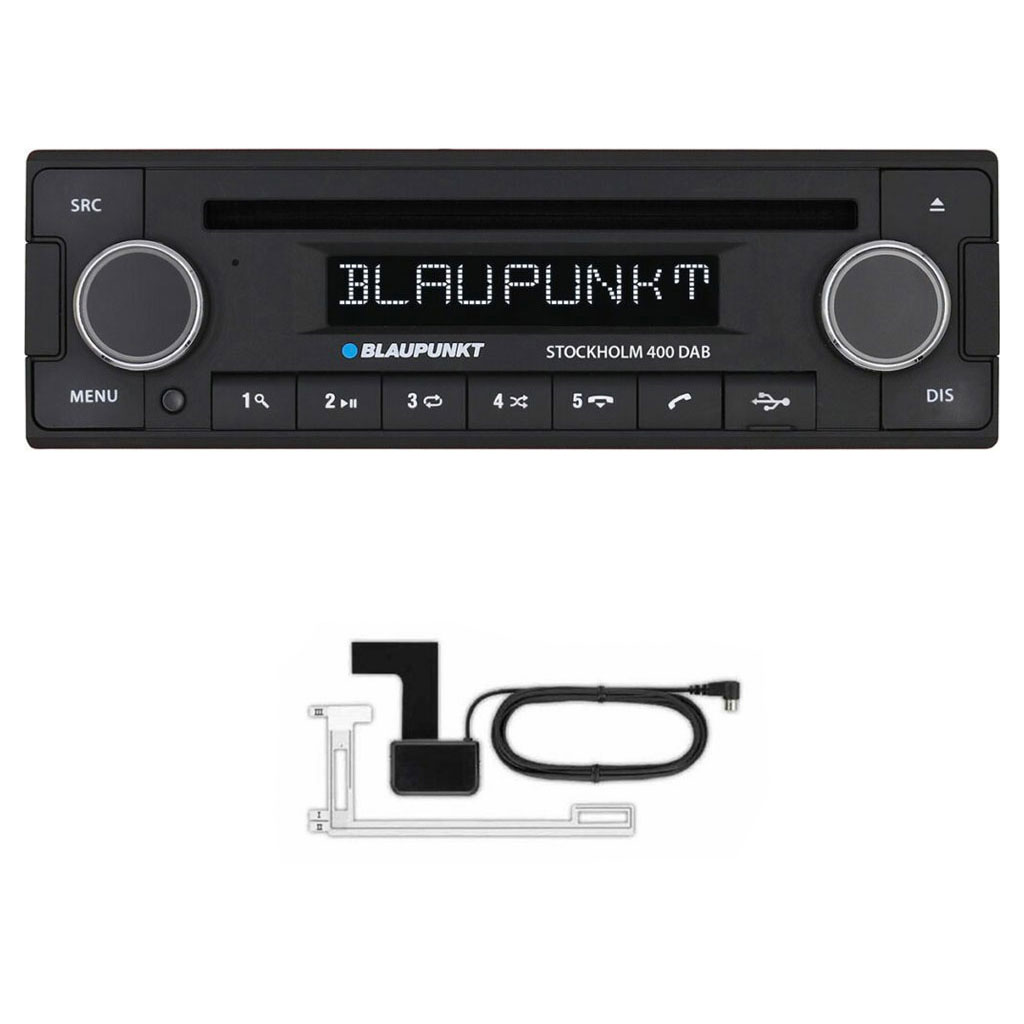

Blaupunkt Stockholm 400 DAB

You have to bring your own music, the Stockholm 400 DAB doesn’t care about anything else. With a USB port on the front of the device and an audio input on the back, as well as a CD player, nothing is left to be desired. It goes without saying that the device comes with a wealth of other comfort features such as DAB+ tuner, Bluetooth for telephony and audio streaming, Apple iPod support, input for connection to a steering wheel remote control and multicolor lighting.

DAB AERIAL REQUIRED FOR DAB FEATURE TO WORK. (NOT INCLUDED)

Highlights

Radio

• High-End CODEM IV High-End World-Tuner
• FM, AM, DAB, DAB+ Tuner w. PS, AF, REG, EON, RT, CT, PTY, TA, Service following, DLS

Media Player

• USB front, rear AUX
• CD, CD-R, CD-RW
• MP2, MP3, WMA, FLAC, M4A/ AAC, WAV Support
• Apple iPod Support

Bluetooth

• Int. and ext. microphone support
• Audio streaming with track info
• Access to voice assistant (e.g. Siri, Google, Alexa)
• Wake-up on call
• Phonebook access

Sound

• Sound presets
• Loudness
• 4-channel pre-amp out + 2 sub-out
• 4 x 50 Watt

General

• Multi Color (7 colors)
• DIM-function
• Permanent memory
• IR- remote control option, RC-10 compatible
• SWC option (analogue)

Technical Specifications

Radio Analog / Digital

• Tuner Type: High-End Automotive Tuner Blaupunkt CODEM
• World Tuner (switchable): EU, USA, South America, Thailand
• Frequency bands: FM, AM, DAB, DAB+
• Frequency band FM: 87.5 – 108 MHz
• Frequency band MW: 531- 1602/ 530- 1710 kHz
• Channels (frequency band) DAB/ DAB+: 5A- 13F (174,928- 239,200 MHz)
• Station memory: FM1, FM2, FMT (15x UKW), AM1 (5x AM), DAB1-3 (15x DAB)
• Station memory levels deactivatable: FM2, FMT, AM, DAB2, DAB3
• Station display (PS): Yes
• Radiotext/ Radiotext Plus (RT/ RT+): Yes/ No
• Display DLS/ ENSEMBLE/ SERVICE: Yes/ Yes/ Yes
• Alternate frequency function (AF): Yes
• Traffic Radio (TA) FM/ DAB: Yes/ Yes
• RDS Time (CT): Yes
• Enhanced Oth. Netw. (EON): Yes
• Regional function (REG): Yes
• Program type identifier (PTY) FM/ DAB: Yes/ Yes
• Scrolling: Yes (one time / repetitive)
• Travelstore/ Memory Travelstore: Yes (5x FMT)
• Band Scan + Preset Scan FM/ DAB: Yes/ Yes
• Sensitivity (FM): Two levels (lo / dx)
• Noise suppression (FM): Yes
• Hi-Cut (FM): Yes (multi-level switchable)
• DAB-DAB Service following: Yes
• DAB-FM Service following: Yes
• Service scan: Yes
• Ensemble/ Service change: Yes/ yes
• Service browsing: Yes
• Frequency response FM: 30 – 15.000 Hz +/- 3 dB
• Frequency response DAB:20 – 20.000 Hz +/- 3 dB

Media Player

• AUX rear: Yes (3.5 mm jack)
• AUX detection/ source activation: No/ manual
• USB front: yes (type A, recessed jack)
• USB rear: No
• Memory card reader: No
• Concealed front inputs: Yes (USB)
• Compatible formatting (USB): FAT16, FAT32, exFAT
• Maximum storage size (USB, memory cards): > 128 GB
• Maximum file/folder count (USB, memory cards): > 20000
• CD- loader (für CDDA, CD-R, CD-RW): Yes
• Playback formats: MP2, MP3, WMA, FLAC, M4A/ AAC, WAV
• Display options (may depend on media file): ID3V2 (title, artist, album), folder, file, playing time
• Folder & file browsing: Yes
• Scrolling: Yes (one time / repetitive)
• iPod, iPhone control: Yes (via USB)
• Shuffle folder/ media: Yes/ Yes
• Repeat Title/ Folder/ All: Yes/ Yes/ Yes

Bluetooth

• Phone call: Yes
• Internal microphone: Yes
• Connectivity ext. microphone: Yes
• Answer/ reject call: Yes/ Yes
• Access phonebook: Yes (max. 1000 numbers)
• Audio streaming: Yes
• Audio streaming ID3 track display: Yes (Title, Artist, Album, Playtime)
• Scrolling: Yes (one time / repetitive)
• Voice assistant access
• (like Siri, Google, Alexa): Yes
• Cell phone navigation audio mix: No
• Auto wake-up on call: Yes (when radio off + ignition on)
• Fast pairing without PIN: Yes
• Automatic reconnection: Yes
• Bluetooth version: 5.0
• Number of paired devices: max. last 5
• No. of devices connected at the same time: Max. 1
• Supported profiles: A2DP, AVRCP, HFP, SPP
• Audio Codecs: AAC, SBC

*Availability/ support of functions depend on the phone/ app used!

Sound

• Equalizer: Presets (Rock, Pop, Classical)
• Bass/ treble adjustment: Yes / yes (+/- 7 steps)
• Balance/ fader: Yes / yes (+/- 9 steps)
• HPF/ LPF: No
• Loudness: Yes
• Sound Presets: Rock, Pop, Classical
• Source specific sound adjustment: Yes
• Speaker Outputs (Channels): 4
• Preamp Outputs (Channels, Voltage): 4 (RCA, < 2V)
• Sub-Out (Channels, Voltage): 2 (RCA, < 2V, gain/ frequency variable)
• Max. Power: 4 x 50 watts
• Sine power at 14.4 V: 4 x 24 watts (according to DIN 45324)

General

• Display: LCD, negative, anti-reflective, wide angle, alphanumeric + symbols
• Illumination color display/ keys: Multi color, 7 colors (white, green, yellow, red, violet, blue, skyblue)
• Day/ Night mode: Yes (manual/ via dimmer connection)
• Brightness: Multi-level, variable (16 steps)
• Time display: Yes
• HMI languages: English, German
• Low standby current: Yes (< 3,5 mA )

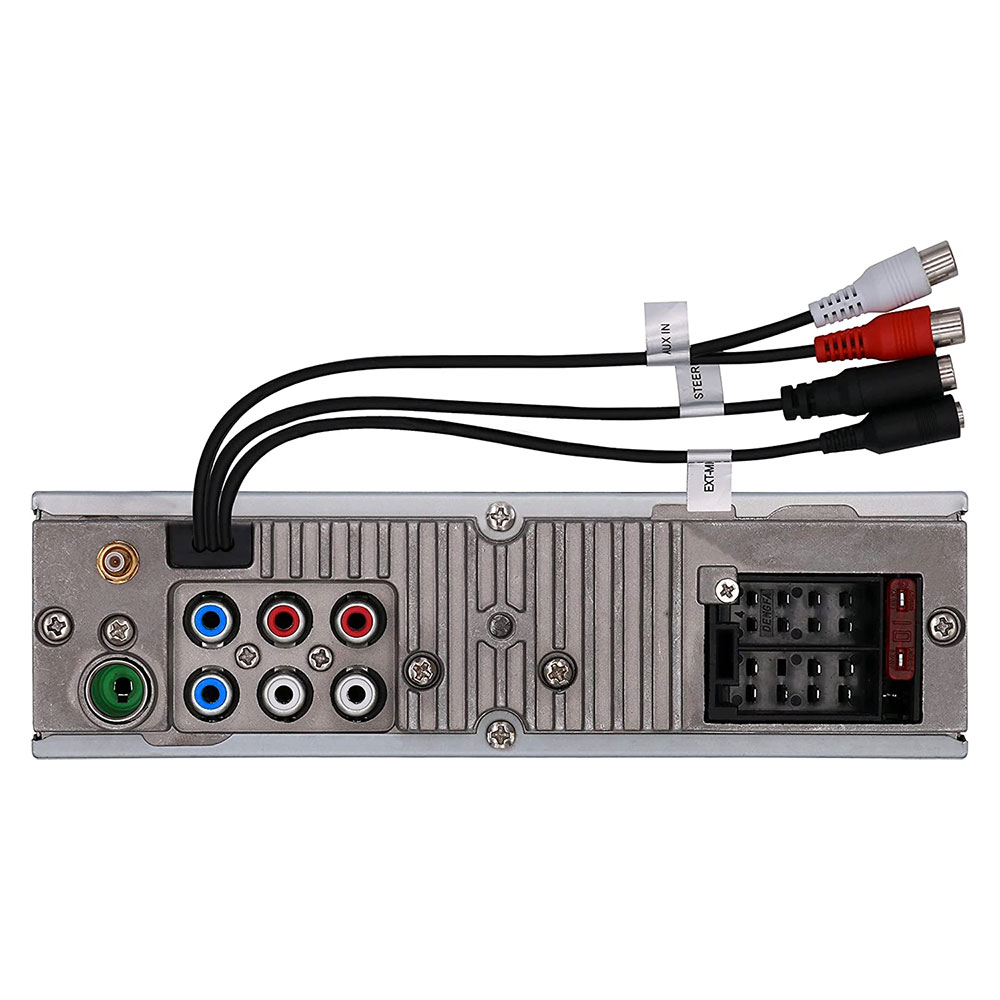

• Antenna inputs: FM DIN/ ISO (with adaptor), DAB SMB (DAB with 12 V phantom power)
• Mute input/ Telephone mute: Yes (GND active)
• Ext. handsfree microphone connector: Yes
• Remote control: Yes (IR input for RC-10 and card remote)
• Steering wheel remote control (SWC): Yes (analog, programmable, pre-programmed)
• Variable scan time: Yes (4, 8, 12, 16, 60s)
• Confirmation beep: Yes (can be deactivated)
• Control panel type: Fixed panel
• Color panel/ decor ring: Black/ Black
• Software Update: via USB
• Permanent Memory: Yes (Settings & Presets)
• Demo Mode: Yes
• Weight: approx. 1.45 kg
• Dimensions: housing 52 x 178 x 170mm, front 188 x 58mm (H x W x D)
• Operating voltage: 10.5 – 14.4 V
• Power consumption: in operation: < 10A, 10 sec. after ACC power off: < 3.5 mA

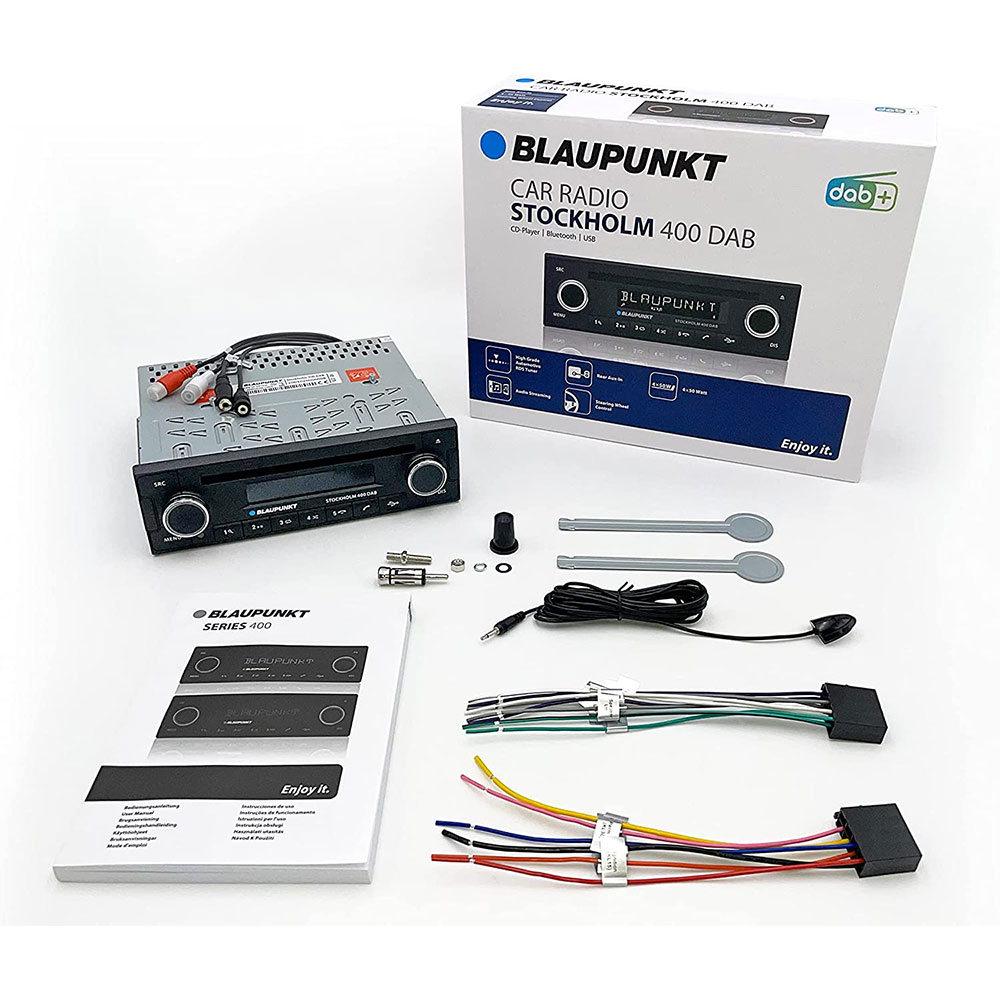

Scope Of Delivery

• DAB antenna: Optional accessories (e.g. 2 006 019 000 000)
• IR remote control: Optional accessories (e.g. 1 101 402 001 001)
• External BT microphone: Yes (5 104 020 001 001)
• Unlocking tool: Yes
• Connectors (ISO A, B): Yes
• Antenna adaptor (DIN/ ISO): Yes
