Blaupunkt Durban 224 DAB BT

Heavy Duty Series: Work hard & play hard! 24 V | DAB+/FM | Bluetooth

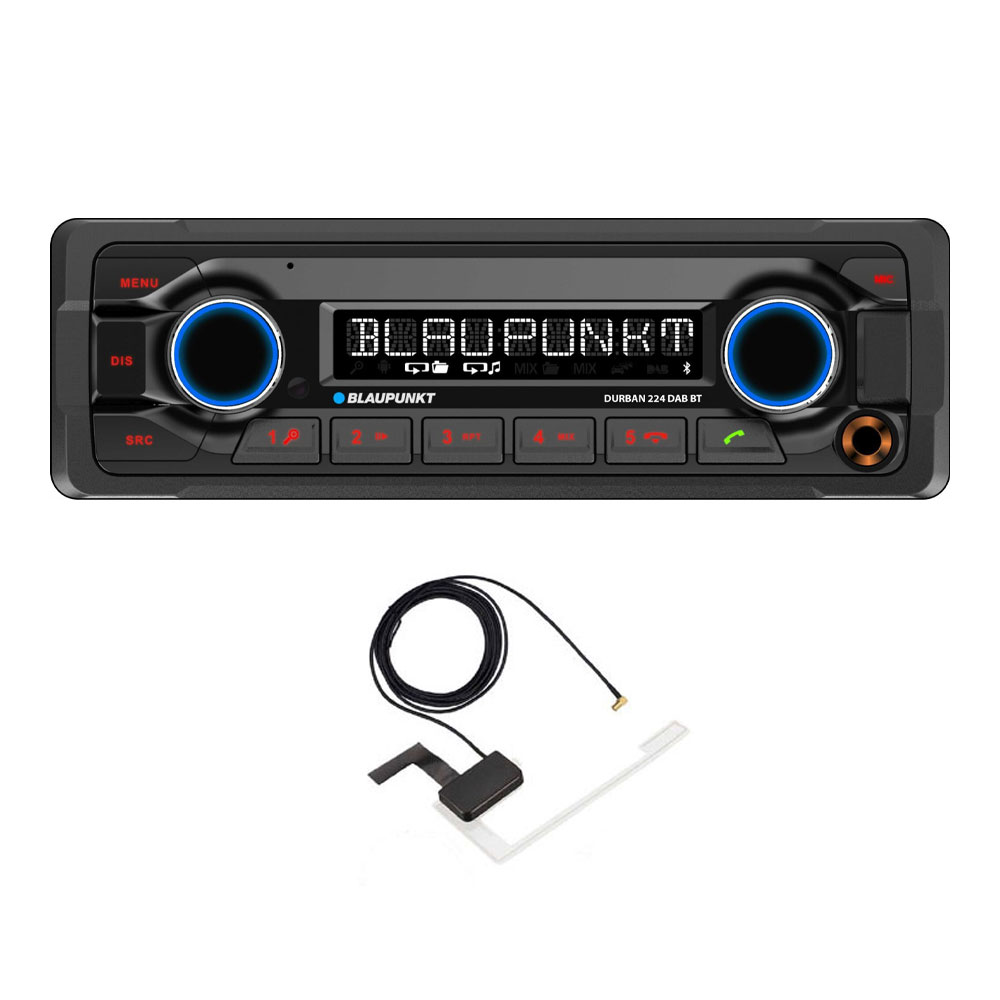

DAB AERIAL INCLUDED

Highlights

• High-End Codem Automotive Tuner
• FM (RDS), AM (MW, LW) & DAB+
• Heavy Duty Design
• Twin-Encoder concept for fast and comfortable folder/file browsing
• Playback formats: MP3, WMA
• Fast playback from USB
• Selectable display modes (ID3-Tags, folder/ playtime, clock, all mode)
• Data carrier: USB
• 9-digit high-grade wide-angle display plus status icons
• Built-in Bluetooth (HFP, A2DP, PBAP, SPP)
• Twin Connect
• Navigation Audio Mix
• Built-in microphone + external mic connector
• Front USB (Standard A-type)
• Rear USB (Standard A-type)
• Front-Aux-in
• Steering wheel control input (programmable)
• 4x 50 Watt Max. + 4-channel Preamp-out
• Separate Sub-Out (var. gain/frequency)
• 3-band, semi-parametric Equalizer
• Sound presets (Rock,Pop, Classic)
• X-Bass
• 24 V operating voltage
• Short installation depth

Technical Specifications

DAB Features

• DAB / DAB+
• Band III / L-Band
• Service Scan
• Preset stations: 15 (DAB 1,2,3)
• Ensemble / Programme
• Comfort browsing
• Programme scan
• Service link DAB-DAB
• Service link DAB-FM
• Service link DAB-DAB-FM
• Traffic announcement (via FM RDS TA)
• TY programmes
• Frequency response (Hz) +/- 3 dB

Analog Radio

• Type of tuner: High-End Codem Automotive Tuner
• World tuner (swtichable): EU, Americas, Thailand
• Wave bands: FM1, 2, MW, LW
• Radio Data System (RDS): Alternative Frequency (AF), Clock Time (CT), Enhanced Other Networks (EON), Programme Service Name (PS), Program Types (PTY), Regional Programme (REG), Traffic Announcement (TA), Traffic Program (TP)
• Travelstore (FMT)
• Band Scan / Preset Scan
• Station memory: 25
• Sensitivity: lo / dx
• Interference suppression
• Frequency response (Hz) -3 dB: 30 – 15.000

Bluetooth

• Supported version: Bluetooth 2.0 with EDR
• Supported profiles: HFP, PBAP, A2DP, AVRCP, SPP
• Audio streaming
• Pairing (number of devices): 5
• Pairing Code: 1234
• Hands-free calling: via micro + radio speaker
• Hands-free volume: variable
• Microphone: built-in + external mic connector
• Key functions: accept / hang-up / reject call / redail
• Phone book access (up to 1.000 entries by phone)
• Twin Connect (2 simultaneously connected phones for telephony)
• Navigation Audio Mix (Navigation commands via A2DP)
• Auto Wake-Up (radio switched off / ignition on)

Data Carrier

• USB: USB 2.0
• Formatting USB: FAT 32, FAT 16

Media Player

• Playback format: MP3, WMA
• Title display: ID3-tag (version 2), file, folder
• Folder- & file browsing (w/o track interruption)
• Multiple folder level from MSD
• iPod, iPhone control (via USB)
• Android MP3 control (with operation system Android 2.3 and higher)
• Fast list browsing (via second encoder)
• Display modes (file, folder, song, artist, album, clock, elapsed time, total time, all mode)
• Display of characters: File name up to 50, tags up to 30
• Variable display scrolling (once / always if > 9 digits)
• Mix / Repeat / Scan
• Fast media reading (from USB)
• Bitrate (kBit/s): 32 -320
• Variable bitrates

Equalizer

• Number of bands/ Model: 3 / semi-parametric
• Bass / treble(+/- 7 steps)
• Balance / fader (+/- 9 steps)
• X-Bass
• Sound presets: Rock, pop, classic

Amplifier

• Number of channels: 4
• Max. power: 4 x 50 Watt
• Sinus power at 14.4 V: 4 x 24 Watt

Display

• Type / Digits: DOT (1-line) / 9
• Angle: Wide-view
• Colour: negative, black and white
• Brightness: adjustable
• Clock display: 24 / 12 hrs

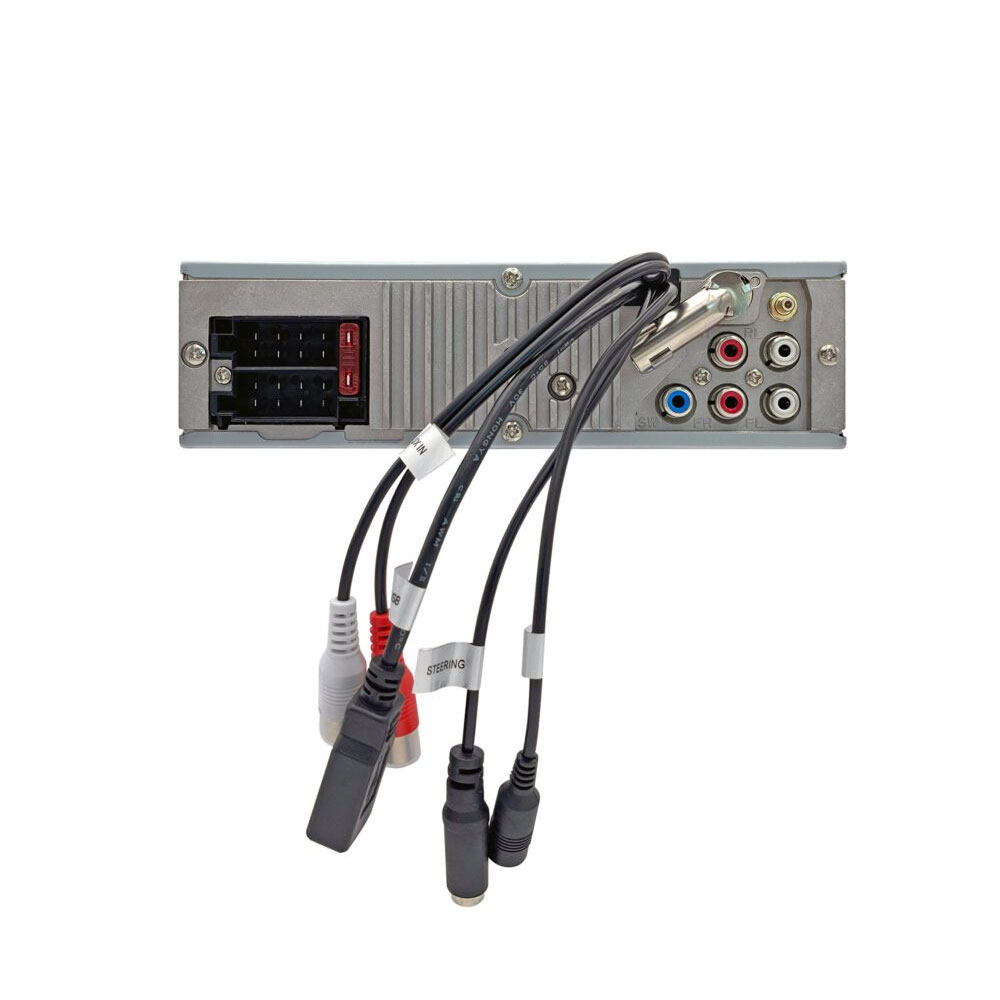

Inputs

• Antenna (number of): 2 (FM ISO + DAB SMB)
• USB (number of / type): 2 (front + rear / standard A-Typ)
• iPod/iPhone (via front + rear USB)
• Microphone-In (front)
• Aux-In (number of, type): 1 (rear, RCA)
• Steering wheel control (analog programmable)

Outputs

• Loudspeaker (number of): 4
• Pre-amplifier channel: 4-channels (Cinch)
• Pre-amplifier voltage: 4 V
• Variable amplifier delay time
• Sub-Out (Cinch, var. gain/frequency)

General

• Twin-Encoder concept: Left for volume control & mute, Right exclusively for browsing, phone book,  tuner & menu
• Software update: via USB
• Variable scan-time
• Confirmation beep (on/off)
• Front panel: Fix panel
• Panel / decor-ring color: Black / black
• Encoder / key illumination: Blue / Red
• Operation voltage: 18-32 V
• Permanent preset storage
• Demo mode
• Weight (kg): ca. 1,6
• Height x Width x Depth (mm): 52 x 178 x 120

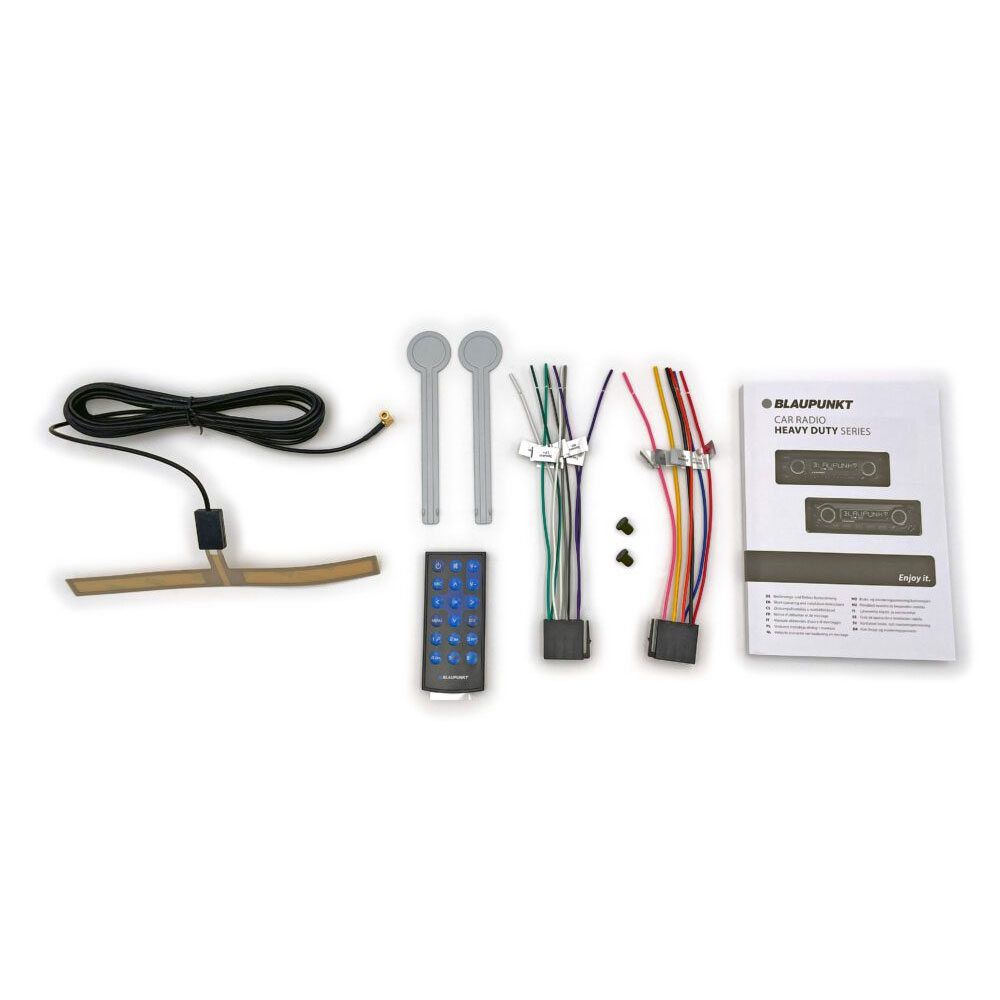

• DAB-onglas antenna: included in delivery
• IR-remote control: included in delivery
• External hands-free microphone: optional
