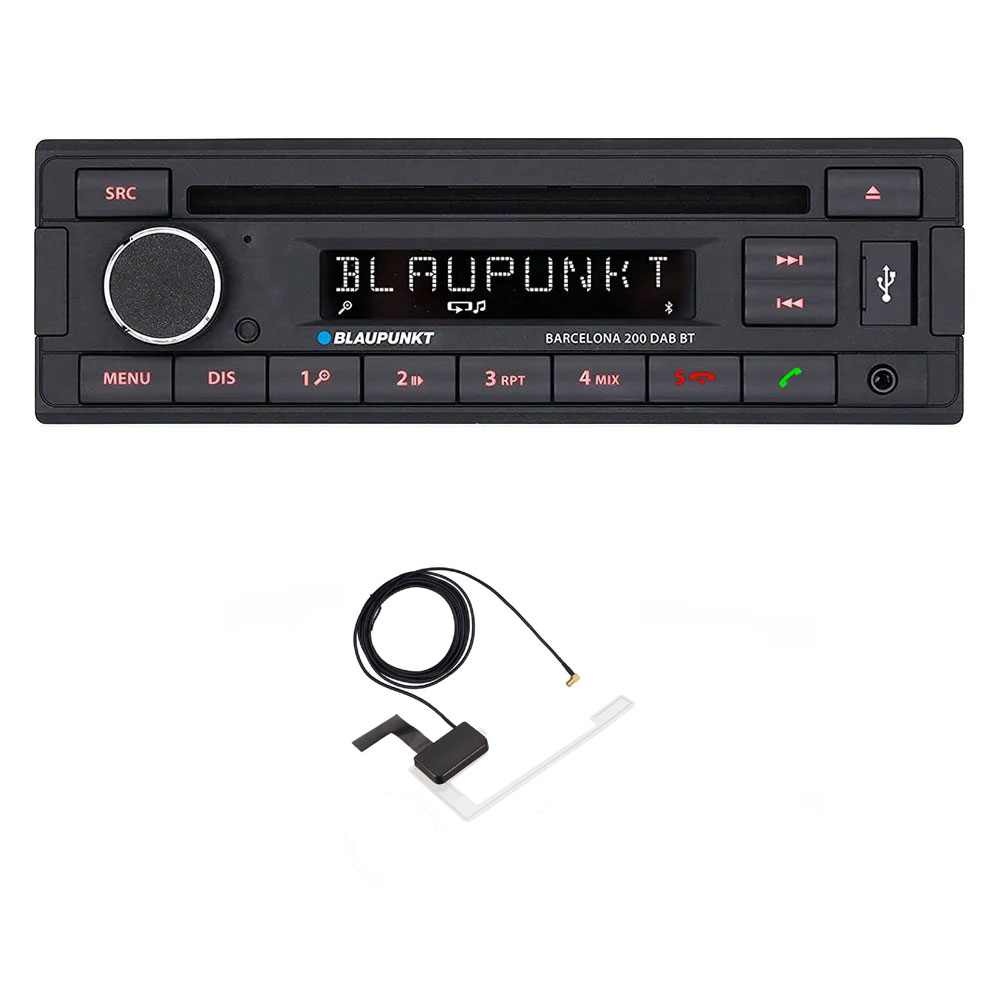

BLAUPUNKT BARCELONA 200DAB BT

1-DIN car radio in stylish Blaupunkt design with DAB+ and RDS tuner, Bluetooth with hands-free function, CD drive, USB and AUX input.

DAB AERIAL INCLUDED

Highlights

• RDS and DAB+ Tuner
• FM (RDS), AM
• Playback formats: MP3, WMA
• Fast playback from USB
• Selectable display modes (file, folder, title, artist, album & playtime)
• Data carrier: CD-DA, CD-R, CD-RW, USB
• 9-digit display
• Built-in Bluetooth (HFP, A2DP)
• Built-in microphone
• Front USB
• Front-Aux-in
• 4x 40 Watt max.
• 2-channel Preamp-out
• Sound presets (Flat, Rock,Pop, Classic)
• X-Bass
• Red key illumination

Specifications

Analog Radio

• Type of tuner: RDS Tuner
• Wave bands: 3x FM / 2xAM
• Radio Data System (RDS): Alternative Frequency (AF), Clock Time (CT), Programme Service Name (PS), Regional Programme (REG), Traffic Announcement (TA), Traffic Program (TP)
• Travelstore: yes (FMT)
• Band Scan / Preset Scan: yes / no
• Station memory: 15 FM / 15 AM
• Sensitivity: lo / dx
• Interference suppression: yes
• Frequency response (Hz) -3 dB: 20 – 18.000

DAB Merkmale

• DAB / DAB+: yes/ yes
• Service update: no
• Service Scan: yes
• Preset stations: yes
• Ensemble / Programme browsing: no / yes
• Programme scan: no
• Service-Link DAB-DAB: no
• Service.Link DAB-FM: no
• Service-Link DAB-DAB-FM: no
• Radio text: no
• PTY Programme: no
• Frequeny response (Hz) +/- 3 dB: 20-18.000 Hz

Bluetooth

• Supported profiles: HFP, A2DP
• Audio streaming: yes
• Pairing (number of devices): 1
• Hands-free calling: yes
• Microphone: built-in
• Key functions: accept / hang-up / reject call / redail
• Phone book access: yes (up to 100 entries by phone)

Data Carrier

• CD: CD-DA, CD-R, CD-RW
• Type disc-drive: Automatic loading
• USB: 1 x front

Media Player

• Playback format: MP3, WMA
• Title display: ID tag, file folder
• Folder- & file browsing: no
• Display modes: yes (file, folder, title, artist, album, playtime)
• Mix (random play) / Repeat / Scan: yes / yes / yes
• Bitrate (kBit/s): 32 -320

CD Player

• Schock Proof Memory: yes
• Frequency response (Hz) –1 dB: 20 – 20.000

Audio / Equalizer

• Bass / treble: yes / yes (+/- 7 steps)
• Balance / fader: yes / yes (+/- 9 steps)
• X-Bass: yes
• Sound presets: Flat, Rock, Pop, Classic

Amplifier

• Number of channels: 4
• Max. power: 4 x 40 Watt
• Sinus power at 14.4 V: 4 x 20 Watt

Display

• Type / Digits: 1-line / 9
• Colour: negative, black and white
• Clock display: 24 / 12 hrs

Inputs

• Antenna (number of): 2 (FM ISO / DAB SMB 12V phantom)
• USB (number of / type): 1 (front)
• Aux-In (number of, type): 1 front (3,5 mm jack)

Outputs

• Loudspeaker (number of): 4
• Pre-amplifier channel: 2-channels (RCA)
• Pre-amplifier voltage: 1.5 V (rms)

General

• Software update: via USB
• Confirmation beep: yes
• Menu language: English
• Front panel: Fix panel
• Panel illumination: Red
• Permanent preset /& setting storage: yes
• Ignition logic: yes
• Weight (kg): ca. 1,4
• Dimensions (mm): 188 x 58 x 165
• DAB-onglas antenna: optional
• ISO connector cable set: no
• User manual: yes
• 4-color gift box: yes
• Antenna adapter: yes
