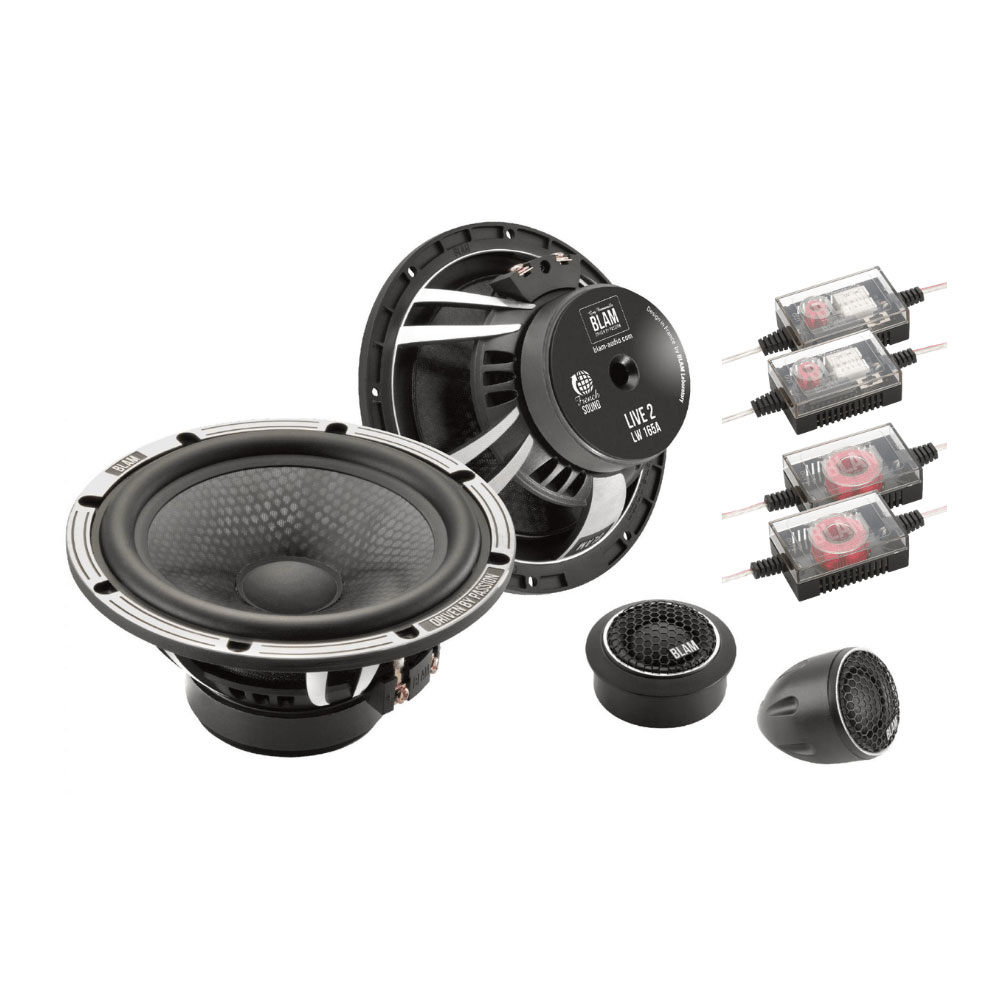

With its high-end design, the LIVE L165A - ACOUSTIC speaker system from BLAM system set specially designed to provide the best sound quality even in minimal door space. Unparalleled technology and excellent features characterize this speaker set. With a light and rigid composite diaphragm combined with a 28 mm diameter coil gives it dynamism and detail that brings the recording to life without sacrificing sound quality. This system consists of two 165 mm (6.5”) woofers, two 25 mm (1”) soft dome tweeters, two 12 db/octave low-pass audiophile crossovers and two 12 dB/octave high-pass audiophile crossovers, adapted for bi-amplification.

Product Features

• 2-channel high-fidelity system
• 165 mm woofer
• Max Power 140 W
• Nominal Power 70 W
• Frequency response 55 Hz – 25 kHz
• Sensitivity 92 dB
• Impedance 2 Ω

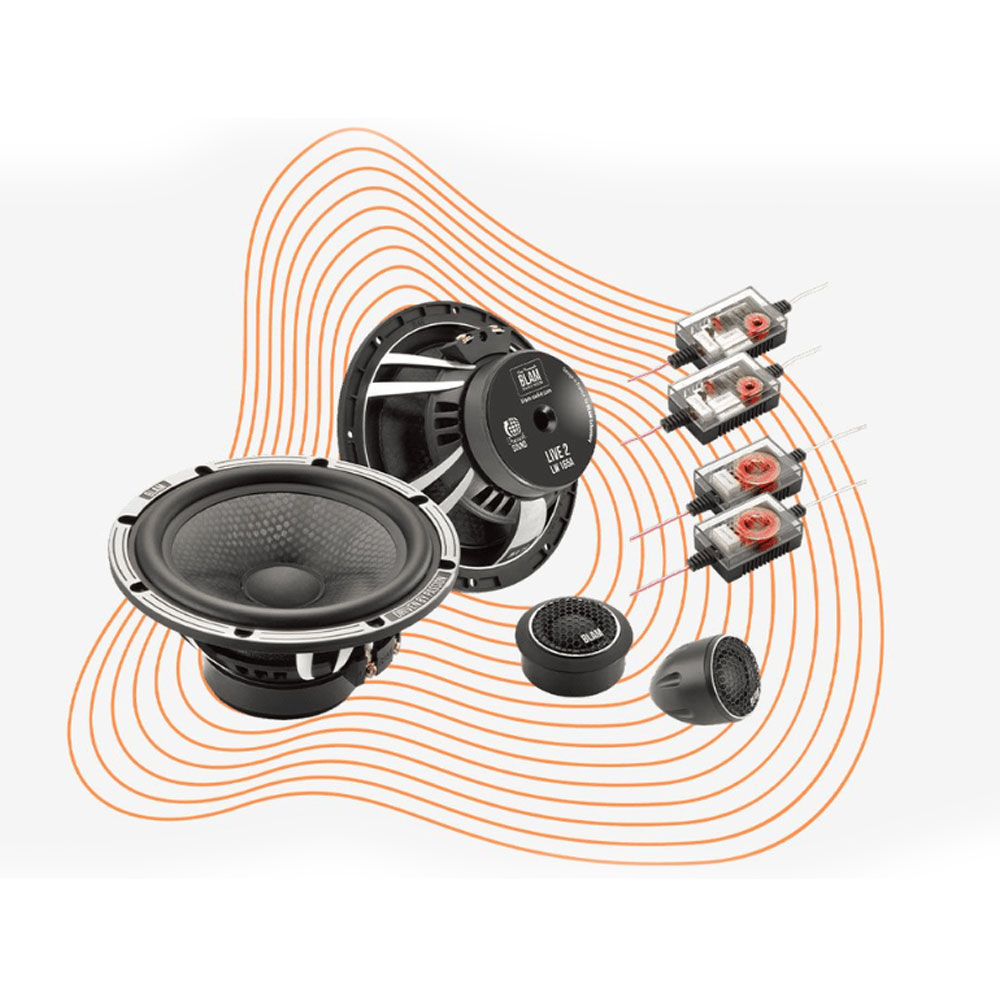

Composition

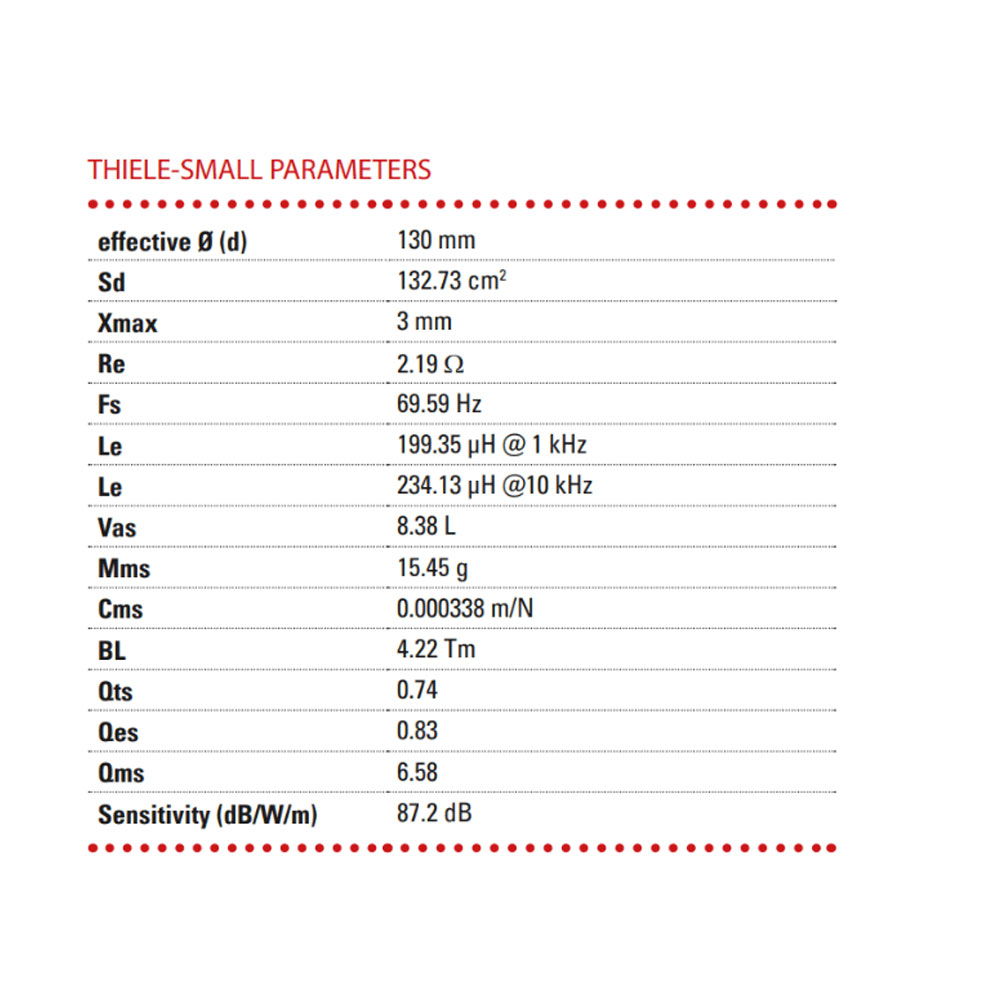

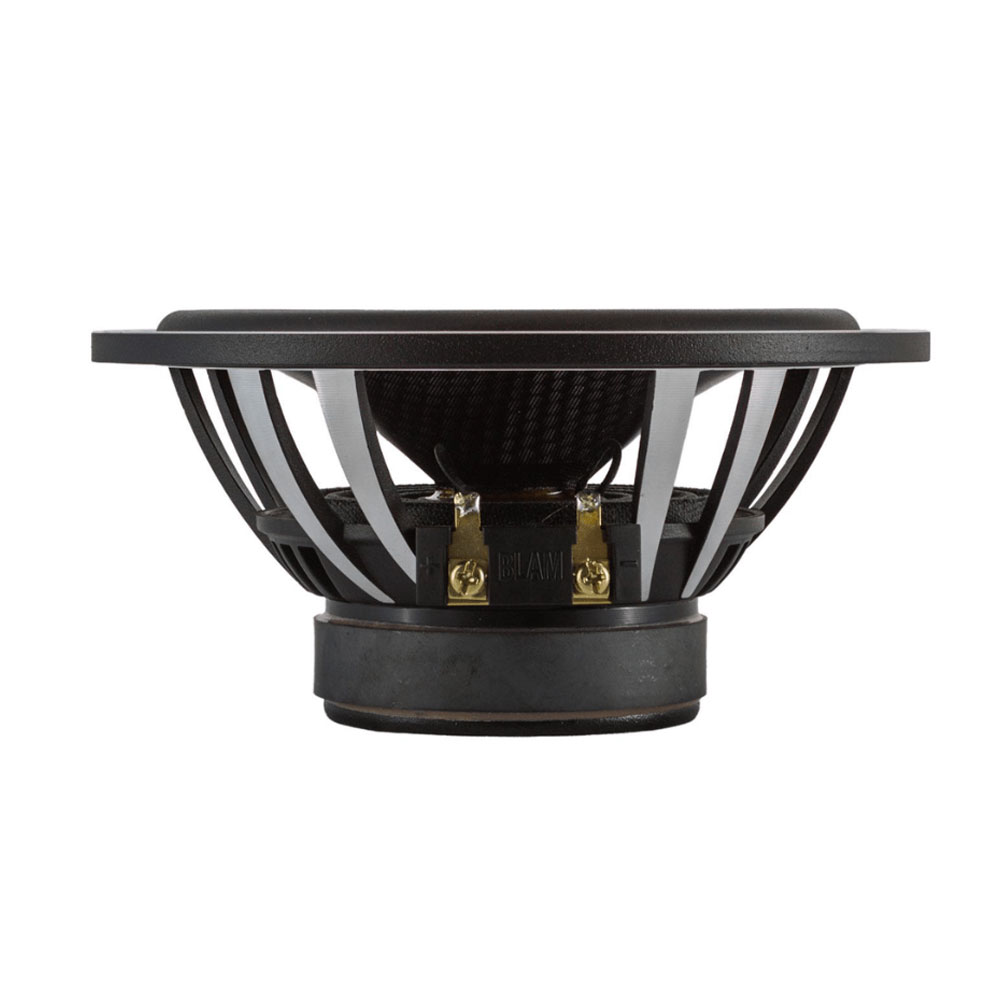

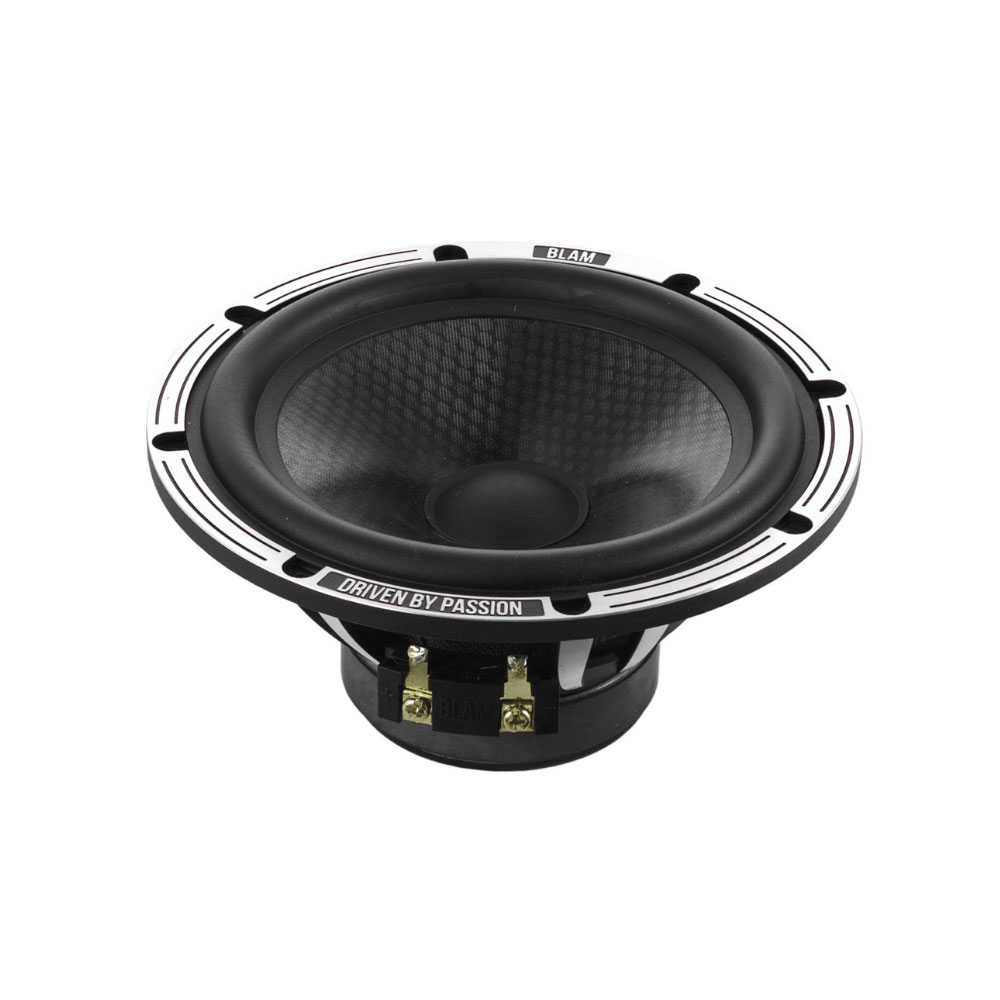

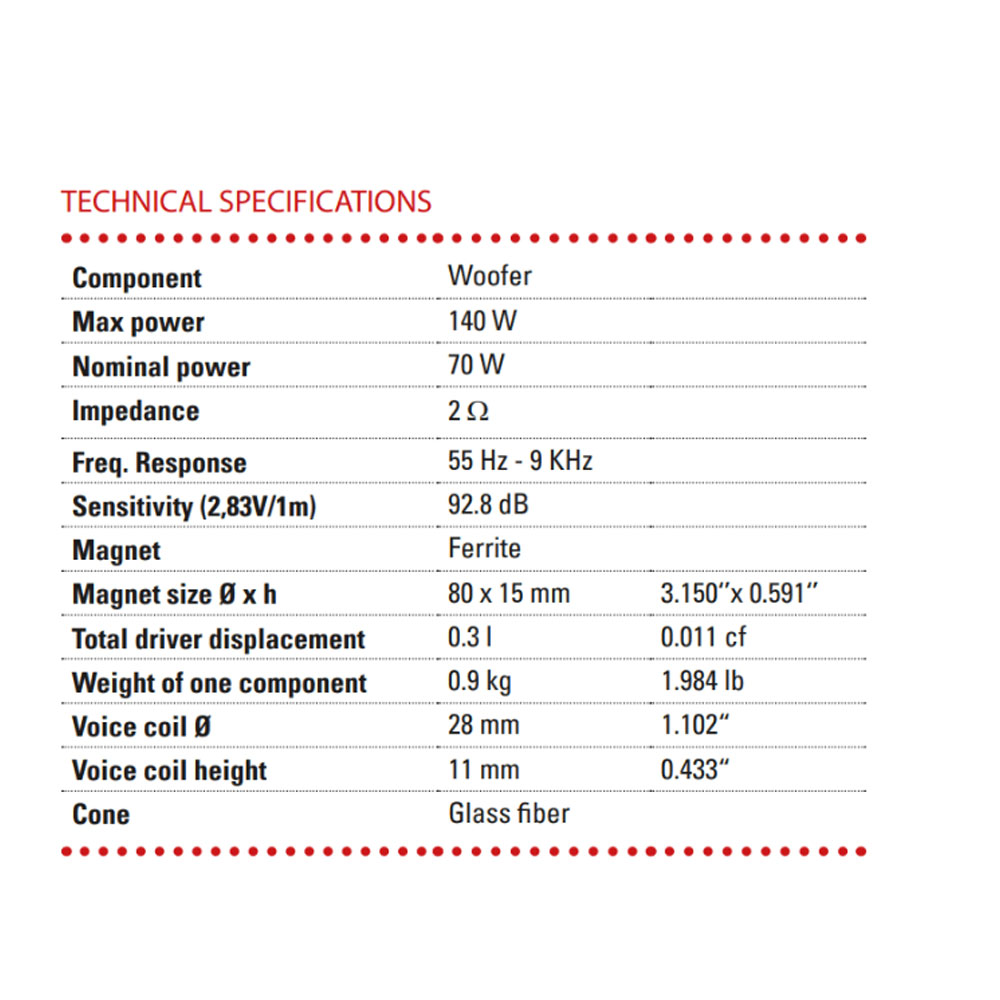

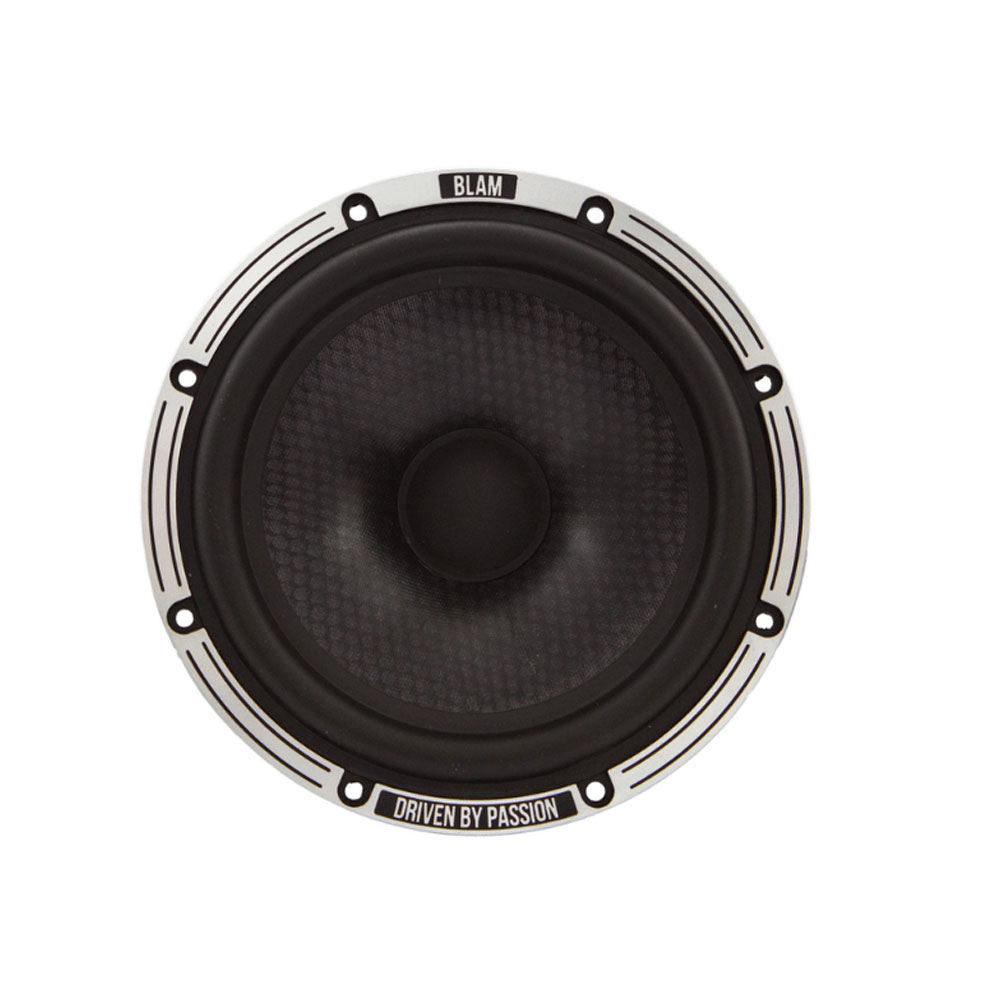

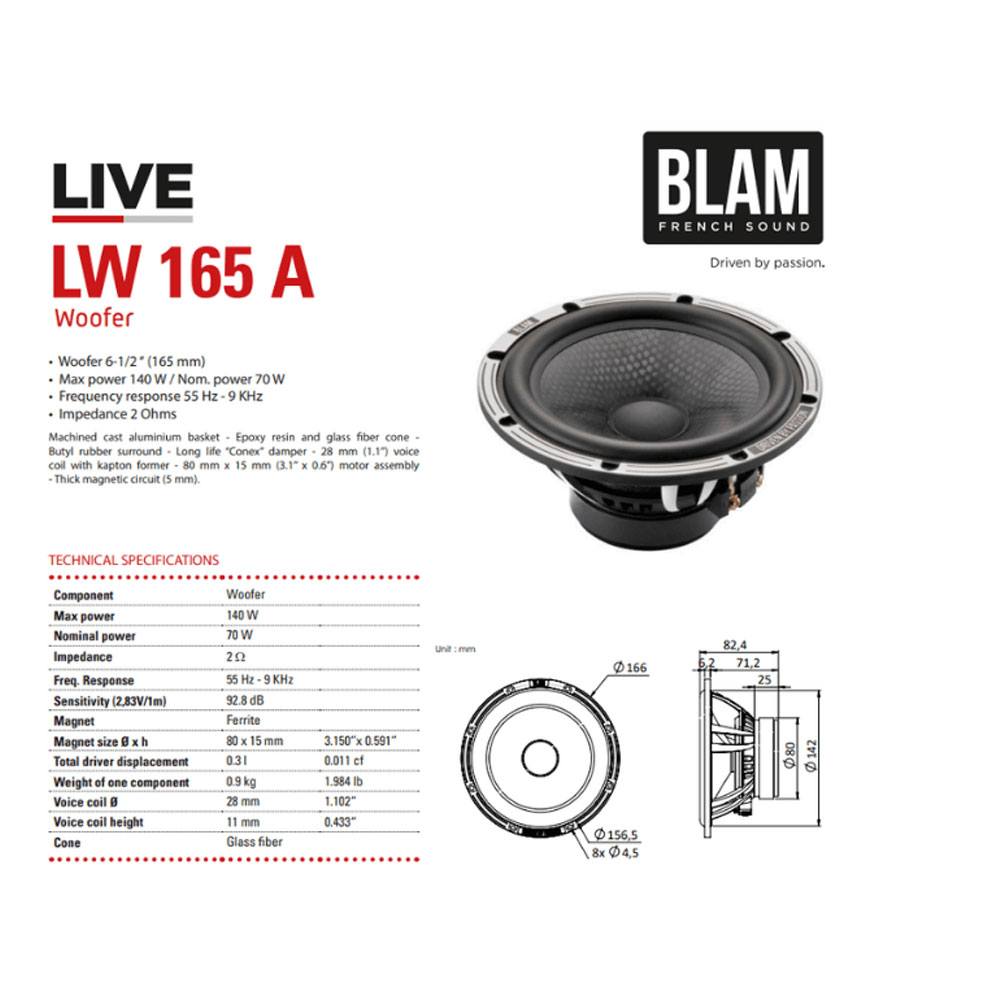

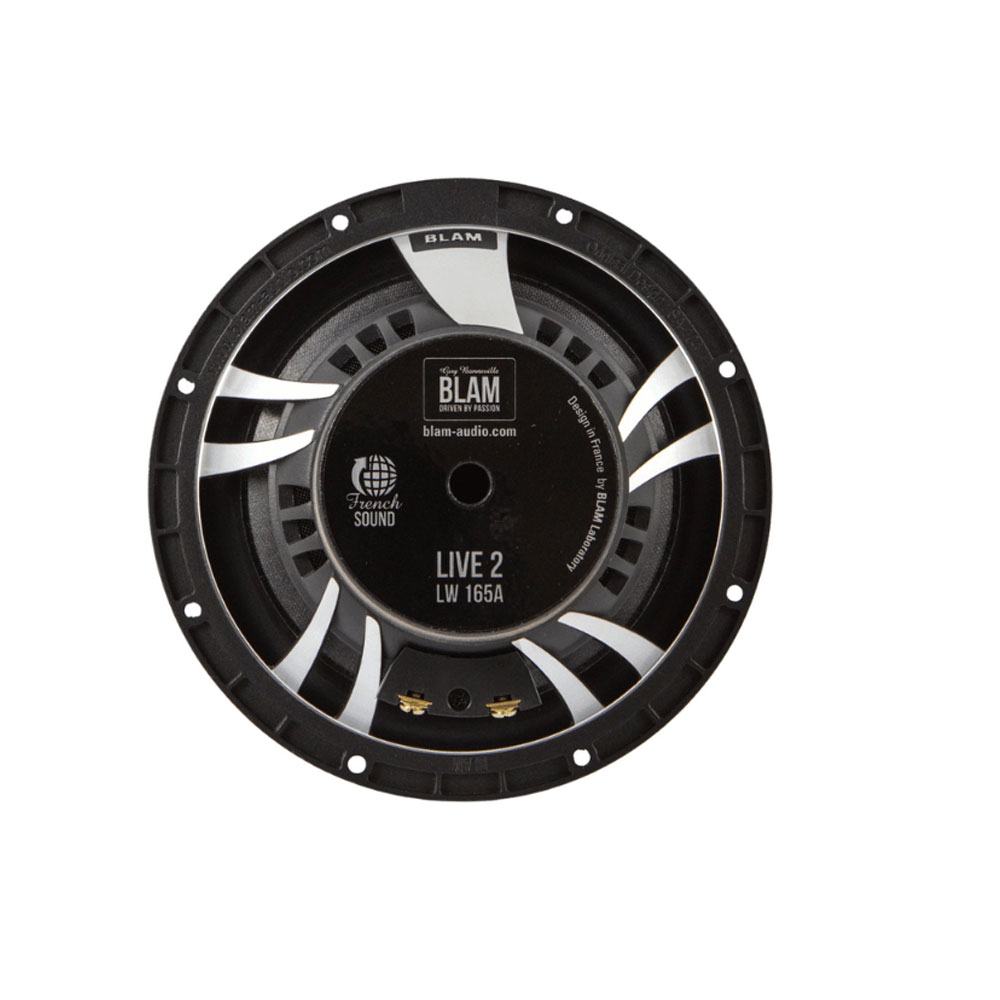

L165A High Fidelity Woofer

• 165 mm (6.5″) woofer
• Max power 140 W
• Nominal power 70 W

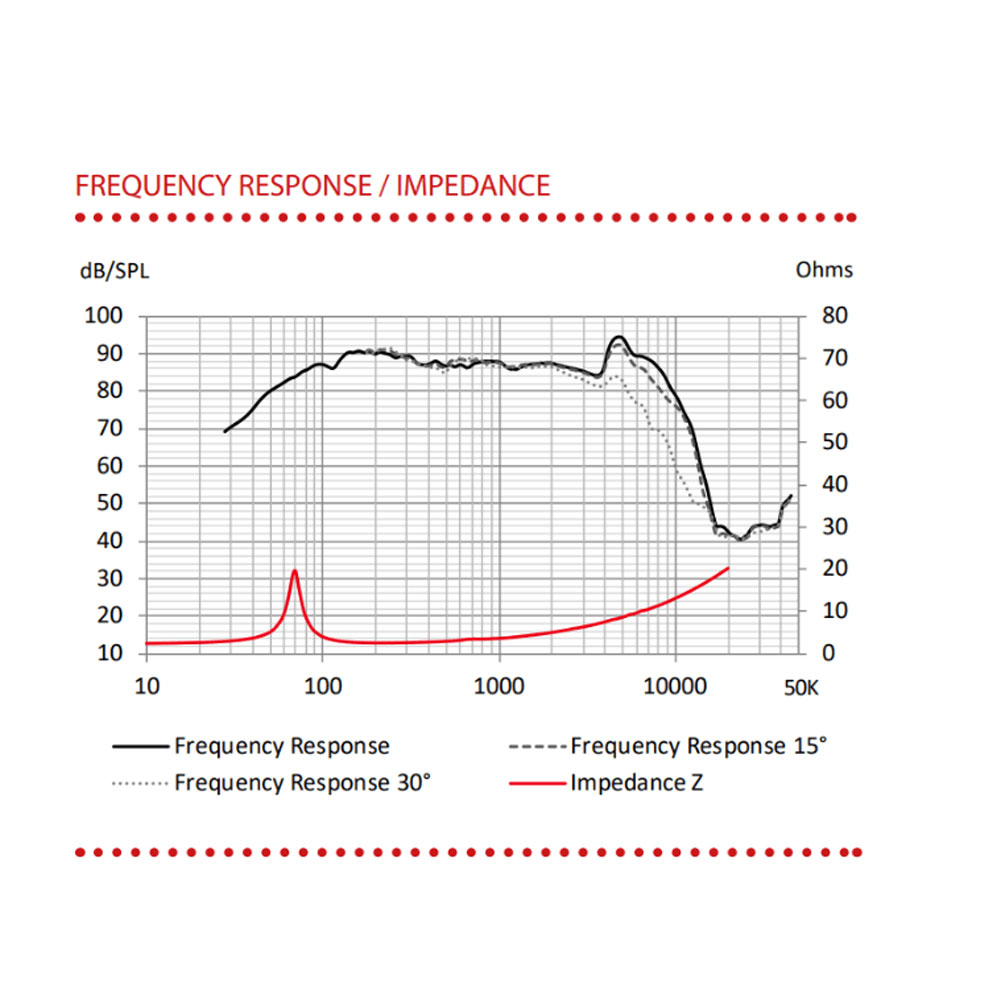

• Frequency response 55 Hz – 9 kHz
• Sensitivity 92.8 dB
• Impedance 2 Ω
• Moulded and machined aluminium basket – Epoxy resin and fiberglass membrane – Butyl peripheral surround – “Conex” long-life spider – 28 mm voice coil on kapton former – 80 mm x 15 mm magnetic motor – 5 mm thick magnetic circuit

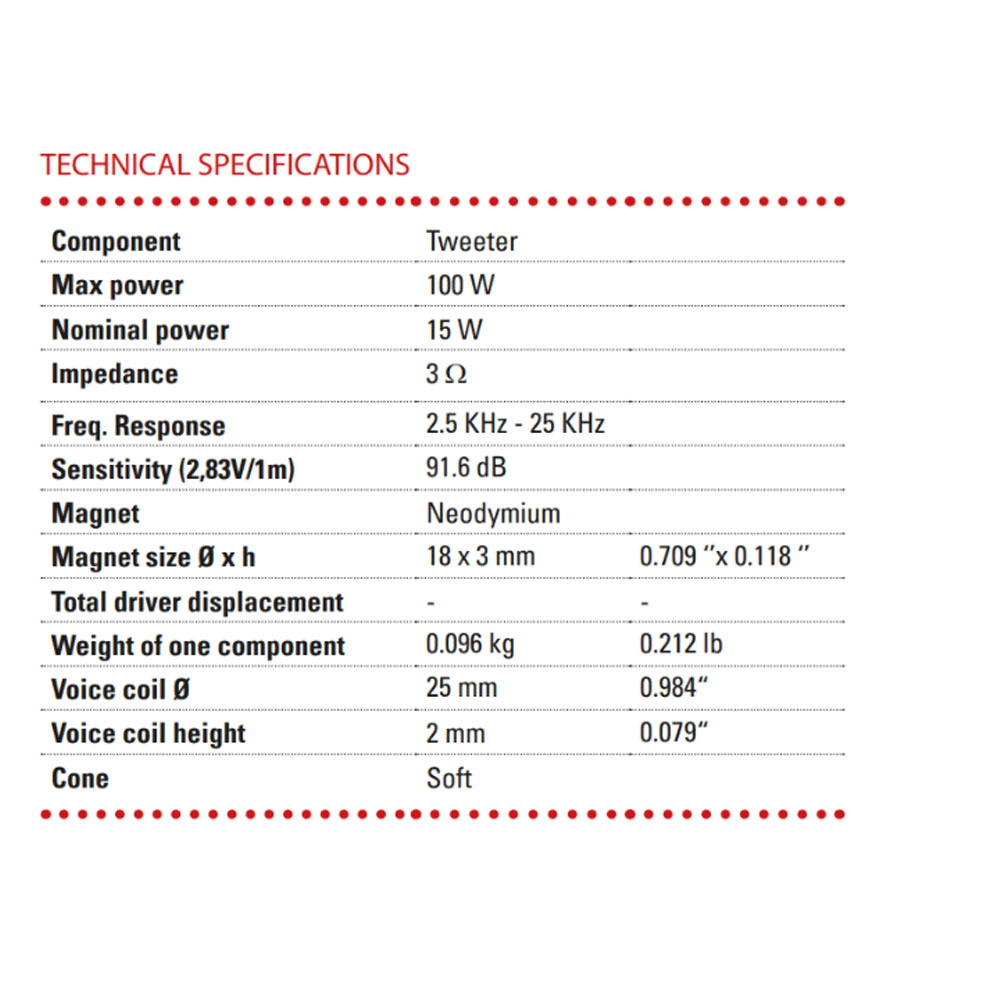

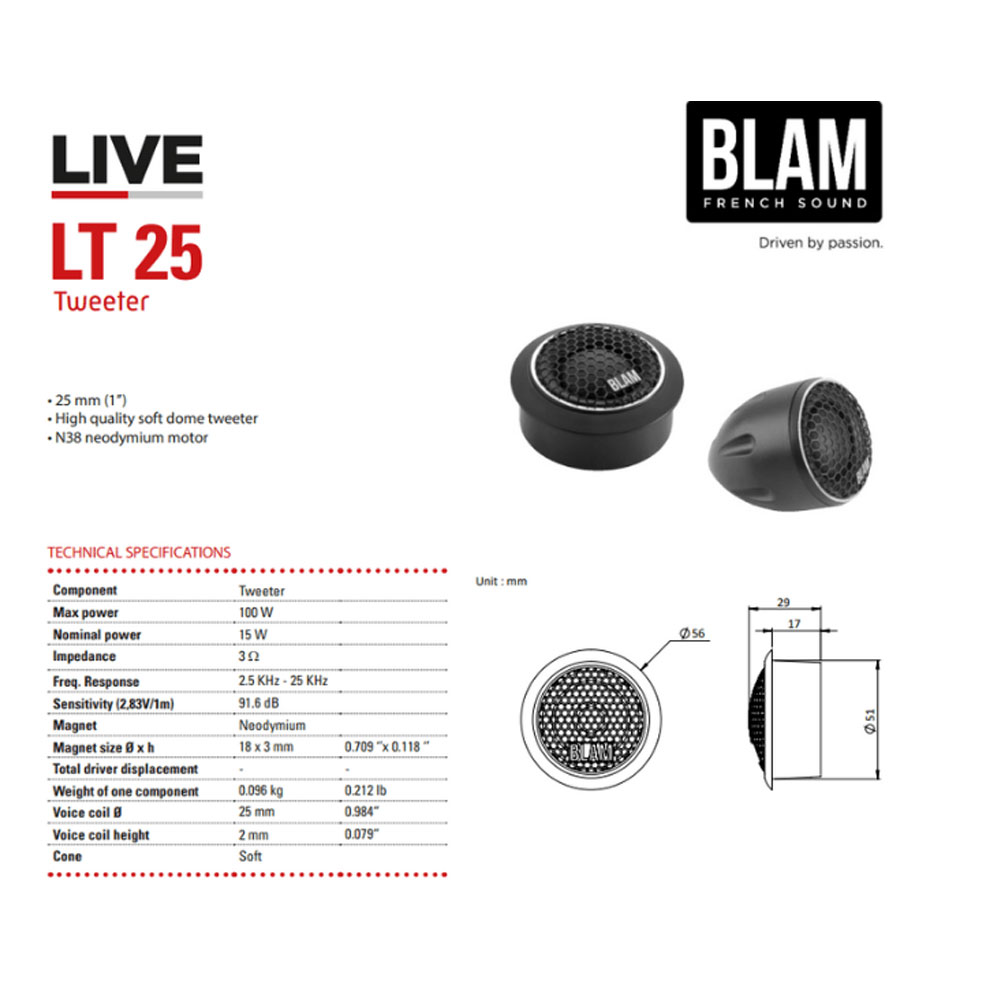

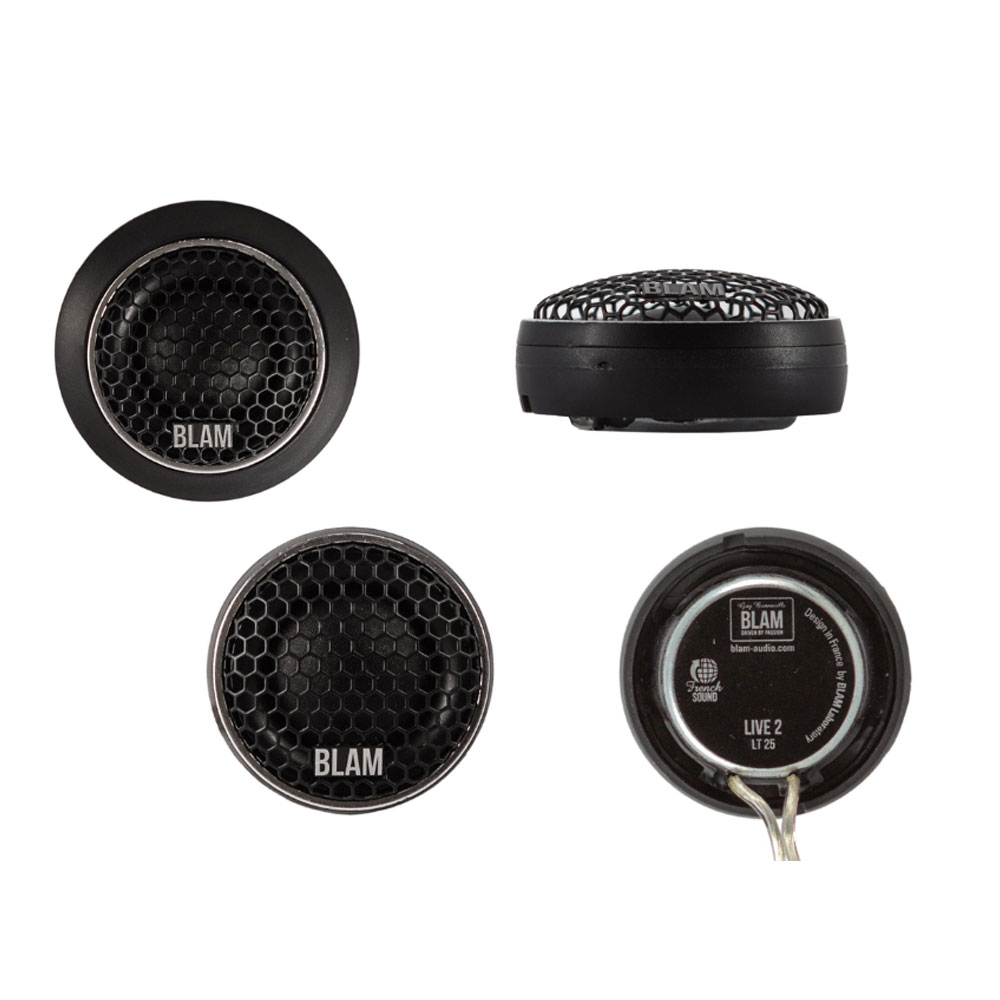

LT25 High Quality Tweeter

• High quality 25 mm soft dome tweeter
• Maximum power 100 W
• Nominal power 15 W
• Frequency response 2.5 kHz – 25 kHz
• Sensitivity 91.6 dB
• Impedance 3 Ω
• High-efficiency N38 neodymium motor

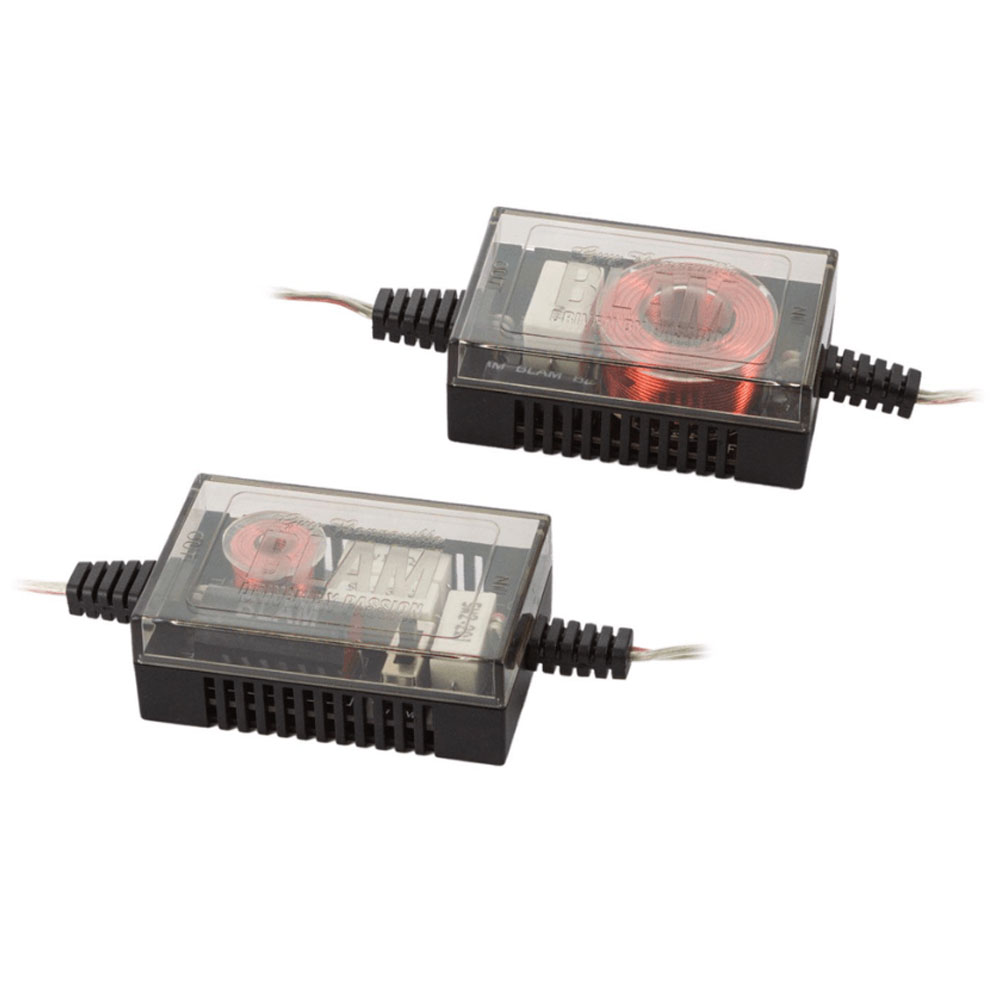

BFW02 High Quality Crossover

• Low pass 12 dB/octave

BFT02 High Quality Crossover

• High pass 12 dB/octave
• Tweeter level adjustable to +3 dB, 0 dB or attenuated to -3 dB

Supplied Accessories

• Mounting screws
• Mounting accessories for tweeters
• User manual

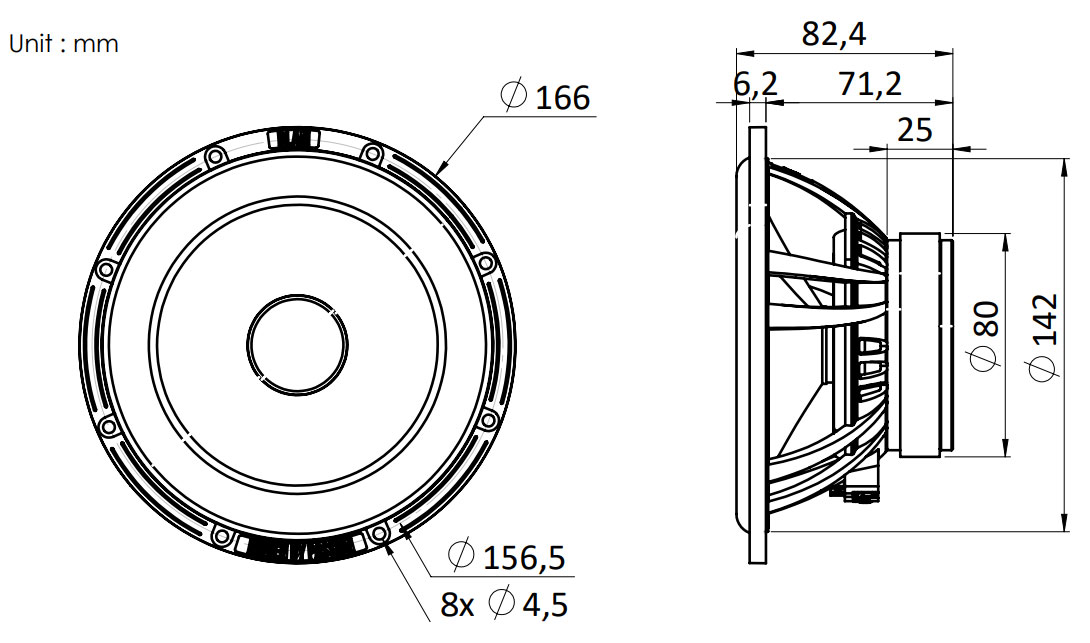

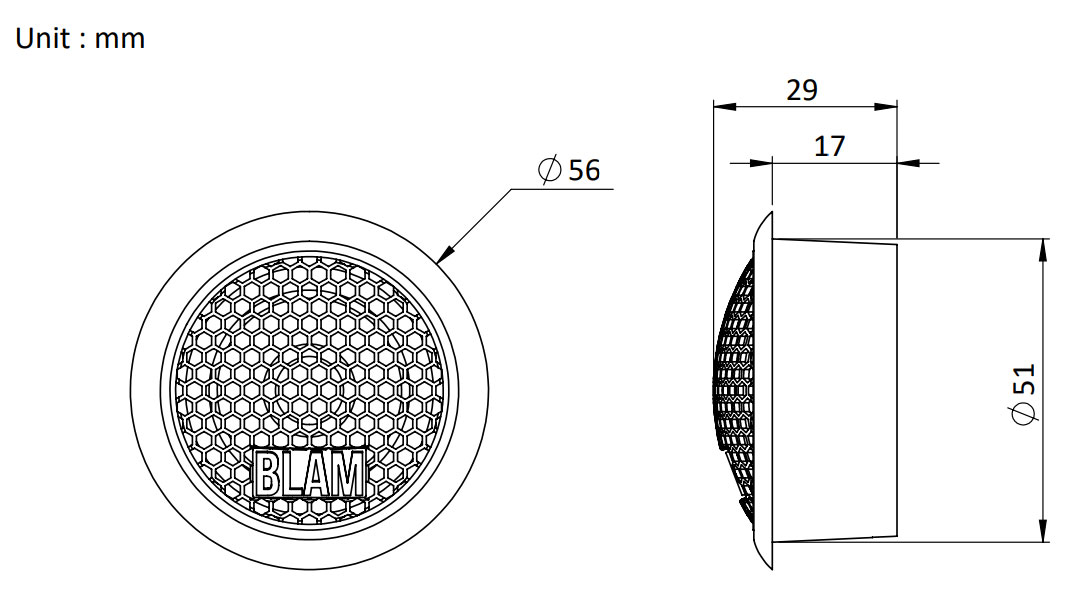

Dimensions

Note: This item/pack is sold as a pair and contains 2 speakers.
