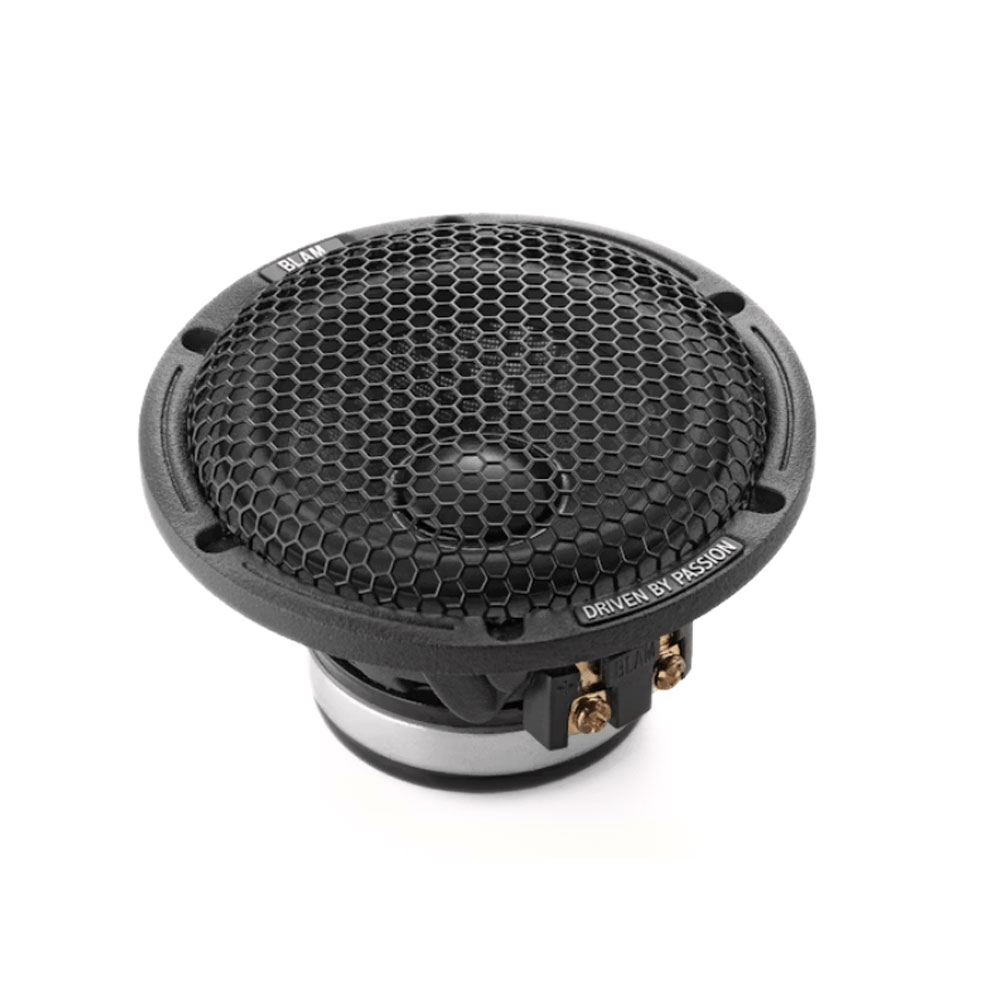

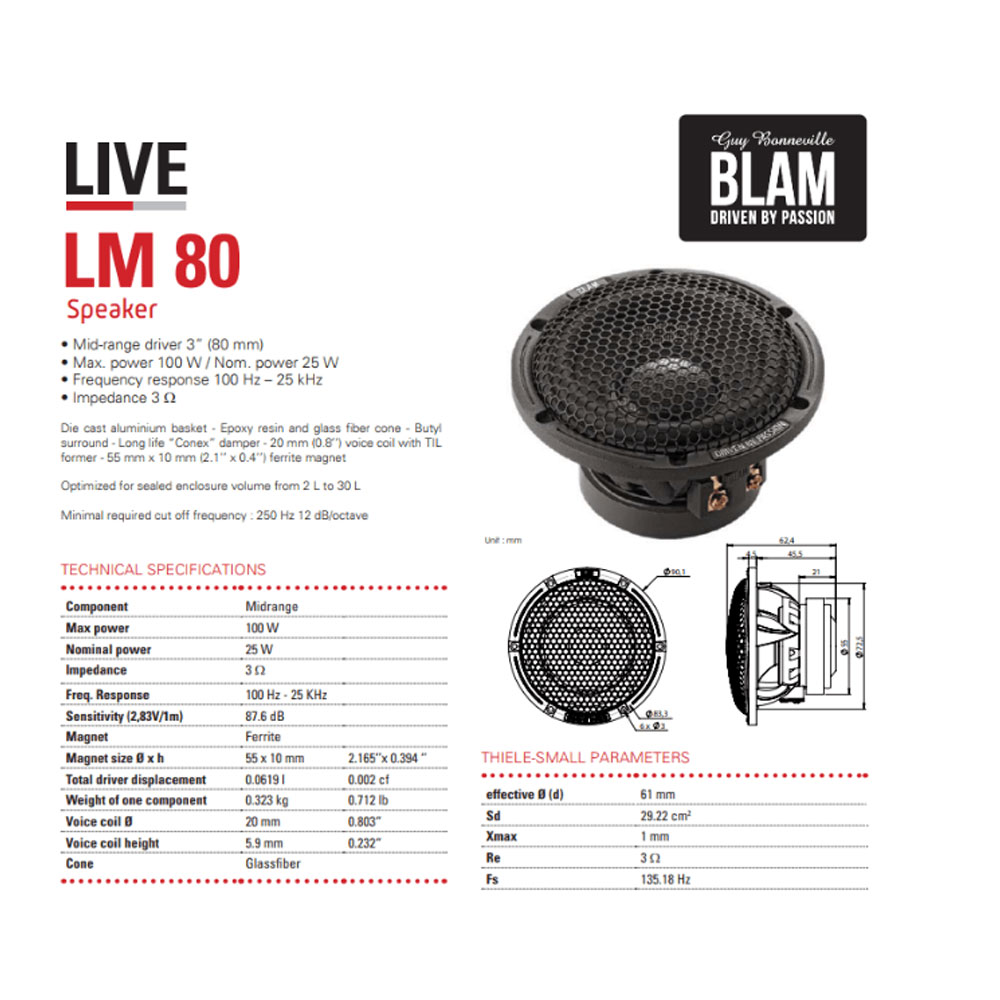

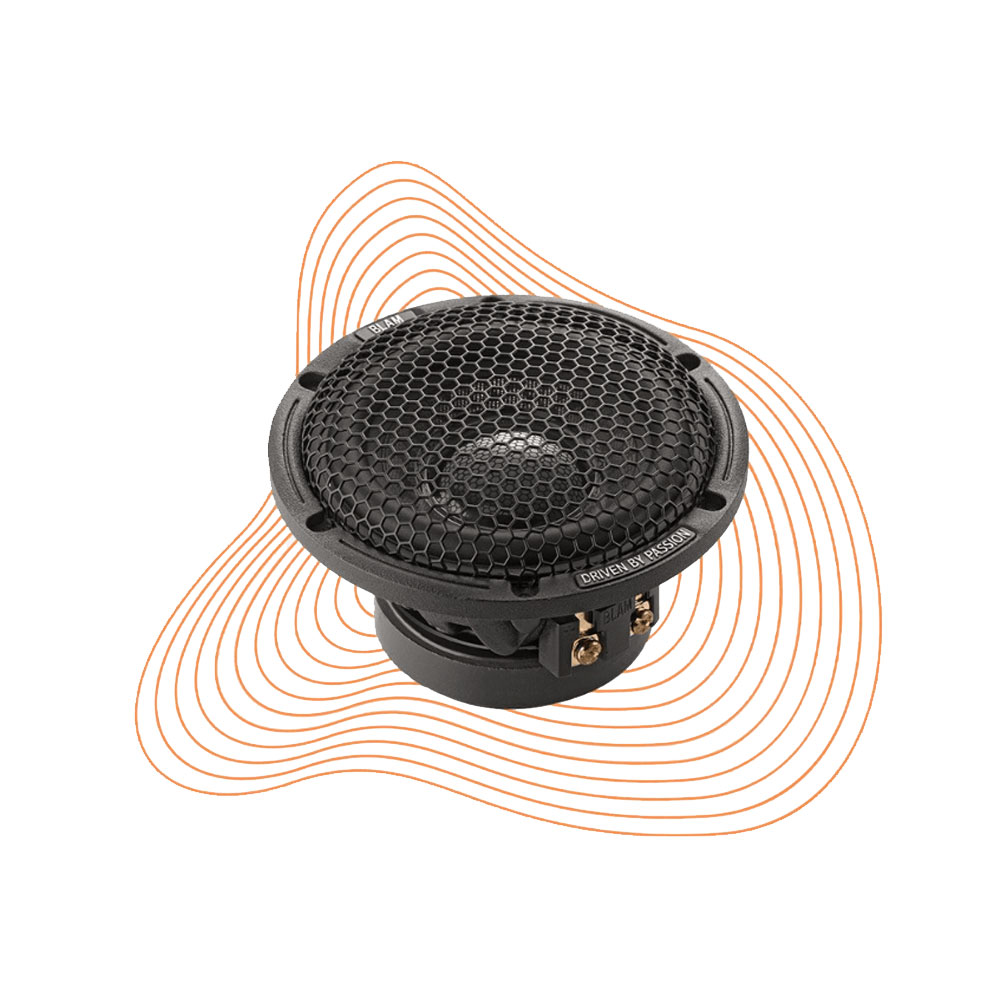

The LIVE LM80 is the latest 3 Inch (80mm) mid-range speaker from BLAM which boasts impressive technical specifications. The maximum output is 100 W with a nominal power of 25 W and an impedance of 3 ohms. Its frequency response ranges from 100 Hz to 25 kHz and it has a sensitivity of 92 dB at 2.83 V / 1 m. With a ferrite magnet, a magnet size of 55 x 10 mm, a voice coil of 20 mm diameter and 6 mm height and a cone made of carbon, this midrange driver sets new standards in the industry. With a very linear frequency response and extended high frequency range, the LM80 reproduces music with an incredible resolution that will make you want to rediscover all your favourite songs.

PLEASE NOTE: Depending on the cut-off frequency, 25W RMS is filtered above 300 Hz at 12 dB/octave

Composition

• Max Power 100 W
• Nominal Power 25 W*.

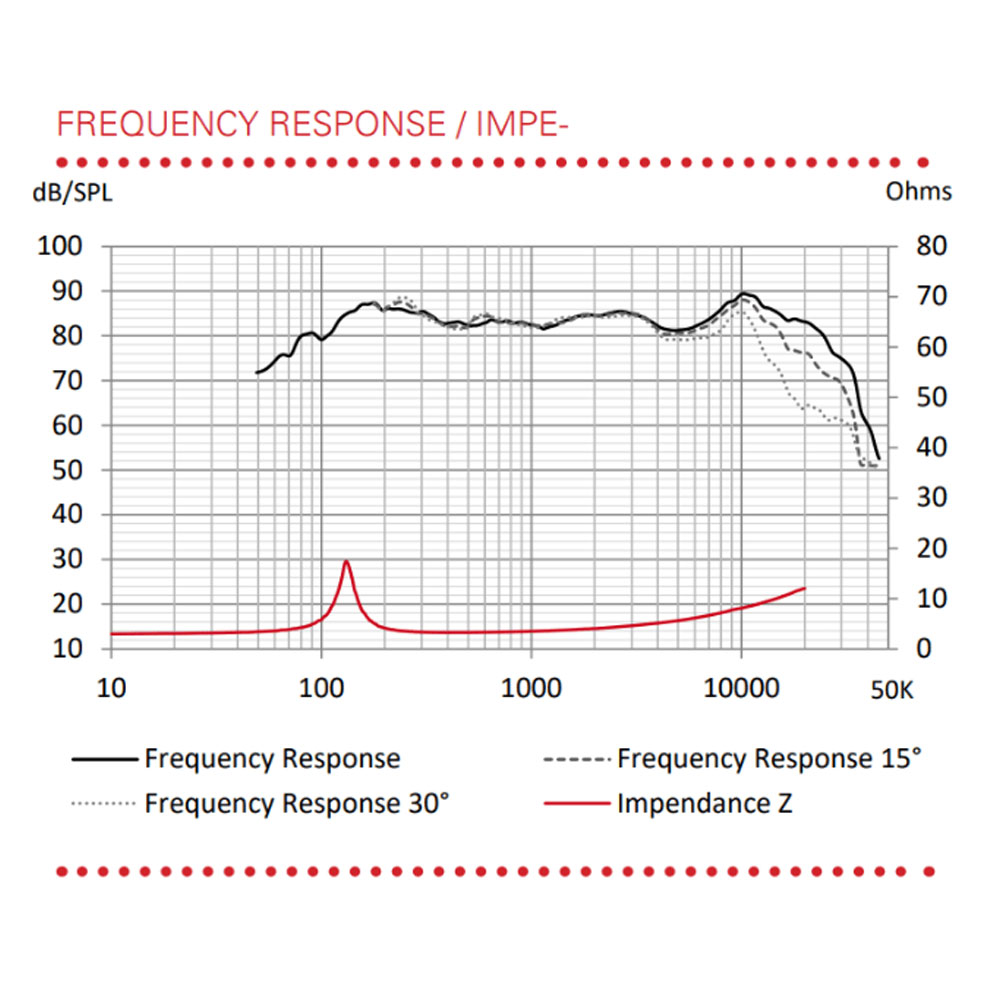

• Frequency response 100 Hz – 25 kHz
• Sensitivity 87.6 dB
• Impedance 3 Ω
• Mounting depth 45.5 mm (1.8″)
• Cast aluminium basket – Fiberglass and epoxy resin composite membrane – Butyl perimeter surround – “Conex” long life spider – 20 mm voice coil on TIL former – 55 mm x 10 mm ferrite magnet
• Optimized to operate in a sealed volume of 2 L to 30 L.
• Recommended minimum cut-off frequency 300 Hz 12 dB/octave

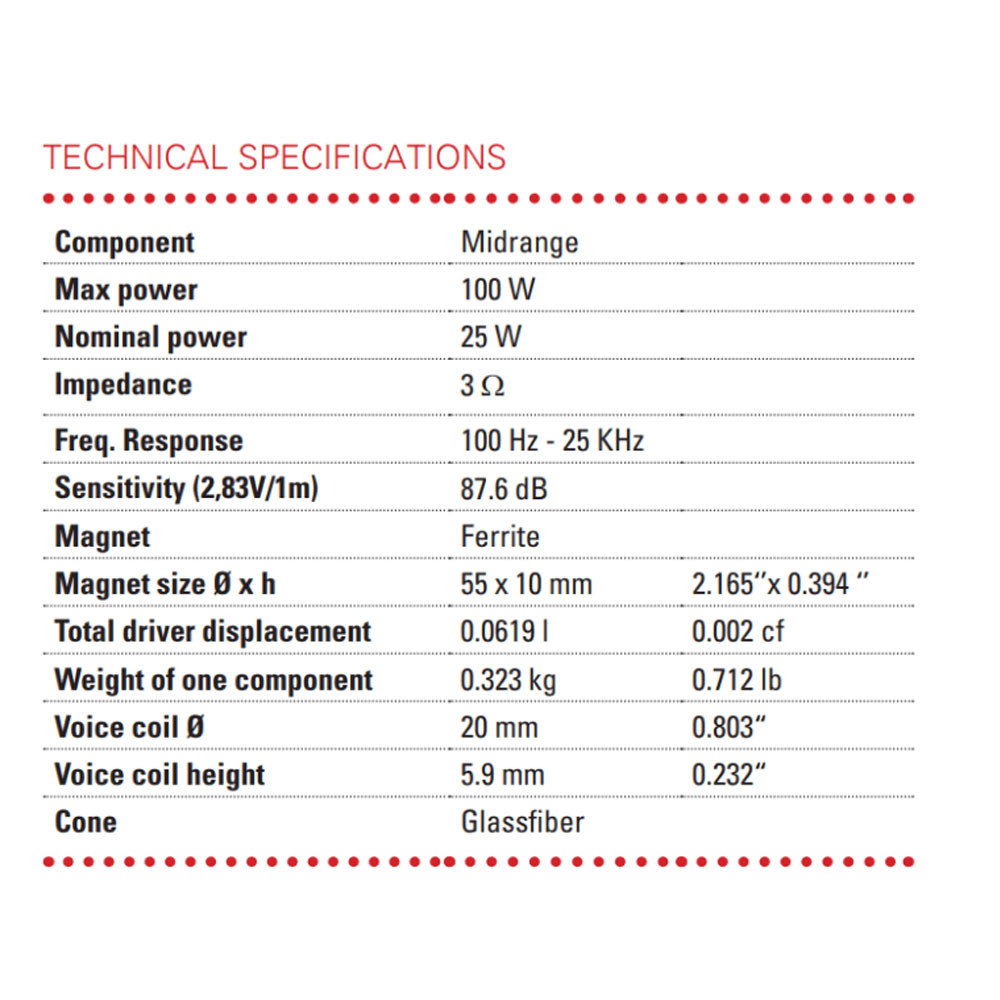

Technical Specifications

• Component: Midrange
• Max power: 100 W
• Nominal power: 25 W
• Impedance: 3 Ω
• Freq. Response: 100 Hz - 25 KHz
• Sensitivity: (2,83V/1m) 87.6 dB
• Magnet: Ferrite
• Magnet size Ø x h: 55 x 10 mm 2.165‘’x 0.394 ‘’
• Total driver displacement: 0.0619 l 0.002 cf
• Weight of one component: 0.323 kg 0.712 lb
• Voice coil Ø: 20 mm 0.803“
• Voice coil height: 5.9 mm 0.232“
• Cone: Glassfiber

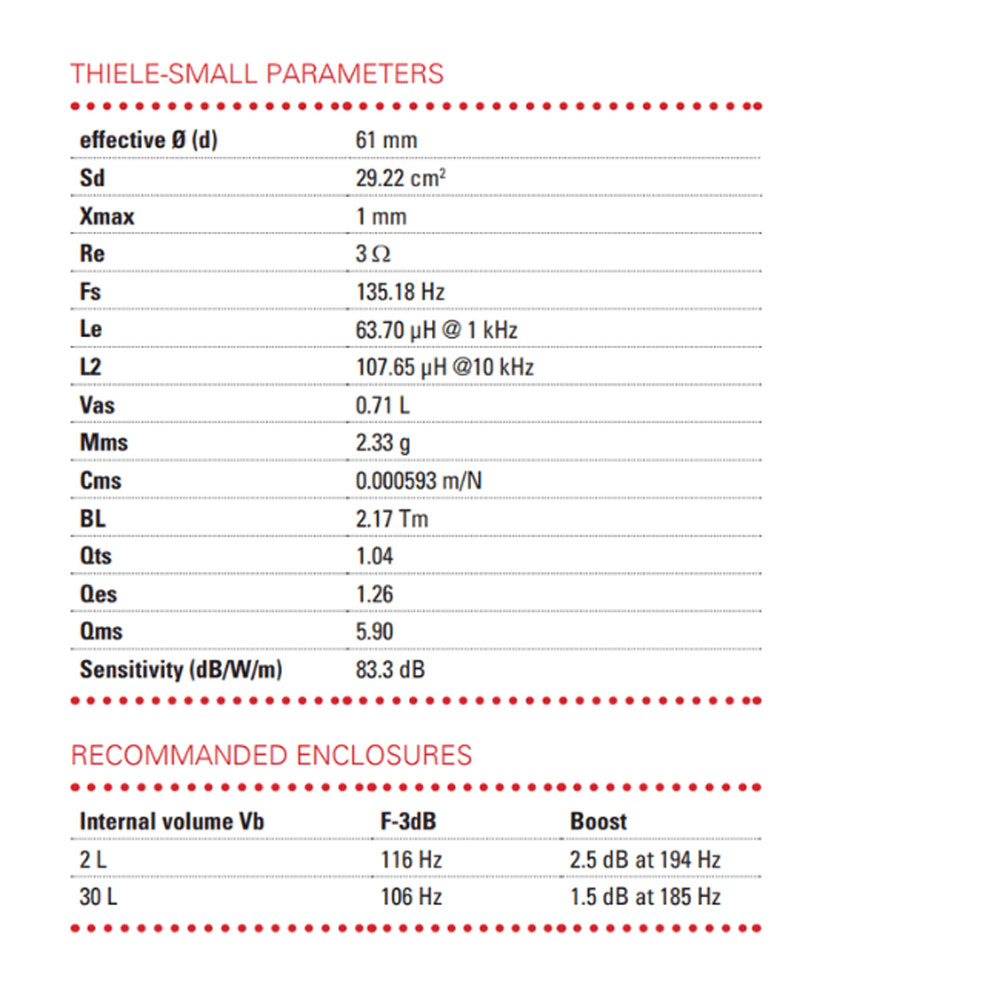

Technical Parameters

• effective Ø (d) 61 mm
• Sd 29.22 cm2
• Xmax 1 mm
• Re 3 Ω
• Fs 135.18 Hz
• Le 63.70 µH @ 1 kHz
• L2 107.65 µH @10 kHz
• Vas 0.71 L
• Mms 2.33 g
• Cms 0.000593 m/N
• BL 2.17 Tm
• Qts 1.04
• Qes 1.26
• Qms 5.90
• Sensitivity (dB/W/m) 83.3 dB

Supplied Accessories

• Mounting screws
• Protection grill
• User manual

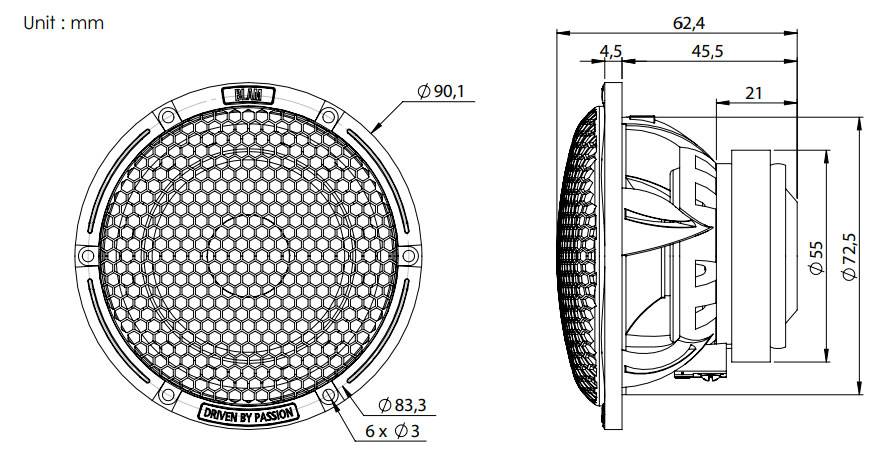

Dimensions

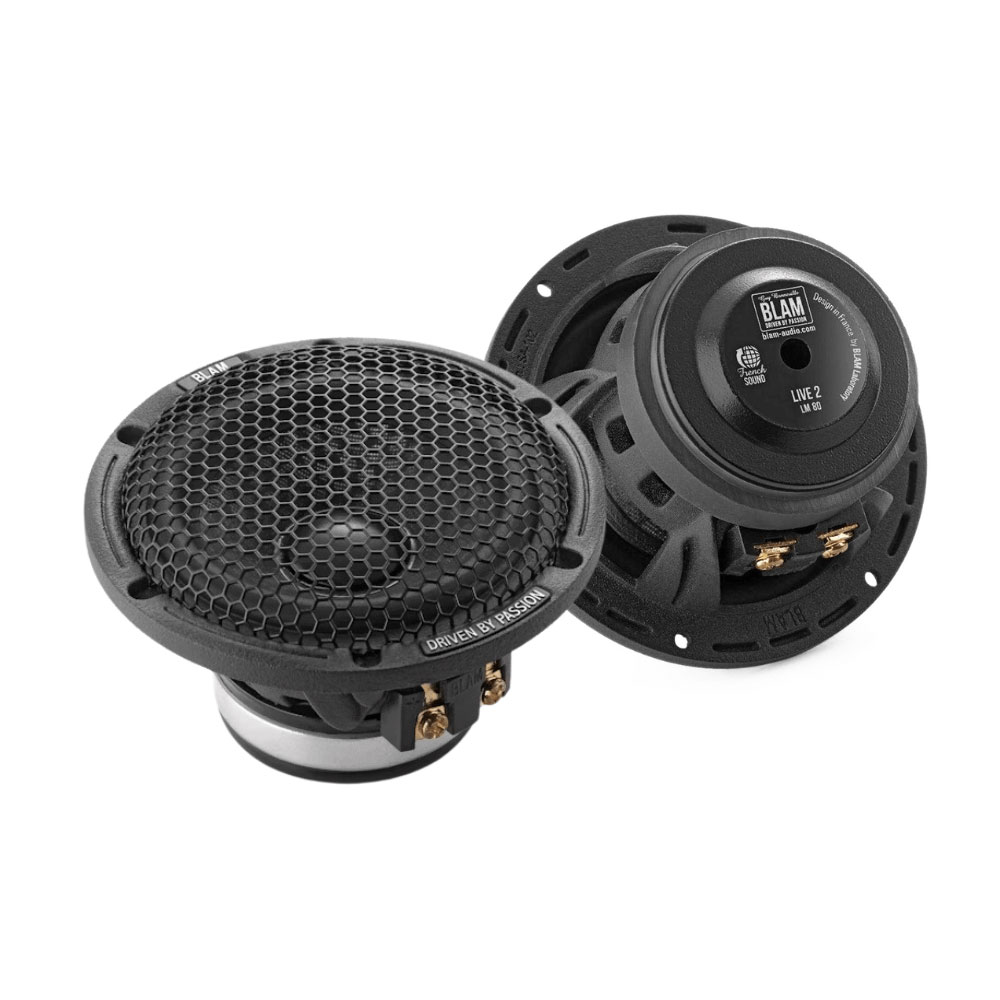

Note: This item/pack is sold as a pair and contains 2 speakers.
