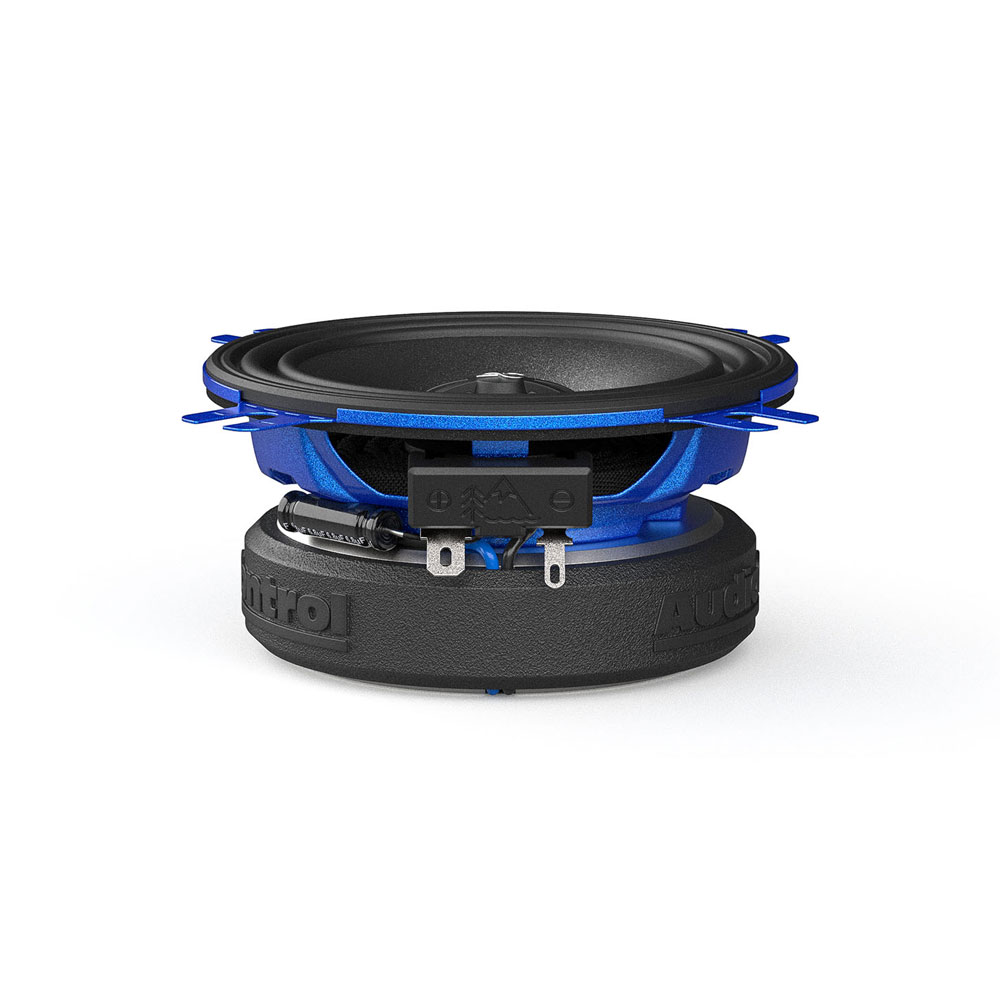

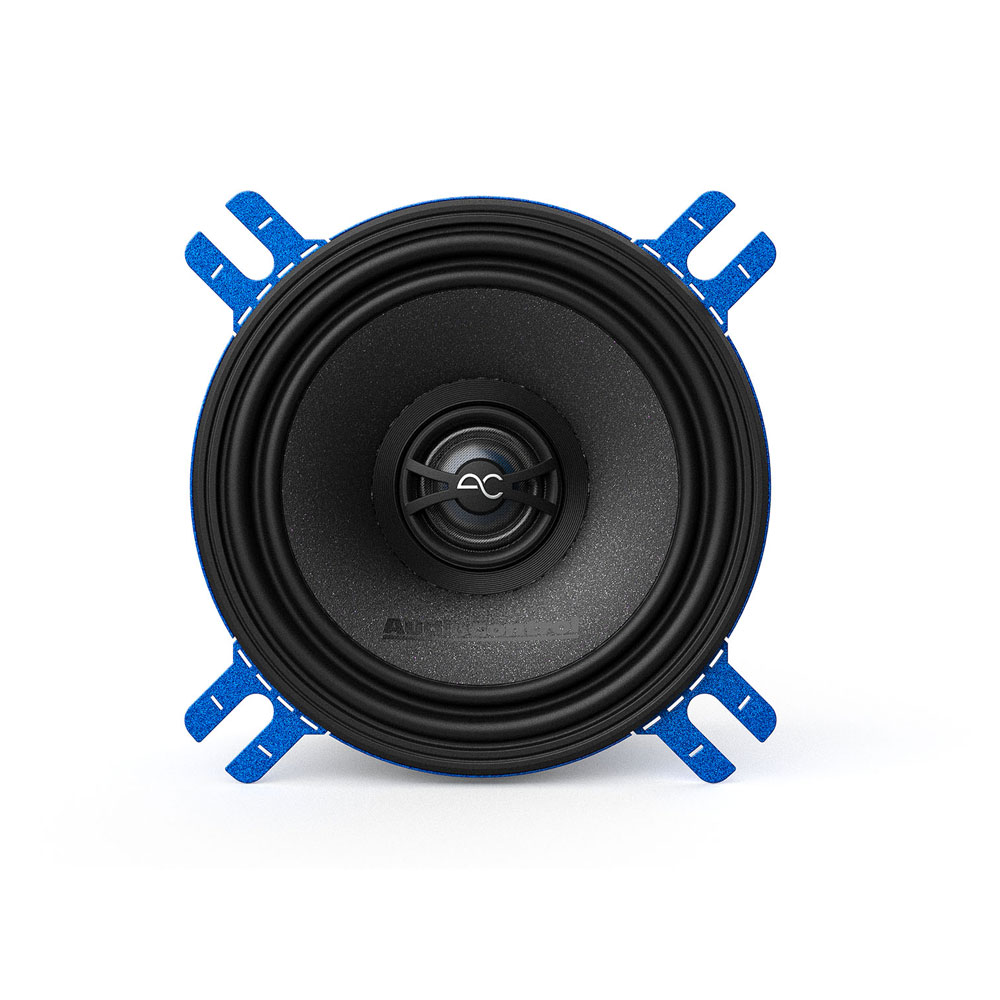

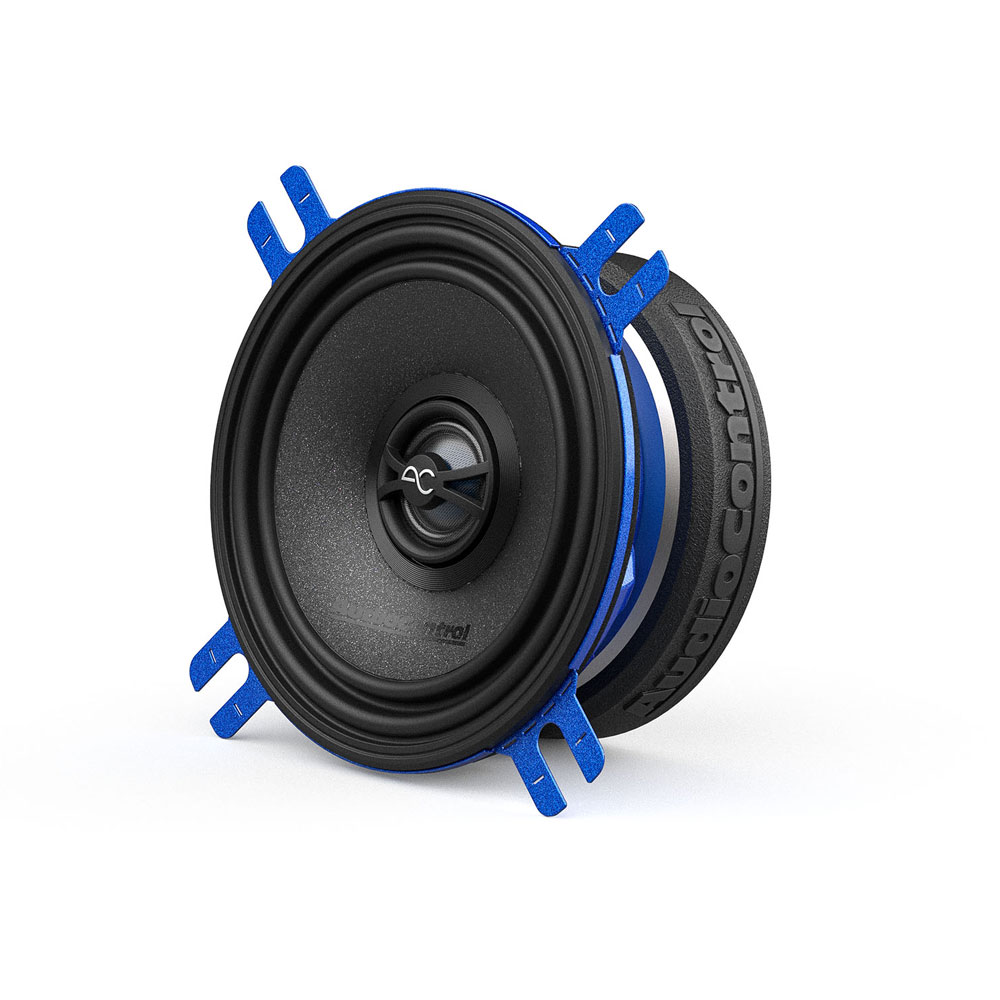

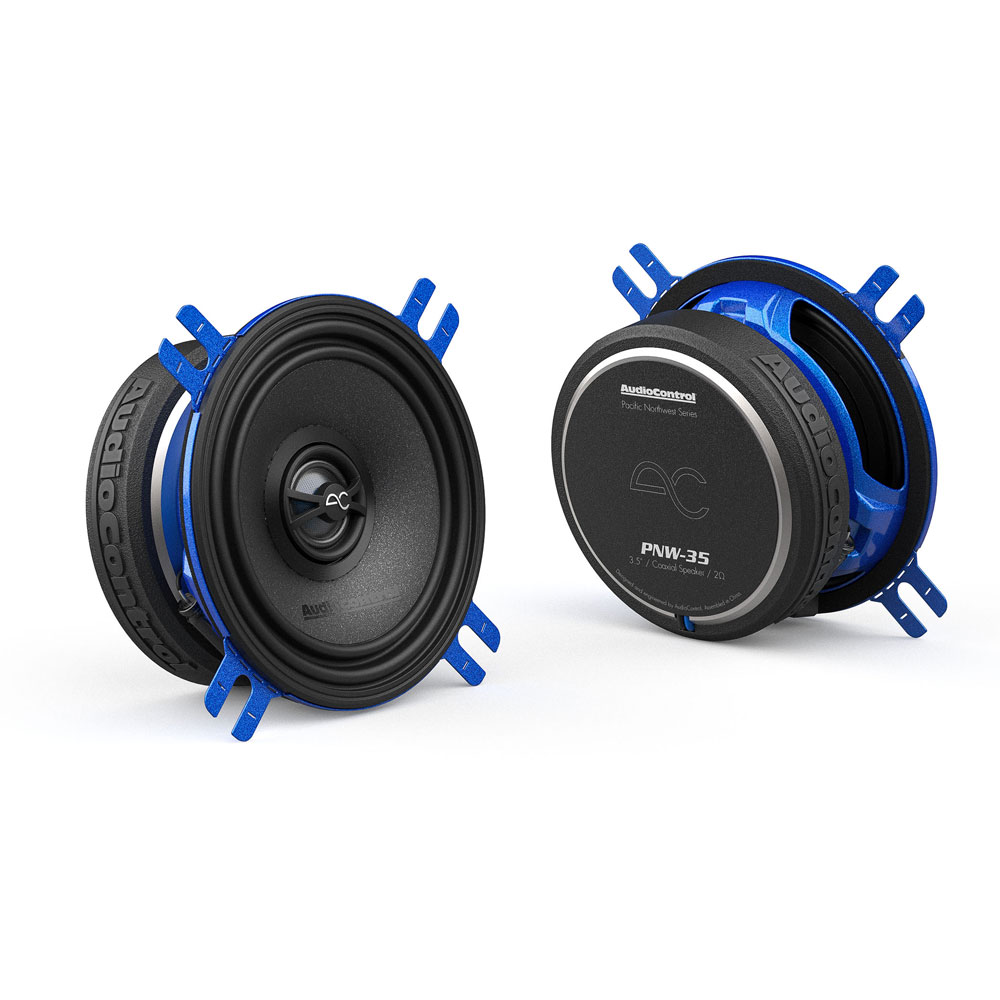

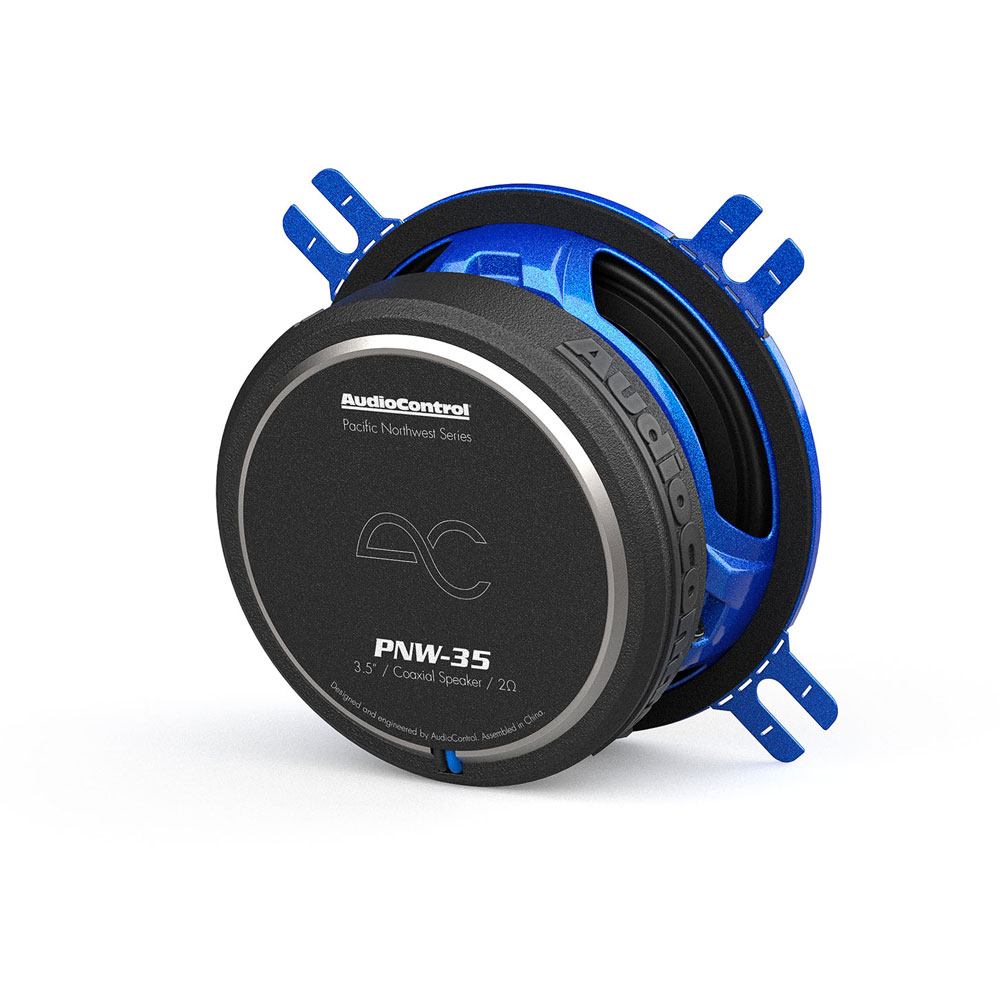

PNW Series 3.5″ High-Fidelity Coaxial Speakers

AudioControl has over 45 years of experience engineering top-quality audio components. Buckle up and get ready to embark on a wild new auditory adventure with AudioControl’s PNW speakers! Experience the vibrant landscapes of the Pacific Northwest through your music when you combine AudioControl’s legendary amplifiers with the new PNW series of speakers. Trust us, you’ve never heard sound quite like this before. The PNW line features an edge-enhanced steel frame for ultimate structural strength, a black anodized voice coil former for superior heat dissipation, and a linear double-roll surround for precise cone movement. Plus, the rigid poly mica-coated cone optimizes sound reproduction.

Worried about installation? Don’t be! Our speaker sets come with high-quality mounting hardware, so you can enjoy your new sound system hassle-free. The tweeter’s point source design even aligns the output of both drivers perfectly, resulting in better speaker alignment for amazing sound quality. Looking for the full package? Pair PNW with our Spike or Space series subwoofers for the ultimate in-vehicle listening experience. All of these features add up to a line of speakers that are not only impressive on paper but are sure to impress you with their detail, clarity, and volume every time you drive.

Features

• Edge-enhanced steel frame for added structural strength
• Black anodized voice coil former for superior heat dissipation
• Linear double-roll surround for precision cone movement
• Complex FEA-designed high-efficiency motor
• Rigid poly mica-coated cone for optimized sound reproduction
• Rear dampened hybrid silk dome tweeter for extended frequency response
• Concentric point source design for a seamless transition from midrange to tweeter
• Sonic diffuser and radiant collar for better off-axis frequency response
• High-quality mounting hardware included

Specifications

• Crossover Type Butterworth
• DC Resistance (Re). 1.75 ohms
• Filter Type HP
• System Frequency (Fs) Response 90-20k Hz
• XO Frequency 5900 Hz
• Slope (Octave) -6 dB
• Tweeter Voice Coil Diameter 13 mm
• Midrange Voice Coil Diameter 25 mm

Dimensions

• Overall Diameter (w/ metal bracket): 4,44 in/ 113 mm
• Cut Out Diameter: 3.0 in/ 76.5 mm
• Mounting Depth: 1.55 in/ 39.5 mm
• Motor Diameter (w/ Cover): 2.96 in / 75.4 mm

No Speaker Grill Applicable for PNW-35

In The Box

• PNW-35
• Manual
• Warranty

Sold As A Pair.
