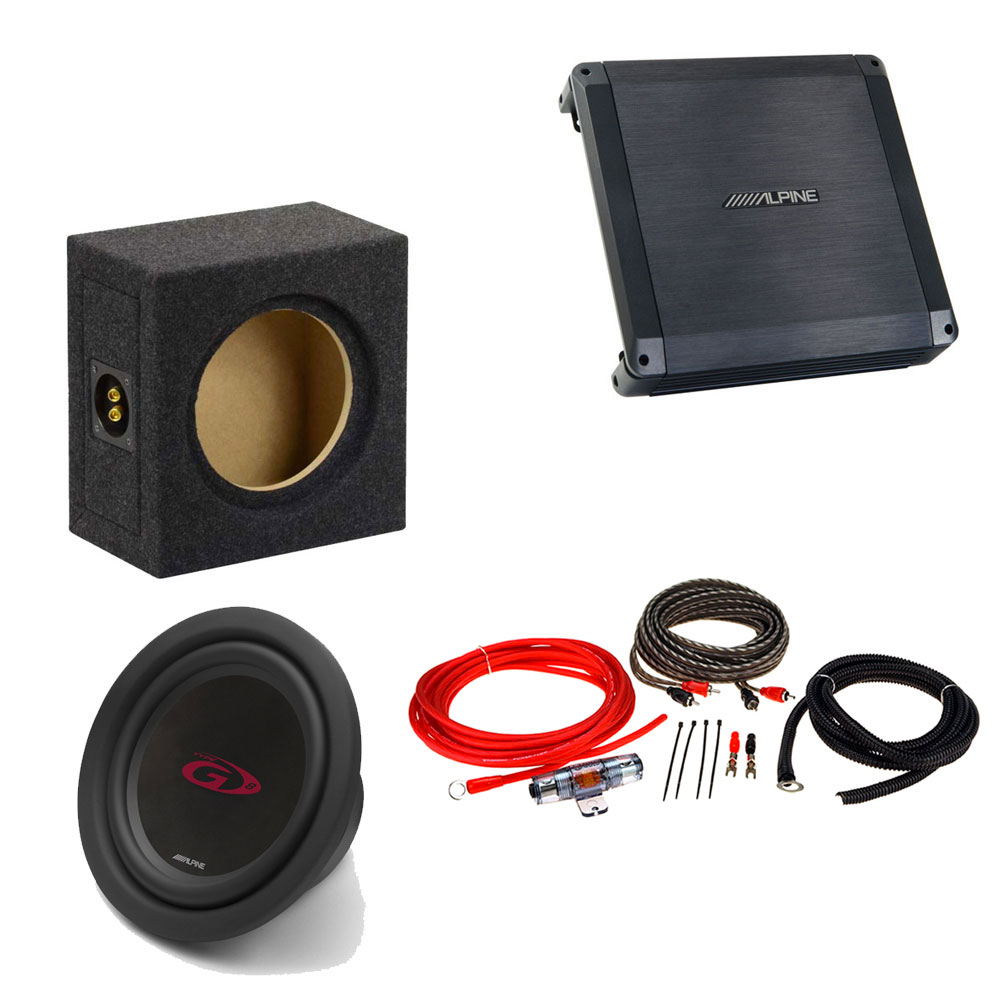

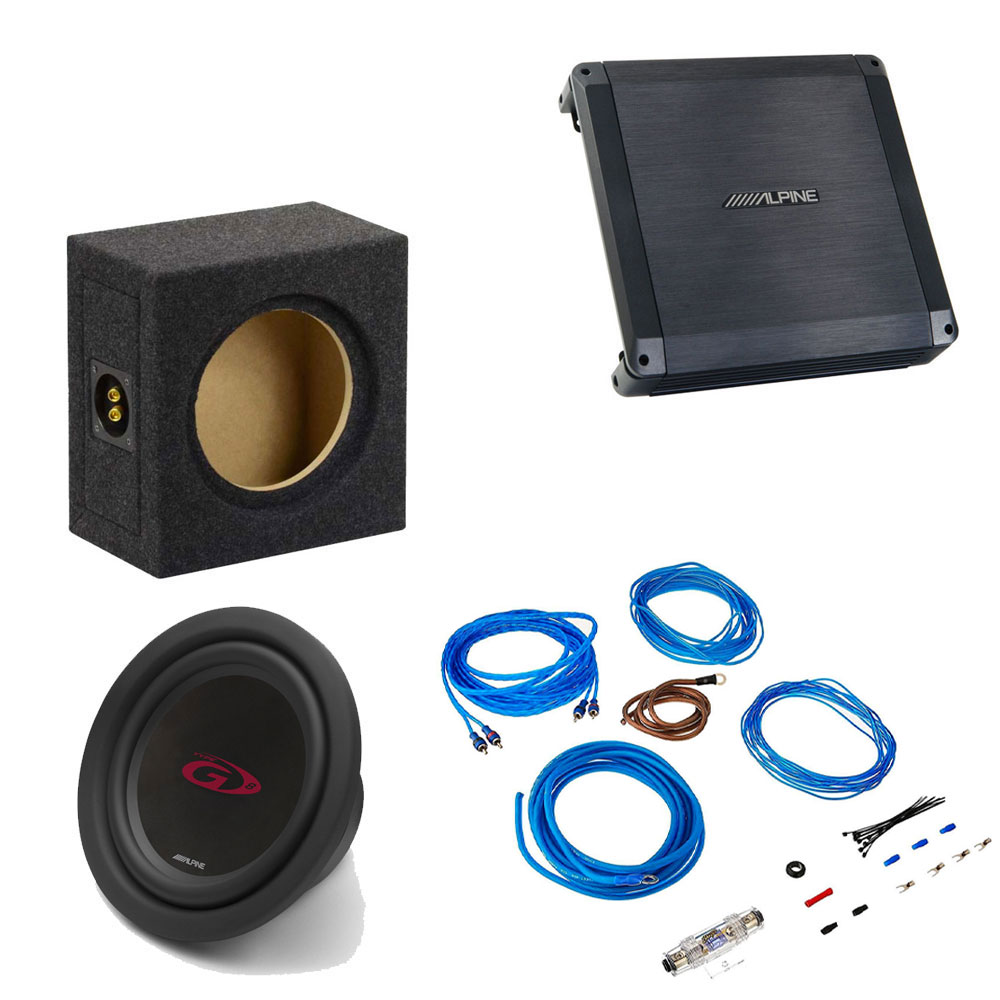

Package Includes

• Alpine BBX-T600 BBX Power Class A/B Amp 2 Channel Car Amplifier 300W
• Alpine SWG-844 Type-G 8" 20cm 400W Car Subwoofer 4 Ohm Bass Driver
• Incartec SUBBOX-T5 VW Transporter T5 8 Inch Under Seat Subwoofer Box (MDF)
• Phoenix Gold ZXK10 7AWG 600W 10mm2 CCA Power Amplifier Wiring Kit

Designed for Europe

This new BBX amplifier gives you Alpine power performance at an amazing price. And they’re designed to fit easily in virtually any system.

High Power, Great Value

This amp delivers high output power and exceptional performance for their class. A great way to expand your sound system on a limited budget.

High Pass and Low Pass Filters

These two filters let you set the frequency points for the high, mid and bass ranges to match your speakers and ensure optimum efficiency.

Bass EQ for Best Bass

Performance With Bass EQ, you can maximise the performance of your system and get even more powerful bass.

Alpine BBX-T600 Features

Install

• Terminal Layout: Two-Sided
• Screw Mount / Wire Cover: Integrated Wire and Mounting Screw Terminals

General

• Amplifier Type: Class-A/B
• Channel Design: 2/1 Channel
• Thermal Control: Thermal Management Control
• Power Supply: DC-DC PWM Power Supply
• Power Supply Design: MOSFET Power
• Current Protection: Over-Current, Over-Voltage and Thermal Protection
• Crossover: Variable Low-Pass / High-Pass
• Green/red Status LED
• 1 pair RCA pre-inputs
• 1 pair RCA pre-outputs

Specifications

Max Power Output Ratings

• Total Max Power: 300W

RMS Power Ratings

• Per Channel into 4ohms (≤1%THD+N): 2 x 50W
• Per Channel into 2ohms (≤1%THD+N): 2 x 70W
• Bridged into 4ohms (≤1%THD+N): 1 x 130W

Sound Tuning

• Crossover Frequency (Variable, OFF/LPF/HPF Selectable)
• 1/2 Ch: LP: 50Hz – 250Hz   HP: 80Hz  – 1.2kHz
• EQ (Equalizer): Bass EQ Fixed Frequency 45 Hz, Q=0.5, Variable Gain  0dB to +12dB

Dimensions

• Footprint: 250 mm x 52 mm x 240 mm

General

• Power Requirements: 14.4 V DC (11 V to 16 V)
• Input Sensitivity: 0.2 - 8.0 V
• Frequency Response: 5 Hz - 50 kHz (+ 0,-3 dB)
• Speaker Impedance: 4 or 2 Ω
• Signal to Noise: S/N Ratio (IHF A Weighted, Reference: rated power into 4ohms) 95 dB
• Weight: 1.9 Kg

InCarTec SUBBOX-T5 VW Transporter T5 8 Inch Under Seat Subwoofer Box (MDF)

VW T5 8 Inch (8 Litre) Under Seat Subwoofer box (MDF)

MDF carpeted sub woofer box for a 8 inch sub woofer. 8 litre volume. Speaker wire connection port

We recommend to pair this enclosure with our 8 inch Blam subwoofer, BL-R8EL

Product Specifications

• Board MDF
• Fabric Grey Melange
• Speaker size 8"/20cm
• Mounting hole diameter (mm) 182
• Undercut diameter (mm) 222
• Subwoofer depth (mm) 32
• MAX magnet diameter (mm) 182
• Volume closed enclosure (liters) 8
• Weight (kg) 4.70
• Enclosure width (mm) 305
• Enclosure height (mm) 295
• Enclosure depth (mm) 185

SWG-844

An excellent match for the Type-G speakers, the Type-G subwoofers combine impressive bass output with high power handling and efficiency, and at a comfortable price level!

Features

• Peak Power: 400W
• RMS Power: 120W
• Frequency Response: 34Hz – 1.5kHz
• Sensitivity: 87dB/W (1m)
• Installation Diameter: 183mm
• Depth: 114mm

Phoenix Gold ZXK10 7AWG 600W 10mm2 CCA Power Amplifier Wiring Kit

Phoenix Gold now releases its own cable kits. The ZXK10 series includes CCA (Copper Clad Aluminium) cable. Paired with a twisted pair RCA cable, this ZXK10 kit will be a perfect complement to your Phoenix Gold power amplifiers or any power amplifier for that matter.

Features

• Complete set for audio systems up to 600 watts
• Premium 10mm2 CCA power and ground cable for optimal power transfer
• Nickel-plated connections for maximum corrosion resistance
• Incl. twisted RCA cable 5.2m
• Original Phoenix Gold Accessories

Contains

• 1 x 5.2m 10mm2 CCA Red Power Wire
• 1 x 0.8m 10mm2 CCA Black Ground Wire
• 1 x 5.2m Twisted RCA Cable
• 1 x 1.8m Split Loom Tubing
• 1 x Fuse Holder and Fuse
