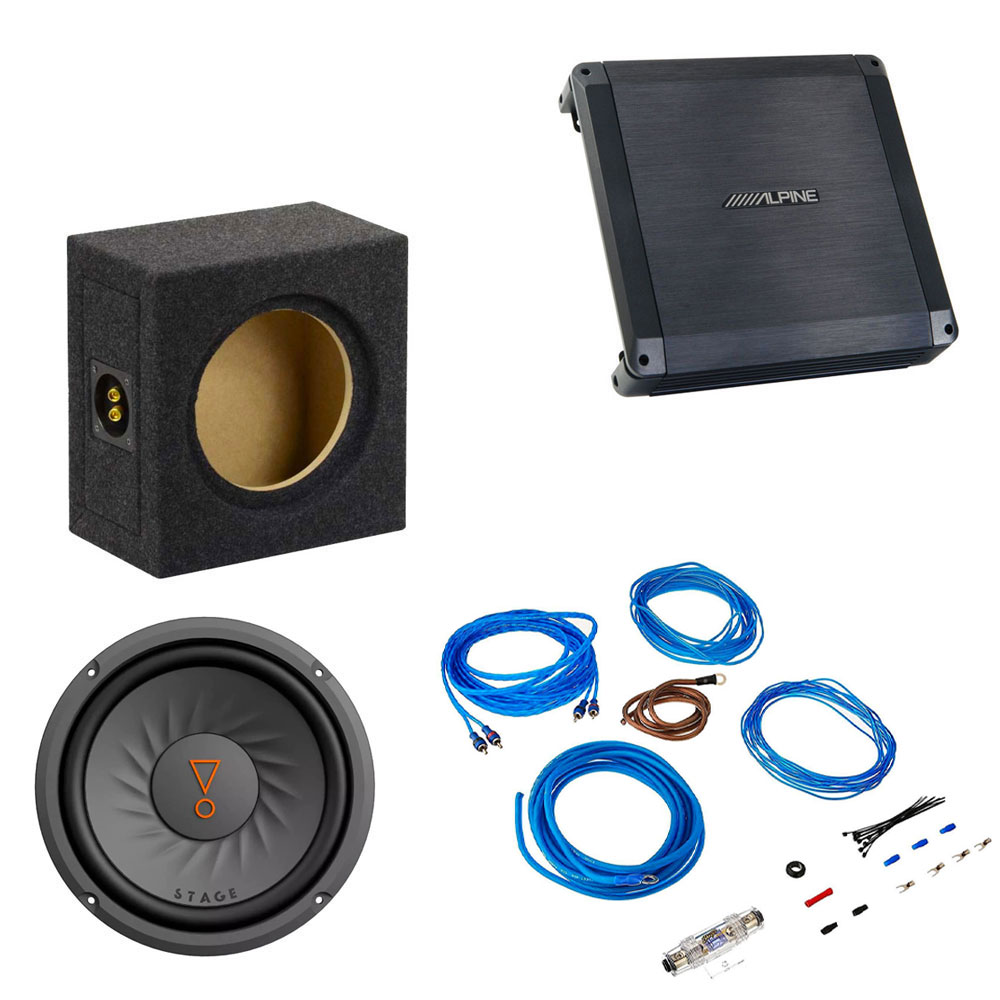

Package Includes

• Alpine BBX-T600 BBX Power Class A/B Amp 2 Channel Car Amplifier 300W
• JBL Stage 82 8" 200mm 800W Single 4 Ohms Subwoofer Bass Car Driver
• Incartec SUBBOX-T5 VW Transporter T5 8 Inch Under Seat Subwoofer Box (MDF)
• Stinger SSK8 8GA 600W Complete Wiring Kit

Designed for Europe

This new BBX amplifier gives you Alpine power performance at an amazing price. And they’re designed to fit easily in virtually any system.

High Power, Great Value

This amp delivers high output power and exceptional performance for their class. A great way to expand your sound system on a limited budget.

High Pass and Low Pass Filters

These two filters let you set the frequency points for the high, mid and bass ranges to match your speakers and ensure optimum efficiency.

Bass EQ for Best Bass

Performance With Bass EQ, you can maximise the performance of your system and get even more powerful bass.

Alpine BBX-T600 Features

Install

• Terminal Layout: Two-Sided
• Screw Mount / Wire Cover: Integrated Wire and Mounting Screw Terminals

General

• Amplifier Type: Class-A/B
• Channel Design: 2/1 Channel
• Thermal Control: Thermal Management Control
• Power Supply: DC-DC PWM Power Supply
• Power Supply Design: MOSFET Power
• Current Protection: Over-Current, Over-Voltage and Thermal Protection
• Crossover: Variable Low-Pass / High-Pass
• Green/red Status LED
• 1 pair RCA pre-inputs
• 1 pair RCA pre-outputs

Specifications

Max Power Output Ratings

• Total Max Power: 300W

RMS Power Ratings

• Per Channel into 4ohms (≤1%THD+N): 2 x 50W
• Per Channel into 2ohms (≤1%THD+N): 2 x 70W
• Bridged into 4ohms (≤1%THD+N): 1 x 130W

Sound Tuning

• Crossover Frequency (Variable, OFF/LPF/HPF Selectable)
• 1/2 Ch: LP: 50Hz – 250Hz   HP: 80Hz  – 1.2kHz
• EQ (Equalizer): Bass EQ Fixed Frequency 45 Hz, Q=0.5, Variable Gain  0dB to +12dB

Dimensions

• Footprint: 250 mm x 52 mm x 240 mm

General

• Power Requirements: 14.4 V DC (11 V to 16 V)
• Input Sensitivity: 0.2 - 8.0 V
• Frequency Response: 5 Hz - 50 kHz (+ 0,-3 dB)
• Speaker Impedance: 4 or 2 Ω
• Signal to Noise: S/N Ratio (IHF A Weighted, Reference: rated power into 4ohms) 95 dB
• Weight: 1.9 Kg

InCarTec SUBBOX-T5 VW Transporter T5 8 Inch Under Seat Subwoofer Box (MDF)

VW T5 8 Inch (8 Litre) Under Seat Subwoofer box (MDF)

MDF carpeted sub woofer box for a 8 inch sub woofer. 8 litre volume. Speaker wire connection port

We recommend to pair this enclosure with our 8 inch Blam subwoofer, BL-R8EL

Product Specifications

• Board MDF
• Fabric Grey Melange
• Speaker size 8"/20cm
• Mounting hole diameter (mm) 182
• Undercut diameter (mm) 222
• Subwoofer depth (mm) 32
• MAX magnet diameter (mm) 182
• Volume closed enclosure (liters) 8
• Weight (kg) 4.70
• Enclosure width (mm) 305
• Enclosure height (mm) 295
• Enclosure depth (mm) 185

Stage 82

Price leading JBL Stage car subwoofers were engineered to deliver high-output, low-distortion bass with power handling capability of up to 1000 watts peak power. (Available in three sizes—8" (200mm), 10" (250mm), 12" (300mm)—for every size vehicle from compact to limo.) These subwoofers feature lightweight yet stiff polypropylene woofer cones with hi-roll rubber surrounds to provide high-efficiency and super durability to best interface with a variety of amplifiers. Finally, our subwoofers and loudspeakers are individually voiced by some of the world's best transducer engineers to ensure we achieve the signature sound that is unmistakably JBL.

General Specifications

• Power Handling 200Wrms, 800W peak
• Sensitivity (@2.83V) 88dB
• Frequency Response 38Hz - 200Hz
• Voice Coil Diameter 1.5 in. (38.8mm)
• Impedance 4 ohms

Whats In The Box

• 1 x Subwoofer
• 1 x Foam gasket
• Owner’s manual
• 2x two-color brand stickers

Stinger SSK8 8GA 600W Complete Wiring Kit

Featuring Ultra Flexible CCA cable construction for excellent current transfer to power hungry amplifiers on a budget. Quality twisted pair interconnects for noise free signal transfer. Also includes ultra flexible speaker wire, remote turn-on, MIDI high current fuse holder and ring terminals for a complete installation package. All the necessary parts for installing your next 2 channel amplifier.

Includes

• 17FT Matte Blue Ultra Flexible Power Wire (CCA)
• 3FT Matte Gray Ultra Flexible Ground Wire (CCA)
• 17FT Twisted Pair RCA Interconnects (OFC)
• 17FT Blue Remote Turn-on Wire (CCA)
• 20FT Matte Blue Ultra Flexible Speaker Wire (CCA)
• 1pc. High Current Water-resistant MIDI Fuseholder with 60A Fuse
