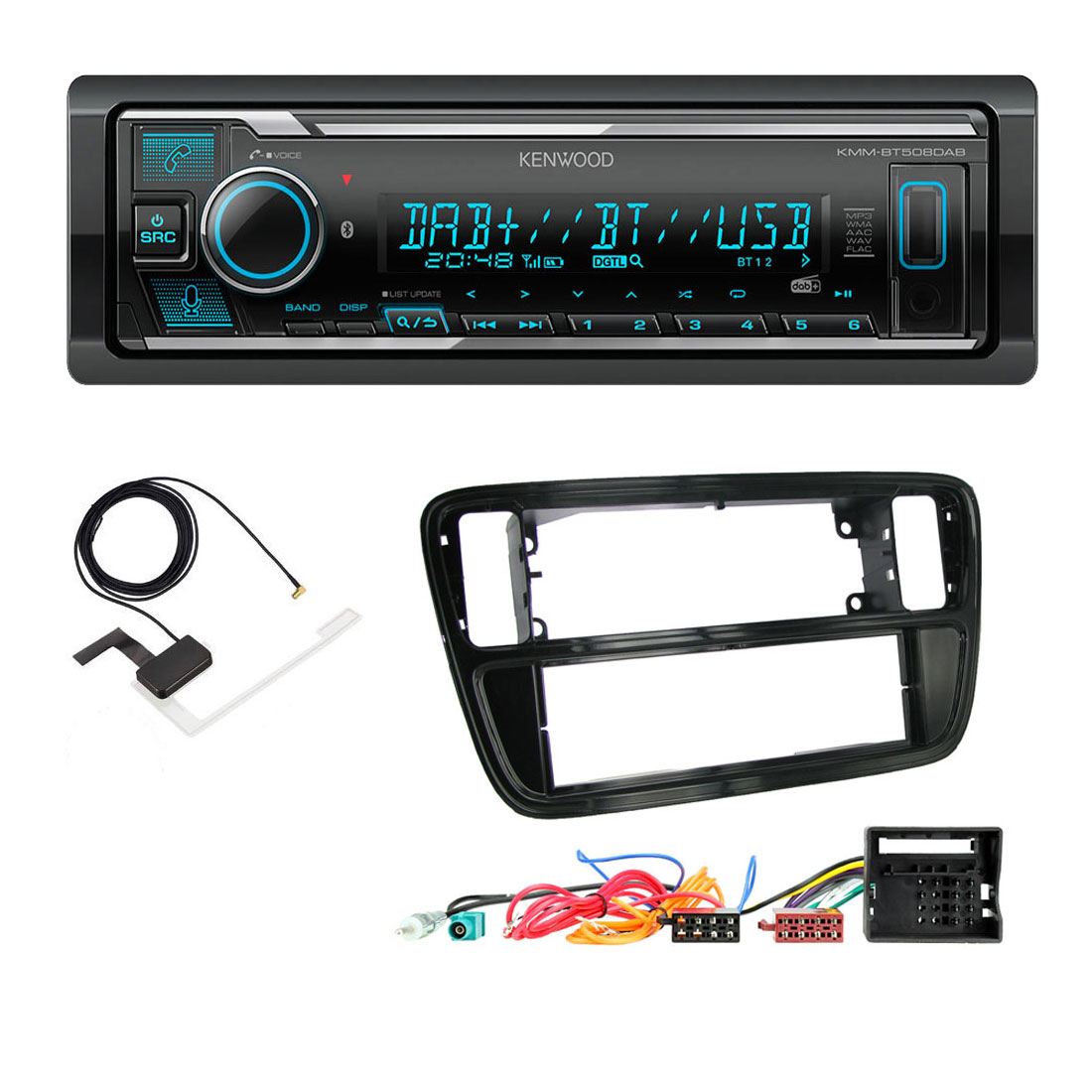

Package Includes

• Kenwood KMM-BT508DAB Digital Media Receiver Digital Radio DAB+, Bluetooth
• DAB Aerial
• Fascia Adaptor (Piano Black)
• Wiring Harness With Din Aerial

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Wiring Harness

The wiring harness will allow to install the stereo without having to cut any wires.

This adaptor is required to replace factory fitted radio with an aftermarket headunit (Alpine, Pioneer, Kenwood, Sony, JVC etc.). It will convert the car original power and speakers wiring connector to a standard ISO connector.

KMM-BT508DAB

Enjoy convenient control. Cristal clear Digital Radio DAB+. Built-in Bluetooth technology for hands-free calls and music streaming, the ability to use your smartphone like a wireless remote control and interactions with Amazon Alexa cloud-based voice service. The Digital Sound Processor, Time Alignment & 13-Band EQ ensures you of optimal sound tuning enhancements.

Key Features

• DAB+ Digital radio, analog FM radio with RDS functionality and AM radio reception.
• Bluetooth technology for hands-free calls and music streaming.
• Dual Phone Connection switches automatically between the 2 paired phones for incoming calls.
• Use your smartphone like a wireless remote control with the KENWOOD Remote app.
• MP3 / WMA / AAC / WAV / FLAC music file playback.
• DSP, DTA and 13-Band EQ for optimal sound tuning enhancements.
• 2 high power (2,5V) RCA preouts to connect multiple power amplifiers.
• Wide 1,5 line LCD display with high contrast, wide viewing angle & variable-colour backlight.
• Menu language in English(default), Russian, Spanish, French or German.
• Short body (100mm) for easy installation

General Features

• DIN Size 1 DIN
• Detachable Faceplate
• Key Illumination Variable LED
• Rotary Encoder & Control Knob
• Dual Accent Key Handsfree & Audio Streaming
• Back-up Memory Tuner presets & menu settings
• Attenuator with Smooth Volume Return
• Touch Sensor Tone
• Digital Clock (24H)
• Clock display when power-off default off
• All-off Select (20/40/60 minutes)
• Built-in Connector Mitsumi, 16 pin
• ISO connector Mitsumi to ISO cable
• Bluetooth unit built-in
• USB interface x 1 (Front)
• Firmware upgreadable
• Mechless receiver
• Short body

Display Features

• Display Type Liquid Crystal Display (LCD)
• Display Layout 2 line text + custom icons
• Vertical Aligment Liquid Crystal Display    Yes
• Display Illumination Variable by RGB LED
• Dimmer Control Manual / Set by Timer
• Brightness control 0 - 31 steps
• Demo Mode
• Menu text in selectable language English(default) / Spanish / French / German / Russian

Cosmetics Features

• Dress plate Piano Black
• Preset key finish Piano Black
• Escutcheon finish Piano Black
• Volume & operation knob or wheel Transparant Lighting & Chrome Finished Ring
• Triangle Illumination Red LED
• Front terminals dust cover
• Key illumination Variable by RGB LED
• Illuminated front USB port Variable by RGB LED
• Brightness Control (Key) 0 - 31 step
• Dimmer Control (Key) Manual / Set by Timer
• Variable color illumination
• Color Zone Concept 2 zone colour control
• Brightness zone concept 2 zone brightness control
• Chrome-finished accents Volume knod & faceplate

Tuner Features

• Station Select Manual / Preset
• FM Reception
• AM (MW/LW) Reception
• Tuner Presets (FM/AM) 24 Presets (18FM / 6AM)
• Preset memory w/o back-up power
• Mixed preset memory (FM & AM) 6 presets
• Up/Down Seek/Scan
• Automatic Memory Entry (AME)
• FM Stereo / Mono Selector
• Radio Data System
• Radio Text Plus
• Traffic Information
• Local search
• AF Regional Selectable: AF/AF Reg/OFF
• Auto TP search
• Enhanced Other Networks Function (EON)
• Program Type Function (PTY)

CE DAB Tuner Features

• DAB+ tuner built-in
• Digital Radio Certification Mark
• Intelligent seek
• Ensemble seek
• Tuning mode / Seek mode Auto1/Auto2/Manual
• Service preset 6 ch * 3 bank presets,
• Auto service memory (AME)
• Service list by alphabet order
• Preset list
• Related service
• Audio interrupt standby by PTY
• Audio interrupt standby by announcement
• DAB-RDS integrated TI
• Traffic Information
• DAB-AF (Alternative frequency)
• Announcement Switching (ASW) Select
• DMB Audio (Digital multimedia broadcasting)
• Soft linking
• Antenna power supply on/off switch
• DAB Antenna Included

Playable Audio File

• AAC (*.m4a) files are playable USB
• AAC (*.aac) files are playable USB
• MP3 files are playable USB
• WMA (.wma) files are playable USB
• WAV (.wav) files are playable USB
• FLAC files are playable USB

USB Features

• USB terminal Front with dust cover
• USB Type 2.0 High speed
• MP3, WMA, AAC, WAV, FLAC playback
• Repeat/Scan/Random search
• Repeat / Random Play
• Direct search
• Resume play
• Time code display
• 1,5A Smartphone Quick Charge

iPod Features

• Made for iPod & iPhone *    Yes
• USB Direct Control (Audio, 1 wire, Lightning-connector)    with optional cable KCA-iP103
• Music playback    Yes
• Alphabet search    Yes
• Skip search    Yes
• Related search    Yes
• Direct Search    Yes
• iPod EQ Mode    Yes
• Control by hand    Yes
• App & iPod control mode    Yes
• Spotify App Link    Yes
• iAP over Bluetooth    Yes
• iTunes Radio App    yes iAP1
• Reverse browsing    Yes
• Battery charge + power control    Yes
• * Always update to latest Apple firmware

Audio Features

• Maximum Output Power 50W x 4
• MOSFET Power IC
• Auxiliary Type Mini-jack, front panel
• Pre-out 2 RCA
• Pre-out Output Level 2.5V
• Preout Rear / Subwoofer Switchable
• Subwoofer Reference Level Adj
• 2-Way X'over network
• 3-Way x'over (bi-amp connection)
• Tone Control / Easy EQ 13 band, 8 presets
• Balance/Fader/Loudness Control
• Bass Boost Circuit Off/+1/+2/+3/+4/+5
• Att.(-20dB) with smooth Volume Return
• Easy 3-band EQ mode
• Graphic Equalizer + Preset 13-Bands Graphic Equalizer with 8 Presets.
• Digital Sound Processor (DSP) Built-in
• Digital Time Aligment (DTA)
• Low- & High-pass Filter
• Speaker Size Control Front/rear/subwoofer independently
• Kenwood Sound Reconstruction
• Sound Reconstruction
• Space Enhancer
• Realizer
• Stage EQ
• Drive EQ

Bluetooth General Features

• Max num. of regist. phones for HFP & A2DP 5 phones
• Hands Free Profile with High Sound Quality HFP V1.7.1
• Max num. of regist. phones for HFP 5 phones
• 2 phones fulltime connection
• Audio Streaming (A2DP)
• High Quality Audio Streaming SBC/AAC
• Max num. of regist. units for A2DP 5 units
• Serial Port Profile (SPP)
• Phonebook Access Profile (PBAP)
• iPhone & Android automatic pairing via USB
• KENWOOD Remote App Ready
• KENWOOD Music Mix Support
• Amazon Alexa ready
• Catchphone / Call Waiting
• Private mode
• Alphabet Search (Phonebook)
• Noise Canceller
• Echo Canceller
• Phone device status display
• Audio device status display
• Signal strength display
• Remaining battery display
• Bluetooth Paring Indicator
• High-quality noise canceling microphone Rear Wired
• Bluetooth firmware upgradeable
• * depends on phone model/make & Kenwood unit

Connectivity

• Front USB & AUX Input
• OEM Wired Remote Control ready
• DC-Cord Mitsumi to ISO
• Power Control (P.CON) wire
• Amplifier pre-out 2 x RCA: Front + Rear/Sub (selectable)
• FM Antenna Input JASO connector
• DAB Aerial input SMB connector
• External microphone input 3,5mm mini-jack

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
