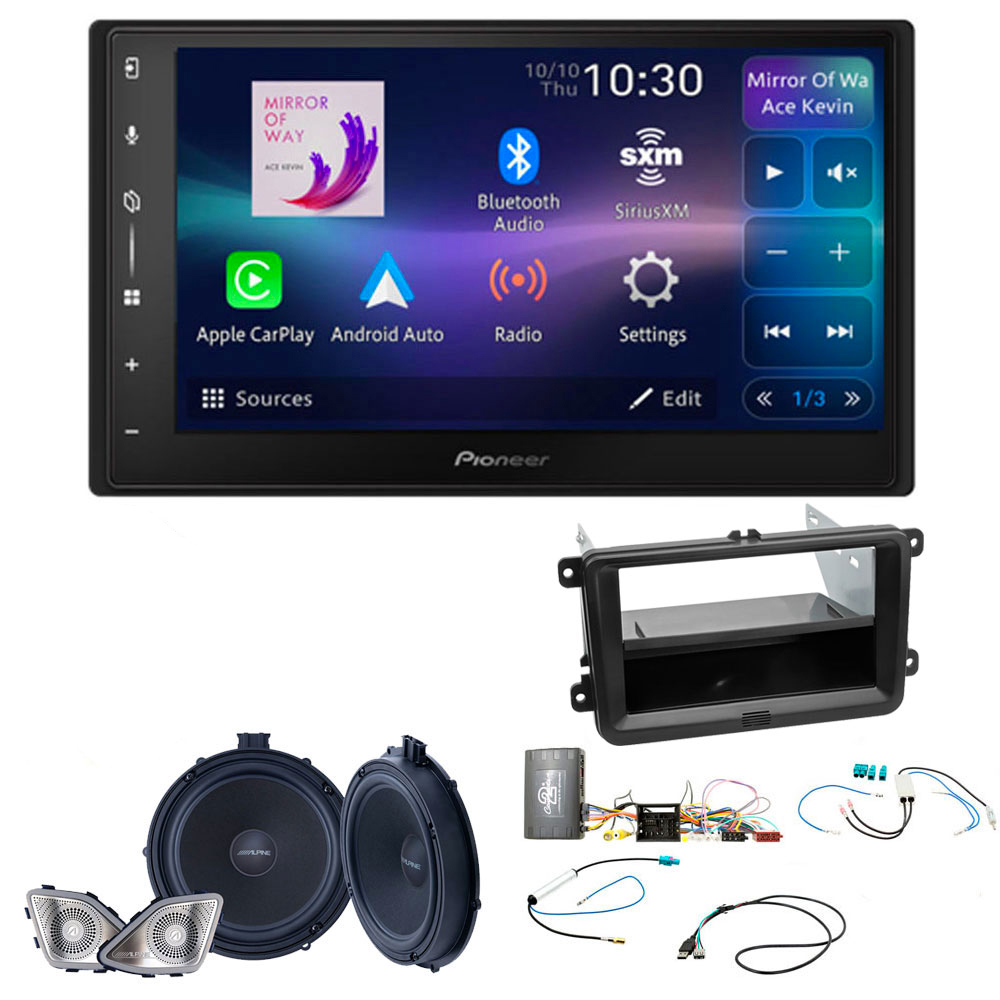

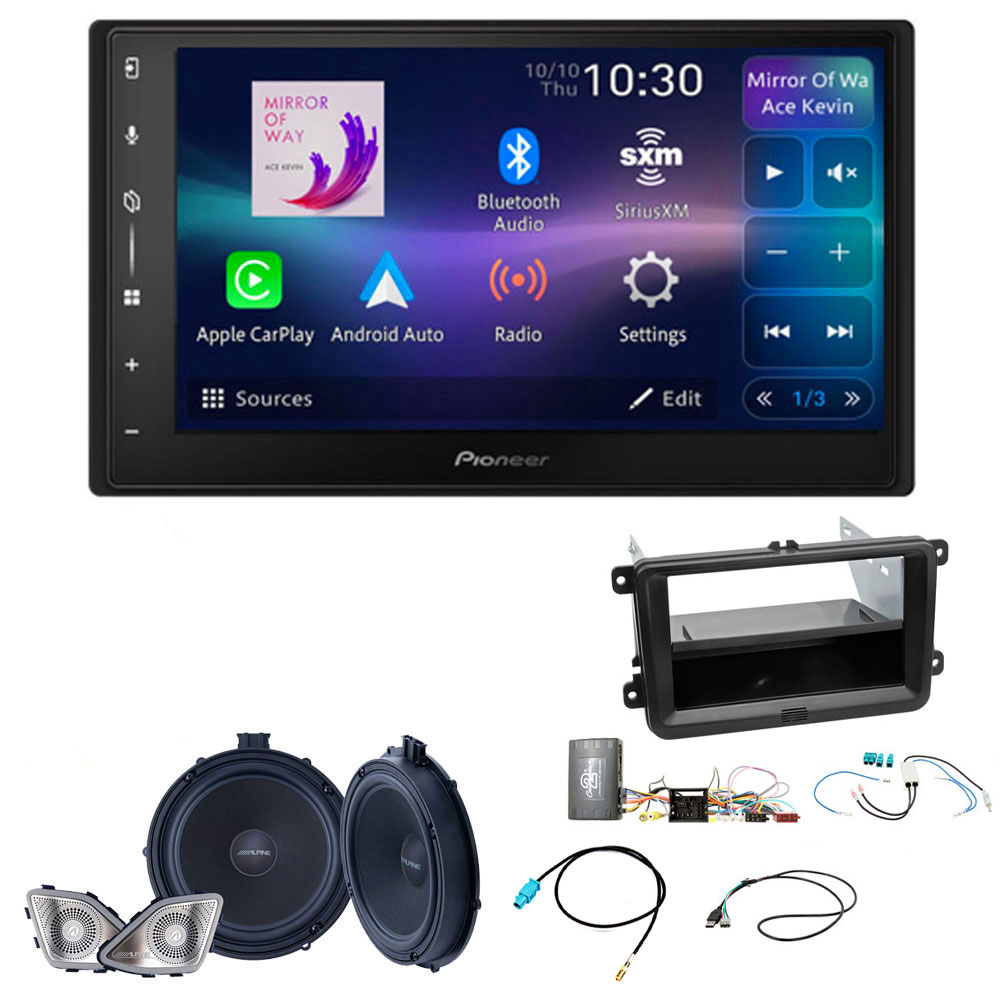

Package Includes

• Pioneer SPH-DA77DAB 6.8" WVGA Capacitive Multi-touch Panel Screen Weblink 3.0 Android Auto/ Apple CarPlay DAB Car Stereo
• Alpine SPC-108T6 8" 20cm Component Speaker System
• Single / Double Din Fascia Adaptor (Black Frame, Pocket & Brackets)
• Infodapter
• DAB Adaptor
• Twin Fakra Din Antenna Adaptor
• OEM USB Socket Adaptor
• Stereo Patch Lead

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit. Antenna Adaptors are available in both ISO and DIN versions. Antenna Aerial Adaptor, converts car specific antenna connector to a universal aftermarket connector.

OEM USB Retention

Allows for the retention of the factory USB port when upgrading to an aftermarket head unit.ial adaptors and stalk adaptors, to install the radio in your vehicle as we have everything in stock.

Steering Wheel Interface

VW Infodapter Interface. Allows Use Of Steering Wheel Controls, Optical Parking Sensor Display And Climate Control Visualization With An Aftermarket AV Head Unit. Also is able to retain the OEM reverse camera (when used in conjunction with CAM-VW3-RT)

Pioneer SPH-DA77DAB

Pioneer SPH-DA77DAB. Getting the latest technology doesn’t have to break the budget with the Pioneer SPH-DA77DAB featuring the very best in automotive smartphone technology, including Apple CarPlay® (wireless or wired connection), Android Auto™ (wireless or wired connection), Dual Phone Bluetooth®, plus dual camera inputs.

Choose from a host of entertainment options, including USB with Full HD video playback supported**, DAB+ tuner, AM/FM tuner or Bluetooth music streaming, Android & iPhone Smartphone 2-way mirroring* (via cable connection) all controlled from a large, highly detailed 6.8-inch WVGA capacitive touch screen.

To make your in-car experience even easier, we’ve added a quick access capacitive button for Apple CarPlay and Android Auto users as well as an on-screen quick access bar for Pioneer source and audio control.

Audio performance is supported with a 13 Band GEQ and highly detailed crossover adjustments just to name a few. Supporting either 4 x 50w Max direct speaker outputs or for those running external amplifiers, 3 x 4V Pre-outs (FRT, RR & SW) to make sure quality at high volumes can be achieved.

Installation is made easy with a 1-DIN chassis design with a depth of 125mm leaving more space for (and less pressure on) wiring behind your dash!

The Pioneer SPH-DA77DAB is designed to provide amazing functionality with a host of new improvements to make your in-car experience safe, easy and fun!

	Apple CarPlay Is the smarter, safer and more fun way to use your iPhone® in the car. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use Maps, listen to music, and access messages with just a word or a touch. Apple CarPlay requires iPhone 5 or newer with the latest version of iOS.
	Android Auto Extends the Android platform into the car in a way that’s purpose-built for driving and automatically brings you useful information and organises it into simple cards that appear just when they’re needed. It’s designed to minimise distraction so you can stay focused on the road ahead. Android Auto is compatible with Android phones running Android 5.0 (Lollipop) or later. Android Auto may not be available on all devices and is not available in all countries or regions.
	DAB+ Enjoy the convenience of listening to your favourite radio stations in crystal clear digital quality thanks to a built-in Digital Radio tuner.
	Digital Radio Tick Mark Approved product Manufacturers must meet the minimum specification, verified by independent testing. All Pioneer products that use this Digital Radio Tick Mark have been independently tested and approved so you can buy with confidence.
	Bluetooth® Obey local driving laws with built-in Bluetooth (HFP). Wide Band Speech hands-free calling, wireless audio streaming (A2DP) with artist, album, and song search, simple pairing, and control audio (AVRCP), Bluetooth® wireless technology has made life in the vehicle safer and more convenient.
	6.8" Capacitive Touchscreen A fully flat touchscreen that allows for fast and responsive multi-touch gestures like pinch to zoom, plus swipe and scroll controls at your fingertips, in very high detail.
	Mechafree This product is designed for modern digital music formats.
	Made for iPod / iPhone Directly control your iPod / iPhone, for charging, music and video via an optional interface cable (sold separately), depending on your iOS device. Song, artist, time and album information are beautifully displayed on the touchscreen.
	Compatible with Android Connect and listen to music stored on your device without the need for an app
	USB Input Connect any device with an USB interface cable to charge your device or listen to clean, clear sound.
	Spotify With Spotify, just connect your smartphone to comfortably browse your favourite playlists, albums, tracks and artists using your headunit controls.
	Waze is a social GPS driving/navigation app that offers map, real-time traffic, and various other information for you to access on the large display of Pioneer compatible multimedia devices .
	FLAC Enjoy FLAC lossless digital audio files in your vehicle with playback output at CD quality, without the need to convert.
	13-band Graphical EQ Adjust your audio output in detail for a music experience tailored to your preferences.
	Siri Eyes Free make use of your iPhone's Siri functionality through your unit's external microphone and the speakers of your vehicle
	Multi colour illumination Match the display and key illumination to your vehicle's interior lighting with a range of endless colour combinations.

Main Features

• Mechafree, iconic cosmetic design, with large 6.8” Capacitive Multi-touch touchscreen panel
• Built-in Wi-Fi for Apple CarPlay (wireless & wired) and Android Auto (wireless & wired)
• Improved GUI allowing for simple smartphone connectivity, compatible with Apple CarPlay and Android Auto
• 1Din – Short Chassis backside design
• RGB illumination
• Single Rear USB with 1.5A power supply (Type A)
• USB Mirroring via WebLink® 3.0 for iOS and Android smartphone/tablets
• Rear View and 2nd Camera Input
• Bluetooth (A2DP/HFP/AVRCP) DAB / DAB+ Digital Radio built-in (Optional DAB Antenna required)
• Bluetooth®: handsfree calling, phonebook transfer, audio streaming (A2DP). (External BT microphone included)
• Wired Remote Input
• CAN-BUS support (No HUD)
• Advanced audio features
• Wireless Android Auto and CarPlay and its direct launch key, (Easy to use)
• 2-DIN (With 1-DIN short chassis design to allow easy installation into a wide range of vehicles)
• Vehicle Bus. UART / Can-bus, that supports the retention of the vehicle related functions of the original (OEM) head unit. (Optional vehicle adaptor required, sold separately)

PxLink (Companion app) will be installed by Firmware update or minor change

SPH-DA360DAB vs SPH-DA77DAB comparison

SPH-DA77DAB Chassis design

SPH-DA77DAB Installation Benefit

Specifications:

General

• Mechafree 6.8” WVGA Capacitive touchscreen
• Built-in Wi-Fi for Apple CarPlay (wireless & wired) and Android Auto (wireless & wired)
• USB Mirroring via WebLink® 3.0 for iOS and Android smartphone/tablets
• Bluetooth® and DAB / DAB+ Digital Radio combined
• Digital Radio Tick Mark approved product
• Siri Eyes Free
• Advanced audio features
• Premium sound quality
• RGB: multicolour key illumination and LCD display
• iPhone Direct Control
• Compatible with Android
• Reverse camera compatible
• 2-DIN (With 1-DIN short chassis design to allow easy installation into a wide range of vehicles)
• Selectable wall paper (User customisation with jpeg file)

Connectivity

• Apple CarPlay (wireless & wired)
• Android Auto (wireless & wired)
• WEBLINK 3.0
• Rear USB / Rear Aux-In
• Made for iPhone / Compatible with Android
• USB Mirroring via WebLink® 3.0 for iOS, Android smartp­hone/tablets
• Wired Remote Control / Rear View Camera Input
• Vehicle Bus. UART / Can-bus, that supports the retention of the vehicle related functions of the original (OEM) head unit. (Optional vehicle adaptor required, sold separately)

Audio and Video

• 13-BAND GEQ and Time alignment
• 3Way Network Mode
• Video output & Audio 3 Pre-Out (4V)

DOP Related

• EZ MyCarSetting
• Setting Memory for Agricultural Business
• Start Stop Function

Bluetooth

• Pioneer Bluetooth for hands-free calling & audio streaming
• Bluetooth auto pairing
• External microphone Included
• Wireless audio browsing

Audio

• Premium Sound Quality
• MOSFET 50W x 4 Max Output Power
• Music Browsing
• 13-band Graphic Equaliser
• Low Pass/High Pass Filter
• 3 x 4 Volt RCA Pre-outs

Tuner

• DAB/DAB+ Digital Radio
• Auto Tune, Pre-set buttons
• Digital Radio Tick Mark approved product
• RDS FM/AM Tuner
• 24 Pre-set

File Playback

• Audio: WMA/MP3/WAV/AAC/FLAC
• Video: H.264/Mpeg4/JPEG/TS/ WMV/MKV/FLV/TS

Accessories

• Included - Microphone for Hands-free Calling
• Included - USB extension cable

SPC-108T6 Component Speaker System

Upgrade your Volkswagen T6 with the new SPC-108T6 high-end component speaker system.

This Alpine Adventure Audio system for the Volkswagen T6 perfectly unites function with form: enjoy audiophile grade sound quality, while the beautiful photo-etched stainless-steel tweeter grills simply look stunning in your A-pillars.

The High-end tweeters let you hear every note with stunning clarity and fast dynamics, while the 20 cm mid-range door speakers produce a wide frequency range that uncovers the rich details of every audio track – delivering your favorite songs with powerful mid-bass and amazing texture and accuracy

Due to the original VW connectors and usage of the original wiring harness, installation is fast and easy. The system is also compatible with the front windscreen roller blinds in the VW T6 California and can be further upgraded to the Concert Ensemble with a powerful 300 Watts subwoofer and a 6-channel DSP amplifier.

The Alpine Adventure Sound Experience

The new series of Alpine Adventure Audio sound solutions for the Volkswagen T6 have arrived - with the listening and mobility styles of motorhome and camping van enthusiasts in mind. Specially engineered for the challenging, and often audio-unfriendly environments of these camping and utility vehicles, our systems are guaranteed to provide unmatched sonic excellence on those long drives to your destination. They are not only a joy to listen to, but also a breeze to install, and their distinctive design will spruce up any cockpit without spoiling the original cabin cosmetics. Make your road-trips as exhilarating as your activities upon arrival with an Alpine Adventure Audio system!

Your VW T6 never sounded that good

Bring high-fidelity audio to your Volkswagen T6 at an affordable cost with the Alpine SPC-108T6 Adventure Audio speaker system. From deep, rich bass to accurate mids and crisp, clean highs – you will hear every note with a new sense of clarity. The speaker system handles up to 300 Watts peak power and provides an audiophile listening experience. If you look for a more inexpensive system, you can alternatively choose the SPC-106T6, featuring 16,5 cm door speakers with 180 Watts power handling instead.

Made for Volkswagen T6

Whether you are a carpenter, a camping fan or part of a large family, this sound system is for you and your T6. The SPC-108T6 Adventure Audio speaker system is compatible with all Volkswagen T6 configurations (Multivan, California, Caravelle and Transporter) and any kind of original or aftermarket radio systems (expect the original Dynaudio system). It is also compatible with the T6 California front windscreen roller blinds.

Designed to be seen and heard

The first thing you will notice about the SPC-108T6 are the beautifully designed stainless steel tweeter grills in the A-pillars, that replace the original plastic VW grills. We use a cutting-edge chemical photo etching process for highest aesthetics and acoustics performance, to make them look stunning from every angle – yet acoustically optimized and virtually transparent to the sound waves passing through them.

Fast & easy installation

The Alpine speaker system components use only original installation locations for easy installation – and to maintain the option to re-install the factory system (if you drive a leasing vehicle that needs to be returned at some point in time). All connectors are plug-and-play compatible with the original VW wiring harness and connectors. The overall installation can be accomplished with regular household tools in a short time. A step-by-step installation manual is included.

Enjoy crisp, clean highs

28 mm audiophile-grade silk dome tweeters with back-chambers produce crisp, clean highs that let you hear every note with stunning clarity and fast dynamics. Our sound engineers also created audio optimized tweeter installation brackets for the A-pillars, allowing the tweeters to point right at the listeners in the cabin. This strongly improves the sound stage and clarity for an amazing listening experience.

High-end silk dome tweeters

Take your listening experience to the next level with the Alpine Adventure Audio systems for the VW T6. The high-end 28 mm tweeters feature extended high frequency response well beyond 25 kHz to faithfully reproduce the sound stage and the harmonic details of the music.

Powerful 20cm mid-bass woofers

The Alpine-designed 20 cm mid-range speakers produce a wide frequency range that uncovers the rich details of every audio track – delivering your favorite songs with powerful mid-bass and amazing texture and accuracy. The included steel base rings ensure a rock-solid, vibration free connection to the door frame and perfectly seal the door interior from moisture due to the attached silicone seals.

Upgrade to Adventure Audio: Concert Ensemble

Get the ultimate listening experience by upgrading your SPC-108T6 speaker system with the 550 Watts DSP amplifier & subwoofer kit SPC-D84AT6 for the Volkswagen T6. The DSP amplifier strongly increases power output and dynamic of your Adventure Audio system and features vehicle specific DSP sound settings and a plug-and-play wiring harness. Adding a 300 Watts dual voice coil 20cm subwoofer below the passenger seat in a sealed, custom fit enclosure results in rich, deep bass and an overall smooth and balanced sound experience. The subwoofer is also compatible with the rotary passenger seat in the T6 California.

Features

Mid-Range Woofer

• 200 mm mid-range door speaker
• Includes steel plates for solid door installation
• High quality steel basket and rubber surround
• 38 mm voice coil
• Large Ferrite magnet
• Includes foam seal ring
• For easy installation with original VW cable harness (original connectors)

Tweeter

• 28 mm audiophile-grade back-chambered silk-dome tweeters
• Neodymium magnet
• Stainless steel tweeter grills (photo etched)
• Acoustically optimized tweeter installation brackets
• Integrate speaker network with foil condenser

Specifications

• Peak Power Handling: 300 Watts
• RMS Power Handling: 100 Watts

General

• Frequency response: 39Hz – 25kHz
• Impedance: 4 Ohms
• Sensitivity: 87dB 1W/m

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
