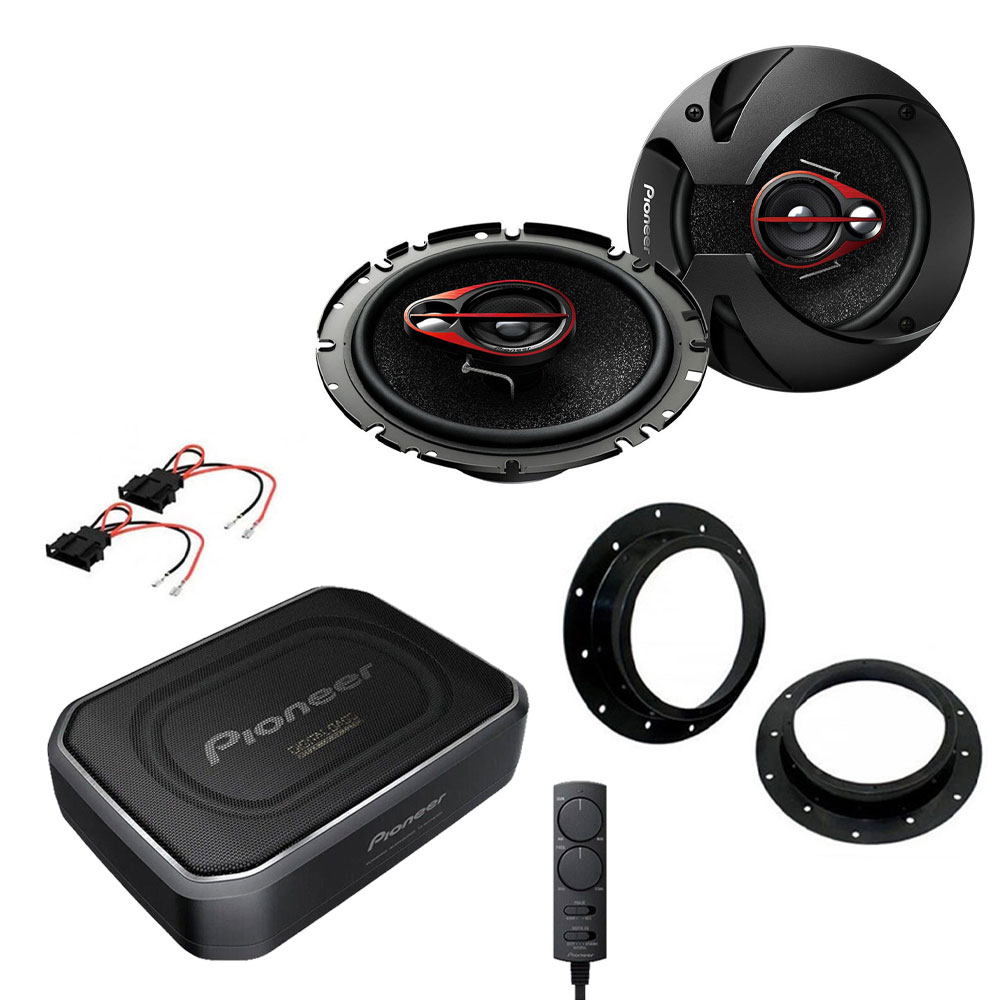

Package Includes

• Pioneer 6.5" 17cm 3 Way Coaxial Car Speakers
• Pioneer TS-WX140DA Class-D Space Saving Sub Under Seat Active Subwoofer 170W
• 165mm Front Door Speaker Adaptor
• Speaker Adaptor Plugs

Strong, Solid Performance

Our sporty looking TS-R speakers tap the full potential of your in-car audio setup. Aimed at providing loud and clear output for any type of music, their sound quality results from a multilayer mica matrix woofer cone which ensures punching bass and improved midrange frequency response. You’ll enjoy a sound that is more accurate, with full-bodied bass.

MMM Cone

Enjoy a wider dispersion of sound with deeper bass through the Multi-layer Mica matrix cone

Main Features

• Tweeter material Piezoelectric
• Midrange size 42 mm
• Voice Coil type    Aluminium Bobbin & Copper Wire
• Dimensions 165 x 64 mm
• Weight 1.40 kg
• Cut-out Hole 137 mm
• Mounting Depth 47 mm
• Coaxial Speakers
• 3 way
• Maximum power 250 / Total Power Both Speakers 500 Watts
• Nominal input power 40 W
• Impedance 4 Ω
• Frequency response 36 – 31,000
• Woofer Size 17 cm
• Woofer material    Multilayer Mica Matrix Cone
• Tweeter size 15 mm

Note: This item/pack is sold as a pair and contains 2 speakers.

Powerful Bass, without losing space.

Pioneer launches another product in its generation of Class-D amplified subwoofers integrating DIGITAL BASS CONTROL. This unique feature generates three selectable Bass Modes: DEEP, NATURAL and DYNAMIC, producing 170 Watts of strong, rich, deep bass that you can feel, without giving up space. Users can easily control and customise the three bass modes directly from the supplied wired remote control, and you can easily mount the TS-WX140DA under the front seats or in the boot.

Thanks to the inclusion of Class-D technology, Pioneer’s TS-WX140DA is even easier to install, as it is capable of taking both High (Speaker Line Input) and Low (RCA Line Input) input signals, meaning you can connect it to your aftermarket or original factory fitted stereo, to easily upgrade the sound you have now.

TS-WX140DA is a small active subwoofer in a sealed enclosure, delivering 170 W Maximum power and 50 W Nominal Power.

EV Optimized

This compact subwoofer is the perfect solution to add more deep and powerful bass in your Electric Vehicle (EV), without the typical sacrifice in space! With a built-in high-efficiency Class-D amplifier, low power consumption, low weight design and compact size you don't have to worry about lower mileage due to your bass addition.

Car Sound Fit App Car

sound simulator application for an improved in-car sound experience

Digital Bass Control

Selectable "BASS MODE" (DEEP/DYNAMIC) allows you to match the best bass style to your choice of favourite music.

Main Features

• EV Optimized
• CarSoundFit App
• DIGITAL BASS CONTROL
• Size 20 cm
• Maximum power 170 W
• Continuous power output 50 W
• Frequency Response
  • DEEP Bass Mode: 20 - 200 Hz
  • NATURAL Bass Mode: 40 - 200 Hz
  • DYNAMIC Bass Mode: 40 - 160 Hz
• Sensitivity
  • DEEP Bass Mode: 95 dB
  • NATURAL Bass Mode: 98 dB
  • DYNAMIC Bass Mode: 100 dB
• Woofer material Aluminium
• Surround Urethane
• Voice Coil type Copper Round Wire 4-Layer
• Voice Coil bobbin type Glass Imide
• Magnets Strontium
• Weight 3,1 kg
• Dimensions (W x H x D) 280 x 200 x 70
