VW T5.1, T6 Infinity Compact Under Seat Subwoofer & Kenwood 6.5" Speaker Upgrade Pack
- Stock Status: Out Of Stock
- Item Condition : New
- Available QTY : 0
- Brand: Dynamic Sounds
- Model: BASSLINK MINI + KFC-PS1796 + CT25VW16 + CT55-VW02
- EAN: 7427307013985
- Warranty: 2 Years Warranty
Available Options
Description

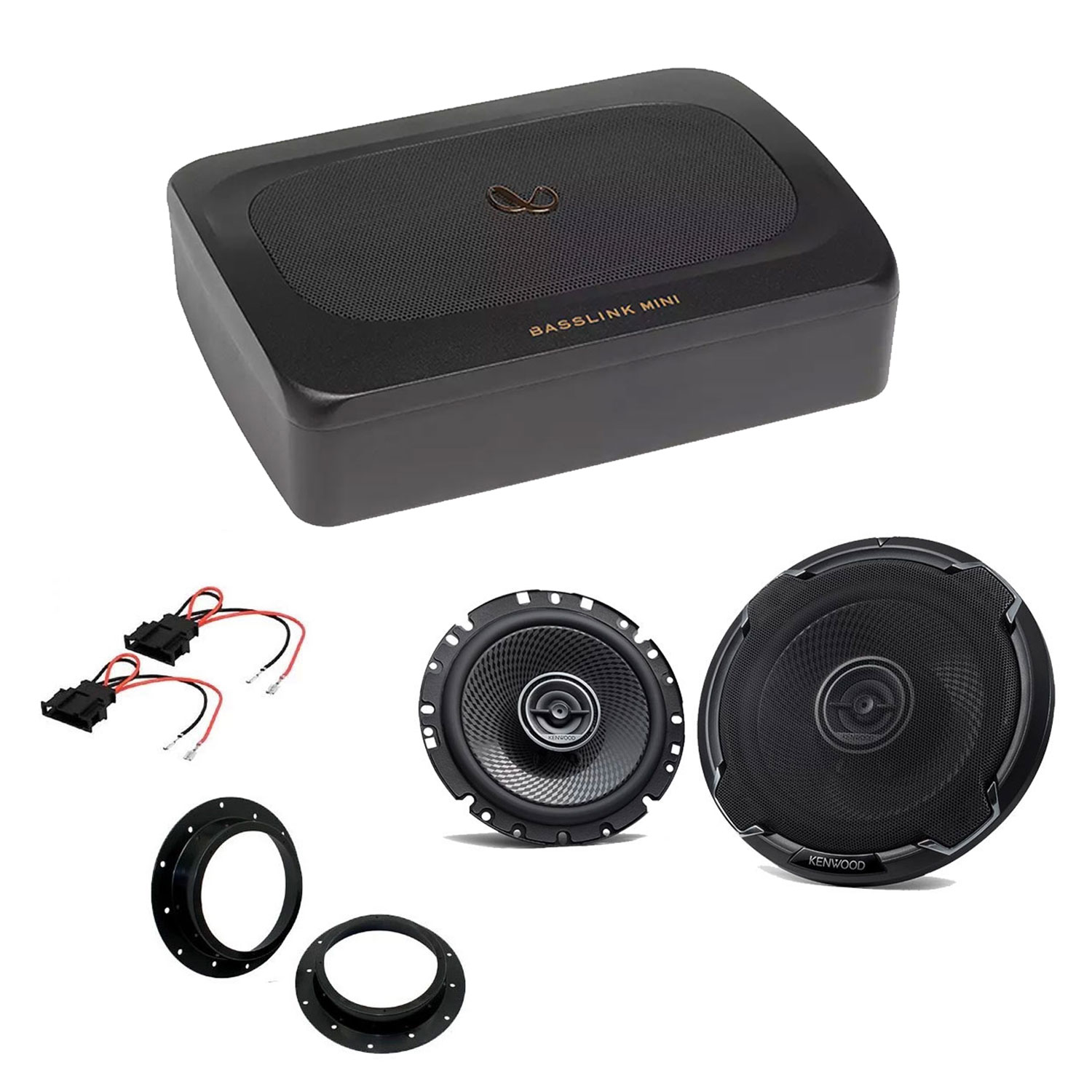

Package Includes
- Infinity BASSLINK MINI Compact Under Seat Powered Subwoofer System
- Kenwood PS Series 6.5" 17CM Flush Mount 2-Way Coaxial Car Speakers
- 165mm Front Door Speaker Adaptor
- Speaker Adaptor Plugs
Product Compatibility Chart
| Make | Model | Years | Notes |
| Volkswagen | Transporter | 2010 - 2015 | T5.1 |
| Volkswagen | Transporter | 2016 - 2019 | T6 |
Speaker Adaptor kits allow aftermarket standard size speakers to be fitted into the original apertures of your car audio system.
Speaker Adaptor Plugs. Converts OEM Plugs To Standard Aftermarket Speaker Connectors.
BASSLINK MINI Compact Under Seat Powered Subwoofer System
Infinity BassLink MINI delivers deep bass and takes up little space. Infinity's smallest powered subwoofer can be hid in the most compact of locations and deliver exceptional performance to any car audio system. Powered by a 100Watts Amplifier, Basslink MINI delivers accurate, tight bass you would expect from Infinity, all while running cool and drawing minimal current from your vehicles charging system.
Features
Big Bass, Small Space
Infinity BassLink MINI delivers deep bass and takes up minimal space. Its on-board 100Wrms amplifier has been performance matched to subwoofer to deliver tight, accurate bass.
Intelligent Electronic Design for Reliable and Extraordinary Performance
The BassLink MINI employs high-pass filters and limiters that deliver exceptional at-the-limits performance.
Die-Casting Aluminum Enclosure Design
The all-die-cast aluminum enclosure design not only minimizes size but also eliminates rattles to deliver clear bass from tiny space.
Bass Volume Remote Control
Bass Volume Remote control is included to let you adjust the sound from the driver's seat.
General Specifications
- Driver Complement 6"x8"(152mmx203mm) Subwoofer
- Amplifier Power 100Wrms; 200W Max
- Frequency Response 30Hz – 150Hz
- Fuse 15A
- Maximum Current Draw 13 A
- Quiescent Current Draw <600 mA
- Input Sensitivity 0.1 V – 4.0 V Low-Level Input; 0.25 V – 20V High-Level Input
- Crossover Frequency 50 Hz – 150 Hz
- Crossover Slope 12 dB/octave
- Bass Boost 0dB to + 12dB @ 50Hz
- Dimensions (L x W x H) 11-7/16" x8-5/16" x 3" (289.6mm x 209.6mm x 75.0mm)
- Weight 8.22 lbs (3.73kg)
In The Box
- 1 x Under seat subwoofer
- 4 x Screws
- 4 x Small metal plate
- 1 x Wiring harness
- 1 x Bass volume remote control (with cable)
- 1 x 15A Fuse
Kenwood 6.5" 17cm Flush Mount 2-Way Coaxial Car Speakers
Key Features
- 17cm, 2-Way / 2-Speaker System
- Diamond Array Pattern, Polypropylene woofer Diaphragm
- Steel basket, rubber surround
- 30mm Balanced dome tweeter
- 330W Peak Power
- Accoustic Sound Harmonizer
- Sound Field Enhancer
- 0,5m speaker cord included
- Grill assembly included
Speaker Features
- Speaker System 2-way 2-speaker
- Peak Input Power 330W
- Rated Input Power 100W
- Speaker Size 170mm
- Speaker Cone Design Diamond-Array pattern
- Magnet Type Ferrit
- Terminals Slide type
- Installation Capabillity Door/Rear Deck
Speaker/woofer Specifications
- Woofer Cone material Polypropylene (PP) Cone
- Speaker Basket Steel
- Speaker Surround Rubber
- Sensitivity 88dB/W/m
- Frequency Response 70Hz ~ 24000Hz
- Speaker Impedance 4Ω
- Dimensions with Grill (WxHxD) 179 x 179 x 66.4mm
- Dimensions w/o Grill (WxHxD) 165 x 165 x 54mm
- Mounting Depth 48mm
- Mouting Hole Diameter Ø 139.6mm
- Tweeter Height 6mm
- Speaker Weight with Grill (pc.) 813gr
- Speaker Weight w/o Grill (pc.) 733gr
- Gross Weight 1600gr
- Weight of Magnet 270gr
Tweeter Specifications
- Cone Size 30mm
- Cone Material Balanced Dome
- Magnet Type Neodymium
Accessories
- Screws (Parker-type) Ø 4 x 25mm, 8 pieces
- Speed nut φ 4, 8 pieces
- Adhesive tape pad 1 piece(s)
- Grill assembly included
- Speaker cable 0.5m
