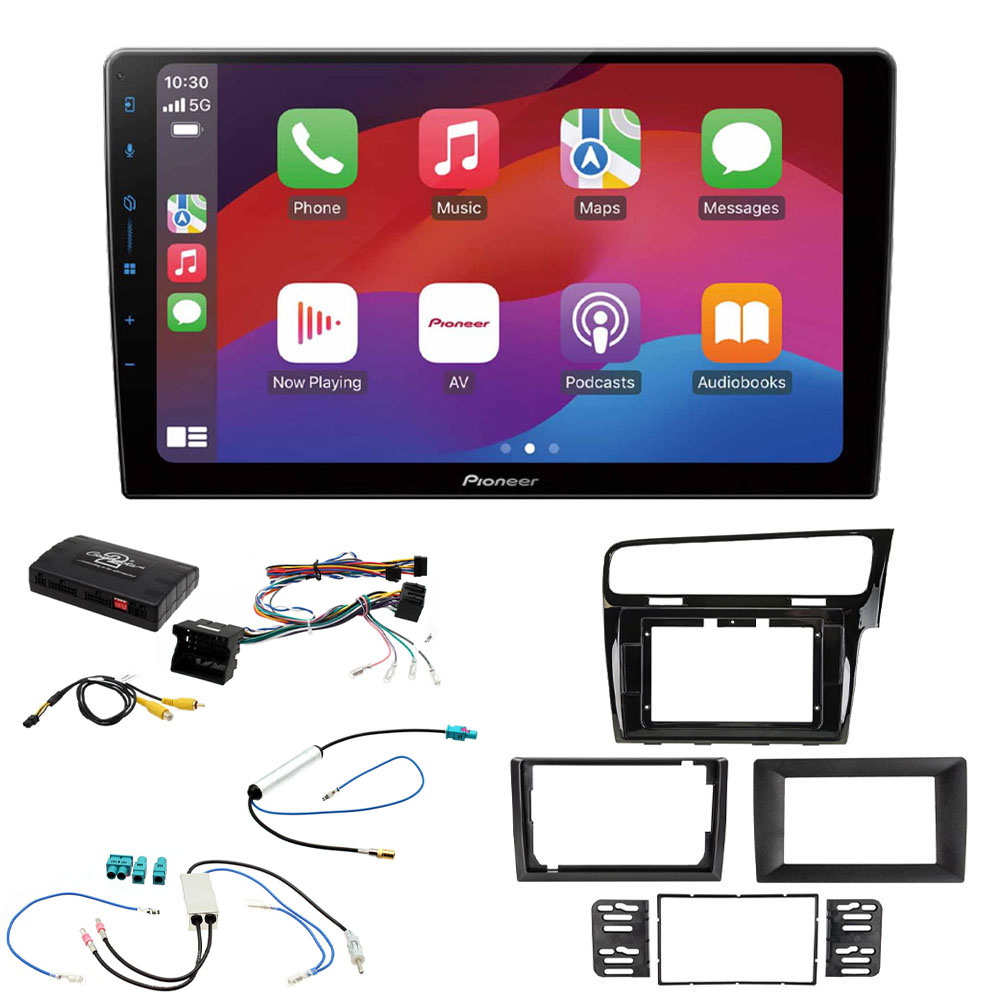

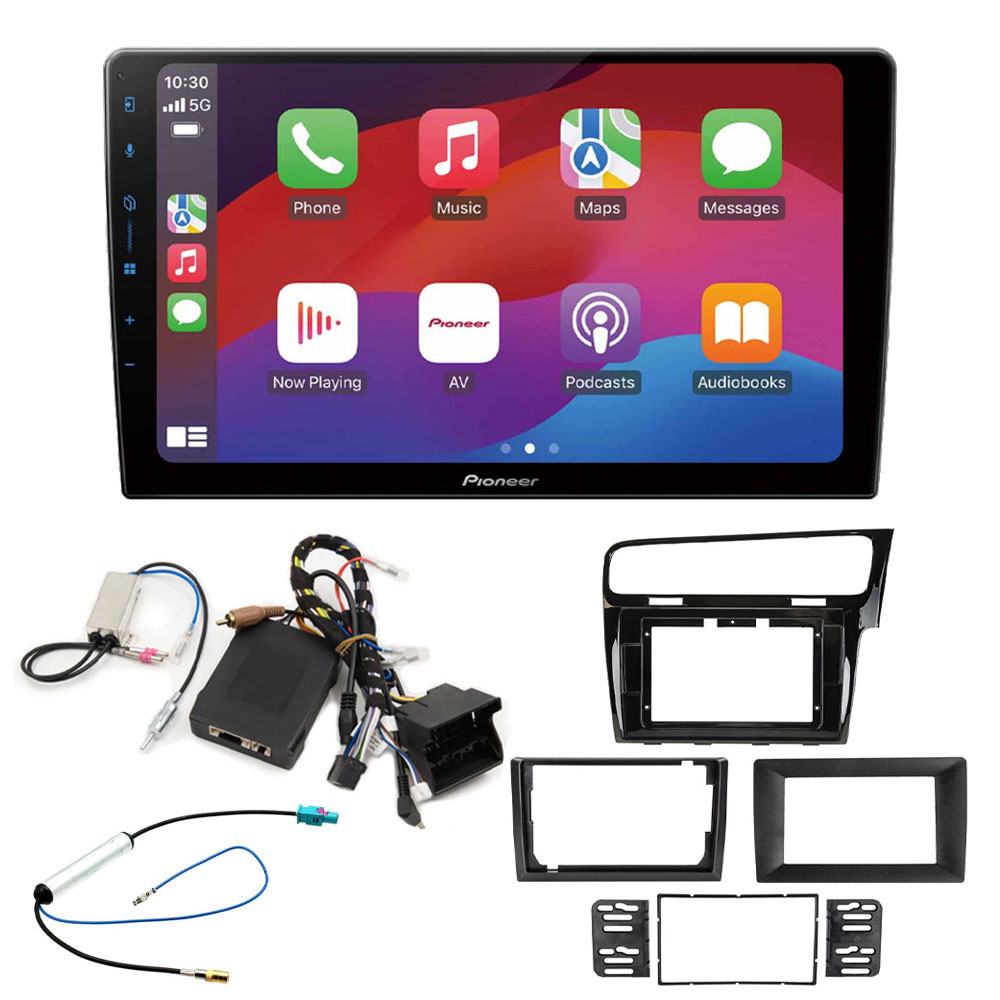

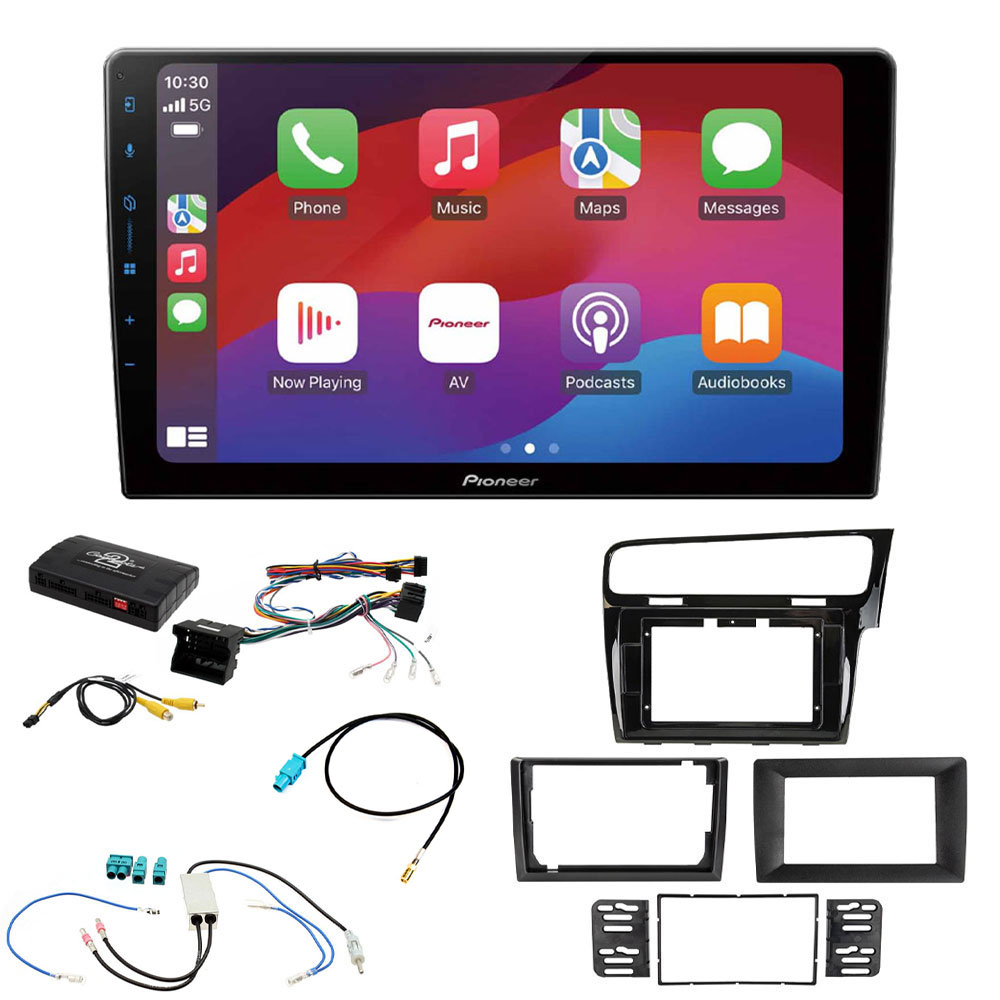

Package Includes

• Pioneer SPH-PF97BT Perfect Fit Mechafree 9.0" Wireless Apple CarPlay / Android Auto Bluetooth Car Stereo
• Double Din Fascia Adaptor
• Integration Module CAN Bus Adaptor
• Male Fakra to Female SMB DAB Antenna Adapter Cable
• Stereo Patch Lead

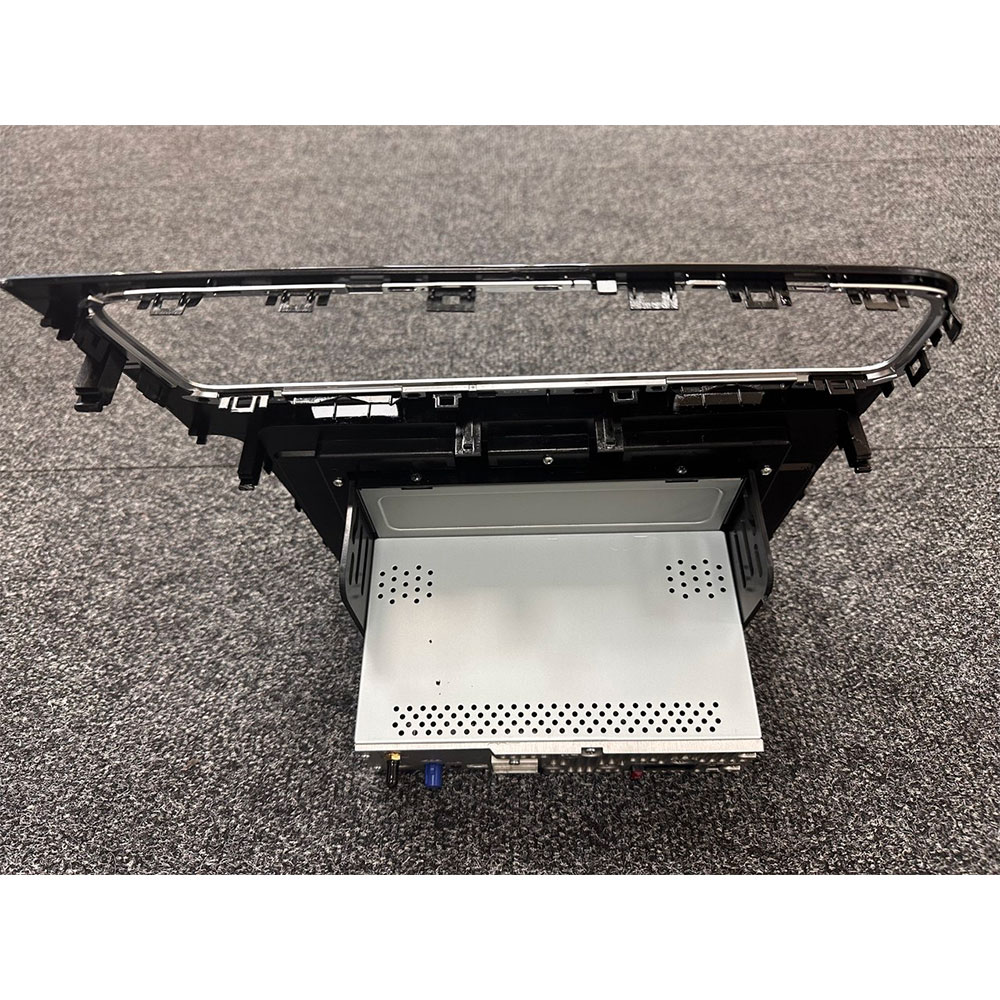

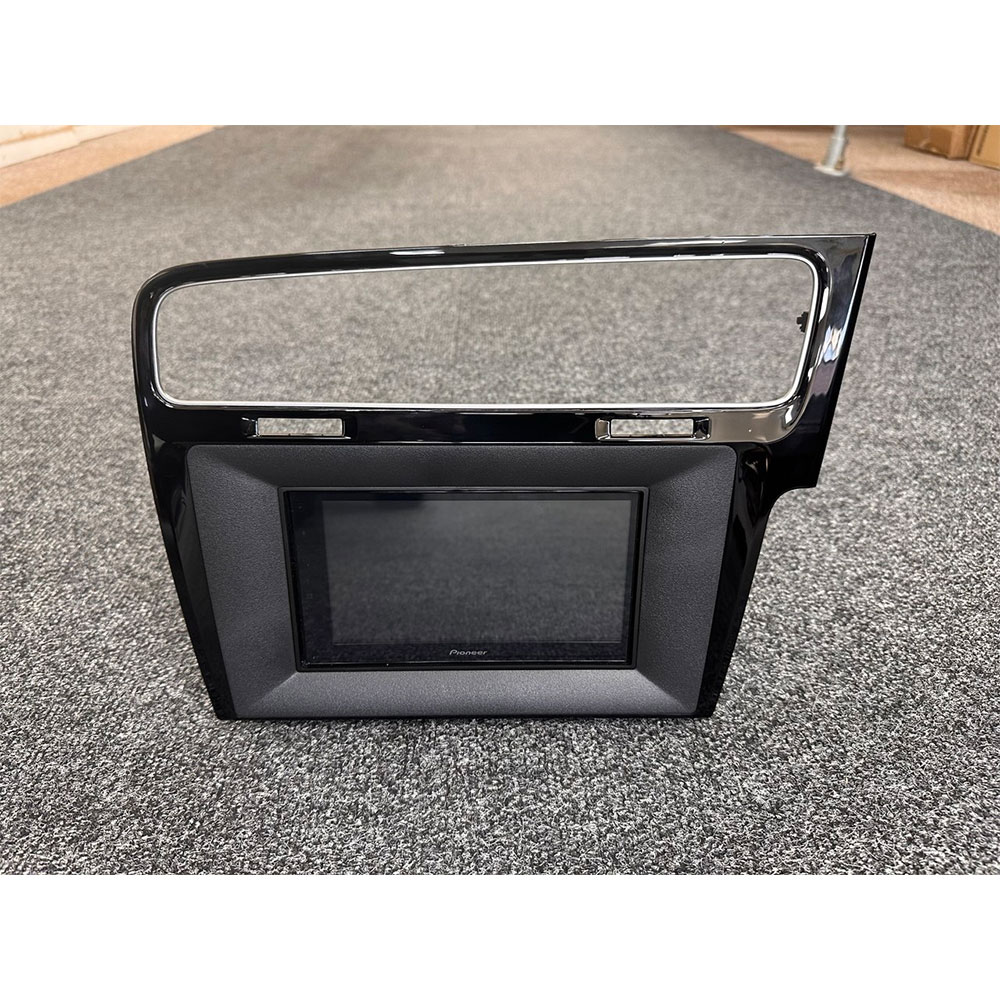

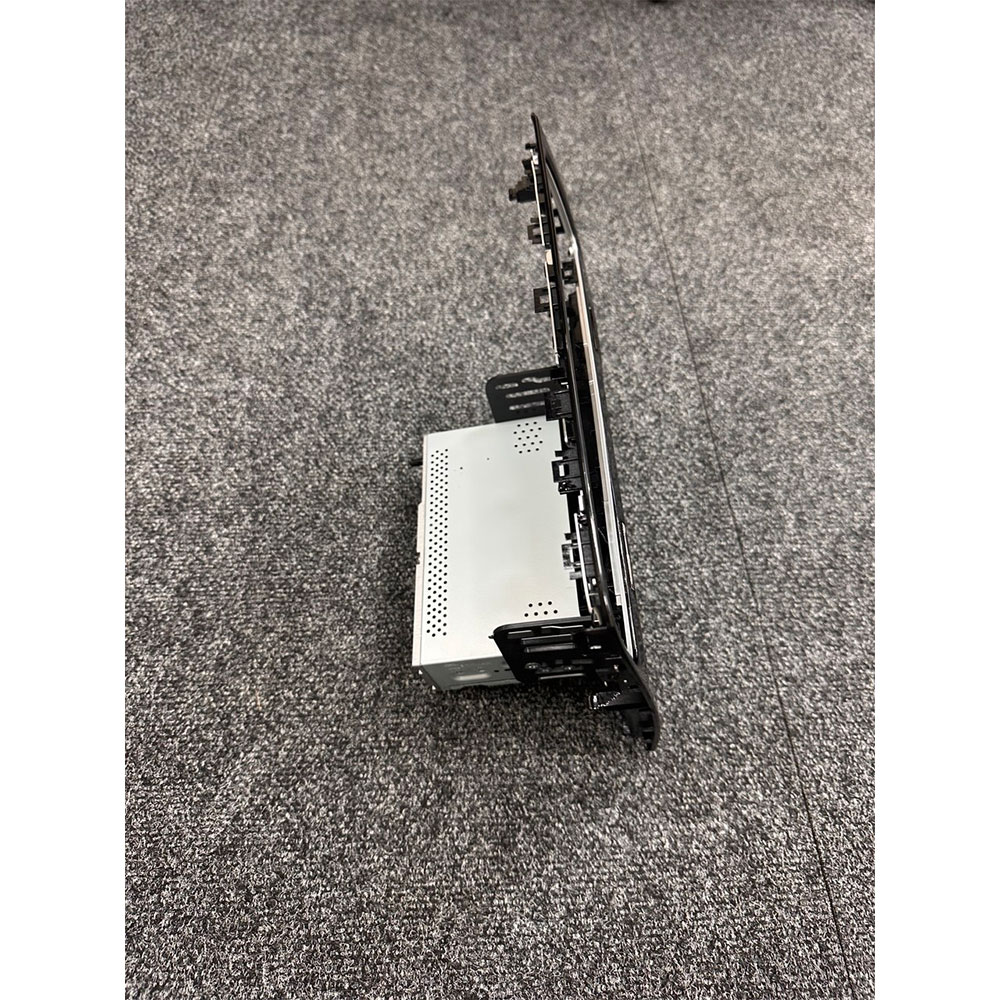

Fascia Adaptor

These adaptors will convert the non din-sized aperture left after removing the factory stereo to a double din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Integration Module CAN Bus Adaptor

Pioneer CD-SVW-UAR.006AE Integration Module for VAG cars

Interface to the Pioneer station with a UART connector allowing you to obtain control from the steering wheel and transfer some information from the car to a non-factory radio (air conditioning, parking sensors). It also allows you to connect an aftermarket reversing camera (RCA connector). Interface for VAG group cars (VW, Skoda, Seat).

The interface is intended for some Pioneer multimedia stations and VAG group cars. The module allows you to control the new radio from the steering wheel, allows you to visualize the factory parking sensors and visualize the air conditioning settings. If you also connect a non-factory reversing camera (with an RCA connector) to the new radio, you can also use this module to connect.

Please Note

The interface applies to Pioneer units with a UART (4 pin) connector (SPH-EVO64/93), e.g. Pioneer EVO950 radio2. The module does not support Dynaudio or Think Blue systems. Trainer, additional heating, tire pressure, blind spot monitor, personalization options, seat positions, open-close options, hybrid options, etc. If you care about any parameter, ask us (info@sklephadron.pl), because the module software changes and the manufacturer sometimes adds supported functions. Installation and connection of the Pioneer CD-SVW-UAR.006AE moduleThe set includes everything you need to basicly connect a Pioneer radio to your VAG. On one side you connect to the car's installation, on the other to the radio (main connector, UART connector, jack for steering wheel control). The set also includes an antenna separator with adapters (fakra/double fakra). As is usually the case in VAG cars, you will also need a positive switch (ACC), for which the red wire next to the module is used.

• for car installation
• plus to connect the separator (blue wire to blue wire)
• jack (angle plug) for steering wheel control (to the connector on the radio)
• to the UART
• connector. to radio (main connector)
• input for aftermarket reversing camera (RCA)
• jack (4 poles) - AUX (if present)
• GND (ground)
• ACC (post-ignition)

Aerial Adaptor

Use to convert the original (Fakra DAB) antenna connector in a car to a female SMB (used on aftermarket head-units)

SPH-PF97BT

The 9.0” Wi-Fi® enabled SPH-PF97BT can now be fitted to multiple different vehicles thanks to the PERFECT FIT design requiring a bespoke third party installation kit (sold separately). Featuring Apple CarPlay® (wireless & wired), Android Auto™ (wireless & wired), Bluetooth®, WebLink® 3.0 for iOS, Android™ smartphone/tablets, and Pioneer’s Direct Key for quick, easy, safe one touch operation.

	Apple CarPlay Apple CarPlay® is a smarter, safer way to use your iPhone in the car. It allows you to stay focused on the road and get directions, make calls, send and receive messages and listen to music.
	Android Auto Android Auto™ automatically brings you useful information and organises it into simple cards that appear just when they’re needed. It’s designed to minimise distraction so you can stay focused on the road ahead.
	Bluetooth® Stay safe and obey local laws with Built‑in Bluetooth® wireless connectivity, providing hands‑free calling and audio streaming.
	FLAC Enjoy FLAC lossless digital audio files in your vehicle with playback output at CD quality, without the need to convert.
	13-band Graphical EQ Adjust acoustic settings in greater details, according to your preferences.
	Aux-in - Plug your compatible device for easy and convenient playback.
	Capacitive Touchscreen - Capacitive Touchscreen allows for very responsive multi-touch gestures like pinch to zoom, plus swipe and scroll controls at your fingertips.
	Wi-Fi® - Wireless connectivity specifically designed to support a cable free connection between your smartphone and the receiver.
	Vehicle Bus - By connecting the optional Vehicle Bus adapter, you can display vehicle information such as gauges, climate control and parking assist. (Optional vehicle adaptor required, sold separately)

Key Features

• Installation Type: NON-DIN
• Navigation:
  • Via Android Auto™
  • Via Apple CarPlay®
• Screen Size: 9.0 inch
• LCD Screen Type: Capacitive Touchscreen
• Apple CarPlay® Connection: Wireless / wired
• Android Auto™ Connection: Wireless / wired
• Wi-Fi
• Weblink Mirroring
• Vehicle Bus
• Bluetooth
• Customisable Key and Display Illumination
• Multi color illumination

Audio Features

• Graphic Equaliser 13-Band
• High Pass Filter
• Low Pass Filter
• FLAC
• Subwoofer Control

Tuner Features

• RDS FM Radio

Connections

• Camera Input: 2
• RCA AV Input: 1
• RCA Rear AV Output
• RCA Pre Outs 3. (Front, rear and subwoofer)
• Aux-in: 1 Rear AV Aux-In

Other Specifications

• Rear View Camera: Optional ND-BC9 (Sold Separately)
• Steering Wheel Control: Supported
• Mechafree
• Short Chassis
• Accessories
• External Bluetooth microphone (included)
  • GPS antenna (included)
  • USB extension cable (included)

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
