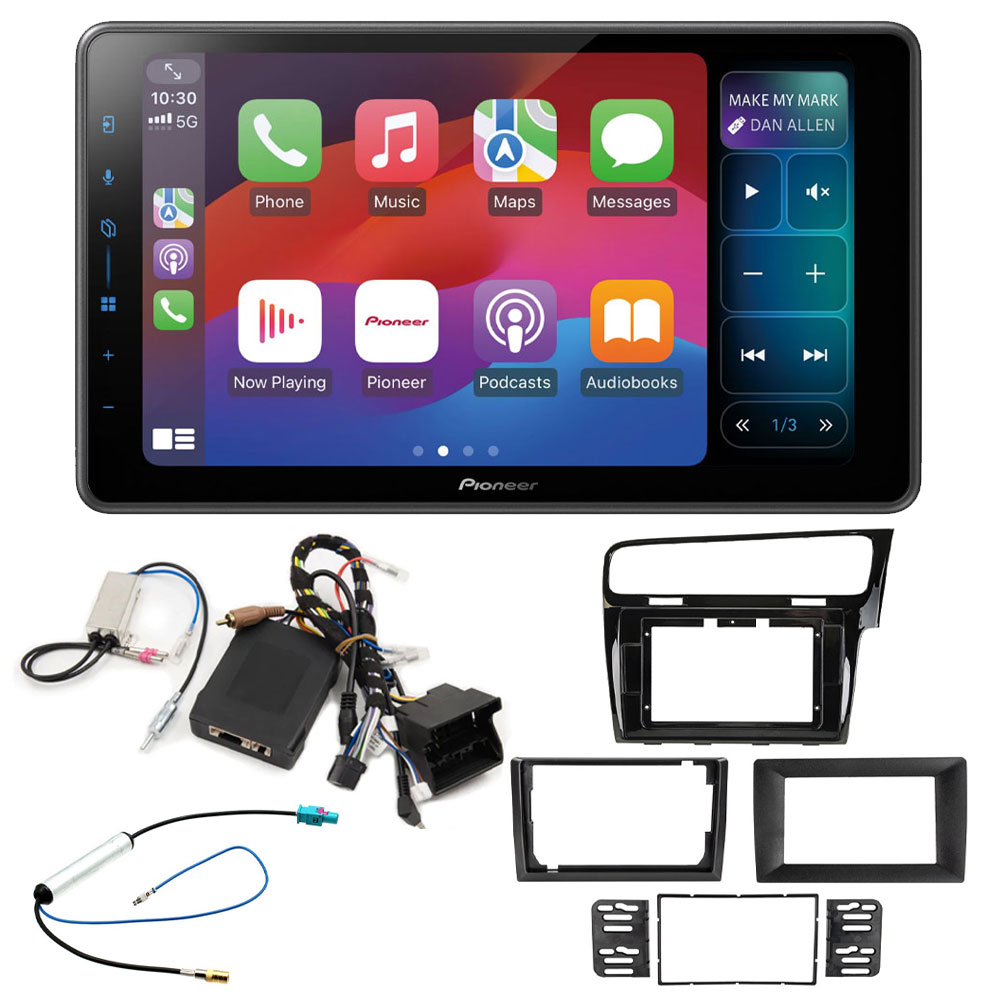

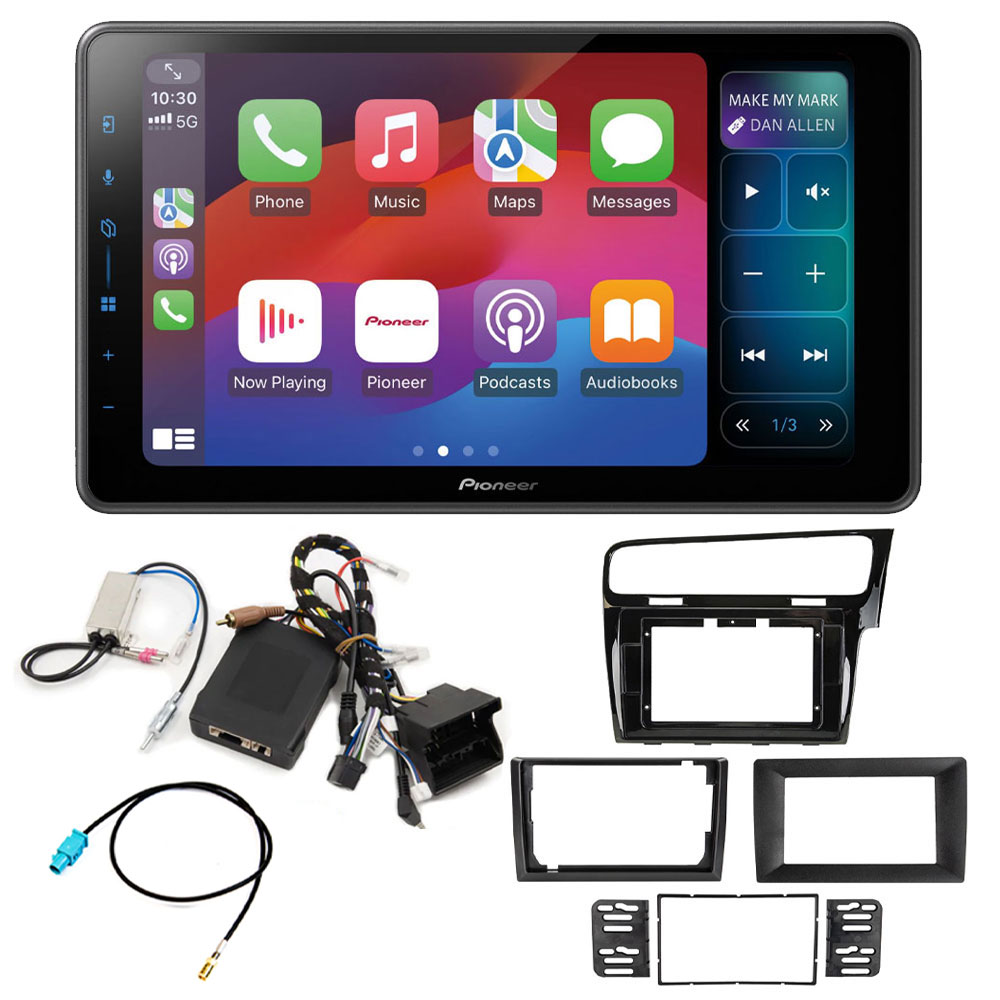

Package Includes

• Pioneer SPH-EVO98DAB-UNI2 9" Floating Wireless CarPlay / Android Auto DAB/DAB+ Bluetooth Car Stereo
• Double Din Fascia Adaptor
• Integration Module CAN Bus Adaptor
• Male Fakra to Female SMB DAB Antenna Adapter Cable
• Stereo Patch Lead

Fascia Adaptor

These adaptors will convert the non din-sized aperture left after removing the factory stereo to a double din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Integration Module CAN Bus Adaptor

Pioneer CD-SVW-UAR.006AE Integration Module for VAG cars

Interface to the Pioneer station with a UART connector allowing you to obtain control from the steering wheel and transfer some information from the car to a non-factory radio (air conditioning, parking sensors). It also allows you to connect an aftermarket reversing camera (RCA connector). Interface for VAG group cars (VW, Skoda, Seat).

The interface is intended for some Pioneer multimedia stations and VAG group cars. The module allows you to control the new radio from the steering wheel, allows you to visualize the factory parking sensors and visualize the air conditioning settings. If you also connect a non-factory reversing camera (with an RCA connector) to the new radio, you can also use this module to connect.

Please Note

The interface applies to Pioneer units with a UART (4 pin) connector (SPH-EVO64/93), e.g. Pioneer EVO950 radio2. The module does not support Dynaudio or Think Blue systems. Trainer, additional heating, tire pressure, blind spot monitor, personalization options, seat positions, open-close options, hybrid options, etc. If you care about any parameter, ask us (info@sklephadron.pl), because the module software changes and the manufacturer sometimes adds supported functions. Installation and connection of the Pioneer CD-SVW-UAR.006AE moduleThe set includes everything you need to basicly connect a Pioneer radio to your VAG. On one side you connect to the car's installation, on the other to the radio (main connector, UART connector, jack for steering wheel control). The set also includes an antenna separator with adapters (fakra/double fakra). As is usually the case in VAG cars, you will also need a positive switch (ACC), for which the red wire next to the module is used.

• for car installation
• plus to connect the separator (blue wire to blue wire)
• jack (angle plug) for steering wheel control (to the connector on the radio)
• to the UART
• connector. to radio (main connector)
• input for aftermarket reversing camera (RCA)
• jack (4 poles) - AUX (if present)
• GND (ground)
• ACC (post-ignition)

Aerial Adaptor

Use to convert the original (Fakra DAB) antenna connector in a car to a female SMB (used on aftermarket head-units)

Pioneer SPH-EVO98DAB-UNI2

Thanks to its modular structure, the 9.0" SPH-EVO98DAB-UNI2 can be fitted to cars where this was previously impossible. 9.0" Capacitive touchscreen modular multimedia player with easy smartphone connectivity supporting Apple CarPlay® wireless, Android Auto™ wireless, DAB/DAB+ Digital Radio, Bluetooth®, Pioneer PxLink Companion App and a 13-band GEQ.
This product is intended for vehicles with 2-DIN installation. For 1-DIN installations, we have the dedicated SPH-EVO98DAB-1D in the UK or SPH-EVO98DAB-UNI in the other countires. There is also a wide choice of perfect fit packages for Ducato 7/8, Ford Transit, Mercedes Sprinter and others.
With the ‘floating’ or ‘tablet’ style installation the SPH-EVO98DAB-UNI2 modular receiver can be installed into many vehicle types, for example, traditional 1-DIN or even vehicles where a traditional stereo does not fit thanks to its unique universal floating installation or in-dash installation capabilities.

Pioneer introduces two new unique capabilities on the SPH-EVO98DAB-UNI2.
1. Pioneer Split Screen Mode, to display and control specific functions on an adjacent partition of the screen by dynamically resizing the Apple CarPlay user interface.
2. Selectable Viewing Mode, giving you enhanced visibility by allowing you to switch the mode of the screen between Light Mode and Dark Mode, to suit your preference.

Vehicle Bus

By connecting the optional Pioneer Vehicle Bus adapter to the product, you can retain and operate your vehicle's operation, such as vehicle information, gauges, climate control and parking assist on the Pioneer display.

	Wi-Fi® Wireless connectivity specifically designed to support a cable free connection between your smartphone and the receiver.
	Apple CarPlay Apple CarPlay® is a smarter, safer way to use your iPhone in the car. It allows you to stay focused on the road and get directions, make calls, send and receive messages and listen to music.
	Android Auto Android Auto™ automatically brings you useful information and organises it into simple cards that appear just when they’re needed. It’s designed to minimise distraction so you can stay focused on the road ahead.
	Aux IN - Plug your compatible device for easy and convenient playback.
	DAB+ Enjoy the convenience of listening to your favourite radio stations in crystal clear digital quality thanks to a built-in Digital Radio tuner.
	Digital Radio Tick Mark Approved product Manufacturers must meet the minimum specification, verified by independent testing. All Pioneer products that use this Digital Radio Tick Mark have been independently tested and approved so you can buy with confidence.
	Bluetooth® Stay safe and obey local laws with Built‑in Bluetooth® wireless connectivity, providing hands‑free calling and audio streaming.
	Capacitive Touchscreen - Capacitive Touchscreen allows for very responsive multi-touch gestures like pinch to zoom, plus swipe and scroll controls at your fingertips.
	Advanced Sound Retriever - Reproduce high-quality sound from compressed digital audio files and Bluetooth® wireless audio streams.
	FLAC Enjoy FLAC lossless digital audio files in your vehicle with playback output at CD quality, without the need to convert.
	13-band Graphical EQ Adjust acoustic settings in greater details, according to your preferences.
	Multi colour illumination Match the display or key illumination to your vehicle's interior lighting with a range of colour combinations.
	Modular Design The screen panel can be installed separately from the main unit, useful for cars with no dashboard space expanding your installation options.
	WebLink The new WebLink app expands in-car entertainment with an amazing world of apps. Enjoy personalised music, videos, and other connected content powered by your phone/ tablet and the cloud.
	Vehicle Bus By connecting the optional Vehicle Bus adapter, you can display vehicle information such as gauges, climate control and parking assist. (Optional vehicle adaptor required, sold separately)

Key Features

• Screen Size: 9.0 inch
• LCD Screen Type: Capacitive Touchscreen
• Apple CarPlay® Connection: Wireless / wired
• Android Auto™ Connection: Wireless / wired
• Wi-Fi®
• Weblink Mirroring
• Pioneer Split Screen Mode: Apple CarPlay
• Pioneer PxLink Companion App
• Navigation Via Apple CarPlay , Via Android Auto
• DAB+
• DAB Antenna: Optional CA-AN-DAB.001 (Sold separately)
• Vehicle Bus
• Bluetooth
• Customisable Key and Display Illumination
• Multi color illumination

Audio Features

• Graphic Equaliser: 13-Band
• Advanced Sound Retriever
• Listening Position Selector
• High Pass Filter
• Low Pass Filter
• FLAC
• Subwoofer Control

Tuner Features

• DAB+
• Digital Radio Tick Mark Approved product
• RDS FM Radio

Connections

• Camera Input: 2
• RCA AV Input: 0
• RCA Pre Outs: 3. (Front, rear and subwoofer)
• Aux-in: 1 Rear AV Aux-In

Other Specifications

• Rear View Camera: Optional ND-BC9 (Sold Separately)
• HD-TVI (High Definition rearview camera):
• Steering Wheel Control: Supported
• Mechafree:
• Accessories:
  • External Bluetooth microphone (included)
  • GPS antenna (included)
  • USB extension cable (included)

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
