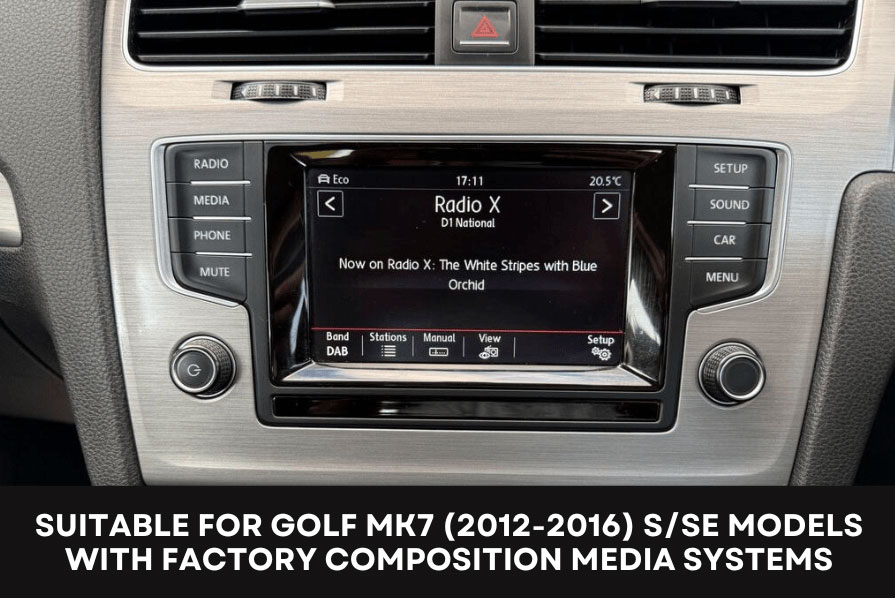

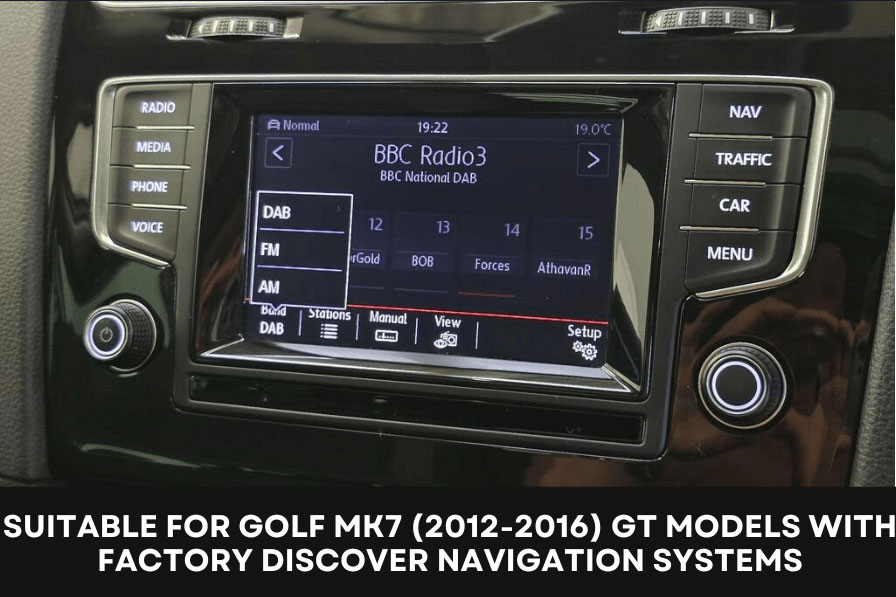

Transform your Volkswagen Golf MK7 (2012–2016) infotainment with this complete Pioneer SPH-DA77DAB upgrade kit. This premium 6.8" double-DIN head unit offers wireless Apple CarPlay, Android Auto, built-in DAB+, Bluetooth, and Wi-Fi, delivering cutting-edge connectivity and enhanced sound quality. Designed for vehicles with factory Composition Media or Discover Navigation Pro systems, this kit ensures seamless integration with factory controls and displays.

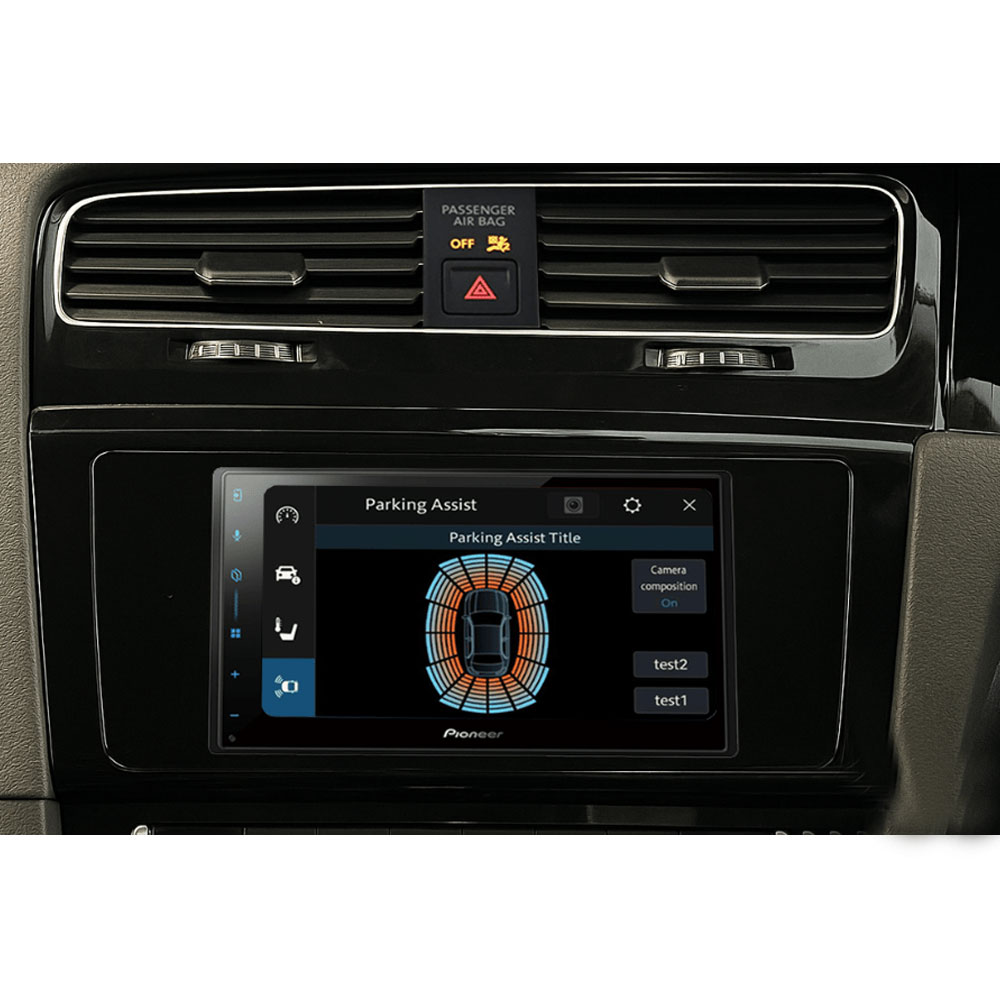

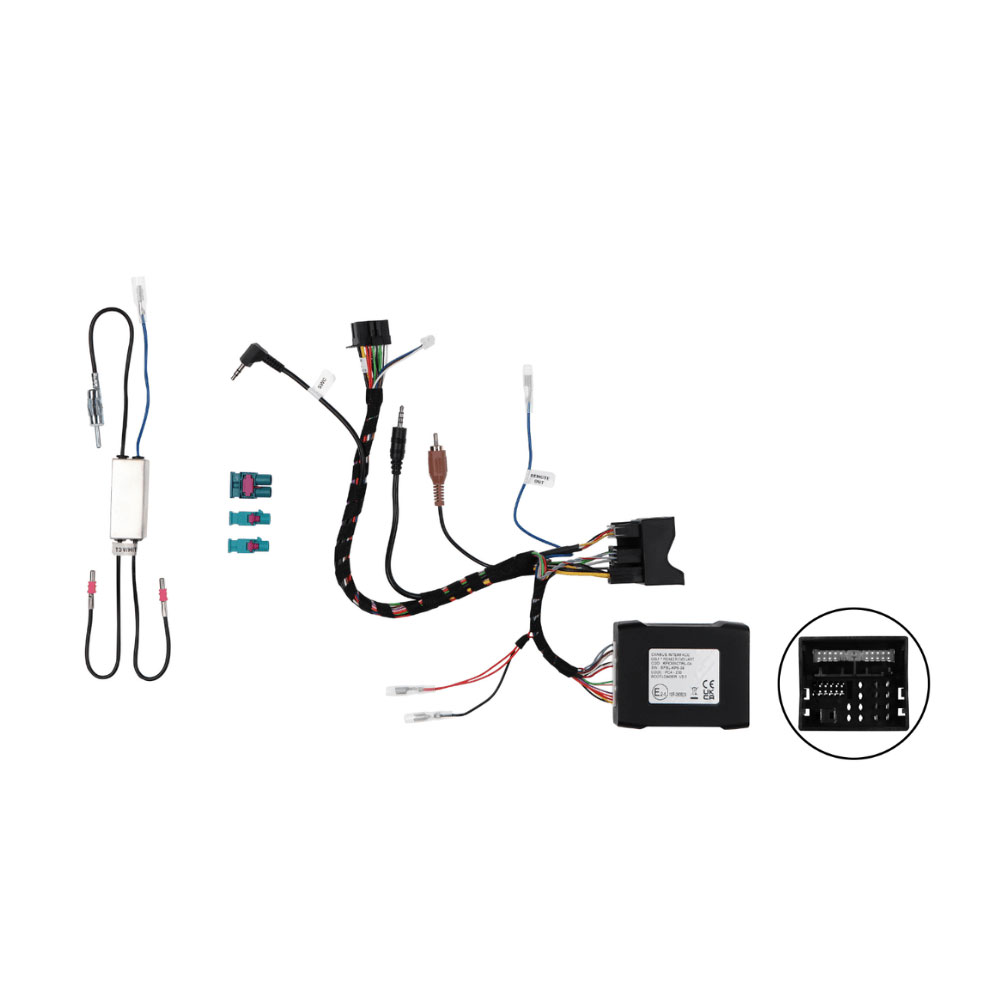

The package includes a dedicated Pioneer CANbus interface that retains and displays a wide range of OEM features directly on the Pioneer touchscreen. Steering wheel controls are fully supported, including track skip, volume, voice command, assist, phone, and more. HVAC settings are displayed and controllable via the head unit, covering temperature, fan speed, air conditioning, seat heating, air recirculation, climate profiles, and air care functions. Additional retained systems include door status, ESC modes, TPMS, driver assistance settings (lane assist, front assist, ACC, dynamic road sign display, proactive occupant protection, manoeuvre braking, side assist), parking settings, light configuration, mirrors and wipers, opening and closing preferences, instrument cluster readouts, and time/date settings.

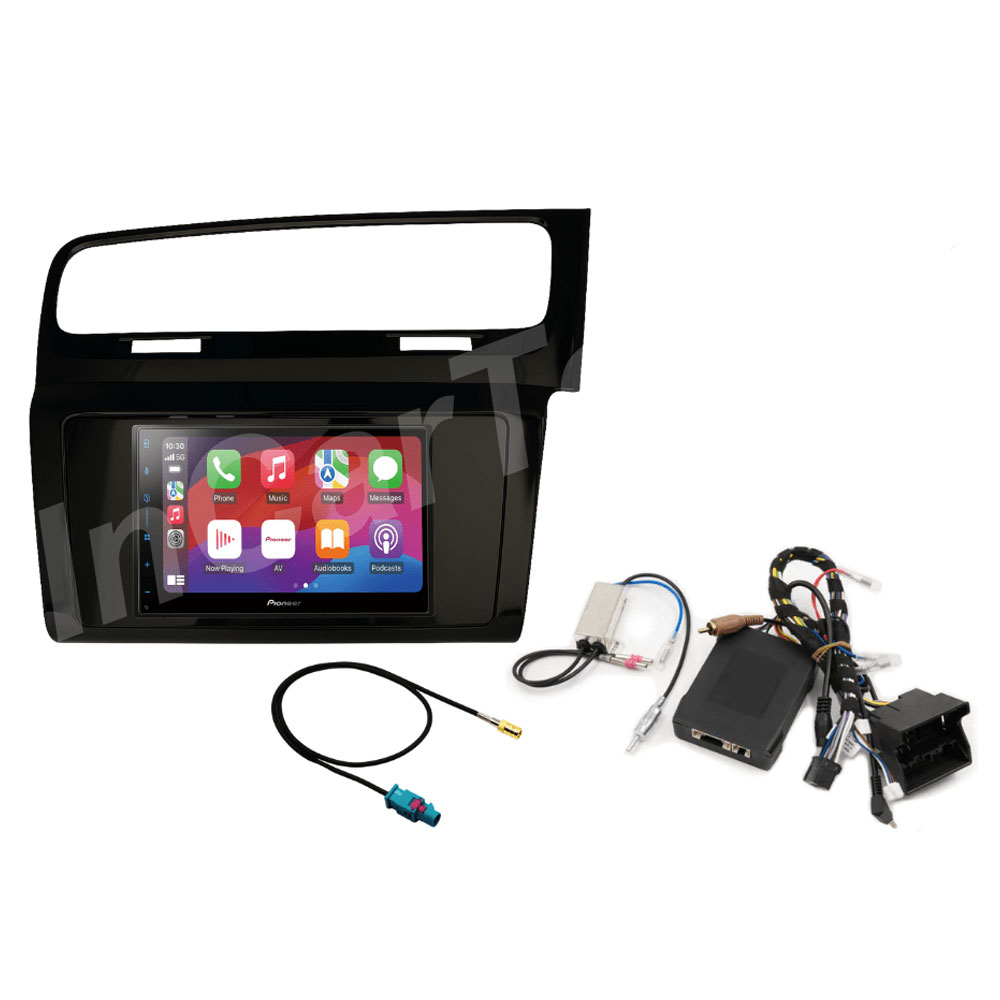

Included

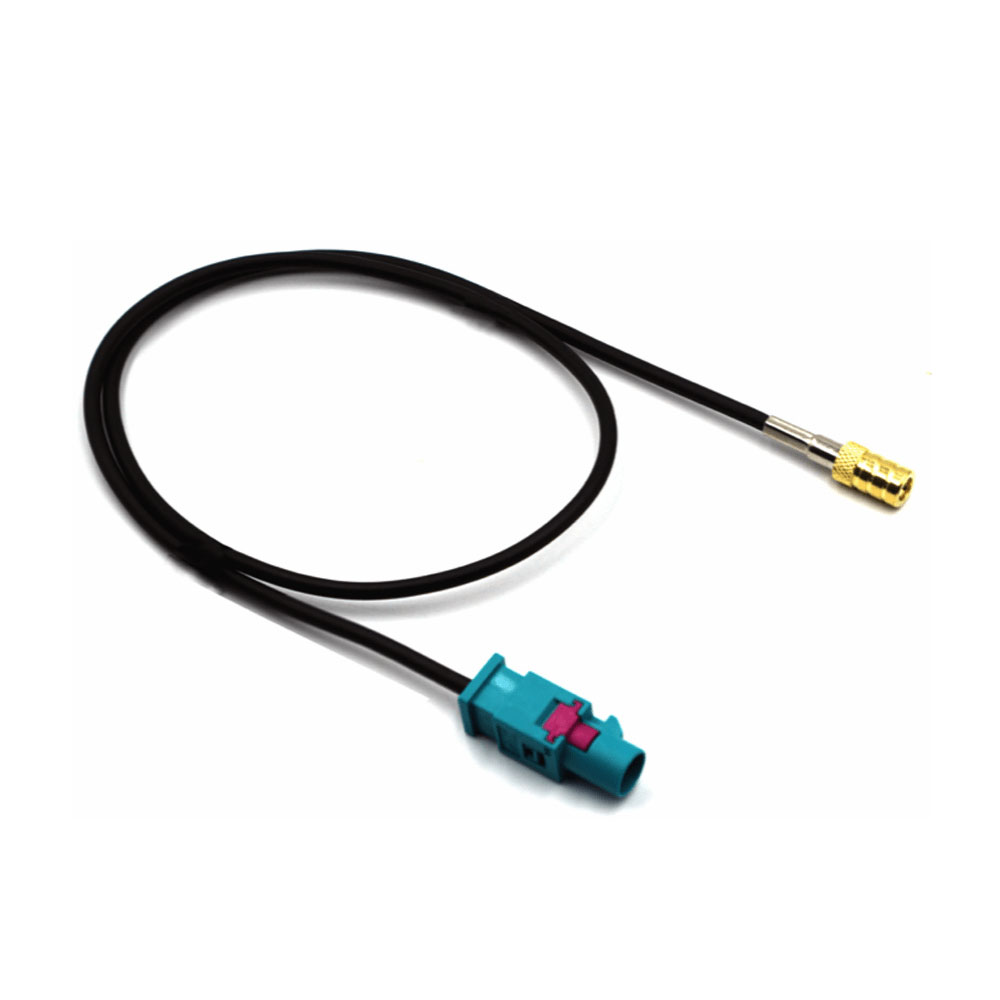

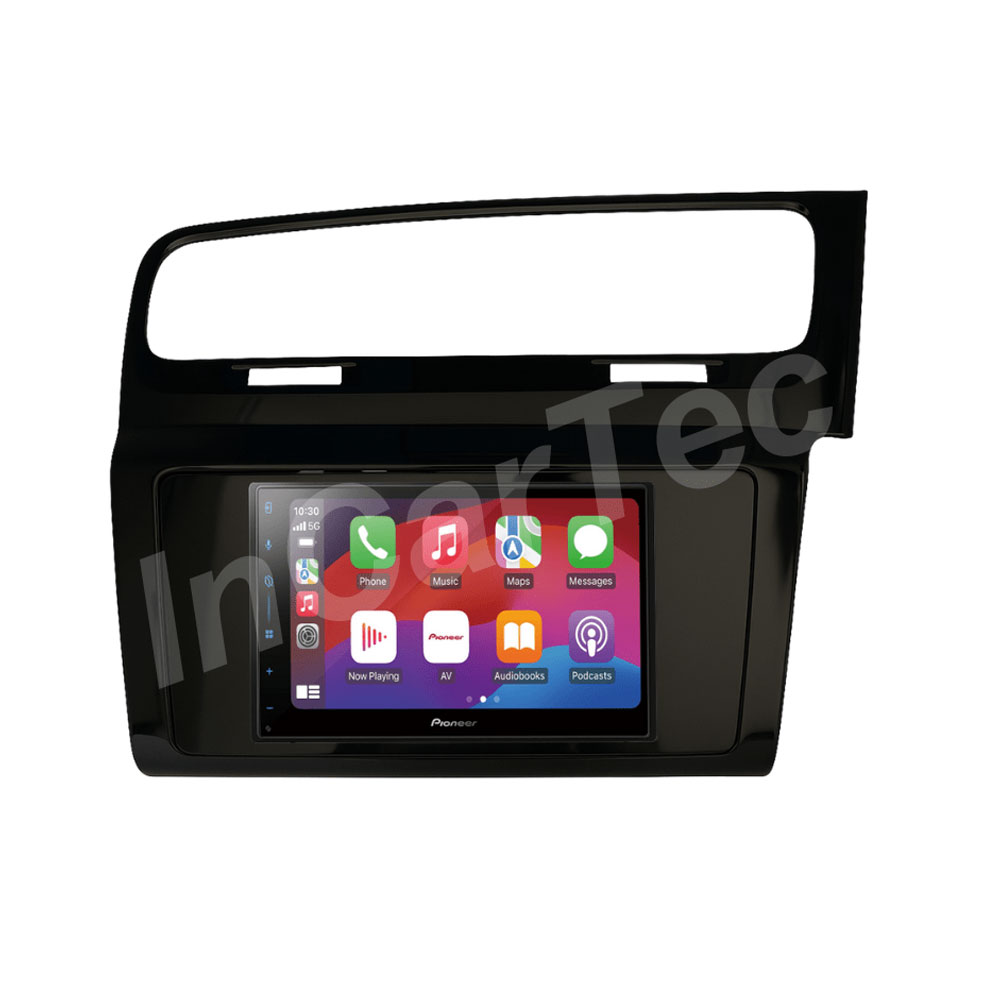

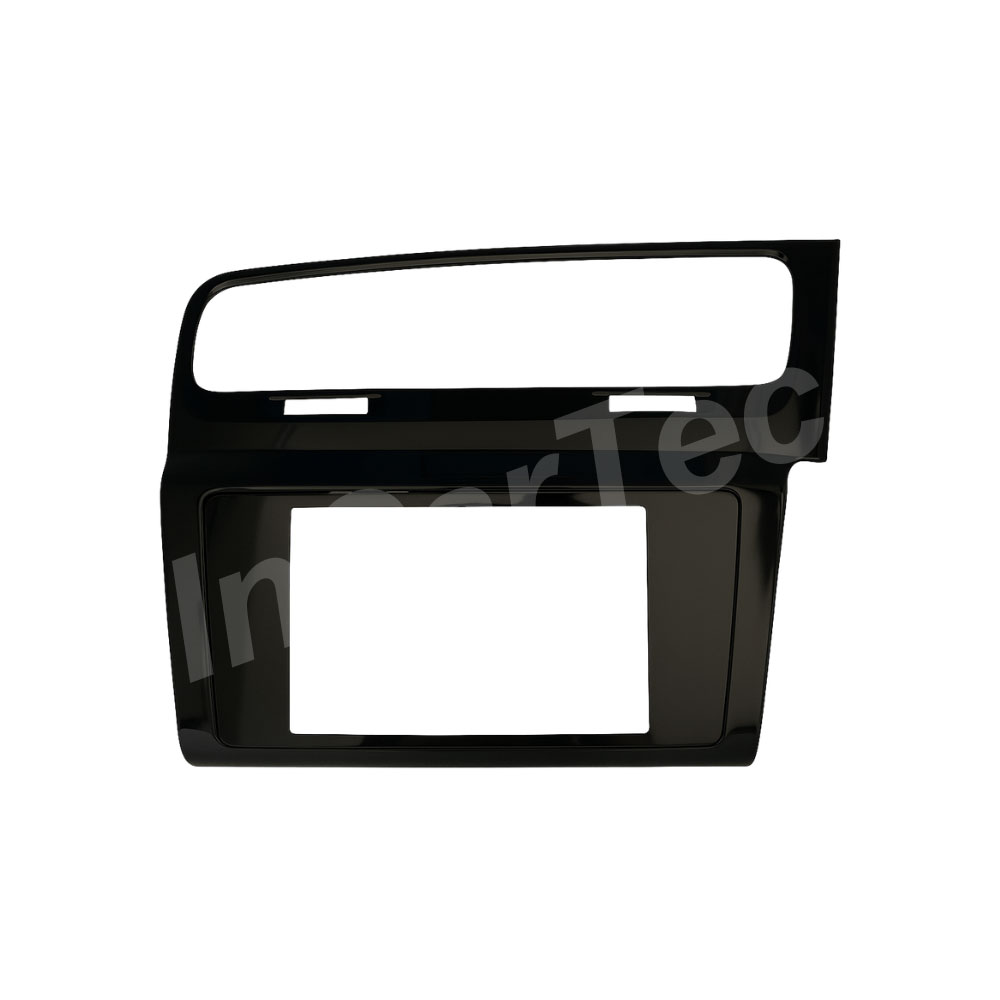

gloss black right-hand drive fascia for a factory-fit look, a Fakra DAB male to SMB female adapter to retain the original DAB antenna, and all necessary wiring for a straightforward installation. This kit is the ultimate solution for Golf MK7 owners seeking modern tech without losing key factory functions.

Pioneer Interface Supported Features (If Vehicle Equipped)

Steering Wheel Controls

• Previous Music
• Next Music
• Volume control
• Voice Command
• Assist system button
• Phone button
• Back button
• Scroll switch

HVAC Settings (Shown and Controlled Via the Head Unit)

• Front windshield heating
• Climate controls (Temperature/ Fan speed/ Airco/ Seat heating/ Auto/ Sync/ Air recirc./ Windscreen defroster/  Steering wheel heating/ Off)
• Profile
• Rear controls
• Pop up of the climate screen (on/off)
• Air care climatron
• Automatic air recirculation
• Automatic auxiliary heater
• Automatic windscreen heating
• Automatic supplementary heater

Doors Status (Open/Close) **The status of the doors are visually shown on the Head unit

• Front left & right
• Rear left & right

ESC

• Activated/ ESC Off/ ESC Sport

Tyres

• TPMS Reset
• Speed Warning
• Winter Tyres Mode
• Warning at Speed

TPMS (Advanced)

• Active TPMS with individual sensor readings for each tyre

Driver Assistance Settings

• Lane Assist (Adaptive Lane Guidance / Steering Wheel Vibration)
• Front Assist (Advance Warning / Display Distance Warning)
• ACC (Adaptive Cruise Control)
• ACC Distance Selected
• Driver Alert System
• Dynamic Road Sign Display
• Proactive Occupant Protection (Active Protection)
• Manoeuvre Braking
• Side Assist
• Side Assist Brightness
• Speed Warning Exceed
• Warning at Over

Parking

• Activate Automatically (Auto Activate)
• Front/Rear Volume Control
• Front/Rear Tone Setting
• Entertainment Fading
• Front/Rear/Left/Right Sensors

Light Settings

• Activation
• Headlight Range
• Dynamic Light Assistance
• Switch-On Time
• Auto Headlights
• Automatic Headlight Control in Rain
• Daytime Running Lights
• Convenience Turn Signal
• Travel Mode / Travel Mode Reversed
• Instrument/Switch Lighting
• Door Background Lighting
• Roof Background Lighting
• Front Background Lighting
• Background Lighting
• Footwell Lighting
• Coming Home/Leaving Home Function
• Dynamic Cornering Light

Mirrors and Wipers

• Synchronous Adjustment
• Lower in Reverse
• Fold in When Locking
• Automatic Wiping in Rain
• Rear Window Wiping in Reverse

Opening and Closing

• Convenience Opening (All Windows / Driver / Off)
• Door Unlocking (All Doors / Single Door / Vehicle Side)
• Automatic Locking
• Easy Open
• Interior Monitoring

Instrument Cluster

• Current Consumption
• Average Consumption
• Convenience Consumers
• Eco Tips
• Travelling Time
• Distance Travelled
• Average Speed
• Digital Speed Display
• Speed Warning
• Oil Temperature
• Reset “Since Start” Driving Data
• Reset “Long-Term” Driving Data

Time & Date

• Clock Time Source
• Time
• Automatic Summertime
• Time Zone
• Time Format
• Date
• Date Format

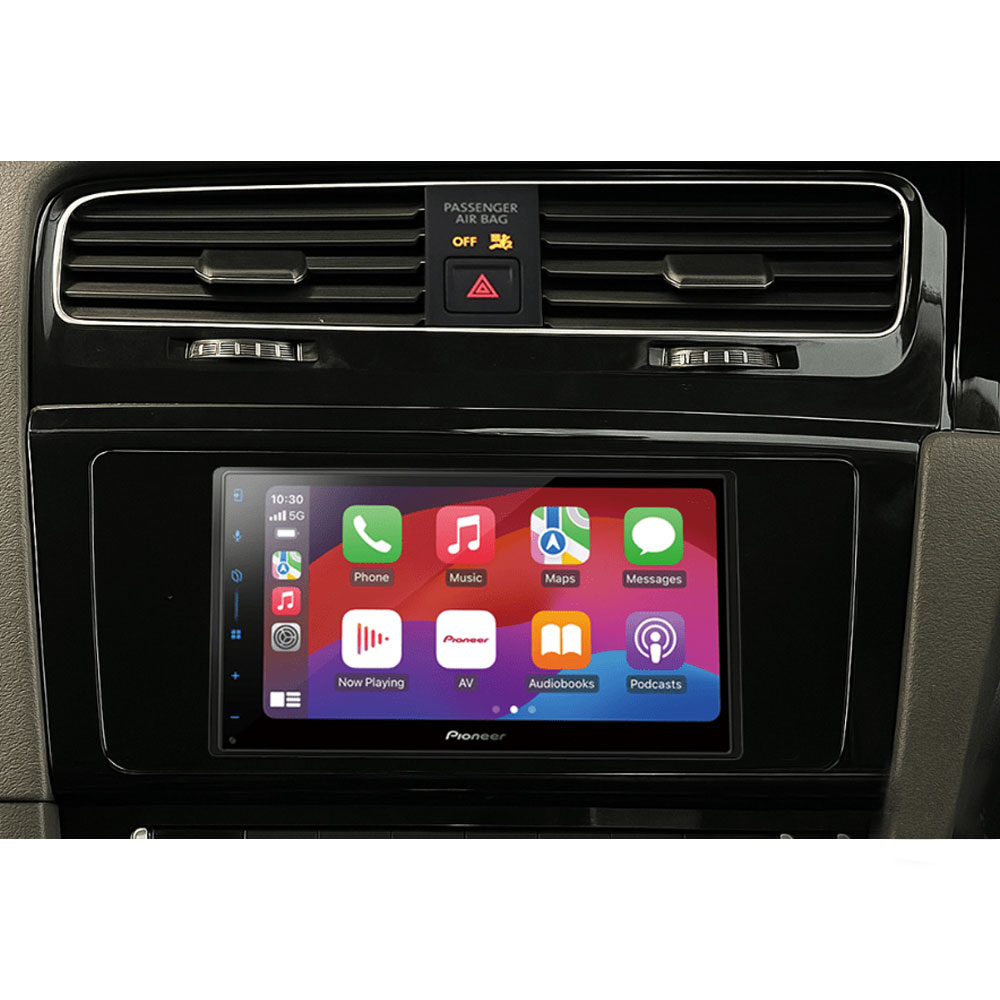

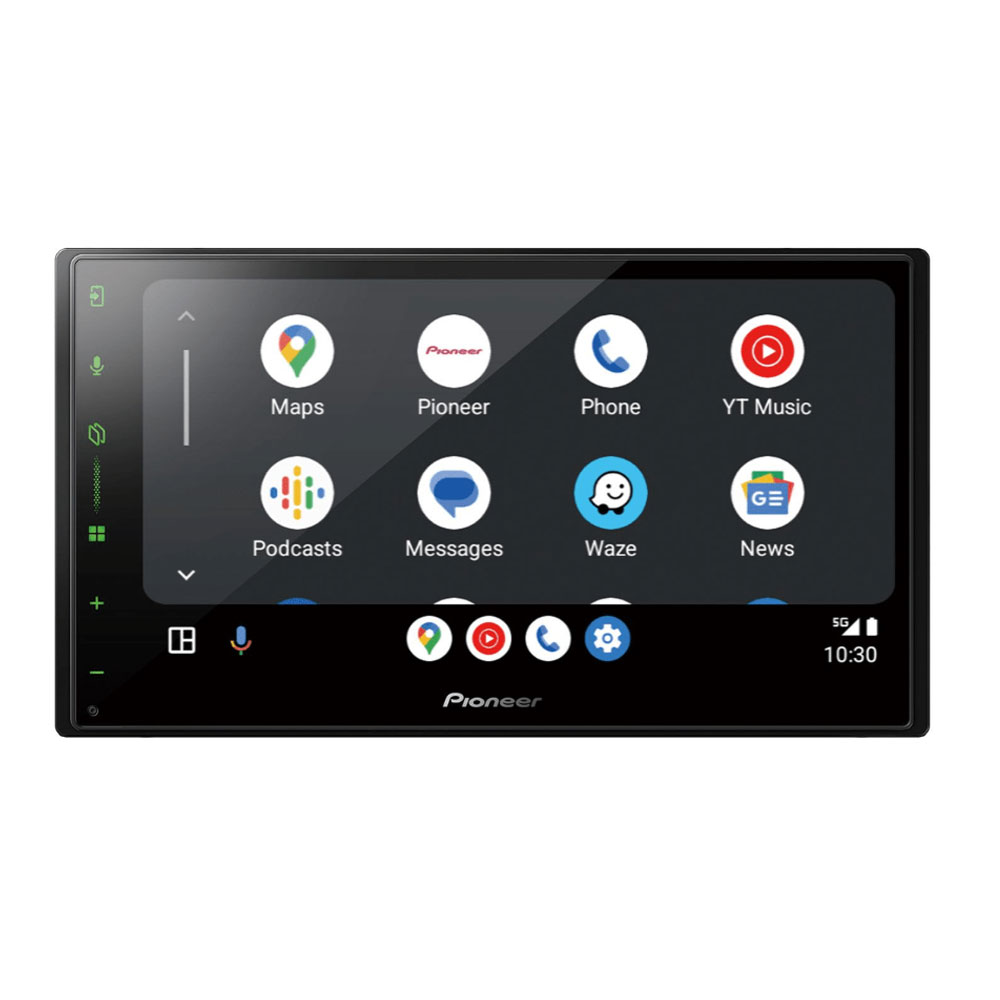

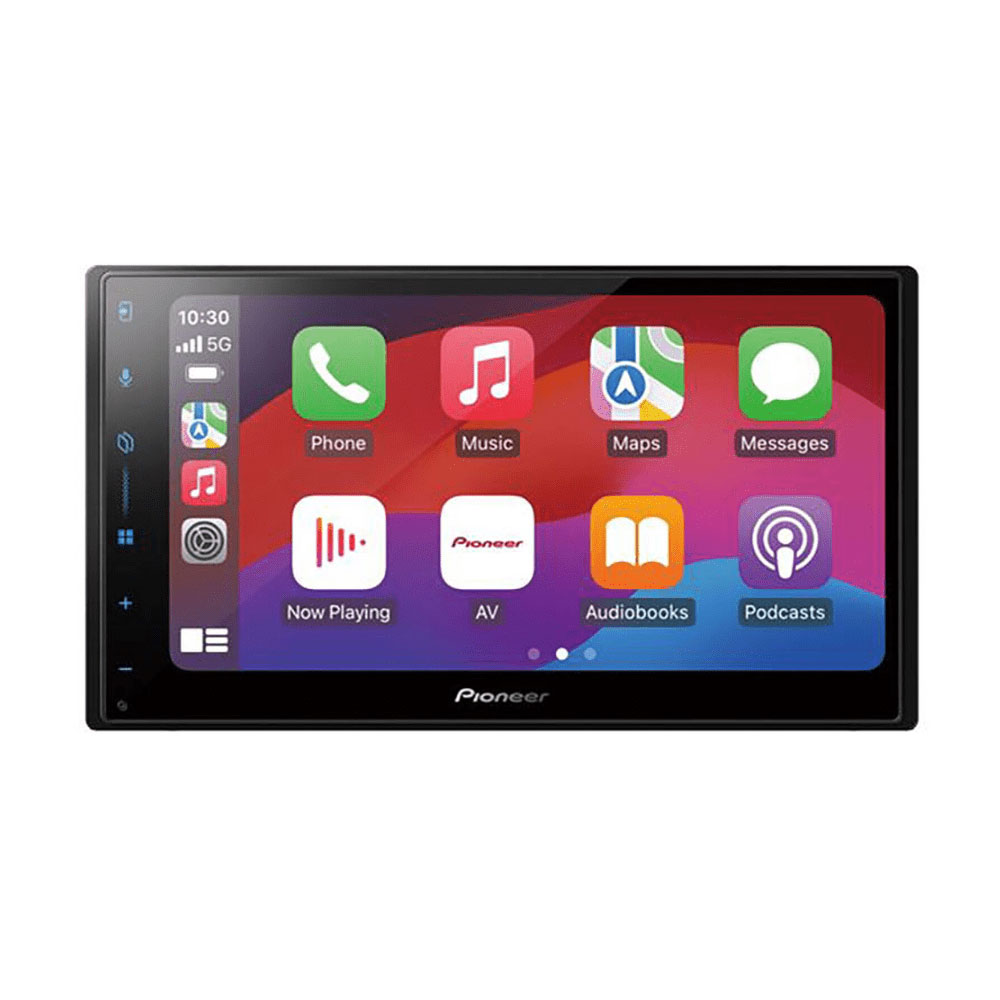

Pioneer SPH-DA77DAB 6.8" car stereo (HU-PIO-SPH-DA77DAB)

This Pioneer SPH-DA77DAB is the SPH-360DAB replacement and is crammed full of added features. Control Apple CarPlay® (via wired or wireless connection) and Android Auto™ (via wired or wireless connection) from your dashboard in a convenient and safe way. Thanks to its single DIN chassis design, the Pioneer SPH-DA77DAB can be can be installed into a variety of vehicle types and its flexible modular design means that it can not only provide a nice solution for difficult factory radio types but also saves time and money where modifications to the dashboard would otherwise of been needed. A Double DIN cage is also included for more conventional fitting.

Mechafree 6.8” Capacitive touchscreen multimedia player, features smartphone connectivity: Apple CarPlay® (via wired or wireless connection) and Android Auto™ (via wired or wireless connection) also USB Mirroring via WebLink® 3.0 for iOS and Android smartphone/tablets. Bluetooth®, DAB/DAB+ Digital Radio, 13-band GEQ, and advanced audio features for premium sound quality.

Main Features

• Mechafree, iconic cosmetic design, with large 6.8” Capacitive touchscreen
• Built-in Wi-Fi for Apple CarPlay (wireless & wired) and Android Auto (wireless & wired)
• Improved GUI allowing for simple smartphone connectivity, compatible with Apple CarPlay and Android Auto
• USB Mirroring via WebLink® 3.0 for iOS and Android smartphone/tablets
• Bluetooth® and DAB / DAB+ Digital Radio built-in (Optional DAB Antenna required)
• Bluetooth®: handsfree calling, phonebook transfer, audio streaming (A2DP). (External BT microphone included)
• DAB / DAB+ Digital Radio: Enjoy the convenience of listening to your favourite radio stations in crystal clear digital quality
• Advanced audio features
• 2-DIN (With 1-DIN short chassis design to allow easy installation into a wide range of vehicles)
• Vehicle Bus. UART / Can-bus, that supports the retention of the vehicle related functions of the original (OEM) head unit. (Optional vehicle adaptor required, sold separately)

Specifications:

General

• Mechafree 6.8” WVGA Capacitive touchscreen
• Built-in Wi-Fi for Apple CarPlay (wireless & wired) and Android Auto (wireless & wired)
• USB Mirroring via WebLink® 3.0 for iOS and Android smartphone/tablets
• Bluetooth® and DAB / DAB+ Digital Radio combined
• Digital Radio Tick Mark approved product
• Siri Eyes Free
• Advanced audio features
• Premium sound quality
• RGB: multicolour key illumination and LCD display
• iPhone Direct Control
• Compatible with Android
• Reverse camera compatible (Optional ND-BC9)
• 2-DIN (With 1-DIN short chassis design to allow easy installation into a wide range of vehicles)
• Selectable wall paper (User customisation with jpeg file)

Connectivity

• Apple CarPlay (wireless & wired)
• Android Auto (wireless & wired)
• WEBLINK 3.0
• Rear USB / Rear Aux-In
• Made for iPhone / Compatible with Android
• USB Mirroring via WebLink® 3.0 for iOS, Android smartp­hone/tablets
• Wired Remote Control / Rear View Camera Input
• Vehicle Bus. UART / Can-bus, that supports the retention of the vehicle related functions of the original (OEM) head unit. (Optional vehicle adaptor required, sold separately)

Audio and Video

• 13-BAND GEQ and Time alignment
• 3Way Network Mode
• Video output & Audio 3 Pre-Out (4V)

DOP Related

• EZ MyCarSetting
• Setting Memory for Agricultural Business
• Start Stop Function

Bluetooth

• Pioneer Bluetooth for hands-free calling & audio streaming
• Bluetooth auto pairing
• External microphone Included
• Wireless audio browsing

Audio

• Premium Sound Quality
• MOSFET 50W x 4 Max Output Power
• Music Browsing
• 13-band Graphic Equaliser
• Low Pass/High Pass Filter
• 3 x 4 Volt RCA Pre-outs

Tuner

• DAB/DAB+ Digital Radio
• Auto Tune, Pre-set buttons
• Digital Radio Tick Mark approved product
• RDS FM/AM Tuner
• 24 Pre-set

File Playback

• Audio: WMA/MP3/WAV/AAC/FLAC
• Video: H.264/Mpeg4/JPEG/TS/ WMV/MKV/FLV/TS

Accessories

• Included - Microphone for Hands-free Calling
• Included - USB extension cable

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
