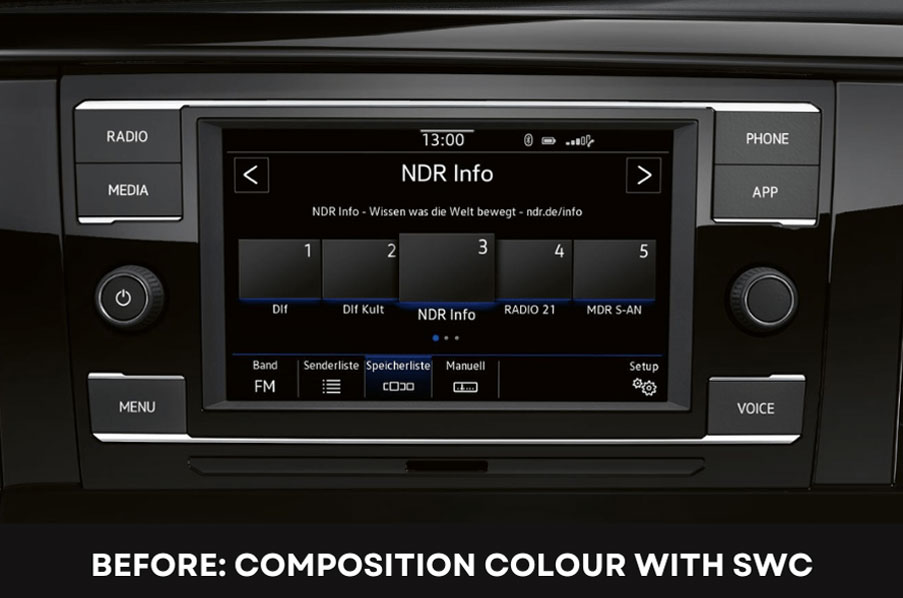

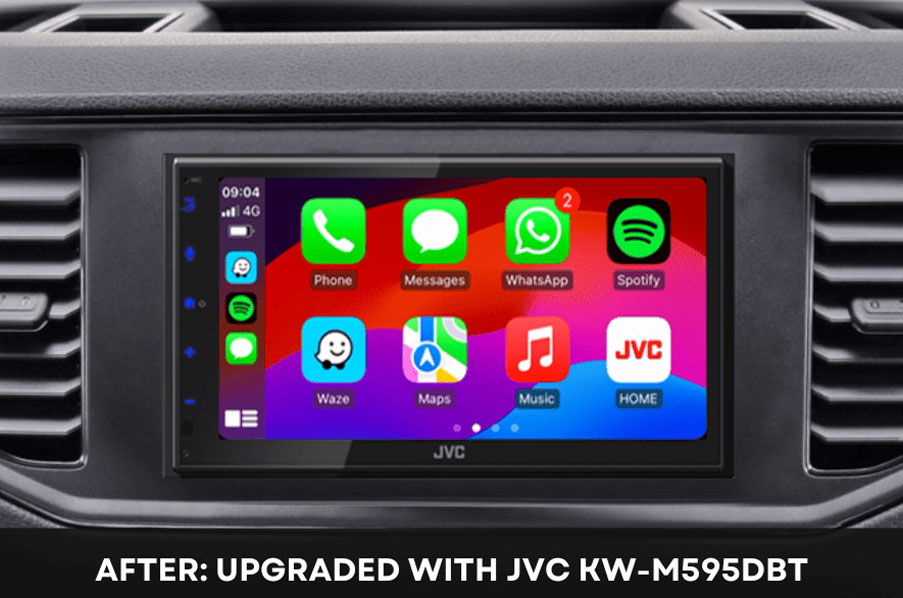

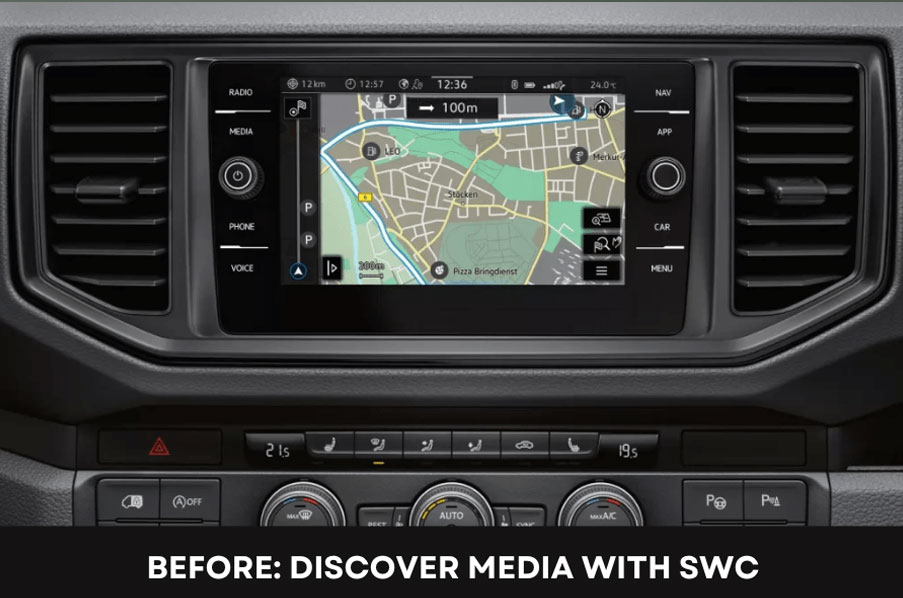

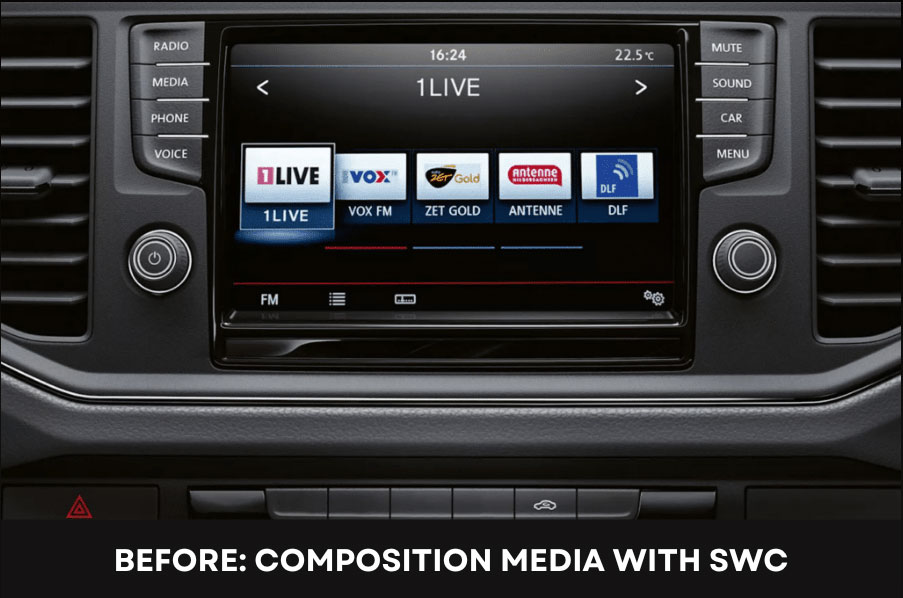

Upgrade your VW Crafter's audio system with this all-in-one fitting kit, designed for select models (2017-2023) with factory-fitted Composition Media/ Colour or Discover Media head units. This complete kit makes installing the JVC KW-M595DBT car stereo simple and seamless, featuring a pre-wired CANbus interface that ensures smooth integration while preserving steering wheel controls as well retaining the vehicle menus. The JVC KW-M595DBT offers modern features such as Apple CarPlay® and Android Auto™, allowing for safe, hands-free control right from your dashboard. Perfectly crafted to fit the single DIN chassis of the VW Crafter, this kit delivers a cost-effective solution for enhanced connectivity, intuitive controls, and an upgraded driving experience.

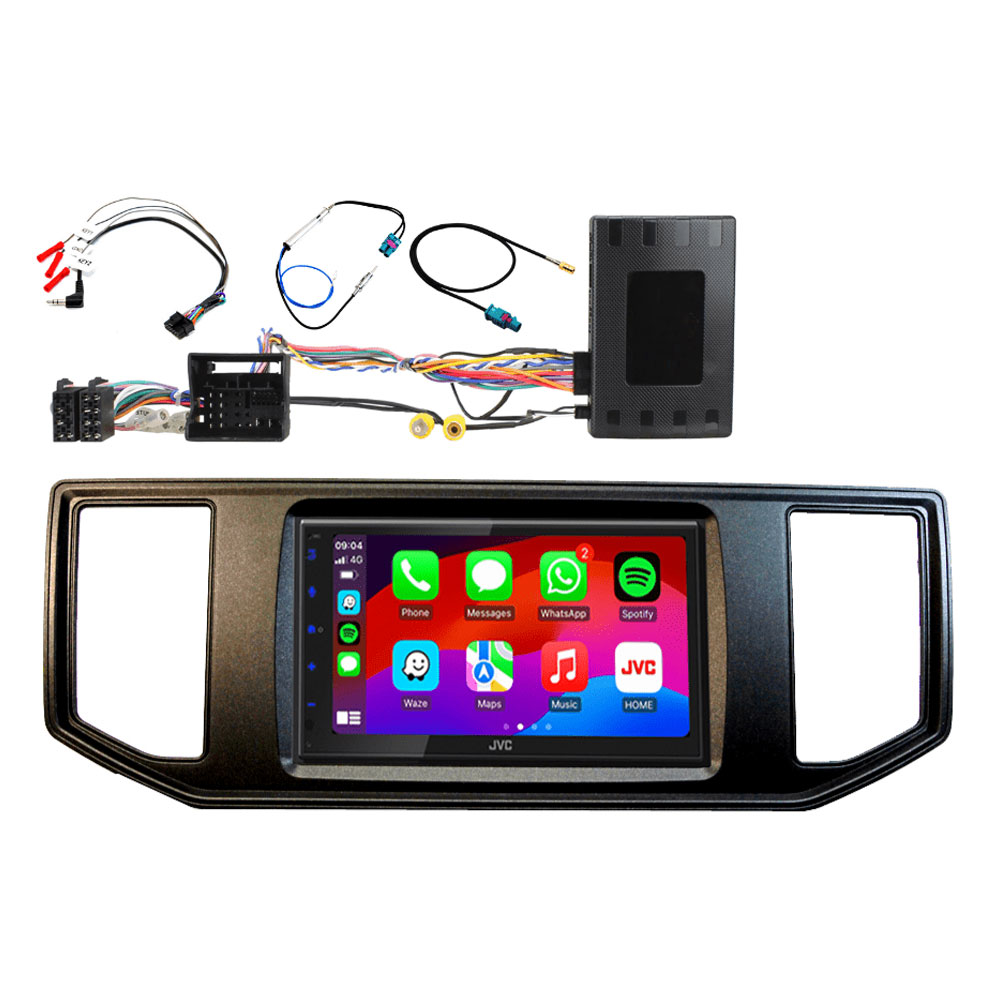

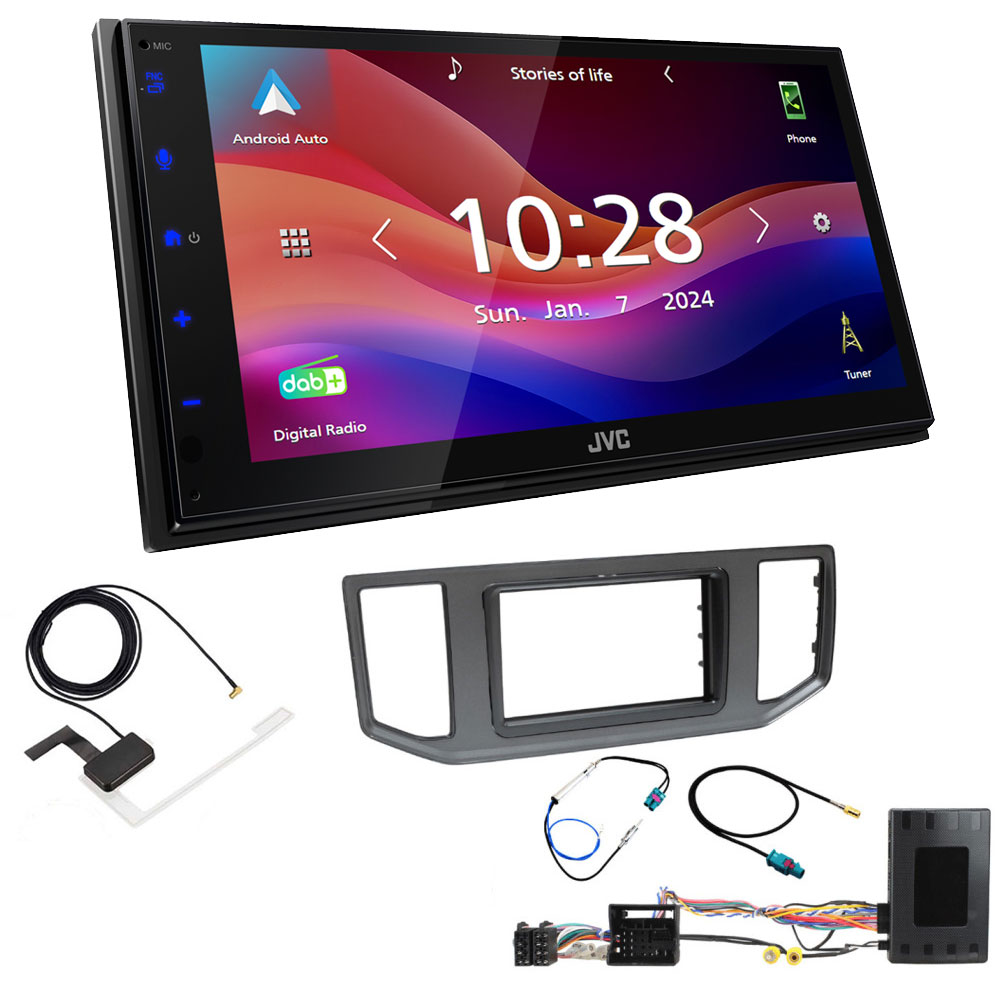

Package Includes

• JVC KW-M595DBT 6.8” Wired CarPlay / Android Auto Mirroring DAB+ Radio Multimedia Screen

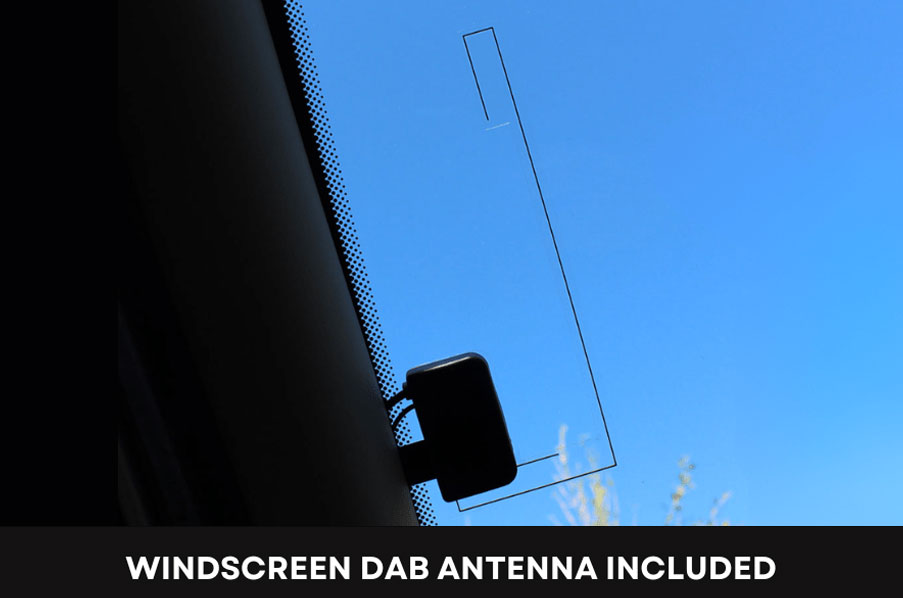

• DAB Aerial
• Double Din Fascia Adaptor (Matt Black)
• Steering Wheel Control Infoadapter Interface
• Double Fakra to DIN Antenna Adapter Cable
• Fakra DAB Male to DAB SMB Female Antenna Adapter
• Universal Patch Lead

Double Din Fascia Adaptor

Car radio fascia adapter panel to allow the fitting of an aftermarket Double DIN car stereo upgrade.

The fascia adapter allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio.

This fascia is supplied with side fixing brackets so a radio can be installed without the need for a fitting cage

Steering Wheel Control Infoadapter Interface

Car Audio Steering wheel interface allowing use of original buttons with a new aftermarket head-unit. This interface allows the use of the Steering Wheel audio controls, as well retaining the vehicle menus when installing an aftermarket head unit.

This interface also provides optional input for reversing camera/ parking sensors (if applicable) and outputs for park brake, speed pulse, reverse gear and mute

Product Features

• Retains Steering Wheel Control Functionality
• Retains Phone Button Functionality
• Retains Vehicle Settings and Generates Settings Menus
• Provides Optional Input for Aftermarket Reversing Camera
• Retains Parking Sensor Audio and Generates Parking Sensor Graphics
• Provides Outputs for Park Brake, Reverse Gear, Speed Pulse and Mute

Compatible Vehicles

This Steering Wheel Control/ Infoadapter interface is designed for select Volkswagen Group vehicle models with original MIB II radio systems.

Double Fakra to DIN Antenna Adapter Cable

This cable converts the original antenna connector in the car, known as a Double Fakra connector, to a standard aftermarket antenna connector, known as a DIN connector.

The adapter cable has a built in module which provides a phantom power feed to the original antenna in the car. A phantom power feed is a 12v power supply that is sent up the centre wire of the antenna cable, this powers the amplifier built into the original antenna. The antenna adapter cable has a loose wire which needs to be connected to the 12v antenna power output of the new aftermarket stereo.

The phantom power feed terminates in a junior timer receptacle terminal to make it easy to connect into the electric antenna turn on position of a standard ISO connector. We also have this part available with a male bullet connector to make the phantom power lead easier to connect to ISO cables and steering wheel control interfaces with a female bullet connection for the electric antenna turn on, the 21-139K.

Fakra DAB Male to DAB SMB Female Antenna Adapter

Use to convert the original (Fakra DAB) antenna connector in a car to a female SMB (used on aftermarket head-units)

Key Features:

• Complete Fitting Kit: All-in-one solution for upgrading your stereo system, ensuring a smooth and hassle-free installation.
• Steering wheel CANbus Interface: Allows the use of the Steering Wheel audio controls, as well retaining the vehicle menus when installing an aftermarket head unit.
• JVC KW-M595DBT Stereo: Packed with modern features, this stereo allows you to safely control Apple CarPlay® and Android Auto™ directly from your dashboard for hands-free convenience.
• Perfect Fit: The single DIN chassis design of the JVC KW-M595DBT is custom-tailored to fit seamlessly into the VW Crafter’s dashboard, where traditional double DIN stereos might not.

Upgrade your VW Crafter’s audio system with this all-in-one, cost-effective solution for improved functionality and a premium sound experience. Enjoy modern connectivity, intuitive controls, and enhanced driving pleasure today!

JVC KW-M595DBT Double-DIN car stereo Wired Apple Carplay, Android Auto, DAB, Bluetooth

This JVC KW-M595DBT is crammed full of added features. Control Apple CarPlay® and Android Auto™ from your dashboard in a convenient and safe way. Thanks to its single DIN chassis design, the JVC KW-M595DBT can be can be installed into a variety of vehicle with difficult factory radio types saving time and money on dashboard modifications. A Double DIN cage is also included for more conventional fitting.

Key Features

• Apple CarPlay® & Android Auto™ Ready
• USB Mirroring for iPhone / Android
• DAB+ radio tuner for noise & interference free reception and crystal-clear digital stereo sound.
• Advanced Wireless Bluetooth® Technology
• High Speed USB port with up to 2.1A High Current Charging
• Rear View Camera Input with Parking Guidelines
• 2 Preouts 2.5V & Subwoofer Out
• 6.8" WSVGA LCD Display & Convenient and Easy-to-Use Capacitive Touch Panel
• Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
• Short body (86mm) for easy installation in a wide range of cars

Monitor Features

• 6.80” WVGA (1024 x 600px) with Clear Capacitive Touch Screen
• Protective Film with Anti-Fingerprint
• White key illumination
• Fixed Panel
• 3 Display Mode: Full(Initial) / Auto(Full/Normal) / Normal
• Screen adjustments: Brightness, tint, colour, contrast and Backlight
• Dimmer sensor: Manual / Sync & Dimmer level control (Auto/On/Off)
• NTSC / PAL judge (Auto)
• Display OFF mode

Graphical User Interface (GUI)

• Demonstration Mode (default ON)
• Home screen, 4 Top SRC keys are customisable
• Wallpaper customizable (6 presets + 2 user set)
• Text scroll
• Rear view camera interrupt with parking guide lines & caution on screen
• Visual source mode: Mirroring / CarPlay / Android Auto
• Selection of 14 languages for menu & text:
• English UK(default) English US, Spanish, French, German, Italian, Dutch, Russian,
• Portuguese, Hebrew, Greek, Polish, Czech and Hungarian

Tuner Features

• FM / AM(LW/MW) radio / 24 x FM and 12x AM Presets
• RDS / EON / Radio text plus / PTY / Local seek / Traffic information.
• Manual/Auto memory entry.
• Auto1/Auto2/Manual tuning mode/seek mode / Seek/scan up/down.

DAB+ Tuner Features

• DAB+ (Band III) tuner / 15 presets
• DAB-DAB / DAB-FM Auto Switch / Seamless DAB-FM blending
• Traffic information / PTY search / PTY watch / ASW select
• Alphabet / Intelligent search / DLS (Dynamic label) / Slide Show / Softlink
• Audio Format: MPEG1 Audio Layer II, MPEG4 HE-AAC-v2

Bluetooth Features

• High quality wide-band Hands-free speech (HFP V1.7)
• High quality microphone built-in
• Private mode
• Interrupt call request
• Audio streaming (A2DP V1.2) with AAC / SBC codec support
• Music library browsing (AVRCP V1.6)
• Album artwork display
• Accessible phonebook entries (PBAP) with alphabet search (English / Hebrew)
• Secure Simple Pairing (SSP)
• Auto pairing via USB (iPhone & Android)
• Optimised Noise & Echo canceller

USB Input Features

• High speed type-A USB port / FAT16/32 NTFS/exFAT
• Max. 2.1A quick charge for selected phones (BC 1.2 compatible)
• Mass storage class
• Tag information display / Album art display / Time code display
• List access / Category search and Link search
• Folder or All random play / Folder, File or Repeat All play / Skip
• Drive change / Last position/resume play

Supported CODEC’s (USB)

• Audio: MP3 / WMA / AAC / WAV / FLAC
• Video: MPEG1 / MPEG2 / MPEG4 / H.264 / WMV / MKV
• Pictures (for user Wallpaper): JPEG / PNG / BMP

Android Features

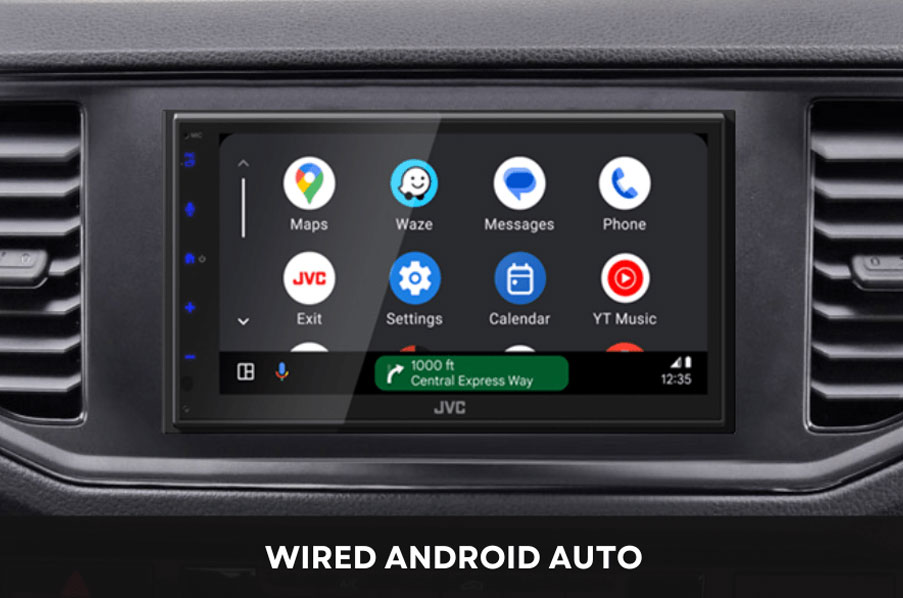

• Works with Android Auto™ via USB
• USB mirroring for Android with 'MirrorApp+' smartphone app
• Music playback via Bluetooth

Apple CarPlay/iPhone Features

• Made for iPhone.

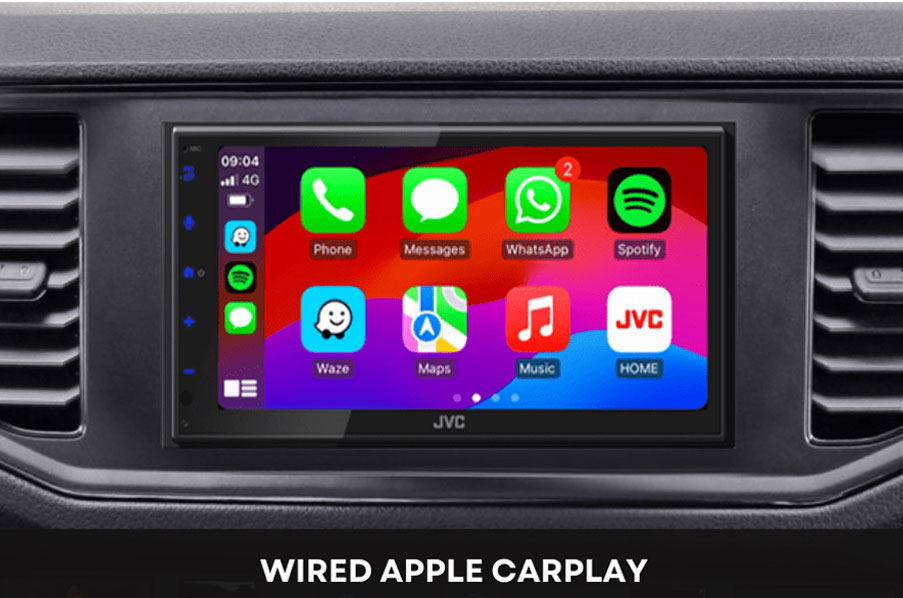

• Works with Apple CarPlay™ (via USB)
• USB mirroring for iPhone with 'MirrorApp+' smartphone app

Audio Features

• 50W x 4 Max power output / 22W x 4 RMS
• 2 RCA pre-outs (Front & rear) + Subwoofer (mono) with 2,5V Preout level
• Reverse with Attenuator (-20dB) / Mute
• Beep On / Off (default)
• Balance & Fader control
• Volume offset for each source
• Built-in amplifier Off

Digital Sound Processor (DSP)

• Digital Time alignment (DTA): Position control + 4 presets, Position Room Size
• 13-Band graphic equaliser: 7 presets, 3 user set for each source
• High-pass filter / Low-pass filter.
• Subwoofer Phase Control (Normal/Reverse) / X’over
• Speaker size control: Front/Rear/Subwoofer
• Channel level control / Bass Boost & Loudness control / Tweeter Volume

Video Features

• AV-out: Available Source: USB
• Rear Camera Input (NTSC/PAL auto Switching)

Connectivity

• Third-party Wired Steering Remote Interface ready. (Optional interface required)
• Learning Steering Remote (RESISTIVE protocols only!)
• Rear view camera input (RCA)
• Video-out (RCA)
• Rear USB2.0 (pigtail 1m cable)
• 2 RCA pre-outs (Front & rear) + Subwoofer (mono)
• FM/AM antenna input ( JASO)
• DAB antenna input (SMB)
• 22 Pin Molex Connector:
• Power Antenna Control • Power Control (P-Cont) • Illumination/Dimmer Wire
• Wired Remote Wire • Reverse sensor wire • Parking brake sensor wire

General Features

• Optional IR remote controller: KNA-RCDV331
• Firmware/software update via USB
• Backup memory
• Installation Dimensions (W×H×D): 182×112×86mm (with Sleeve)
• Operating Voltage: 14.4V (10.5 – 16 V allowable)
• Maximum Current Consumption: 15 A
• Weight: 1,3kg

Accessories

• 22Pin Molex Connector to ISO Connector lead
• GPS/Glonass antenna with mounting plate (3,5m cable)
• Extension Parking Cable (2m)
• 2DIN Sleeve & Lever
• 1DIN adapter bracket set (pre-mounted)
• Remover for Escutcheon (trim)

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
