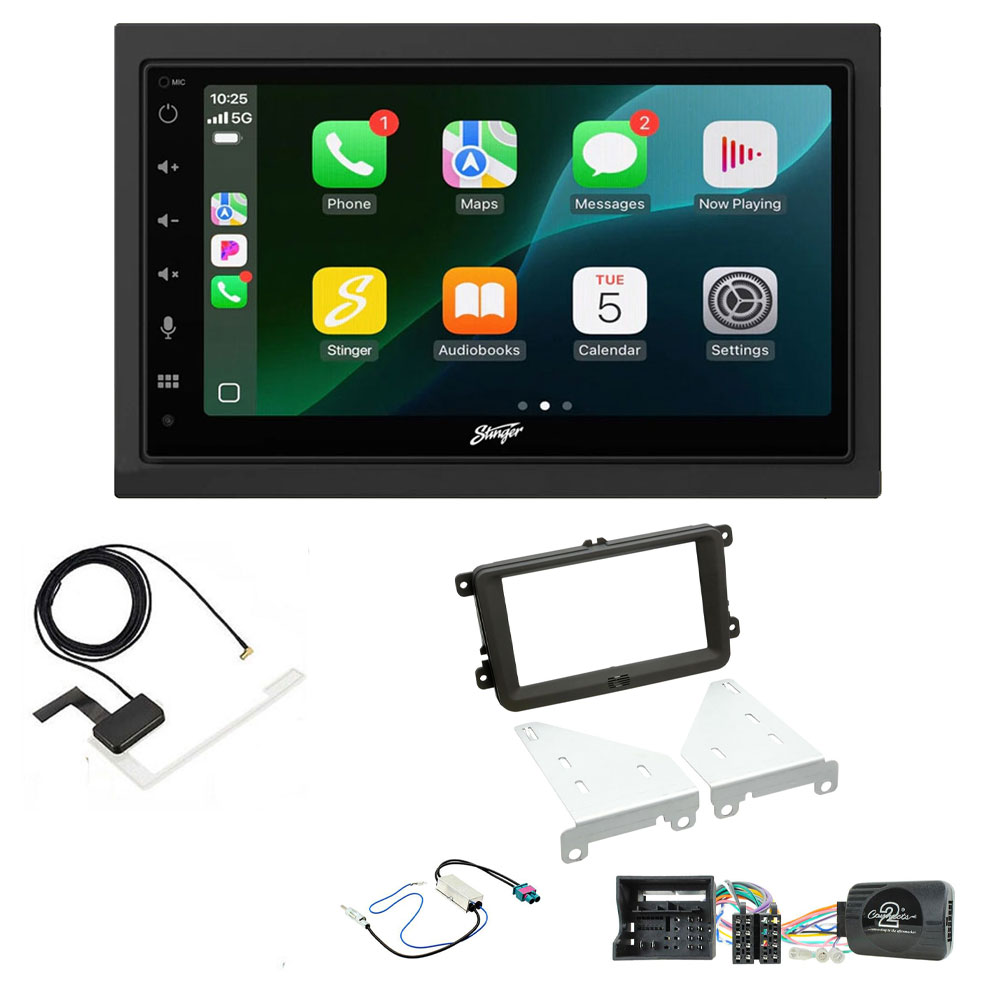

Package Includes

• STINGER IE268E 6.8" Screen Wireless Apple Carplay / Android Auto, Bluetooth, DAB+ Stereo
• DAB Aerial
• VW MIB-PQ Installation kit With Double Din Fascia Adaptor (Black)
• Steering wheel Control Adaptor
• Twin Fakra Aerial Adaptor
• Stereo Patch Lead

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Steering Wheel Interface

A stalk/steering wheel control adaptor allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls or fitted on a stalk next to the steering wheel.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

STINGER IE268E

Elevate your driving experience with this advanced 6.8″ HD touchscreen stereo, offering seamless wireless Apple CarPlay and Android Auto, crisp visuals, and powerful audio performance. With Bluetooth connectivity, digital radio streaming, and multi-camera support, it’s the ultimate upgrade for modern in-car entertainment and control.

Key Features:

• Vibrant 6.8” Capacitive Touchscreen:
  • Enjoy sharp, responsive visuals on a 1024×600 high-resolution display. Perfect for maps, music, and more.
• Seamless Smartphone Integration:
  • MFi-certified for Wireless Apple CarPlay and Android Auto. Access your favourite apps, navigation, messages, and streaming platforms — wirelessly or via USB. Also supports full phone mirroring.
• Bluetooth Connectivity:
  • Stay connected with Bluetooth V4.2. Make hands-free calls and stream your playlists effortlessly with A2DP and AVRCP support.
• Digital Radio Streaming:
  • Dive into a world of crystal-clear sound with built-in support for streaming digital radio stations.
• Steering Wheel Control Ready:
  • Keep your focus on the road with SWI-RC compatibility, enabling easy control from your steering wheel.
• Multi-Camera Support:
  • Navigate with confidence. Supports up to 4 camera inputs with customizable parking guidelines for enhanced safety and precision.
• Premium Sound Performance:
  • Powered by a 4 x 26W RMS amplifier (45W max per channel) and advanced 24-bit DSP. Fine-tune your sound with a 13-band EQ, time alignment, independent subwoofer control, and adjustable crossovers.
• Smart Connectivity & Customization:
  • A high-power 1.5A USB input keeps your devices charged and connected. Personalise your display with custom background options.

Specifications

General

• Operating Voltage: 10.5VDC to 16VDC
• Grounding system; Negative Ground
• Max current consumption: 15A fused

Dimensions

• Radio Module: 178 mm x 87.8 mm x 100 mm (W x H x D)
• Display: 160.7 mm x 90.8 mm (W x H) 6.8-inch Diagonal 16:9 aspect ratio 1024 x 600
• Pixels: 1,024,000
• Active Area: 151.76 (W) x 79.8 (H) mm
• Operating Temperature (C): -20° to 70°

Display

• 6.8-inch Diagonal
• 16:9 aspect ratio
• 1024 x 600
• Pixels: 614400
• Active area 216.96 (W) x 135.6 (H) mm
• Operating Temperature (C) -20° to 70°

Audio

• Load impedance: 4Ω nominal / 2Ω allowable
• Power output: 18W x 4ch / 4Ω 20Hz to 20KHz, 1%THD at 14.4V 26 W x 4ch / 4Ω 1 kHz, 10%THD at 14.4 V 4 x 45 W / 4 Ω max
• Speaker level adjustment: 0-40 steps
• Audio Preamp Output level: 3 Vrms typical
• Audio Preamp 6 Channels: Front Left, Front Right, Rear Left, Rear Right, Subwoofer Left, Subwoofer Right.
• Equalizer: (13-band) 63Hz/100Hz/160Hz/250Hz/400Hz/630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/10KHz/16Kz Gain: ±6dB (0.5dB/step)
• Crossover level: 10 steps
• Front HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz/500Hz/1kHz/3.5kHz/5kHz/bypass
• Front Slope: 6dB, 12dB, 18dB
• Front Level: 0-12,1db/step
• Rear HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz/500Hz/1kHz/3.5kHz/5kHz/bypass
• Rear Slope: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
• Rear level: 0-12,1db/step
• Subwoofer Pre-lineout: 3Vrms typical,
• Subwoofer LPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz/bypass,
• Subwoofer Slope: 6dB, 12dB, 18dB
• Subwoofer level: 0-15, 1db/Step
• Phase: 0 or 180
• Time Alignment for 6 channels: 0 to 133 steps for inches and 0-99 steps for 9.9ms/133inches
• User Preset EQ: Rock, Hip-Hop, Electronics, Jazz, Pop, Flat.
• Source Gain: default 0db, -10 to 10 adjustable, 0.35db/Step.
• Volume Settings: Main Volume, Phone Volume, Navigation Volume, Voice Volume, Ringtone Volume adjustable separately.

USB

• USB 2.0ax current supply 1.5A
• Max storage size: 128GB
• USB Class: A
• Supports: Video/Audio/Image Media Playback, Charging, and Firmware Update
• USB 3.0 (one) Max current supply 3A
• Max storage size: 128GB
• USB Class: C MSC (Mass Storage Class), MTP (Media Transfer Protocol)
• File system: FAT32, NTFS
• Supports: Apple CarPlay, Android Auto, Video/Audio/Image Media Playback, Charging, and Firmware Update

Bluetooth

• V5.1 dual
• 4dBm Class2
• 2.402GHz to 2.48GHZ

Wifi

• Support IEEE 802.11a/b/g/n/ac
• Support 802.11ac 1x1, Wave-2 compliant with MU-MIMO STA mode
• Complete 802.11n MIMO solution for 2.4GHz and 5Ghz band

Radio FM Tuner

• 87.9MHz to 107.9MHz
• Usable sensitive 3dBuV (mono S/N: 30dB)
• SNR: 65dB

Radio AM Tuner

• 530KHz to 1710KHZ
• Usable sensitive 25dBUV (mono S/N: 20dB)
• SNR: 58dB

DAB+

• DAB+ Digital Radio
• Auto Tune, Pre-set buttons

4 Camera Video Inputs

• NTSC, PAL, AHD PAL 25Hz & AHD NTSC 30Hz
• Support Mirror Camera Image On/OFF

Support Audio Formats

• FLAC / WAV/MP3/
• AAC/M4A—license
• OGG/APE

Support Video Formats

• MP4/AVI H264.avi/
• AVI XVID-MPEG-3.avi/
• AVI 1024×768.avi/
• AVI 1920×1080.avi/
• MPG-MPEG-1 .mpg/
• Mov/FLV/Vob/Mkv

Support Image Formats

• JPG/PNG/BMP

Support Background Image (User) Formats

• File Format: JPG / PNG
• Resolution: 1024 x 600

User Note: Backgrounds

• Your IE268E head unit utilises a Liquid Crystal Display (LCD) panel to display clear, crisp images in a variety of lighting conditions.
• Your IE268E unit is optimised to provide the highest quality image in a variety of use cases, but you should be aware that specific contrast ratios and backgrounds can cause temporary image retention.
• When customising your background, avoid images that include high contrast static patterns; these images can cause temporary image retention in LCD panels through repeated use.
• Retained images should vanish within 10-40 minutes of regular operation. If you see from your custom background, we strongly suggest you choose another option, or use one of the included IE268E background options.

Tuner

• DAB+ Digital Radio
• Auto Tune, Pre-set buttons
• RDS FM/AM Tuner

Experience Your Favourite Radio Stations In Rich, High-Quality Digital Sound With The Built-in DAB+ Digital Radio Tuner.

Click Here For User Guide

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
