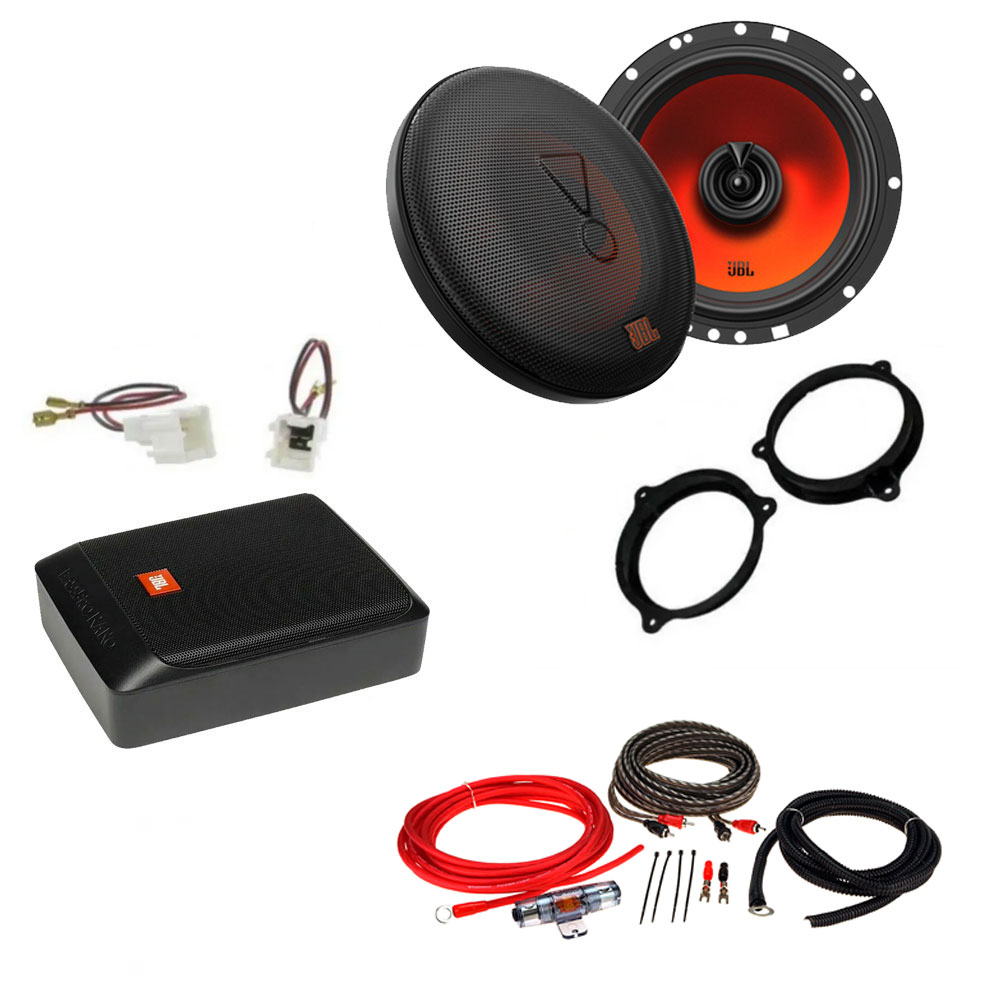

Package Includes

• JBL 16.5cm 6.5" 2-Way Coaxial Car Speakers 400 Watts
• 165mm Front Door Speaker Adaptor
• Speaker Adaptor Plugs
• JBL BassPro Nano 200 Watt Ultra-Compact Car Audio Under Seat Powered Subwoofer
• Stinger SSK8 8GA 600W Amplifier Wiring Kit

NOT SUITABLE FOR MODELS WITH BOSE SPEAKERS

Stage1 62

Take your audio experience to the next level with the JBL Stage1 62 coaxial car speakers. These car speakers deliver powerful performance with a maximum power of 400 Watts Peak and 50 Watts RMS. Thanks to the high sensitivity of 89 dB, you can enjoy crystal clear sound, even at high volumes.

The JBL Stage1 62 is designed with a 6.5" Plus One™ woofer that delivers deep, powerful bass and impressive audio reproduction. With a frequency response of 55Hz to 20,000Hz, you can hear every detail in your music.

These 2-way coaxial speakers are supplied including grille. This allows you to enjoy a neat and protected finish in your car and a clear, spacious sound image. Due to the compact dimensions and ease of installation, these JBL speakers are suitable for almost any car.

Features and Specifications

• Set of 2 speakers
• Total power: 400 Watt Peak / 50 Watt RMS
• Sensitivity: 89 dB
• Frequency response: 55Hz – 20kHz
• Impedance: 4 Ohm
• Plus One™ woofer for extra deep bass
• Coaxial speakers for clear high tones
• Easy installation including grille
• Suitable for all types of music styles
• Dimensions: 16.62 cm diameter, installation depth only 6.8 cm
• Package weight: 1.474 kg

Package Contents

• 2x JBL Stage1 62 Speakers
• 2x Grilles8x Screws
• 8x Spade Clips
• User Manual
• 2x Foam rubber seals

Note: This item/pack is sold as a pair and contains 2 speakers.

JBL BassPro Nano

Ultra-Compact Under Seat Powered Subwoofer System

Big Bass, Small Space

JBL BassPro Nano delivers bumping bass and takes up little space. The on-board 100Wrms amplifier has been performance matched to subwoofer to deliver the amount of clear, tight bass.

Intelligent Electronic Design for Reliable and Extraordinary Performance

The BassPro Nano employs high-pass filters and limiters that deliver exceptional at-the-limits performance.

Deep Bass Without Taking Up Space

JBL's BassPro NANO delivers deep bass and takes up little space. JBL's smallest powered subwoofer can be hid in the most compact of locations and deliver exceptional performance to any car audio system. Its rugged all-die-cast aluminum enclosure with anodized textured matte black finish, which looks great. Powered by a 100Watt Amplifier, BassPro Nano delivers punchy, tight bass you would expect from JBL, all while running cool and drawing minimal current from your vehicles charging system.

Specifications

• Driver Complement 6"x8"(152mmx203mm) Subwoofer
• Amplifier Power 100Wrms; 200W Max
• Frequency Response 30Hz – 150Hz
• Fuse 15A
• Maximum Current Draw 13 A
• Quiescent Current Draw <600 mA
• Input Sensitivity 0.1 V – 4.0 V Low-Level Input; 0.25 V – 20V High-Level Input
• Crossover Frequency 50 Hz – 150 Hz
• Crossover Slope 12 dB/octave
• Bass Boost 0dB to + 12dB @ 50Hz
• Dimensions (L x W x H) 10-1/4" x 7-11/16" x 2-15/16"(260.0mm x 195.0mm x 74.6mm)
• Weight 7.78 lbs (3.53kg)

In The Box

• 1x Under seat subwoofer
• 4x Screws
• 4x Small metal plate
• 1x Wiring harness
• 1x Bass volume remote control(with cable)
• 1x 15A Fuse

Stinger SSK8 8GA 600W Amplifier Wiring Kit

Featuring Ultra Flexible CCA cable construction for excellent current transfer to power hungry amplifiers on a budget. Quality twisted pair interconnects for noise free signal transfer. Also includes ultra flexible speaker wire, remote turn-on, MIDI high current fuse holder and ring terminals for a complete installation package. All the necessary parts for installing your next 2 channel amplifier.

Includes

• 17FT Matte Blue Ultra Flexible Power Wire (CCA)
• 3FT Matte Gray Ultra Flexible Ground Wire (CCA)
• 17FT Twisted Pair RCA Interconnects (OFC)
• 17FT Blue Remote Turn-on Wire (CCA)
• 20FT Matte Blue Ultra Flexible Speaker Wire (CCA)
• 1pc. High Current Water-resistant MIDI Fuseholder with 60A Fuse
