Car Audio Stereo Installation kit for installing a new after market headunit into your Vehicle. Fitting kit include Fascia Trim Panel, Wiring Harness, Aerial Adaptor, Radio Removal Keys.

Package Includes

• Double Din Fascia Adaptor (Piano Black) With Centre Crease. Frame Only
• Wiring Harness + Aerial Adaptor
• Removal Release Keys

Installation Note

• Connect red cable to an ignition driven live.
• Orange cable requires connection to illumination wire but only if the radio requires this for dimming purposes at night.

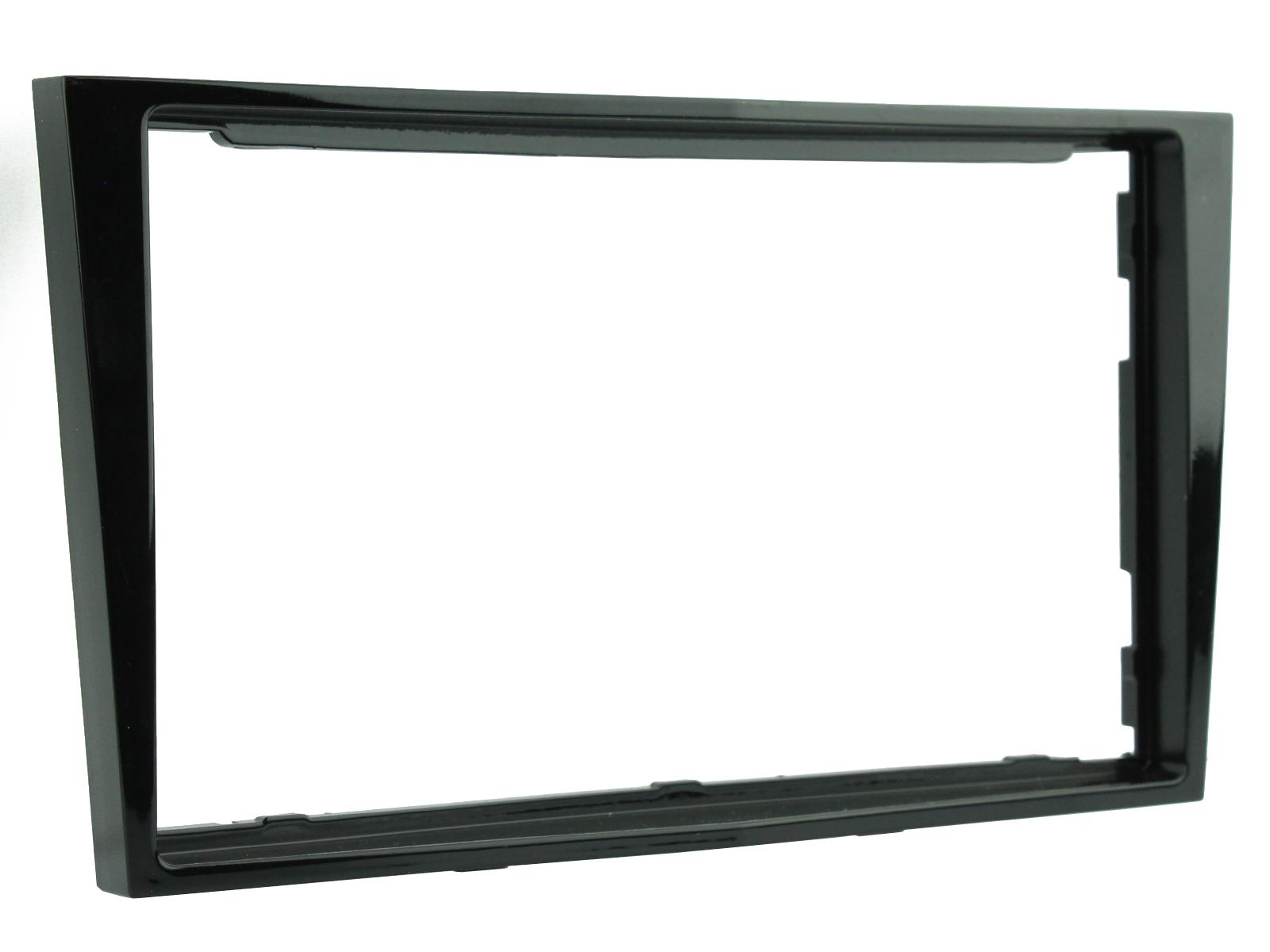

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a double din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

Wiring Harness

 The wiring harness will allow to install the stereo without having to cut any wires. This adapter is required when replacing your factory fitted radio with an aftermarket radio. It will convert the original vehicle power & speaker wiring connectors to a standard ISO connector. Simply plug one end of the adapter into your cars wiring harness and the other into your new radio.

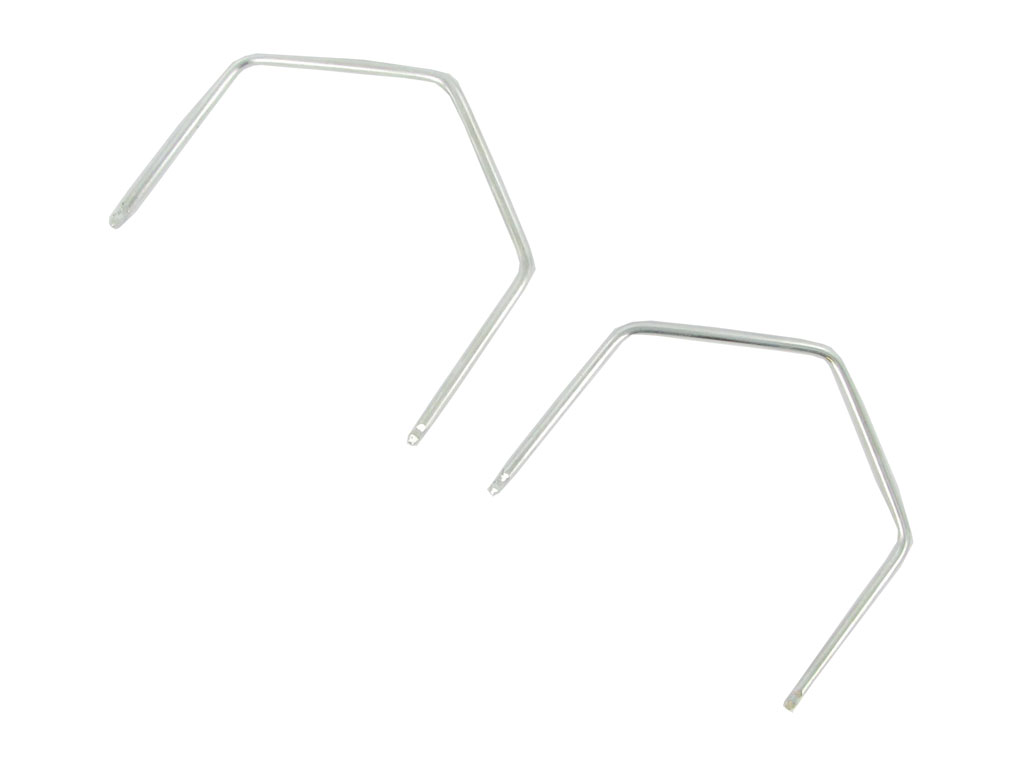

Stereo Removal Keys

Stereo Removal Keys to remove headunit from the fascia cage. Many OEM manufacturers are incorporating special locking mechanisms into their head units in an attempt to prevent stereo theft. This means that to remove one of these units you will require a manufacturer specific stereo removal key to prevent damage to the head unit or the surrounding fascia and cage.

Installation tips

• The Lose Red wire on the harness MUST be connected to a seperate igintion feed in the vehicle to make aftermarket head unit to power up
• Orange cable requires connection to illumination wire but only if the radio requires this for dimming purposes at night but in not nessasary to connect
• Blue wire on the aerial adaptor needs to be connected to an Electric Car Antenna or ANT labelled wire on the wirinh harness of your new radio

Important Fascia Notes

• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.
• If the cage supplied with the stereo does not fit the fascia then you must purchase a universal cage which is slightly smaller.
• Click here for CT23UN01 UNIVERSAL Mounting Cage

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.

Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection & Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
