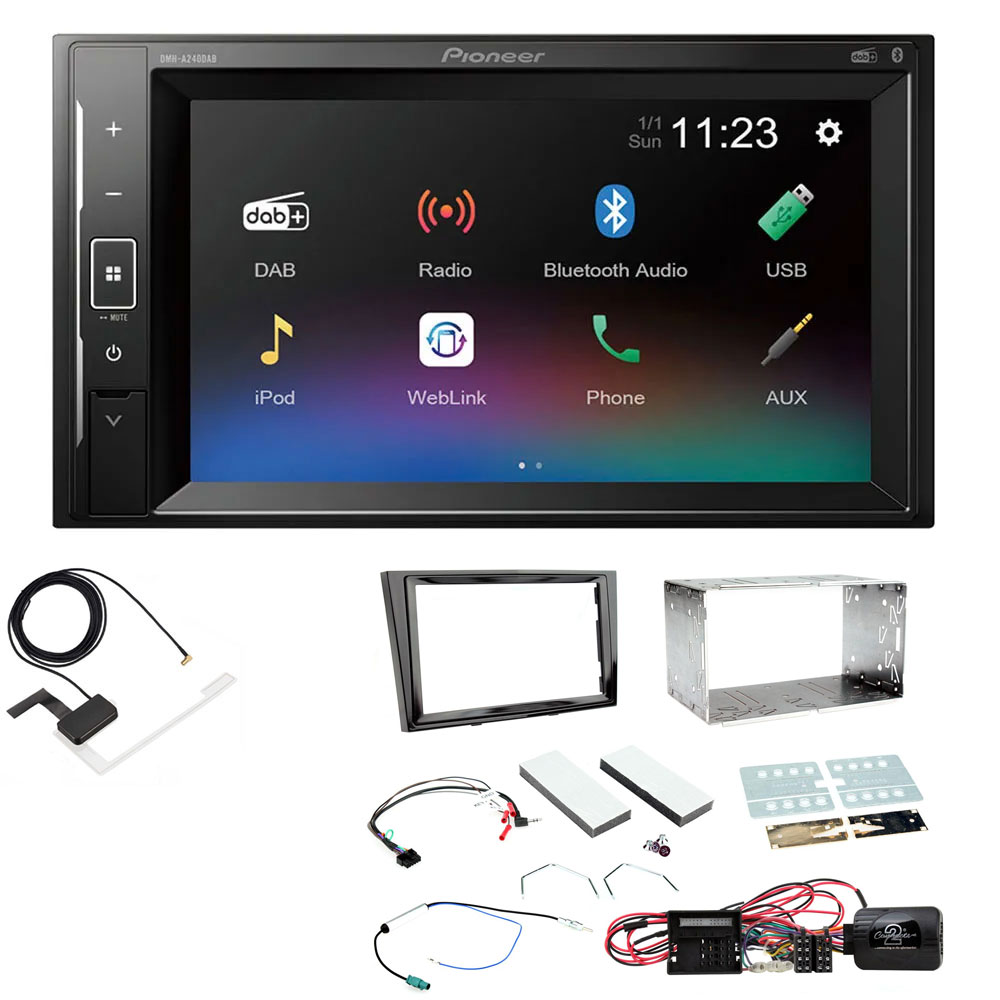

Package Includes

• Pioneer DMH-A240DAB Double Din Stereo With DAB, Bluetooth 6.2" Touchscreen
• DAB Antenna Aerial
• Double Din Fascia Adaptor (Piano Black)
• CAN-Bus Steering wheel Control Adaptor
• FAKRA Antenna Adaptor
• Stereo Removal Keys
• Stereo Patch Lead

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Steering Wheel Interface

A stalk/steering wheel control adaptor allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls or fitted on a stalk next to the steering wheel.

IT IS VERY IMPORTANT THAT THE 2 LOOSE WIRES AS SHOWN IN THE PHOTO AND ON THE HARNESS ARE CONNECTED AS THE ADAPTER WILL FAIL EARLY ON IF THIS IS NOT CARRIED OUT. THE POWER WILL DROP TO THE NEW UNIT AFTER A PERIOD OF TIME IF THESE ARE NOT CONNECTED. RED CONNECTS TO AN IGNITION 12 VOLT SUPPLY / BLACK CONNECTS TO A GROUND POINT. BEST PLACE FOR THESE CONNECTIONS CAN BE TAKEN FROM THE LIGHTER SOCKET WIRING BELOW THE STEREO IN THE DASH.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

Stereo Removal Keys

Stereo Removal Keys to remove headunit from the fascia cage. Many OEM manufacturers are incorporating special locking mechanisms into their head units in an attempt to prevent stereo theft. This means that to remove one of these units you will require a manufacturer specific stereo removal key to prevent damage to the head unit or the surrounding fascia and cage.

Powerful Entertainment For Your Car.

The "Short Chassis" 2-Din DMH-A240DAB lets you connect to a compatible iPhone or Android phone using a single USB cable, which allows you to mirror & control your smarthphone from your dashboard in a convenient way. It plays DAB/ DAB+ Digital Radio and audio/video content from USB devices.

Additionally, this car AV player features Bluetooth, allowing you to stream your music or call hands-free over a wireless connection.

Upgrade your music with high-grade audio functions: The 13-band graphic EQ allows you to customise the sound settings to your own preferences.

	WebLink - The new WebLink app expands in-car entertainment with an amazing world of apps. Enjoy personalised music, videos, and other connected content powered by your phone and the cloud.
	DAB+ enjoy the convenience of listening to your favourite radio stations in crystal clear digital quality
	Digital Radio Tick Mark Approved product In order to be granted use of the tick mark, manufacturers must meet the minimum specification, verified by independent testing. All Pioneer products that use this Tick Mark have been independently tested and approved so you can buy with confidence.
	Bluetooth - Obey local driving laws with built-in Bluetooth (HFP). Wide Band Speech hands-free calling, wireless audio streaming (A2DP) with artist, album, and song search, simple pairing, and control audio (AVRCP), Bluetooth® wireless technology has made life in the vehicle safer and more convenient.
	6.8" Clear Type Resistive Touchscreen Pioneer Clear Type Resistive display panels are designed for beautiful crisp and detailed reproduction with enhanced visibility.
	Mechafree This product is designed for modern digital music formats.
	Short Chassis The shallow depth of this product provides easy and flexible installation.
	Made for iPod / iPhone - Directly control your iPod / iPhone, for charging, music and video via an optional interface cable (sold separately), depending on your iOS device. Song, artist, time and album information are beautifully displayed on the touchscreen.
	Compatible with Android Connect and listen to music stored on your device without the need for an app
	USB Input - Connect any device with an USB interface cable to charge your device or listen to clean, clear sound.
	FLAC - Enjoy FLAC lossless digital audio files in your vehicle with playback output at CD quality, without the need to convert.
	13-band Graphical EQ adjust your audio output in detail for a music experience tailored to your preferences
	Siri Eyes Free make use of your iPhone's Siri functionality through your unit's external microphone and the speakers of your vehicle

Main Features

• WebLink
• DAB+
• Digital Radio Tick Mark Approved product
• Bluetooth®
• Mechafree
• Short Chassis
• USB Input
• Waze    Via Weblink
• Spotify    Via Weblink
• FM Radio
• Camera Input    Yes
• Screen    6.2" Clear Resistive Touchscreen
• Plays
  • Your iPod, iPhone, Android Smartphone
  • Bluetooth audio
• Via USB:
  • MP3, WMA, AAC, WAV and FLAC audio files
  • H.264, MKV, FLV, MPEG4, MPEG2 (PS),WMV/MOV/DivX/XviD and TS video files in Full HD
  • JPEG and BMP image files
• Installation Type    2-DIN
• Accessories Included:
• 1 Microphone for hands-free calling
• Optional:
  • CA-IU.52C (USB to Lightning cable)
  • ND-BC8 (Reverse camera)
  • USB Input    USB (1 Amp)

Screen Features

• 6.2" Clear Type Resistive Touchscreen

Apple Compatibility

• Made for iPod / iPhone
• Siri Eyes Free
• Works with iPhone

Android Compatibility

• Compatible with Android

Audio

• FLAC
• 13-band Graphical EQ
• MOSFET 50 W x 4 Amplifier
• Graphic Equaliser 13-band
• High Pass Filter
• Low Pass Filter
• Subwoofer Control
• RCA Pre-Outs 3. (Front, rear and subwoofer)
• DAB+ Digital

Tuner Features

• RDS FM Radio

Bluetooth

• Hands Free Calling (Hands Free Profile)
• Music Streaming
• Additional Bluetooth Features
  • Audio streaming
• Compatibility HFP/A2DP/SPP
• Pioneer Bluetooth

Connections

• Aux-in 1 rear AV Aux-In
• RCA AV Input    Yes
• RCA AV Rear Output
• Hard Wired Remote Ready
• ISO connector

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.

Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection & Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
