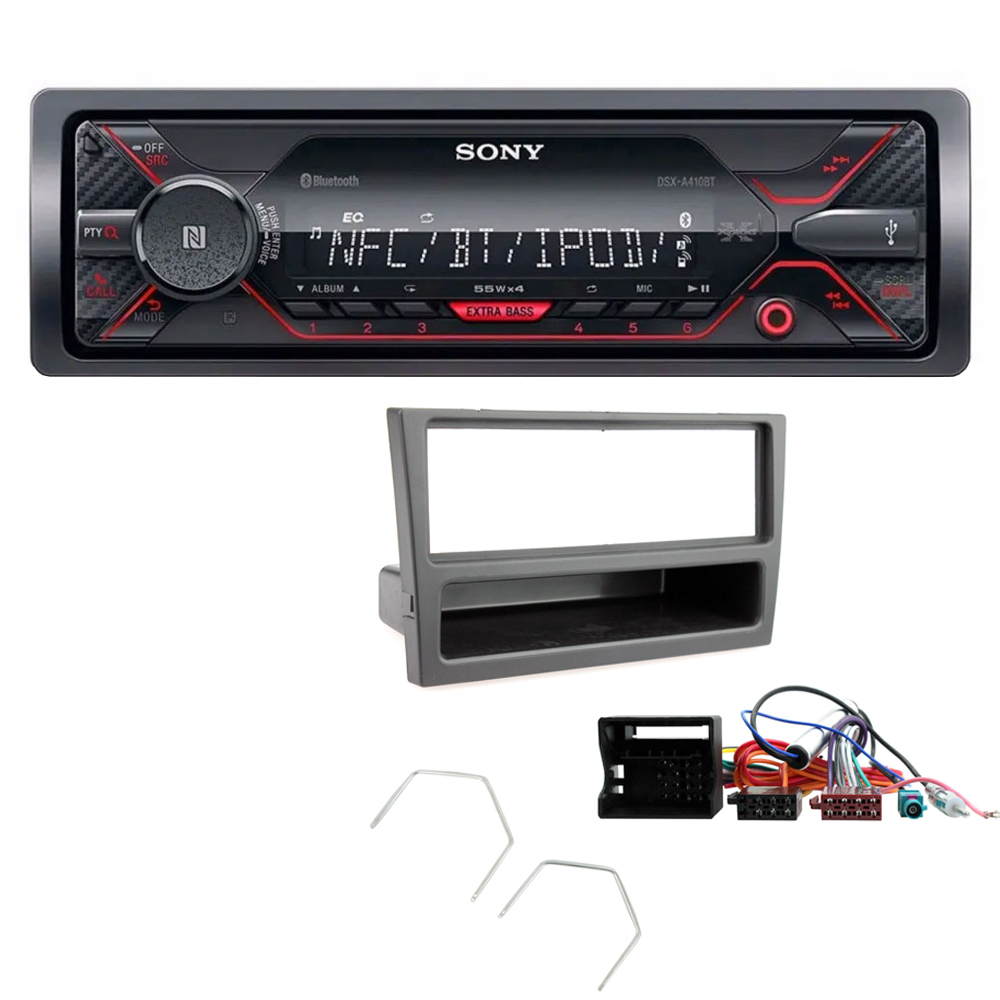

Package Includes

• Sony DSX-A410BT Mechless Digital Media Receiver Bluetooth USB iPhone iPod Car Stereo
• Fascia Surround Panel (Black)
• Wiring Harness- Non Amplified System
• Aerial Adaptor
• Stereo Removal Keys

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Wiring Harness

The wiring harness will allow to install the stereo. This adapter is required when replacing your factory fitted radio with an aftermarket radio. It will convert the original vehicle power & speaker wiring connectors to a standard ISO connector. Simply plug one end of the adapter into your cars wiring harness and the other into your new radio.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

Stereo Removal Keys

Stereo Removal Keys to remove headunit from the fascia cage. Many OEM manufacturers are incorporating special locking mechanisms into their head units in an attempt to prevent stereo theft. This means that to remove one of these units you will require a manufacturer specific stereo removal key to prevent damage to the head unit or the surrounding fascia and cage.

Installation Note

• Connect red cable to an ignition driven live.
• Orange cable requires connection to illumination wire but only if the radio requires this for dimming purposes at night.

Sony DSX-A410BT Mechless Digital Media Receiver Bluetooth USB iPhone iPod Car Stereo

Size & Weight

• Dimensions (W X H X D) 178x50x119mm
• Weight 0.7kg

General Features

• USB (Front)
• AUX (Front)
• EQ (EQ10)
• High Pass Filter (80 / 100 / 120)
• Low Pass Filter (80 / 100 / 120)
• Subwoofer Direct Connection (Easy)
• Extra Bass (1,2)
• Output Power 4 x 55W
• PRE Out x 2 (Rear + Sub)
• SUB Out

Tuner Features

• Preset FM18 / AM12
• RDS / EON

Panel Design

• Display Color (Color Variation / Negative Or Positive) Black colour / Negative
• Display Device (LCD / FL / OEL / TFT) LCD (with Acryl)
• Key Illumination Red

iPhone / iPod Music Playback Control via USB

• Pause
• Repeat All / Track
• Resume
• Shuffle Off / Track

Bluetooth Features

• Built-In Microphone
• MIC Gain Adjustment (Low / Mid / Hi)
• Version Bluetooth Version 3.0

Bluetooth Audio Features

• Audio Codec SBC, AAC
• Audio Level Adjustment (-6dB - +6dB)
• CUE / REV
• Pause (Bluetooth Audio)
• Track +/-

USB Mass Storage Device Control Features

• Jump Mode
• Compatible File Formats (Codec) MP3, WMA, FLAC
• List Browse
• USB Device Control (Pause)
• USB Device Control (Repeat) ALL / TRACK / ALBUM
• Resume
• Shuffle Off / Album / Device

USB Profile

• USB Mass Storage Device
• USB Media Transfer Protocol
• USB Android Open Accessory Protocol  (2.0)

What's In The Box

• Trim Ring (Collar): Black (Not Painted)
• Panel Case

NO CD MECHANISM

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
