Suzuki Swift (2011-2017) Front And Rear Door Speaker Upgrade Pack
- Stock Status: In Stock
- Item Condition : New
- Available QTY : 5
- Brand: Pioneer
- Model: TS-G170C + TS-G1720F + CT25SZ01 x 2 + CT55-SZ01 x 2
- EAN: 7427307015958
- Warranty: 2 Years Warranty
Description

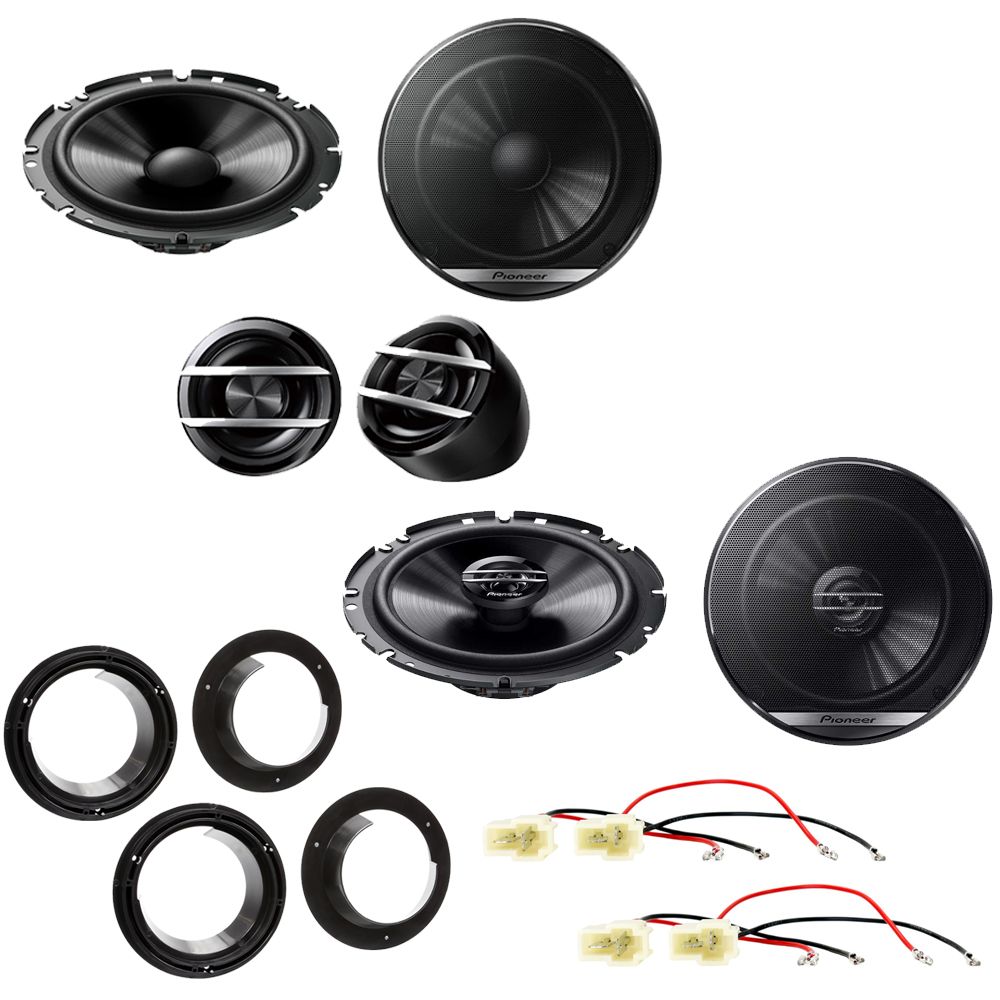

Package Includes:
- Pioneer 6.5" 17 cm 2-Way Component Kit Door Car Speaker
- Pioneer G-series 17cm 6.3/4" 2-Way 300W Coaxial Car Speaker
- 2 Sets x 165mm Speaker Adaptors
- 2 Sets x Speaker Adaptor Plugs
Product Compatibility Chart
| Make | Model | Years | Notes |
| Suzuki | Swift | 2011 - 2017 |
Front and Rear Door
Please Note:
The main speakers will connect via the wiring adapters included.
The front tweeters will require the supplied inline crossover to be manually wired into the original tweeter wiring in the vehicle.
Speaker Adaptor kits Allow aftermarket standard size speakers to be fitted into the original apertures of your car audio system.
Speaker Adaptor Plugs. Converts OEM Plugs To Standard Aftermarket Speaker Connectors.
Pioneer TS-G170C 6.5" 17 cm 2-Way Component Kit Door Car Speaker
For better-sounding drives.
Discover the renewed G-series
The improved G-series speaker range is specifically developed for premium and powerful audio, with excellent value for money. Their rigid design has been optimised with multi-bolt patterns, making it very easy to install any G-series speaker in your car. Thanks to their increased power handling and high sensitivity performance, these speakers reproduce deep, impactful bass and natural highs – even at high volumes.
TS-G170C
Upgrade your in-car sound in a smart and affordable way with the TS-G170C. This 17cm 2-way speaker system delivers up to 45 Watts of nominal power and has a maximum power output of 300 Watts. It also features:
IMPP Cone
enjoy outstanding midbass response with the Blue Injection Molded Polypropylene Cone.
Features
- Size 17 cm
- Impedance 4 Ω
- Frequency response 36 - 26,000 Hz
- Sensitivity 91 dB
- Lowest resonance frequency 72 Hz
- Maximum power input 300 W
- Nominal input power 45 W
- Woofer material IMPP Composite Cone
- Tweeter size 30 mm
- Tweeter material PEI
- Voice Coil type Copper
- Voice Coil bobbin type KAPTON
- Magnets Woofer: Y35
- Tweeter: Neodymium
- Weight 0.62 kg
- Cut-out Hole 144 mm
- Mounting Depth 49.7 mm
- 2 way component
Pioneer TS-G1720F G-series 17cm 6.3/4" 2-Way 300W Coaxial Car Speaker
For better-sounding drives.
Discover the renewed G-series
The improved G-series speaker range is specifically developed for premium and powerful audio, with excellent value for money. Their rigid design has been optimised with multi-bolt patterns, making it very easy to install any G-series speaker in your car. Thanks to their increased power handling and high sensitivity performance, these speakers reproduce deep, impactful bass and natural highs – even at high volumes.
TS-G1720F
Upgrade your in-car sound in a smart and affordable way with the TS-G1720F. This 17cm 2-way coaxial speaker delivers up to 40 Watts of nominal power and has a maximum power output of 300 Watts. It also features:
IMPP Cone
enjoy outstanding midbass response with the Blue Injection Molded Polypropylene Cone.
Main Features
- Weight 0.59 kg
- Coaxial Speakers
- Cut-out Hole 144 mm
- Size 17 cm
- Mounting Depth 49.7 mm
- Impedance 4 Ω
- Frequency response 36 - 18 000 Hz
- 2 Way
- Sensitivity 90 dB
- Lowest resonance frequency 81 Hz
- Maximum power input 300 W
- Nominal input power 40 W
- Woofer material IMPP Composite Cone
- Midrange size 30 mm
- Voice Coil type Copper
- Voice Coil bobbin type KAPTON
- Magnets Y35
