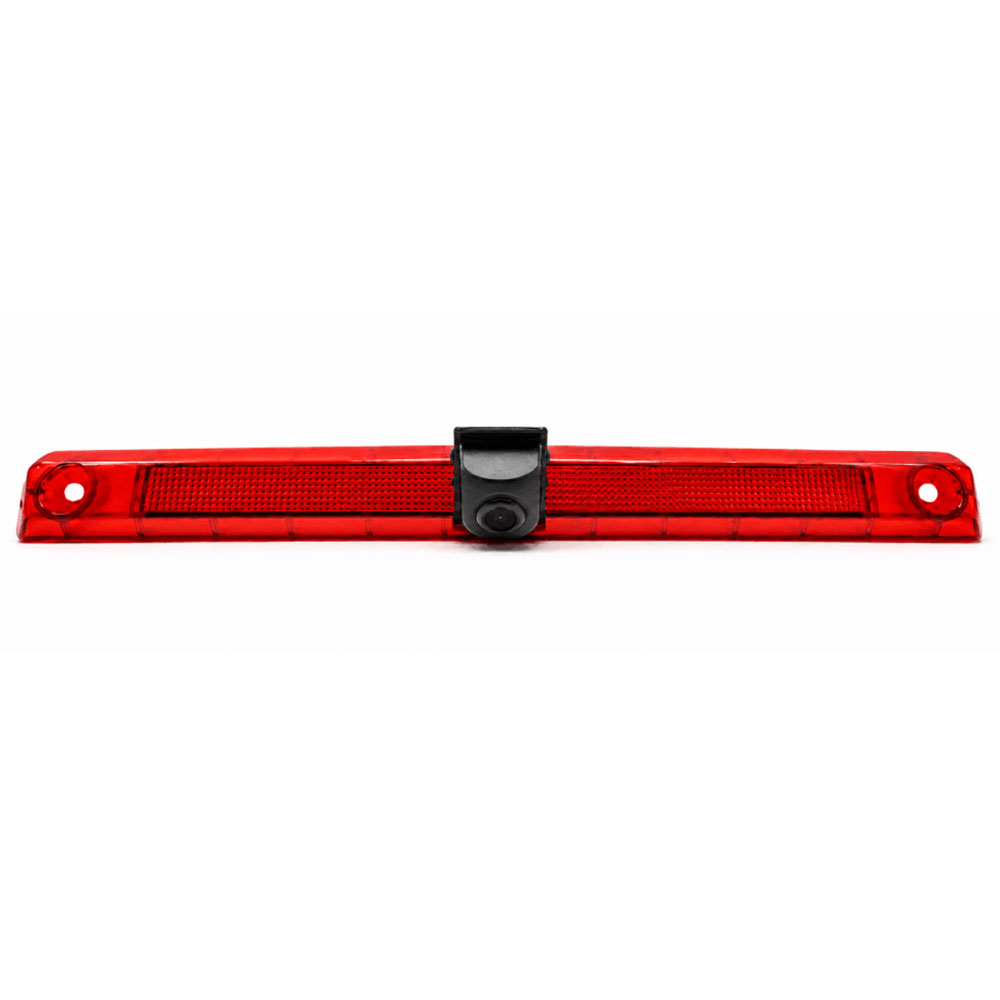

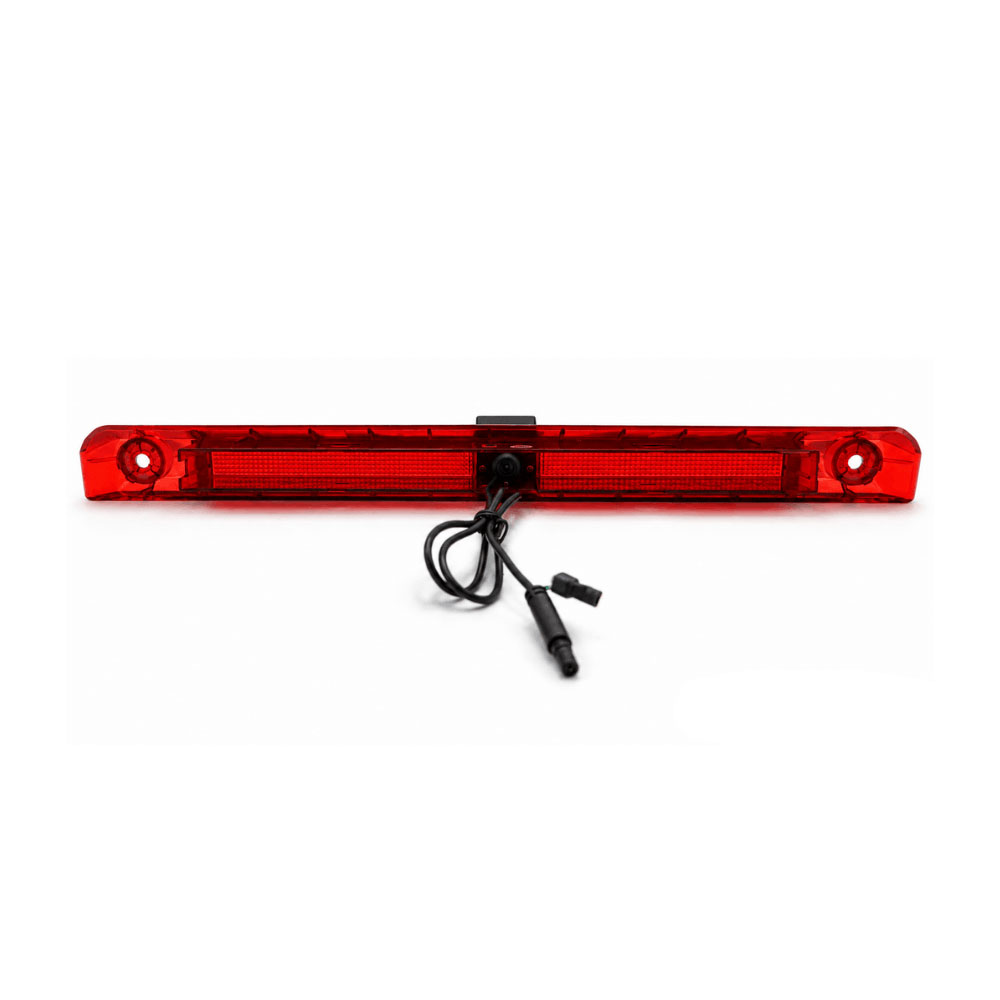

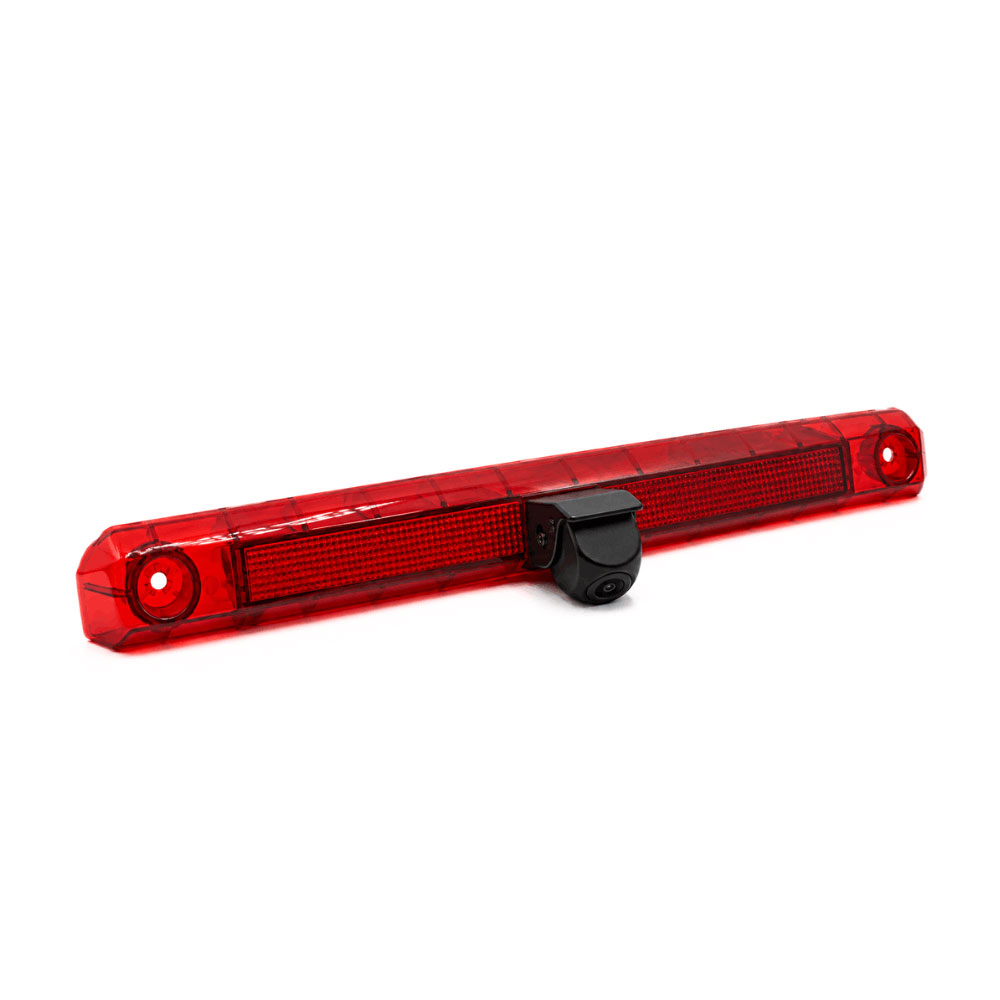

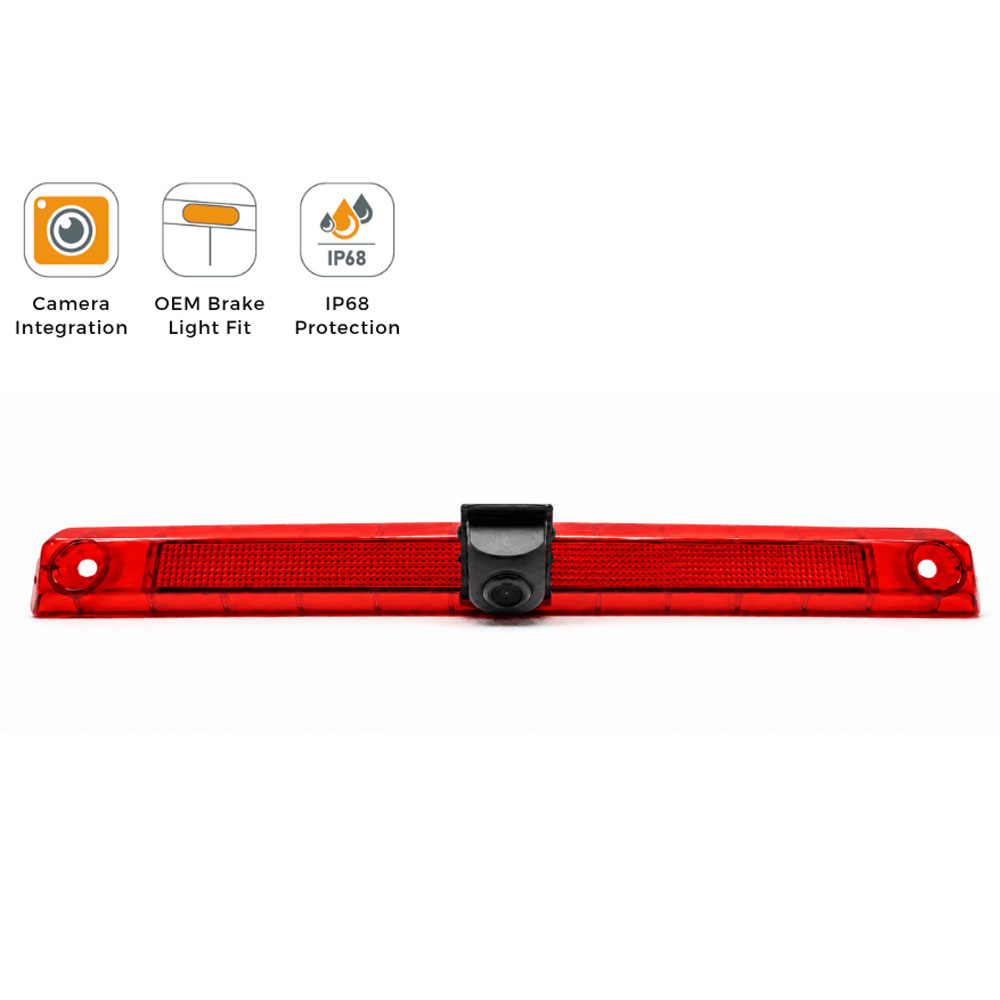

High-Level Brake Light Reversing Camera

High level brake light reverse camera. This vehicle-specific rear view camera fits into the third brake light position for a clean OEM-style appearance while improving rear visibility when reversing. Ideal for vans and commercial vehicles, it works with compatible aftermarket stereo head units, rear view camera monitors or rear view mirror monitors.

Improve rear visibility with this vehicle-specific high-level brake light reversing camera.

The camera fits neatly into the third high-level brake light housing at the rear of the vehicle, creating a discreet OEM-style installation while adding a practical reversing camera function.

Its elevated mounting position provides a useful view behind the vehicle when reversing, parking or manoeuvring, making it particularly suitable for commercial vans, fleet vehicles, camper conversions and long-wheelbase applications.

Key Features

• Fits into the third high-level brake light housing
• Suitable for long-wheelbase vehicle installations
• CVBS / AHD video options
• NTSC / PAL video options
• Up to 1920 × 1080 AHD effective pixels
• 0.1 lux minimum illumination
• Approximately 25ft night vision distance
• IP68 rated for exterior installation
• 4-pin aviation female connection
• Includes RCA/phono connection adapter

Technical Specifications

• Sensor 1/2.7 FH8536H + C2399
• Video signal CVBS / AHD optional
• TV system NTSC / PAL optional
• CVBS effective pixels 728(H) × 488(V)
• AHD 1080P effective pixels 1920(H) × 1080(V)
• AHD 720P effective pixels 1280(H) × 720(V)
• Resolution 700–1000 TVL
• Minimum illumination 0.1 lux
• Night vision distance Approximately 25ft
• IP rating IP68
• Current consumption 150mA
• Power supply 12V standard
• Voltage compatibility 5V–18V
• Connector 4-pin aviation female
• Operating temperature -30°C to +75°C, RH95% max
• Storage temperature -40°C to +85°C, RH95% max
• Material PC plastic
• Housing properties High- and low-temperature resistant, flame retardant

Camera Fitment & Installation

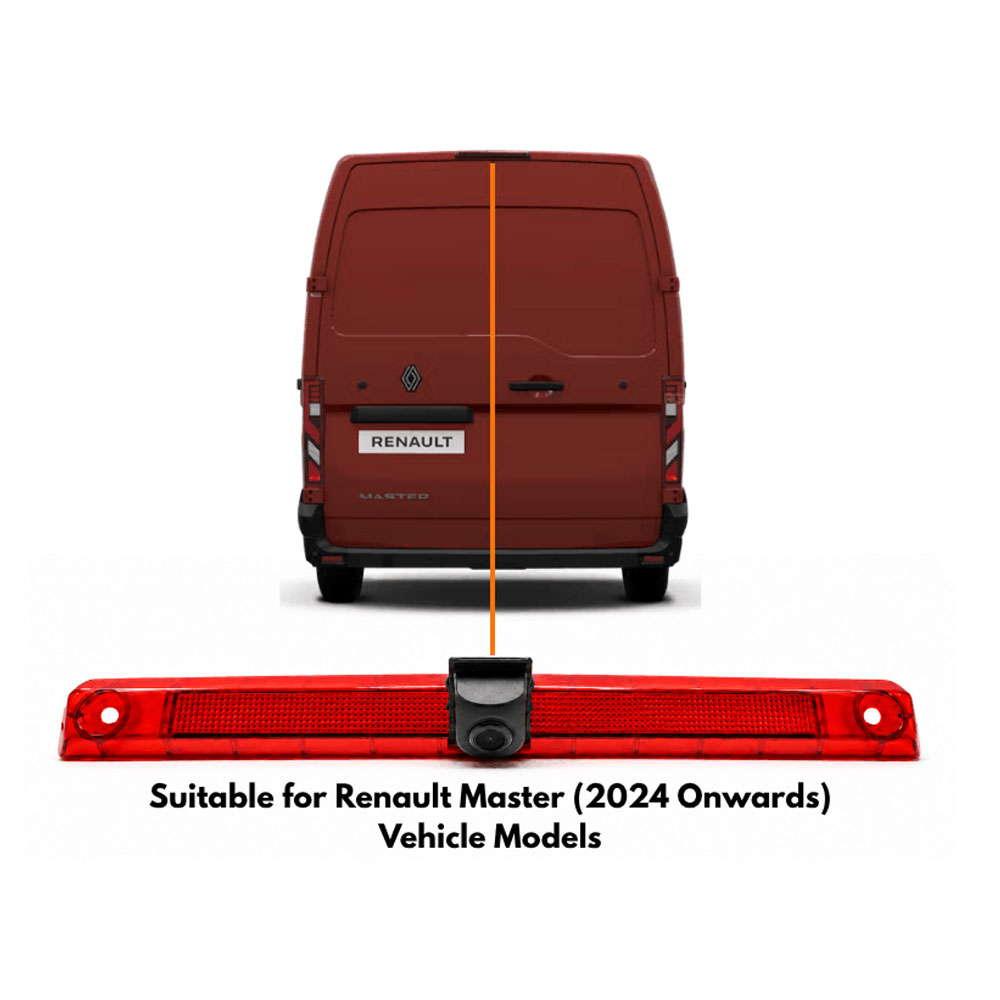

The camera is designed to secure into the third high-level brake light housing at the rear of the vehicle.

The supplied 10-metre extension cable allows the camera connection to be routed from the rear of the van to the dashboard, monitor or aftermarket head unit.

This makes CVC-REN-04 particularly suitable for larger commercial vans and long-wheelbase installations.

Video Format Compatibility

The revised specification supports CVBS / AHD and NTSC / PAL configurations.

The stereo, monitor or camera interface must support the same video format used by the supplied camera.

AHD supports higher-resolution video when used with an AHD-compatible display, while CVBS provides compatibility with many conventional analogue reversing-camera inputs.

Aftermarket Display Compatibility

The camera can be used with compatible:

• Aftermarket stereos with a reverse-camera input
• Standalone rear-view camera monitors
• Rear-view mirror monitors
• Commercial vehicle monitors
• Compatible camera interfaces
• The supplied phono / RCA adapter allows connection to compatible aftermarket equipment using a standard RCA video input.

Factory Screen Compatibility

If connecting this camera to the original Renault or Nissan factory screen, an additional vehicle-specific camera interface will usually be required.

Some factory systems may also require coding or programming to activate the camera input.

Compatibility depends on the exact factory head unit and display system fitted to the vehicle.

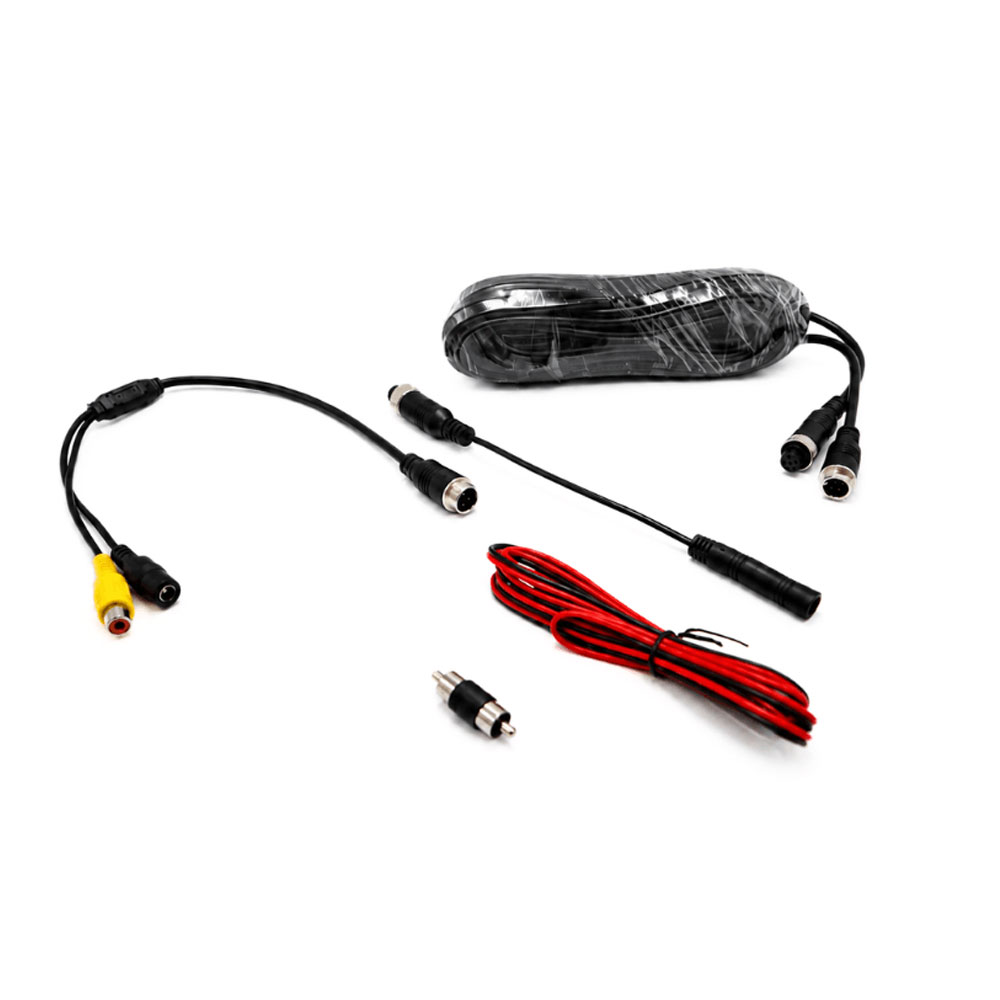

Product Contents

• High-level brake light reversing camera
• 10-metre 4-pin video extension cable
• 1.4-metre DC power supply lead
• 35cm 4-pin composite to RCA/phono adapter cable
• Male-to-male adapter
• 4-pin female to M12 aviation male cable connector
