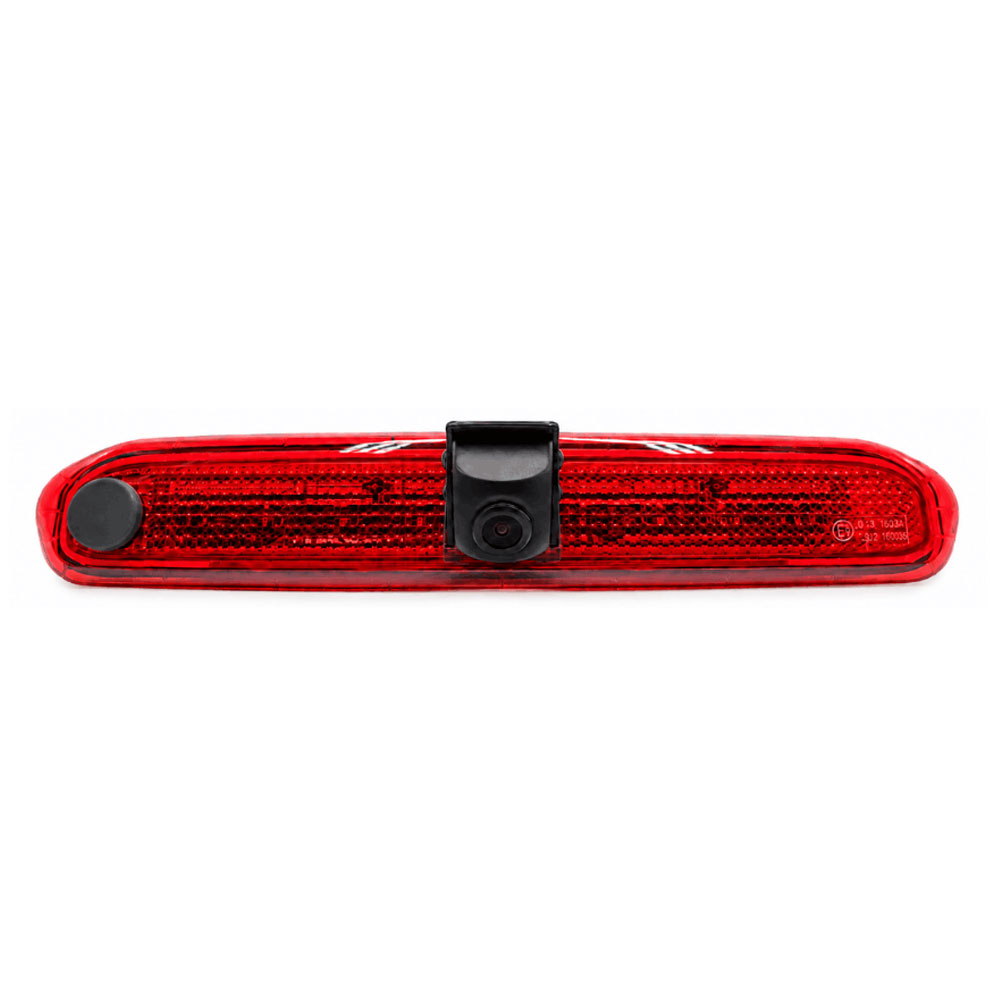

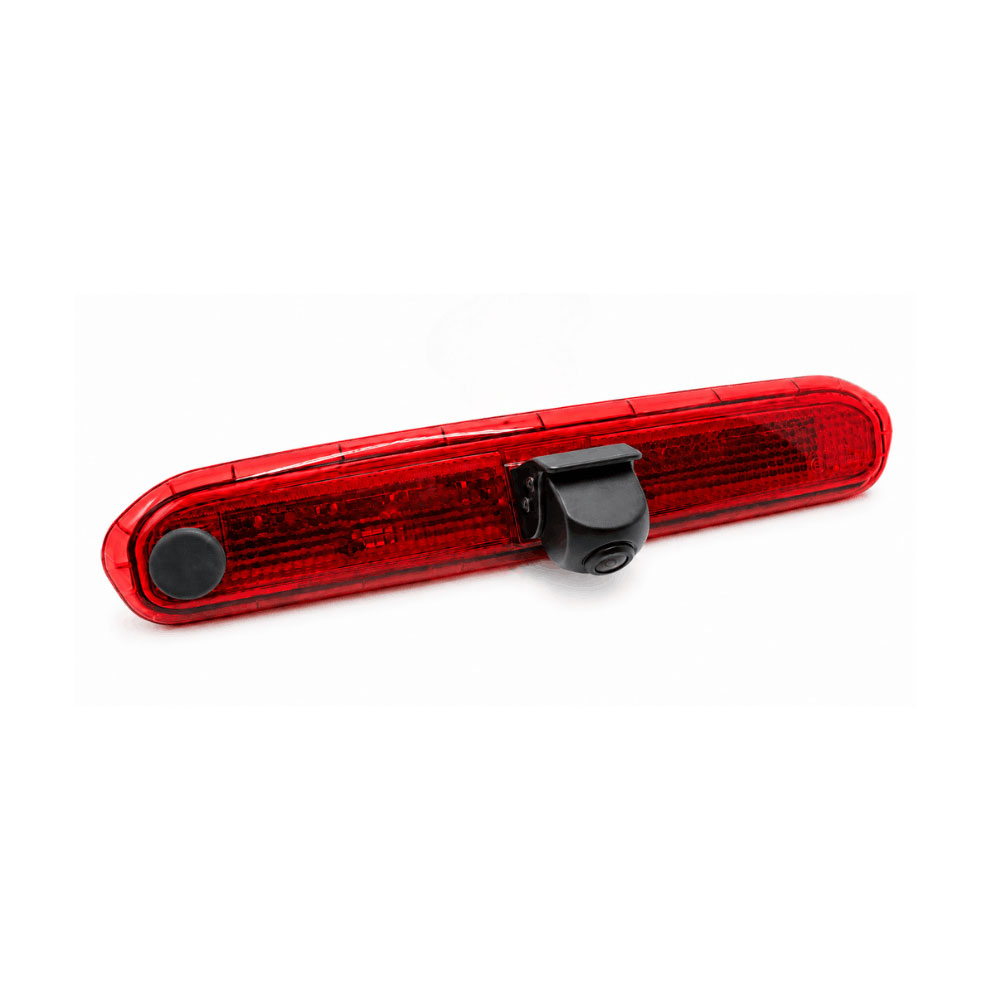

Barn Door Brake Light Reversing Camera

High level brake light reverse camera designed for two door / barn door vehicle models. This vehicle-specific rear view camera fits into the third brake light position to provide a clean OEM-style appearance while improving rear visibility when reversing. Ideal for van and commercial vehicle installations, it works with compatible aftermarket stereo head units, rear view camera monitors or rear view mirror monitors.

Improve rear visibility with this vehicle-specific high-level brake light reversing camera models fitted with two rear barn doors.

The camera fits neatly into the vehicle's third high-level brake light position, creating a discreet OEM-style installation while providing an elevated rear view when reversing, parking and manoeuvring.

This makes it particularly suitable for vans, commercial vehicles, camper conversions and fleet vehicles where improved rear visibility is required without fitting a universal external camera.

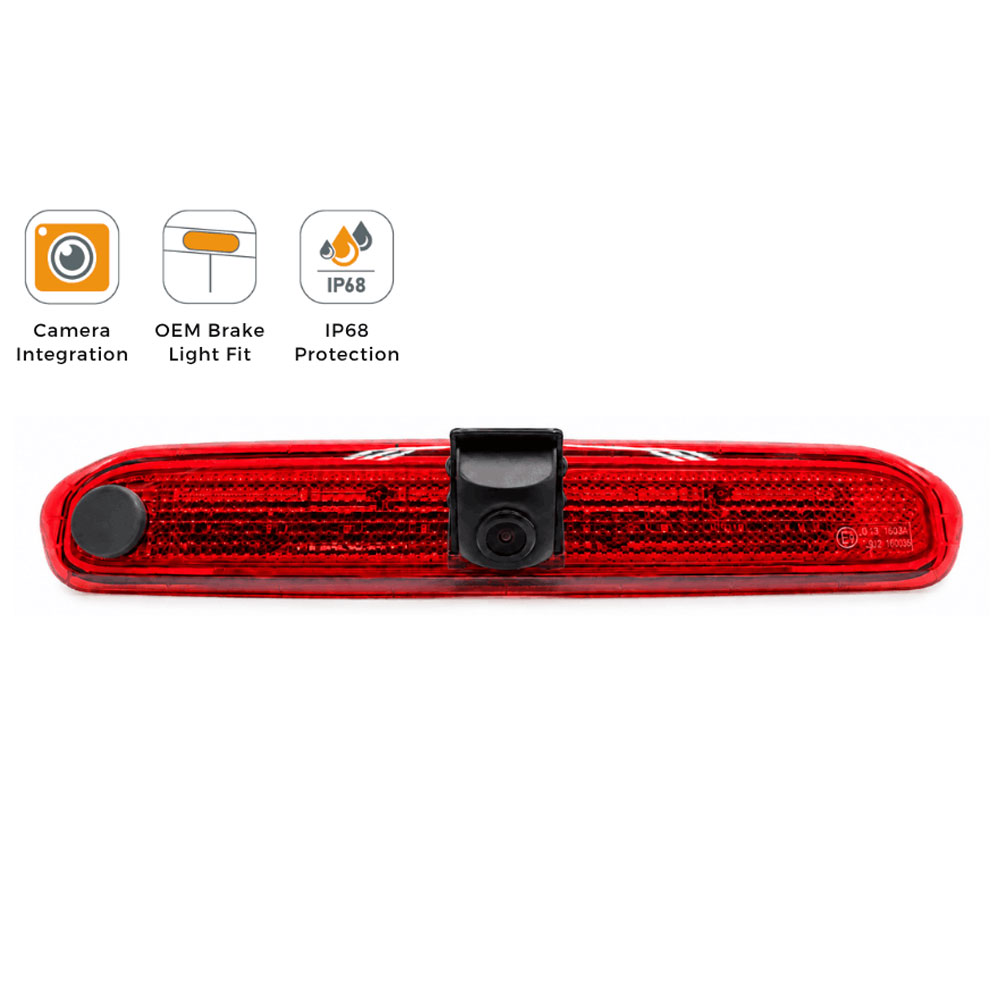

Key Features

• Specifically for two-door / barn-door vehicles
• Fits into the third high-level brake light position
• CVBS / AHD video options
• NTSC / PAL video options
• Up to 1920 × 1080 AHD effective pixels
• 0.1 lux minimum illumination
• Approximately 25ft night vision distance
• IP68 rated for exterior installation

Technical Specifications

• Sensor 1/2.7 FH8536H + C2399
• Video signal CVBS / AHD optional
• TV system NTSC / PAL optional
• CVBS effective pixels 728(H) × 488(V)
• AHD 1080P effective pixels 1920(H) × 1080(V)
• AHD 720P effective pixels 1280(H) × 720(V)
• Resolution 700–1000 TVL
• Minimum illumination 0.1 lux
• Night vision distance Approximately 25ft
• IP rating IP68
• Current consumption 150mA
• Power supply 12V standard
• Voltage compatibility 5V–18V
• Connector 4-pin aviation female
• Operating temperature -30°C to +75°C, RH95% max
• Storage temperature -40°C to +85°C, RH95% max
• Material PC plastic
• Housing properties High- and low-temperature resistant, flame retardant

Barn Doors vs Tailgate

These vehicles can use different high-level brake-light housings depending on their rear-door configuration.

CVC-REN-05 is the barn-door version for vehicles fitted with two separate rear doors.

Vehicles fitted with a single lifting tailgate require the dedicated CVC-REN-06 version.

Camera Fitment & Installation

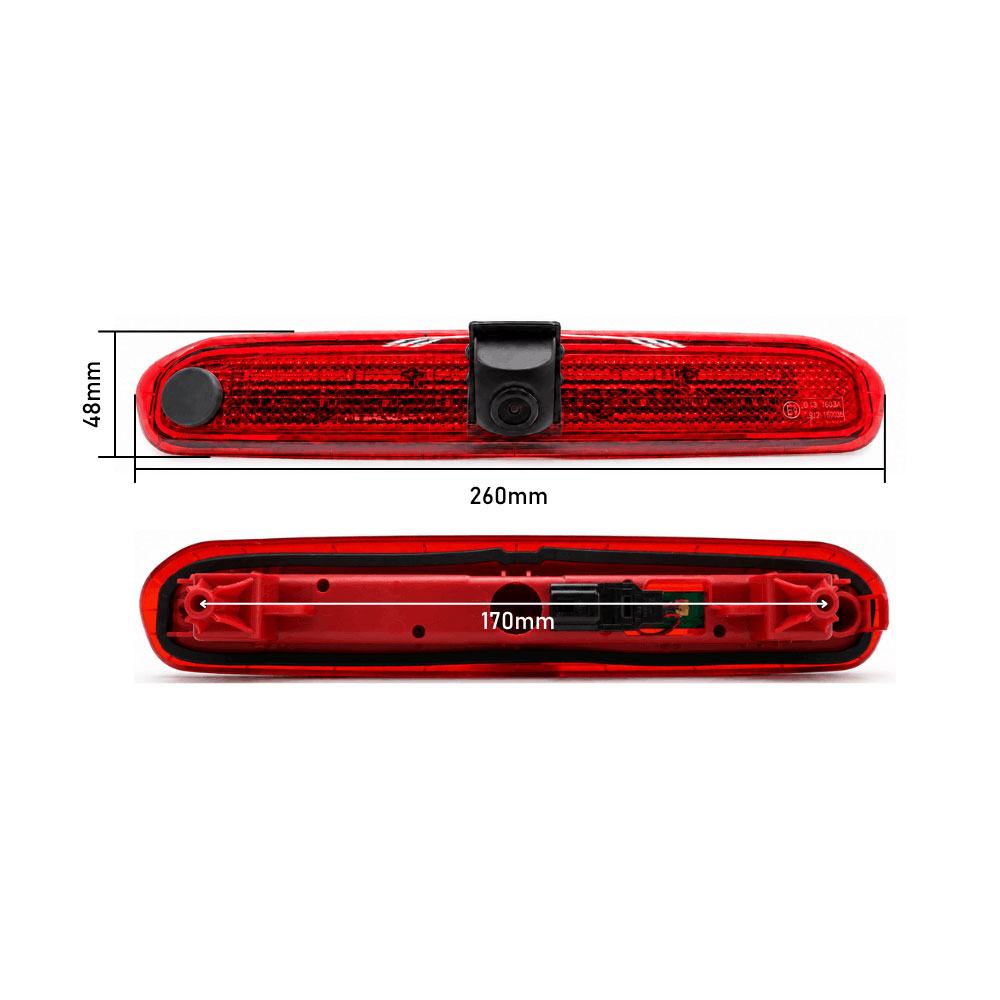

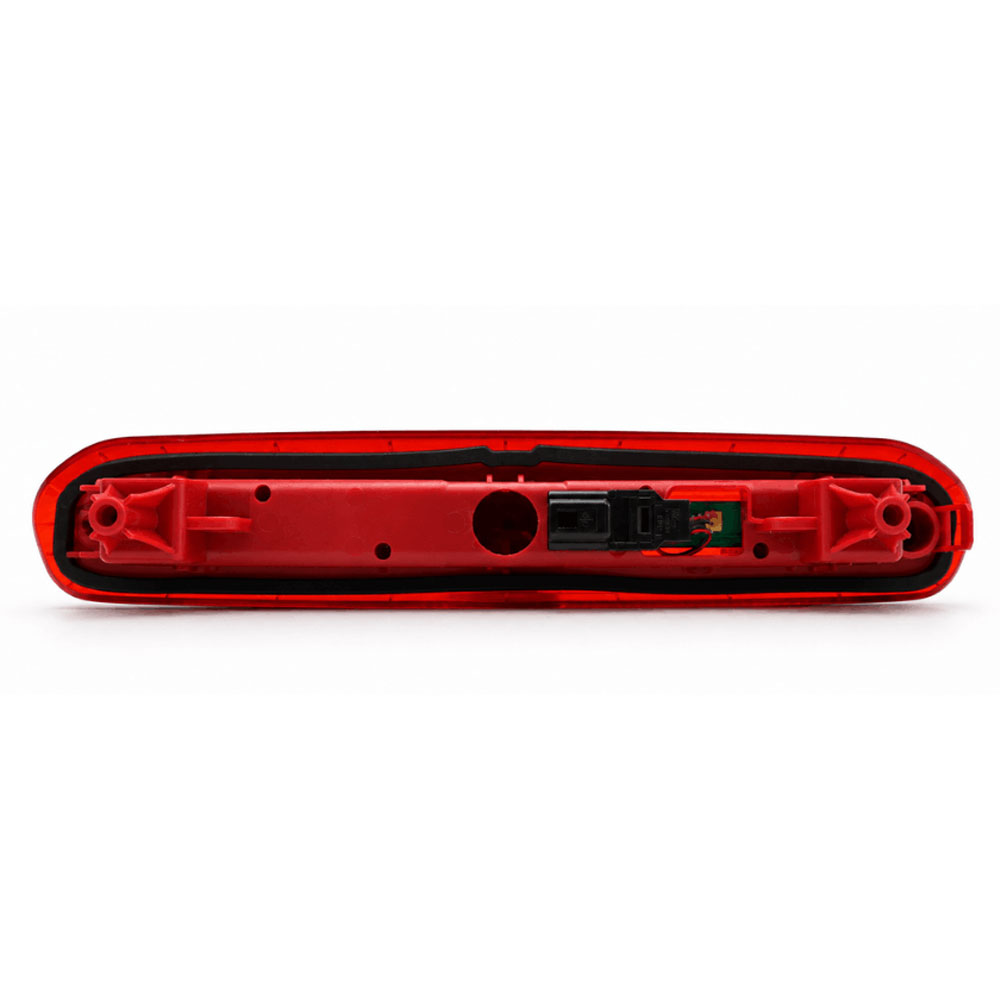

The camera is designed to fit neatly into the vehicle's third high-level brake-light position.

The supplied 10-metre extension cable allows the video connection to be routed from the rear of the vehicle to the dashboard, stereo or monitor location.

Its vehicle-specific design creates a cleaner installation than many universal external reversing cameras.

Video Format Compatibility

The revised camera specification supports CVBS / AHD and NTSC / PAL configurations.

The stereo, monitor or camera interface must support the video format being used by the camera.

AHD supports higher-resolution video when used with an AHD-compatible display. CVBS is a conventional analogue video format supported by many aftermarket reversing-camera inputs.

Aftermarket Display Compatibility

The camera can be used with compatible:

• Aftermarket stereos with reversing-camera input
• Standalone rear-view camera monitors
• Rear-view mirror monitors
• Compatible camera interfaces
• The supplied RCA/phono adaptor allows connection to compatible aftermarket equipment using a standard composite-video input.

Factory Screen Compatibility

If connecting this camera to the vehicle's original factory screen, an additional vehicle-specific camera interface will usually be required.

Some factory systems may also require coding or programming to activate the reversing-camera input.

Compatibility depends on the exact vehicle specification, infotainment system and factory display fitted.

Product Contents

• CVC-REN-05 high-level brake light reversing camera
• 10-metre 4-pin video extension cable
• 1.4-metre DC power supply lead
• 35cm 4-pin composite to RCA/phono adaptor cable
• Male-to-male adapter
