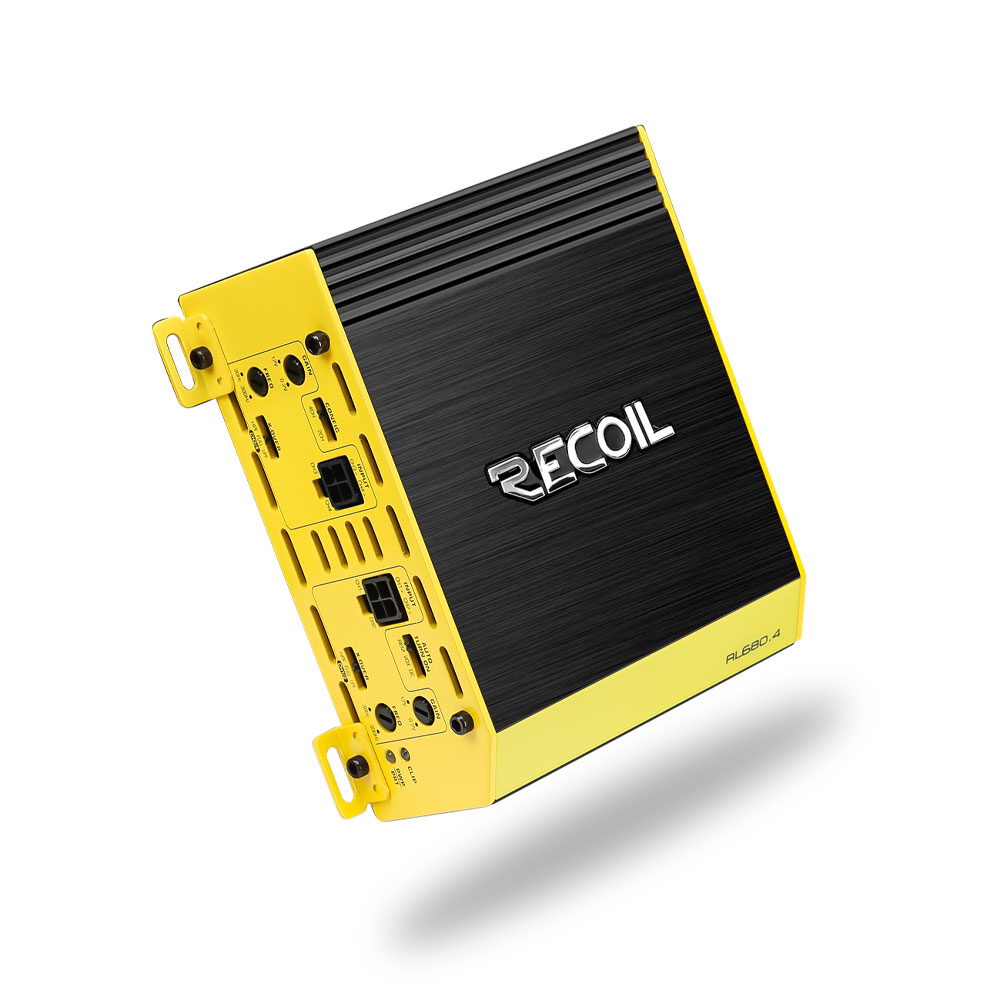

Recoil RL680.4 4 Channel Amplifier

RL680.4 680 WATTS FULL RANGE CLASS-D 4-CHANNEL AMPLIFIER

Specifications

• 4 Way Protection Circuit:Thermal, Voltage, Speaker, DC
• Power @1Ohm (14.4V):N/A

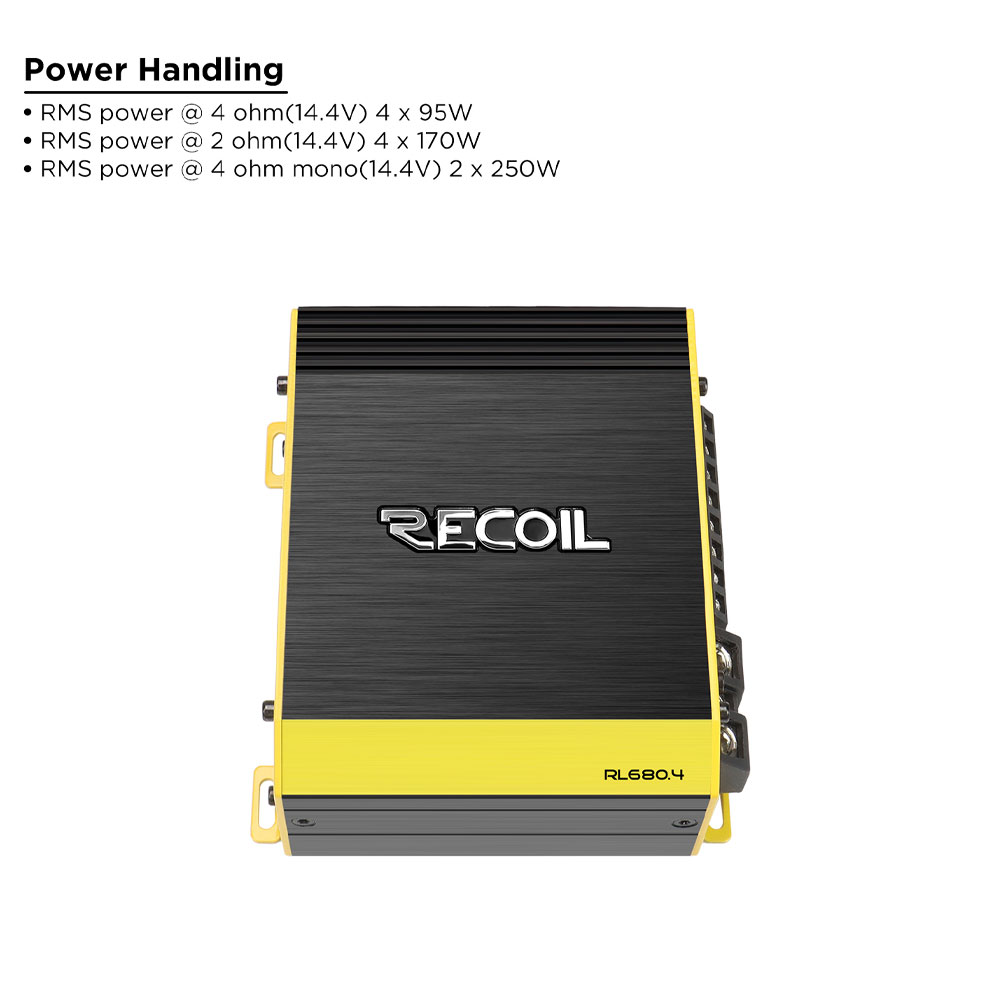

• Power @2Ohm (14.4V):170W x 4
• Power @4Ohm (14.4V):95W x 4
• Power (Bridged) @4Ohm (14.4V):250W x 2
• Power (Bridged) @2Ohm (14.4V):N/A
• Operating Voltage:9V-16V
• Idling Current (Power On):750mA
• Frequency Response:20Hz-35kHz
• Signal to Noise Ratio (SNR):89.9dB
• THD+N (@1W):0.16%
• Input Sensitivity(Low Level):220mV-12V
• Input Sensitivity(High Level):N/A
• Bass Boost:N/A
• Subsonic Filter:N/A
• Crossover LPF:30Hz-300Hz
• Crossover HPF:30Hz-300Hz
• Bass Remote:N/A
• Clip Indication:1%
• Fuse Rating:35A

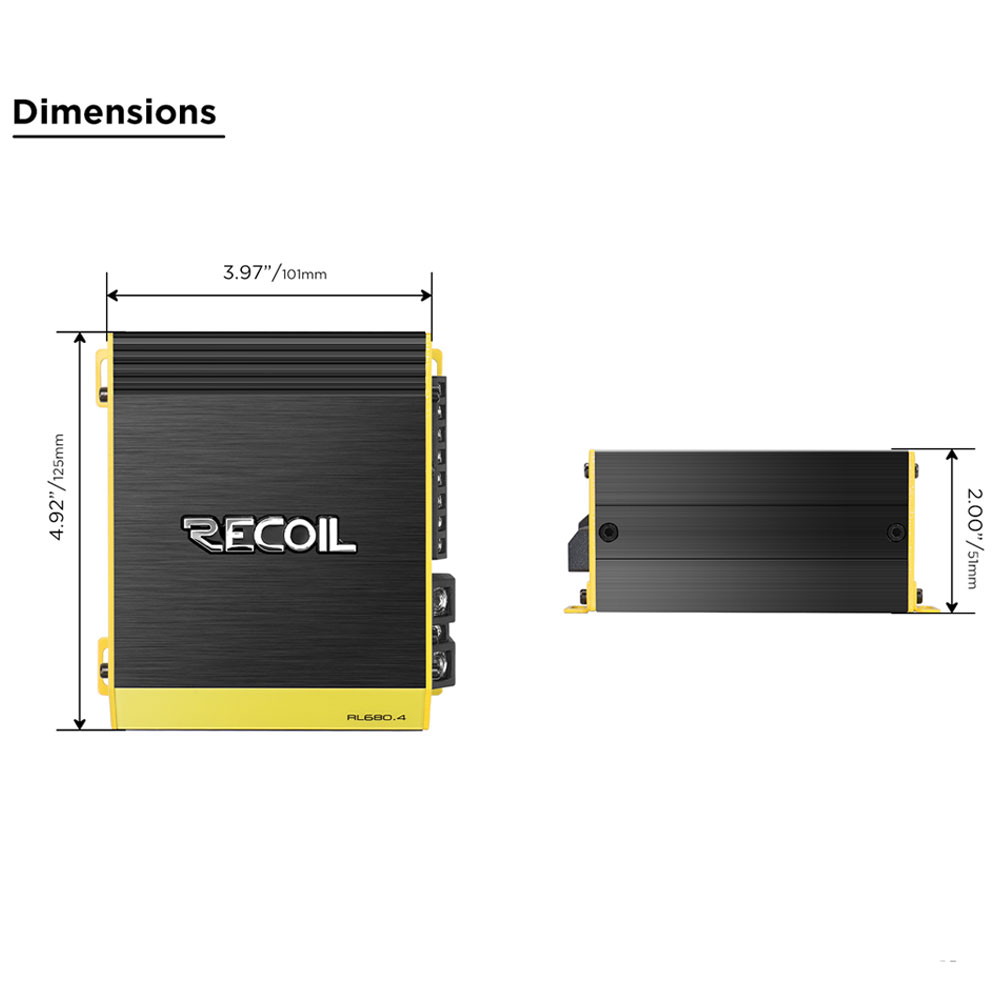

• Dimensions:3.97″x4.92″x2″(108mmx125mmx51mm)
