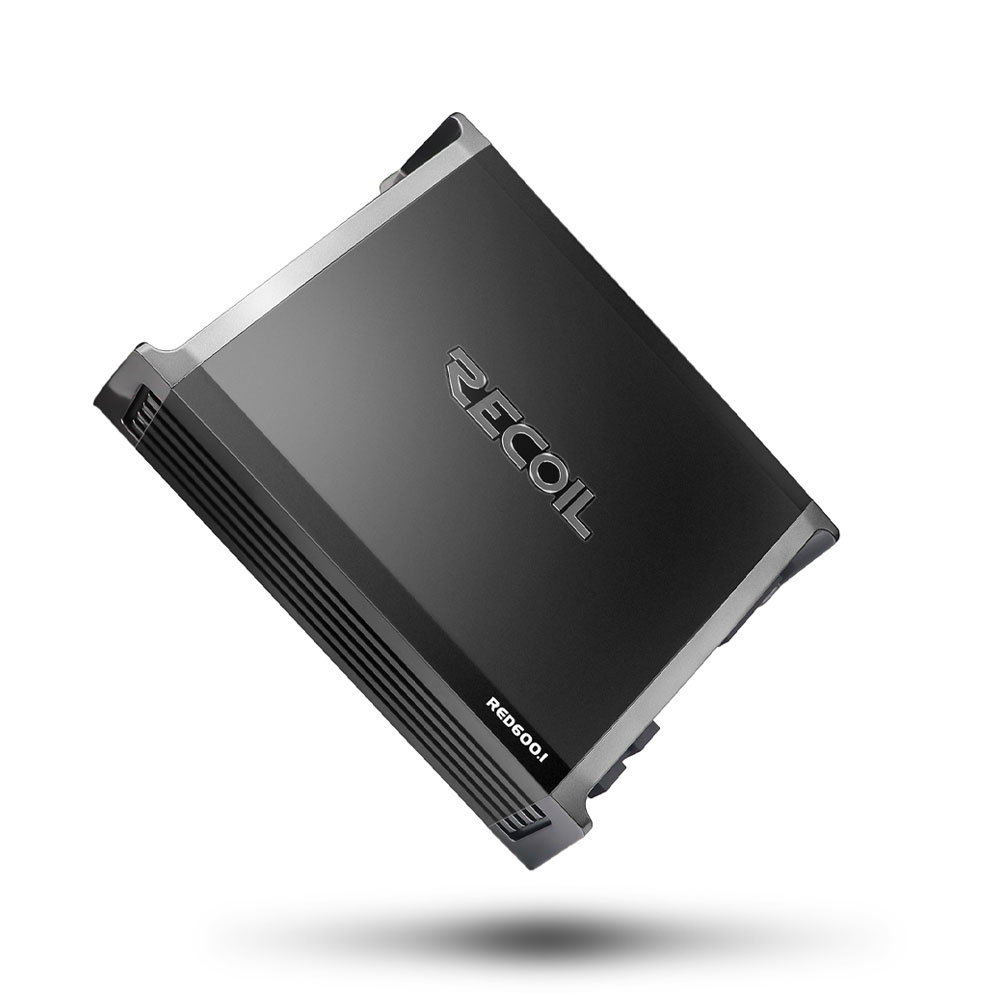

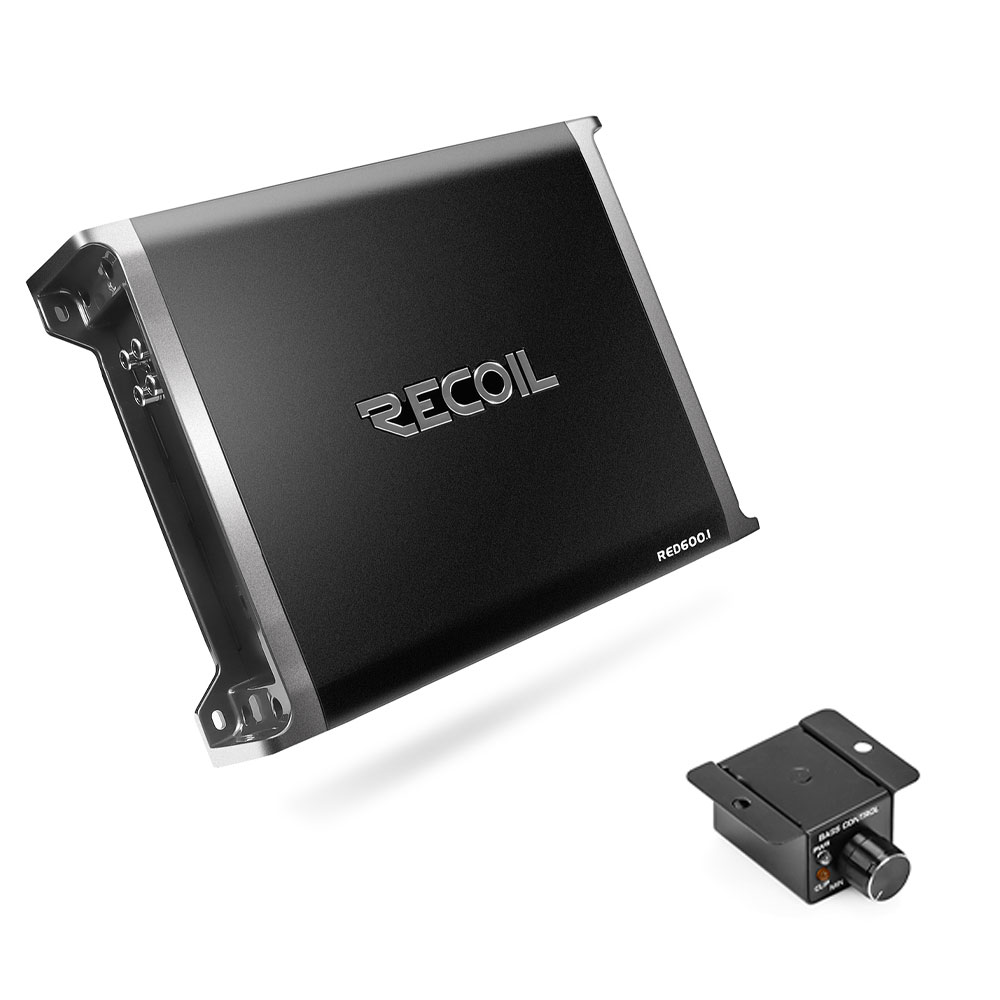

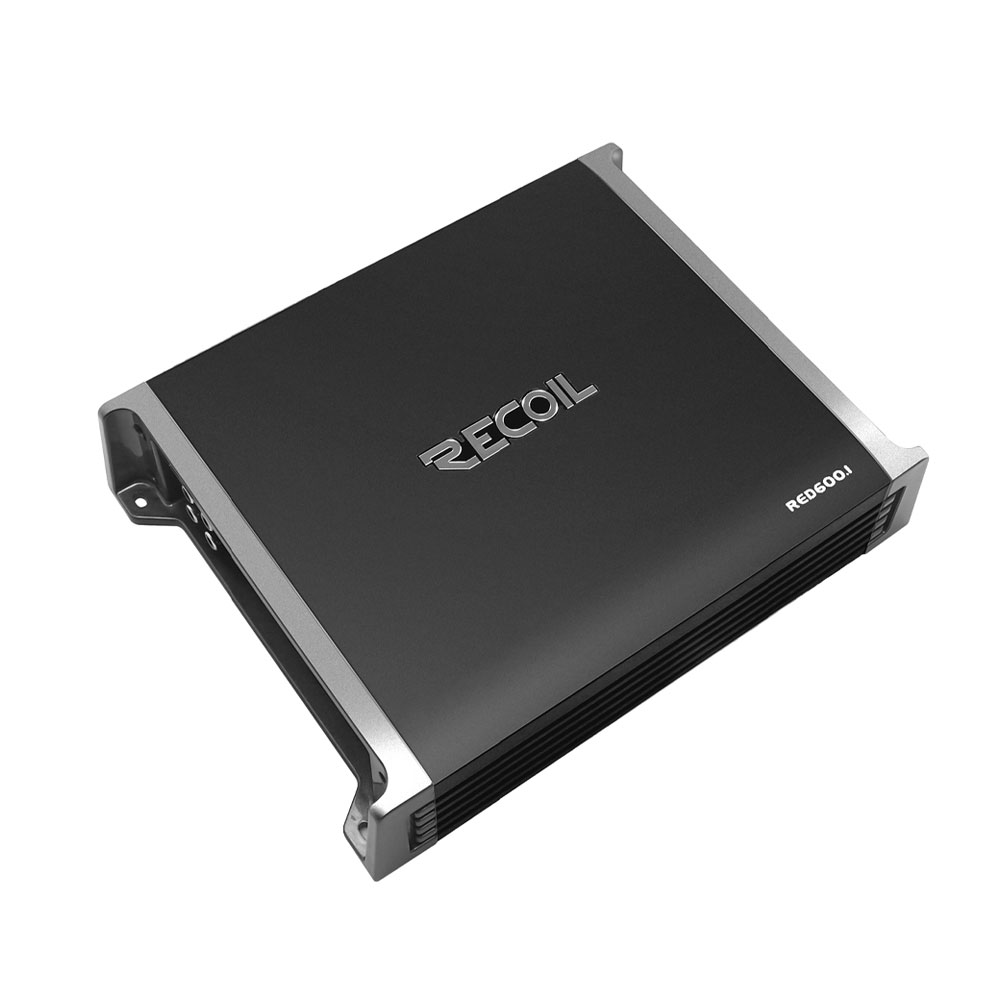

Recoil RED600.1 Class-D Monoblock Amplifier

Recoil engineered the RED600.1 Class D mono-block subwoofer amplifier to be dominant in both power and reliability. The RED600.1D is 1-ohm stable and utilizes a wide array premium components that make it extremely powerful and reliable – including high-speed MOSFET power supply and advanced PCB board layout. Conservatively rated at 600 watts RMS power with a 1-ohm load.

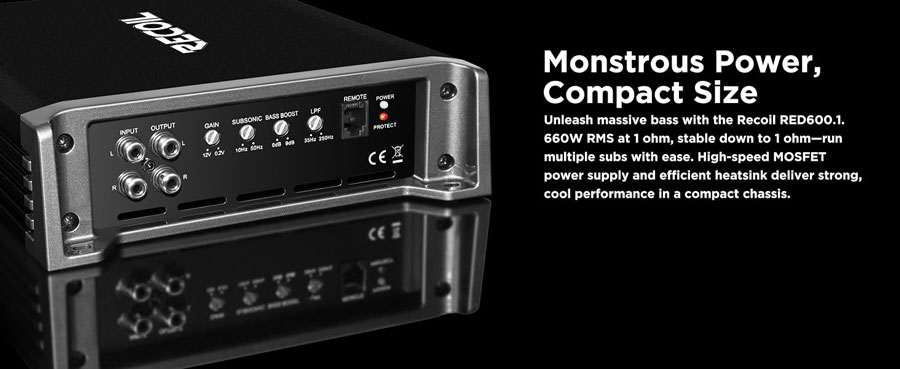

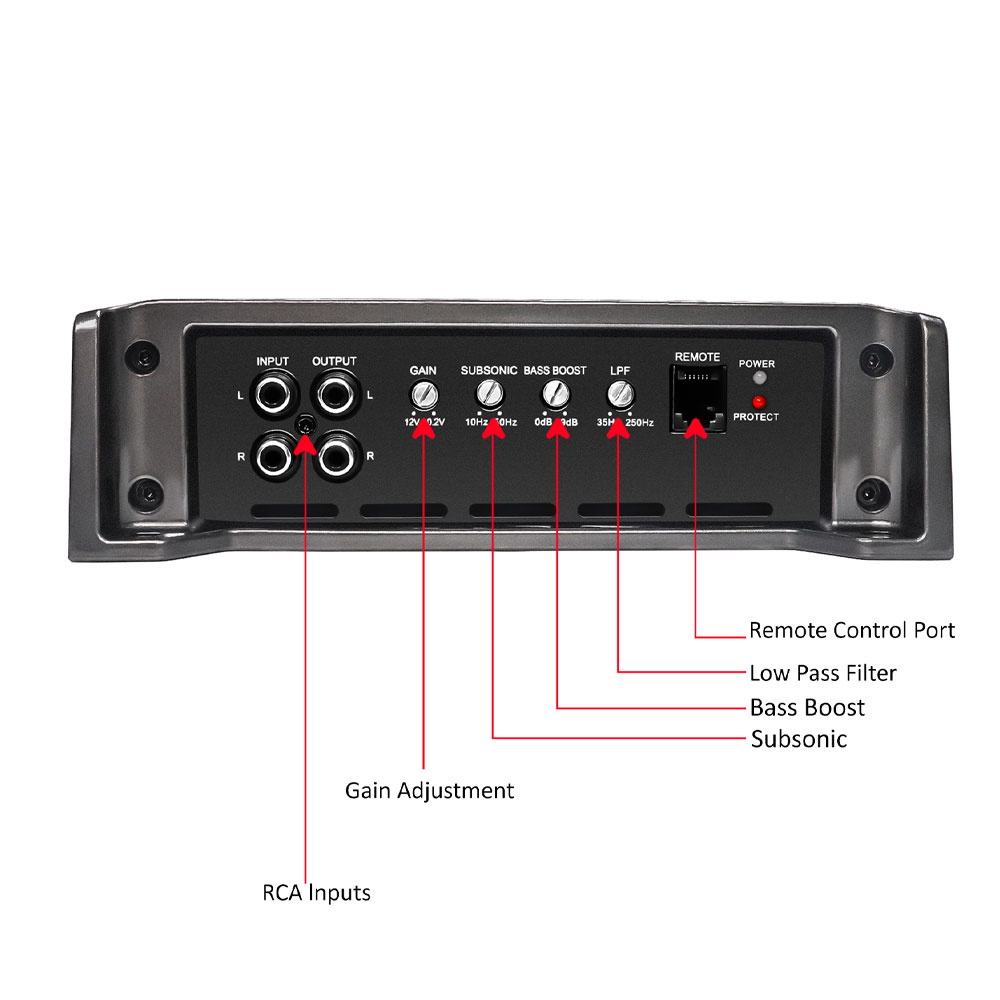

Includes 4 AWG power and ground for maximum current flow. Easily adjustable with a built-in user control panel, featuring variable adjustment tunings for gain level, low-pass filter, and subsonic filter.

In addition, 4-way protection circuitry, including electrical shortage, overheating, low voltage, and more.

Specifications

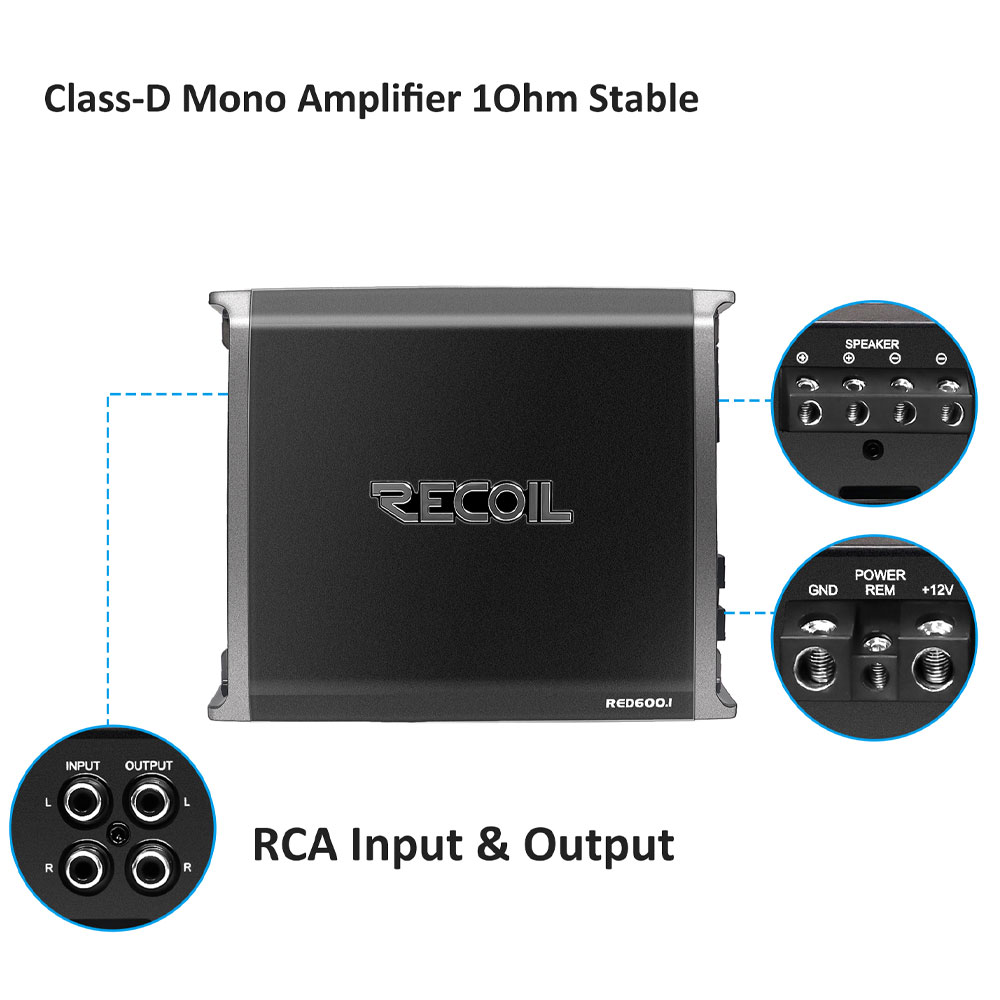

• 1-ohm Stable Car Subwoofer Amplifier
• Class D Monoblock Subwoofer Amplifier

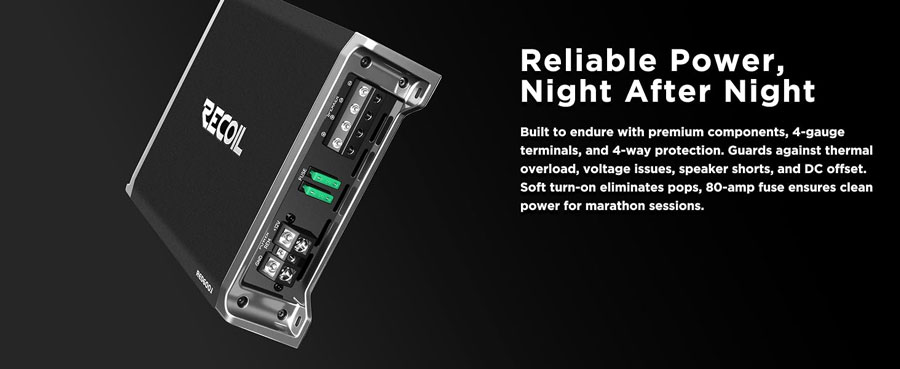

• 4 Way Protection Circuitry: Thermal, Voltage, Speaker, DC
• Peak Power at 1 Ohm: 1,000 W x 1 Channel (14.4v)
• RMS Power @ 1 Ohm: 660 W x 1 Channel (14.4v)
• RMS Power @ 2 Ohms: 520W x 1 Channel (14.4v)
• RMS Power @ 4 Ohms: 310 W x 1 Channel (14.4v)
• High Speed MOSFET Power Supply
• Soft Turn on Circuit
• Frequency Response: 20Hz – 250Hz
• Signal to Noise Ratio: 85dB
• Damping Factor: < 150
• Bass Boost: 0 – 9dB
• Low Pass Filter (Variable): 35Hz – 250Hz
• Subsonic Filter: 10Hz – 50Hz

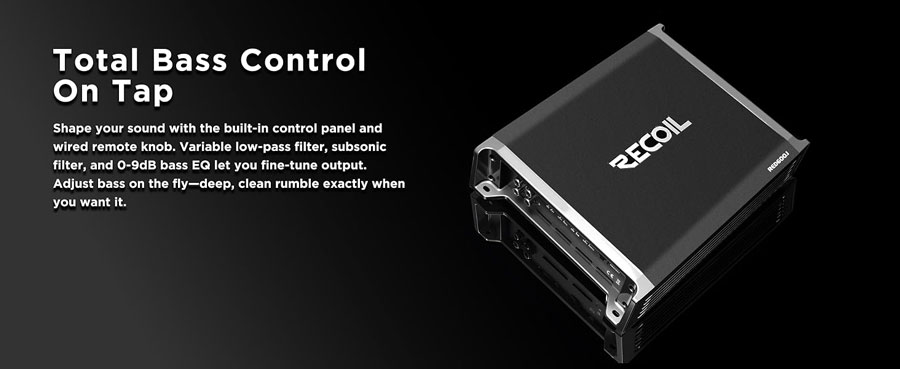

• Remote Bass Control & Wire Included

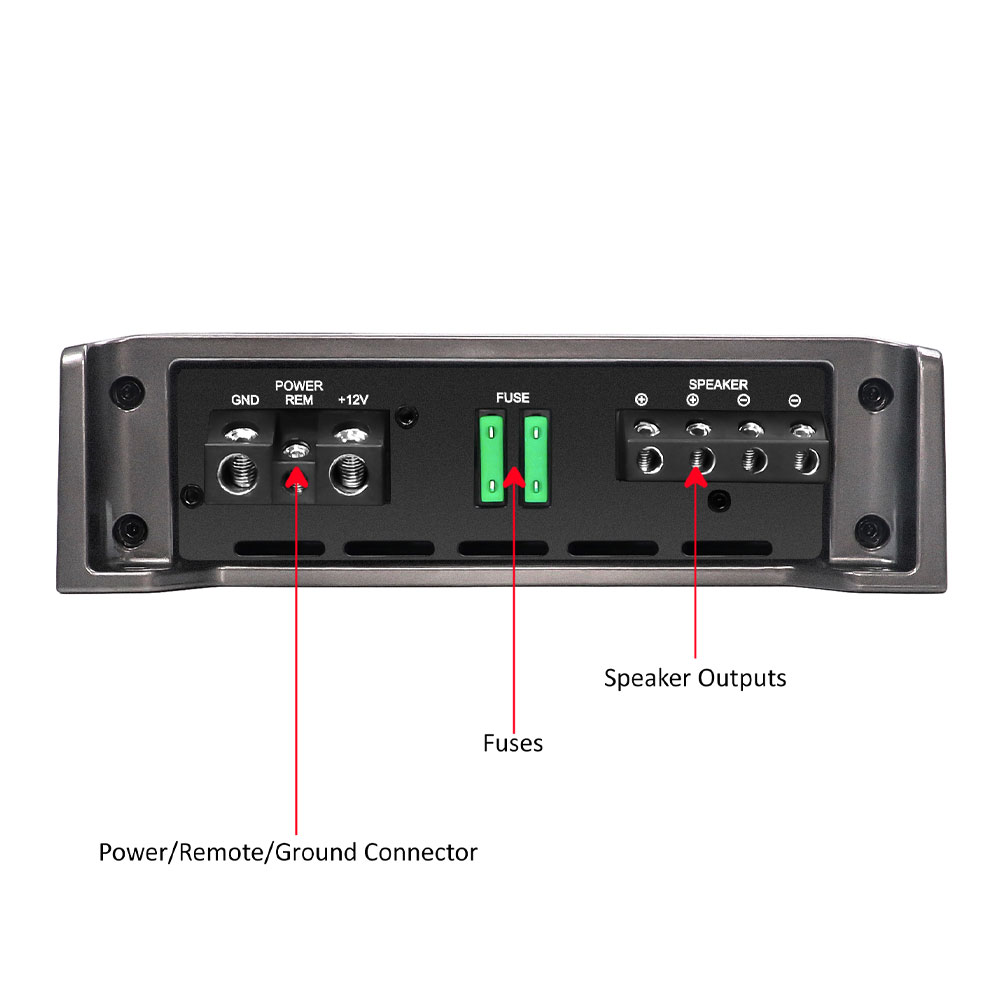

• 4 AWG Power and Ground Terminals
• Fuse Rating: 60 Amp

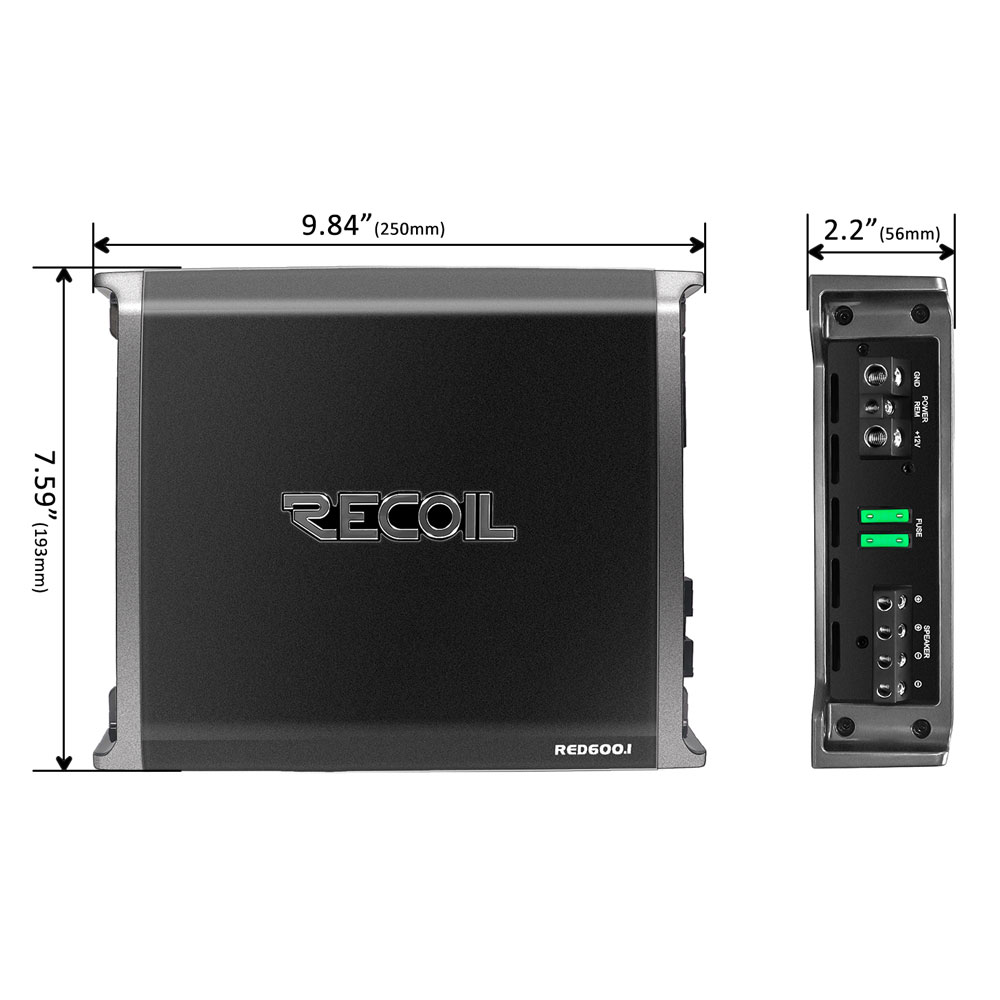

• Dimensions: 9.8″ x 7.6″ x 2.2″ (250mm x 193mm x 56mm)
