Recoil RED1800.1 Class-D Monoblock Amplifier

RED1800.1 3,600 Watts Class-D Strappable Car Audio Mono-block Subwoofer Amplifier, 1 Ohm Stable, Remote Bass Knob Included

Class-D Mono-block Subwoofer Amplifier, RMS 3,600 Watts@2Ohm Linked, RMS 2,500 Watts@4Ohm Linked, RMS 1800 Watts x 1@1 Ohm; RMS 1200 Watts x 1@2Ohm; RMS 650 Watts x 1@4Ohm. Recoil mono amplifiers are stable down to ONE Ohm, giving you the freedom to put even more subs in your system.

This RED1800.1 monoblock amplifier is strappable (bridgeable) with slave/master switch, so that you can get more power output.

Featuring a high-speed MOSFET power supply, premium grade internal components, as well as 4-way protection circuitry, the amplifier will safely operate at the highest levels of performance for hours on end. Highly efficient heatsinks keep the amplifier cool with a sophisticated new look.

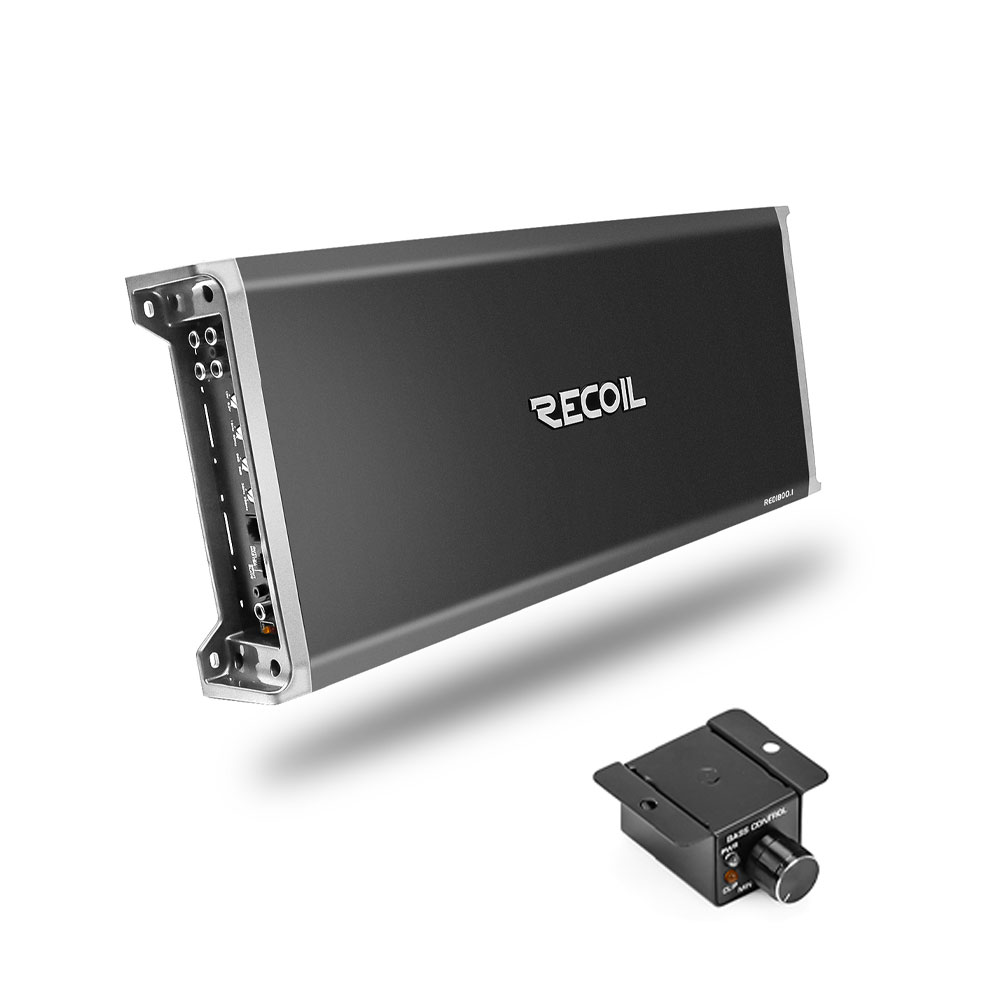

Recoil mono amplifiers come with bass remote control. It has Use it to customize your bass on the fly with just a turn of a knob.

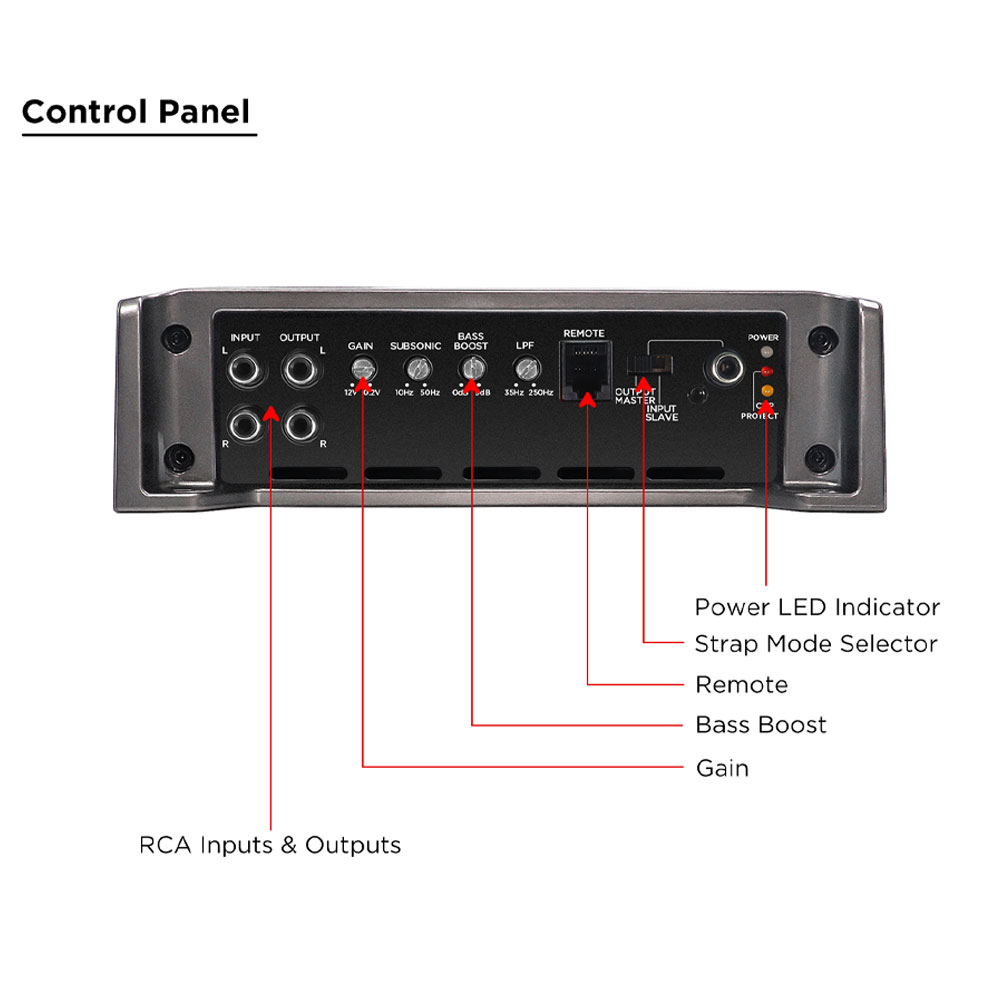

You’ll have full reign over your amplifier with the built-in user control panel, featuring a bass EQ, and variable adjustment tunings for gain level, low-pass filter, and subsonic filter.

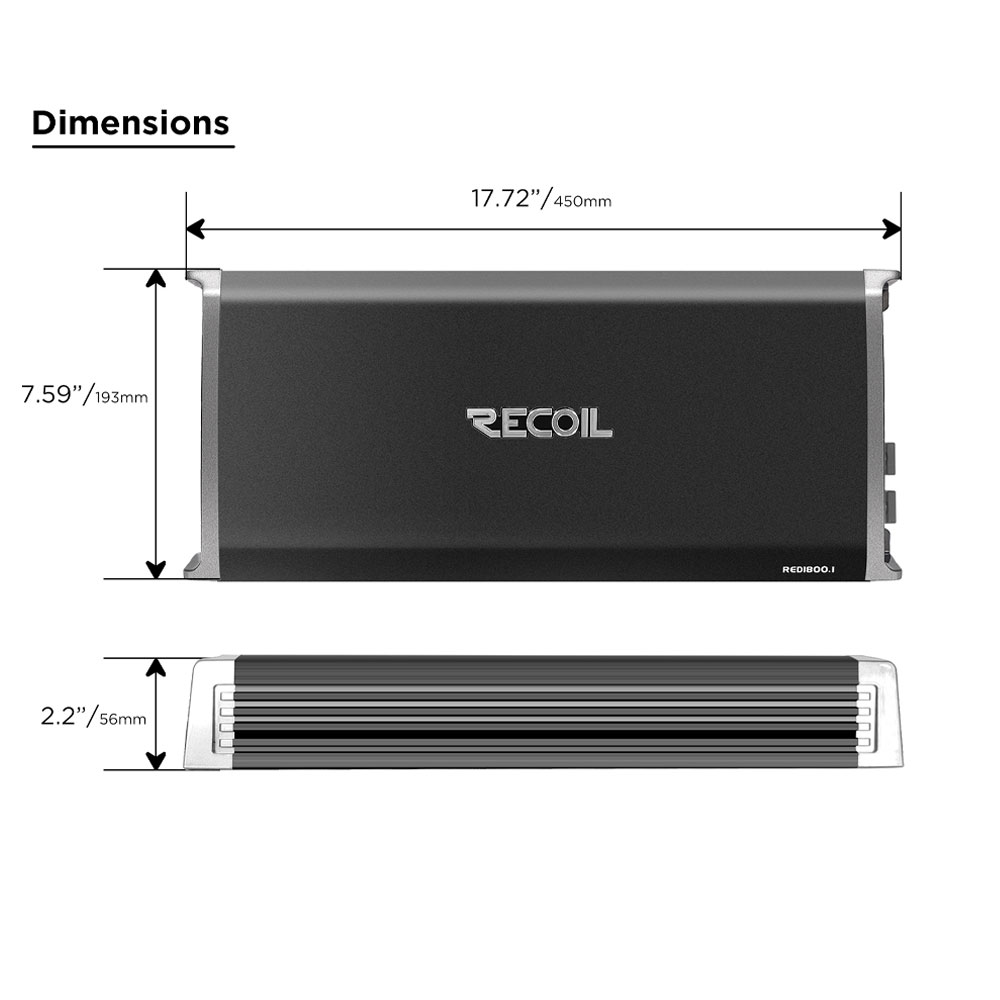

Dimensions: 17.7" x 7.6" x 2.2" (450mm x 193mm x 56mm)

Recoil engineered the RED1800.1 Class D mono-block subwoofer amplifier to be dominant in both power and reliability. The RED1800.1D is 1-Ohm stable and utilizes a wide array of premium components that make it extremely powerful and reliable – such as its high-speed MOSFET power supply and advanced PCB board layout—conservatively rated at 1800 watts RMS power at a 1-ohm load.

Especially, this mono amp is strappable (bridgeable). Strapping will give you twice the power and double the impedance load compared to having one single amplifier. If you have a 1,800w amplifier at 1 ohm, and you strap it with an identical amplifier at 1 ohm, you’ll have 3,600w at 2 ohm. Each amp will still be responsible for handling its own 1,800w at 1ohm, but together they’re sending out twice as much energy.

Furthermore, the oversized 1/0 gauge power and ground terminals on the amplifier allow maximum current flow. You’ll have full reign over your amplifier with the built-in user control panel, featuring a bass EQ, and variable adjustment tunings for gain level, low-pass filter, and subsonic filter.

In addition to the above features, this model also features 4-way protection circuitry, including electrical shortage, overheating, low voltage, and more.

Specification

• 1-Ohm Stable Car Subwoofer Amplifier
• Class-D Monoblock Subwoofer Amplifier
• 4 Way Protection Circuitry: Thermal, Voltage, Speaker, DC

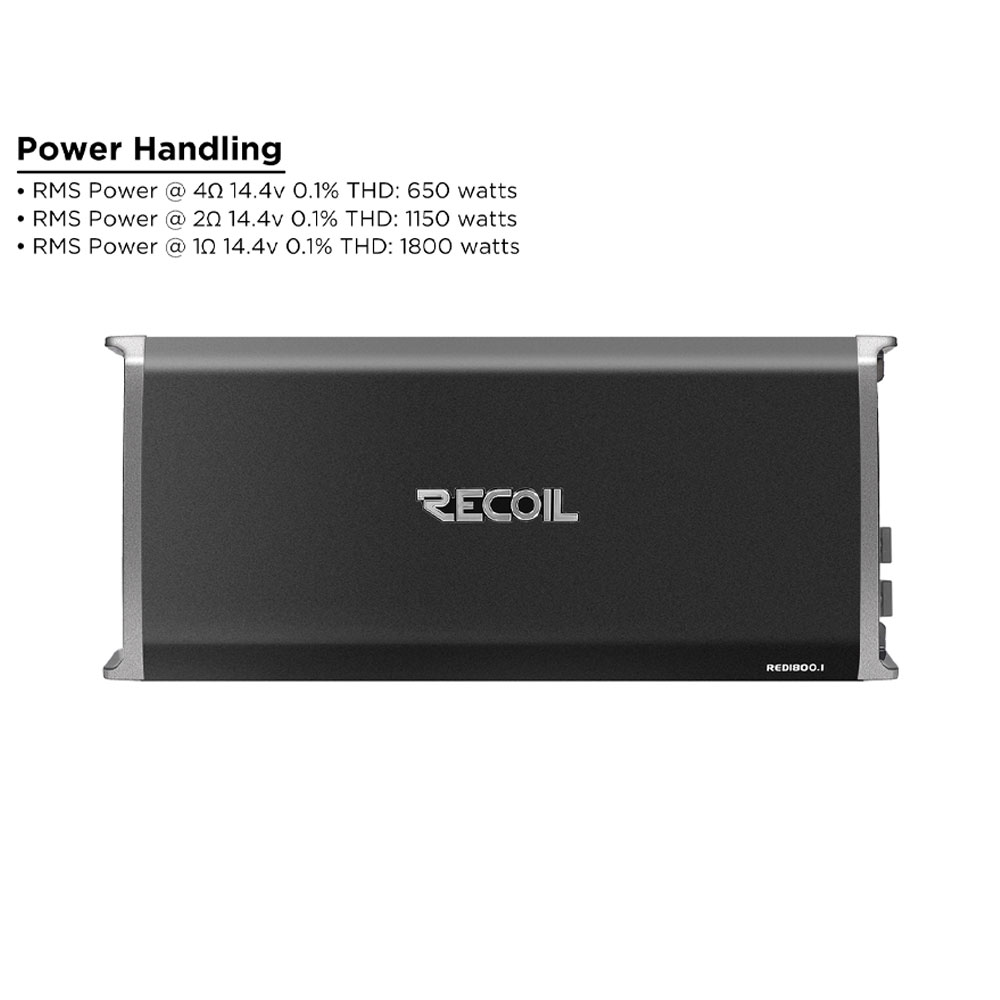

• RMS Power at 1 Ohm: 1,800 Watts x 1 Channel (14.4v)
• RMS Power at 2 Ohms: 1,200 Watts x 1 Channel (14.4v)
• RMS Power at 4 Ohms: 650 Watts x 1 Channel (14.4v)
• LINKED RMS Power at 2 Ohm: 3,600 Watts x 1 Channel (14.4v)
• LINKED RMS Power at 4 Ohm: 2,400 Watts x 1 Channel (14.4v)
• High-Speed MOSFET Power Supply
• Soft Turn-on Circuit
• Frequency Response: 10Hz – 250Hz
• Input Sensitivity: 12V – 0.2V
• Signal to Noise Ratio: 97dB
• Bass Boost: 0 – 9dB
• Low Pass Filter (Variable): 35Hz – 250Hz
• Subsonic Filter: 10Hz – 50Hz
• Remote Bass Knob & Wire Included

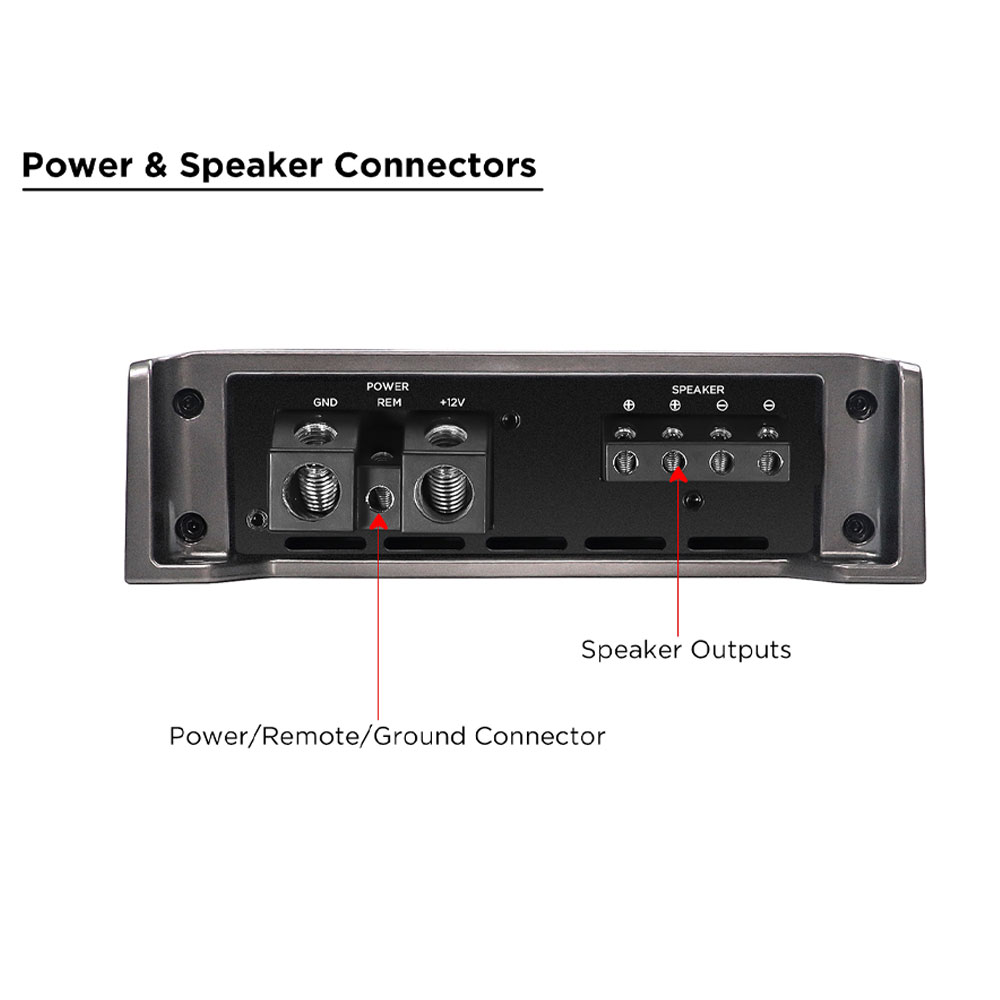

• 1/0 Gauge Power and Ground Terminals
• Fuse Rating:  130 Amp
• Dimensions: 17.7" x 7.6" x 2.2" (450mm x 193mm x 56mm)
