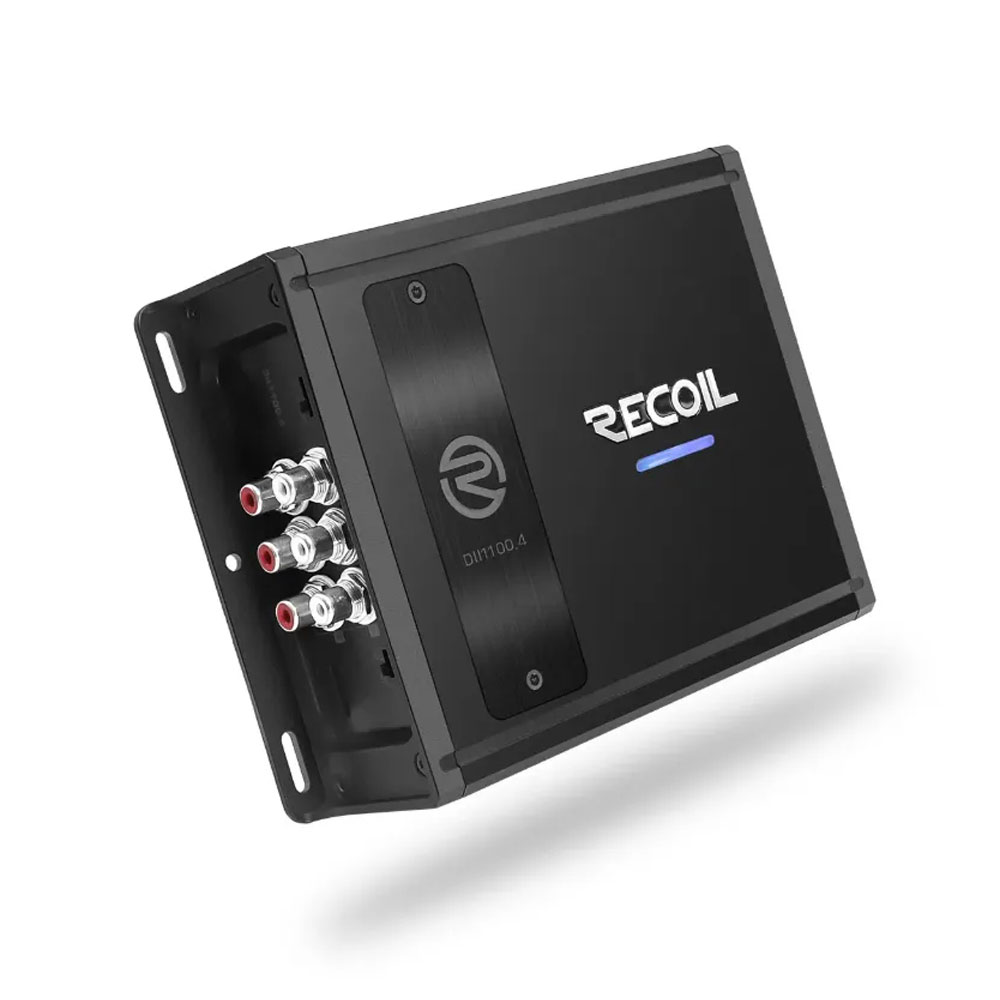

Recoil DII1100.4 - 4 Channel Amplifier

The Recoil Audio DII1100.4 is a powerful yet ultra-compact 4-channel Class-D amplifier, engineered to deliver high-output performance with exceptional efficiency. Designed for modern installations, it combines strong power output with a space-saving design—ideal for tight installation areas without compromising sound quality.

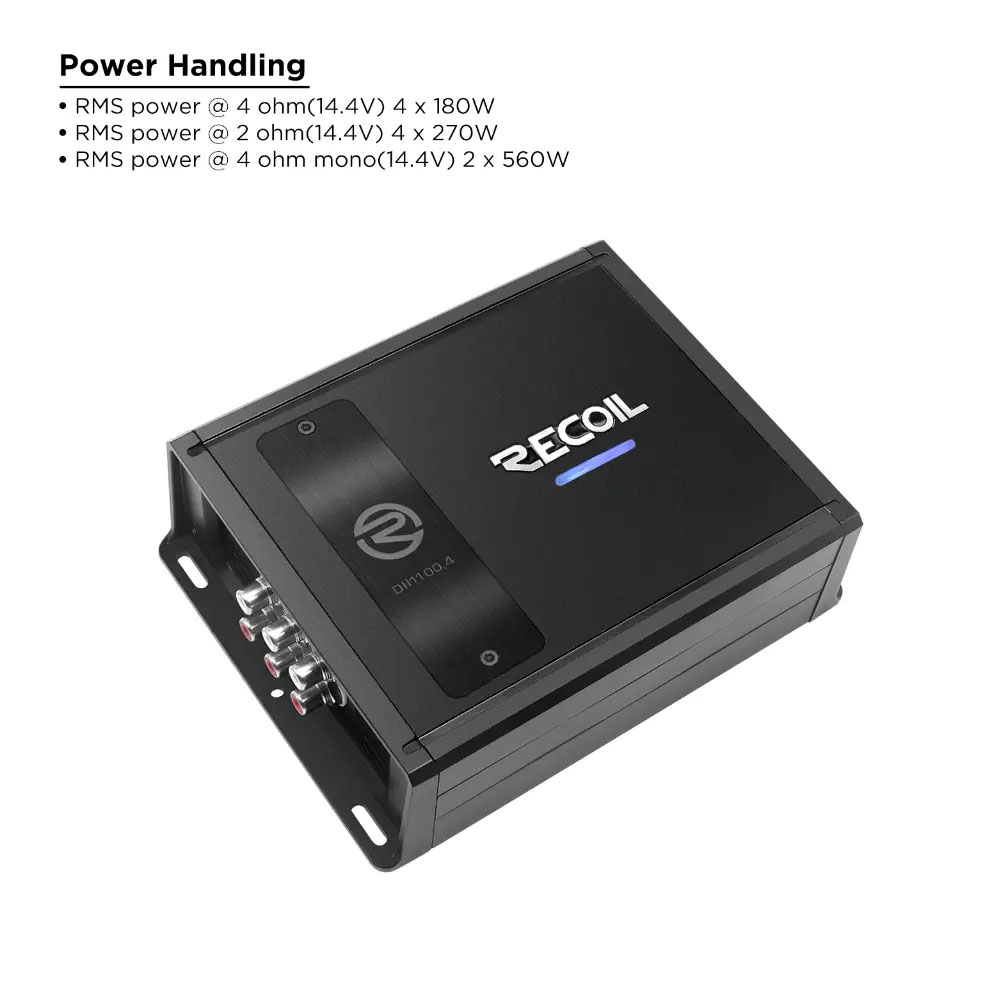

Performance & Power

• 4 x 180W RMS @ 4 Ohm (14.4V)
• 4 x 270W RMS @ 2 Ohm (14.4V)
• 2 x 560W RMS bridged @ 4 Ohm (14.4V)
• Stable at 2–4 Ohm operation

Key Features

• Ultra-compact Class-D design for high efficiency and minimal heat
• Bridgeable channels for flexible system setups, including subwoofer applications
• MOSFET power supply for stable and reliable performance
• Top-mounted control panel with protective cover for easy access
• LED clip indicators for real-time monitoring

Audio Control & Connectivity

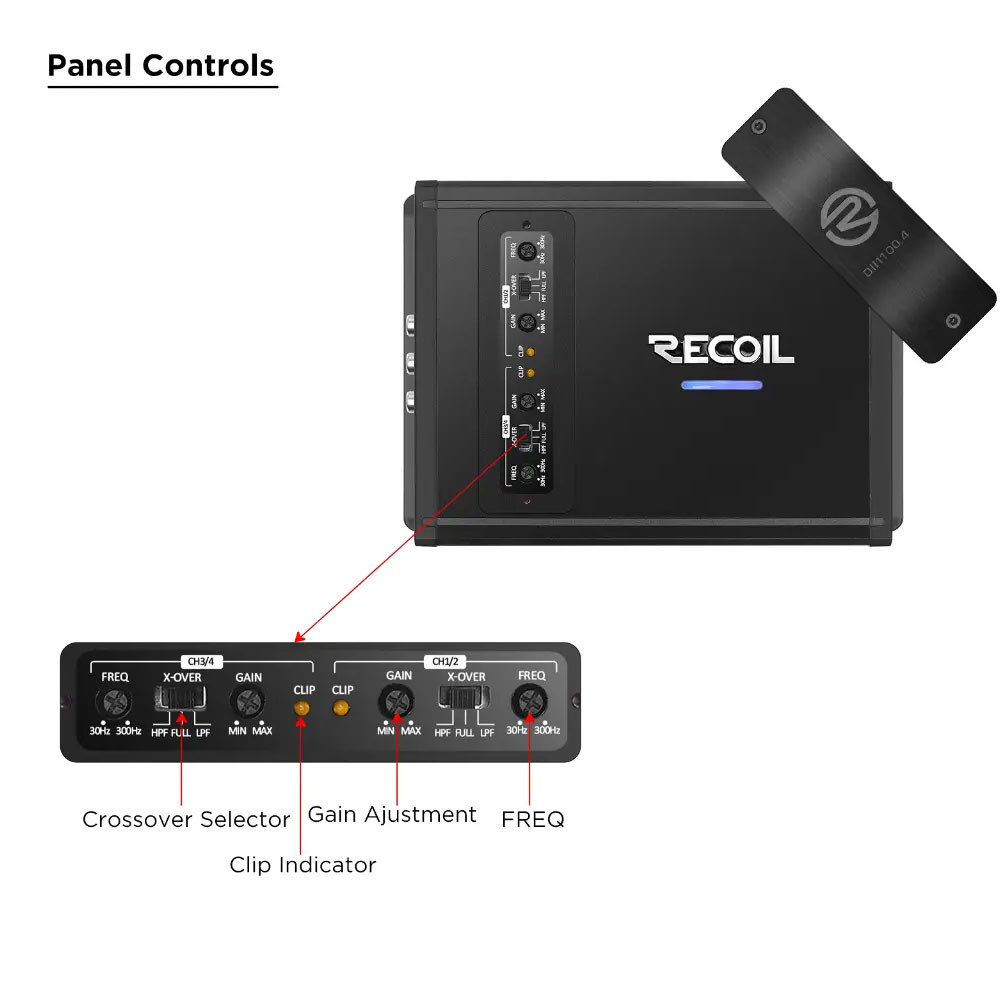

• Adjustable gain, high-pass (HPF), low-pass (LPF), crossover, and bass boost

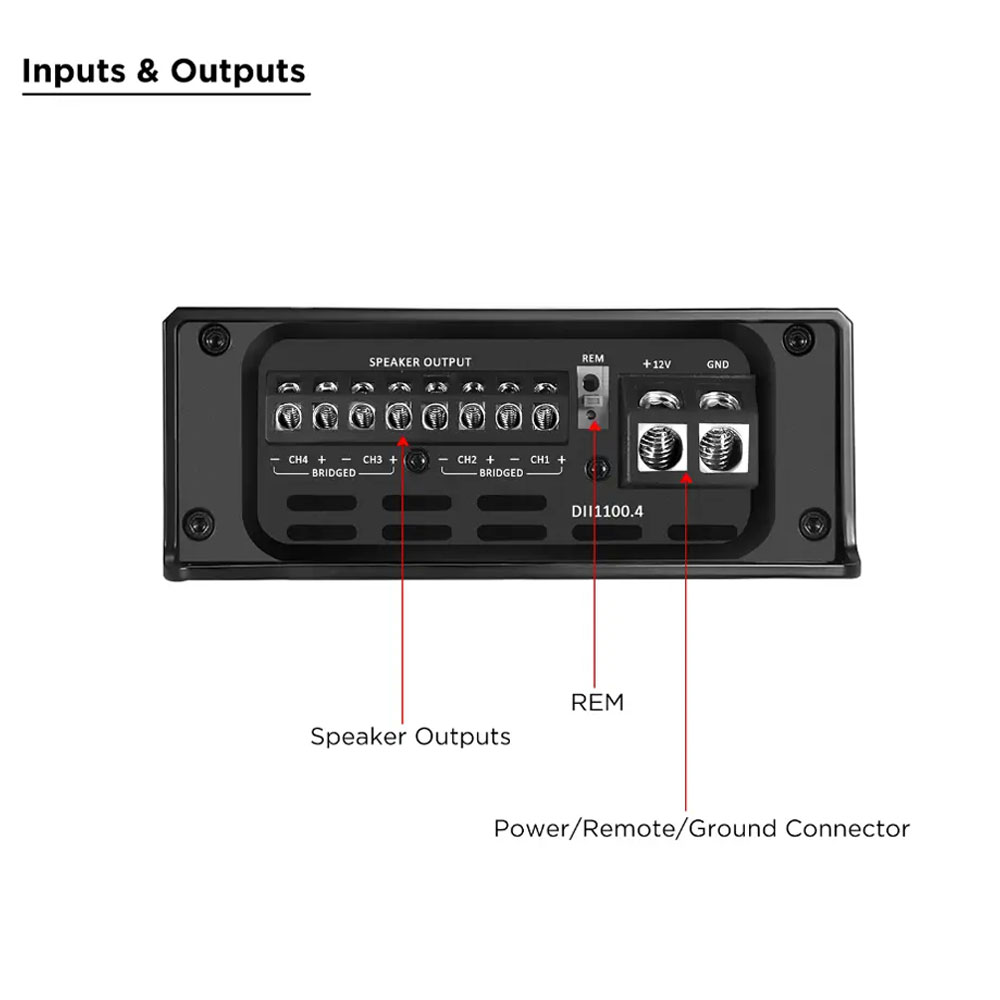

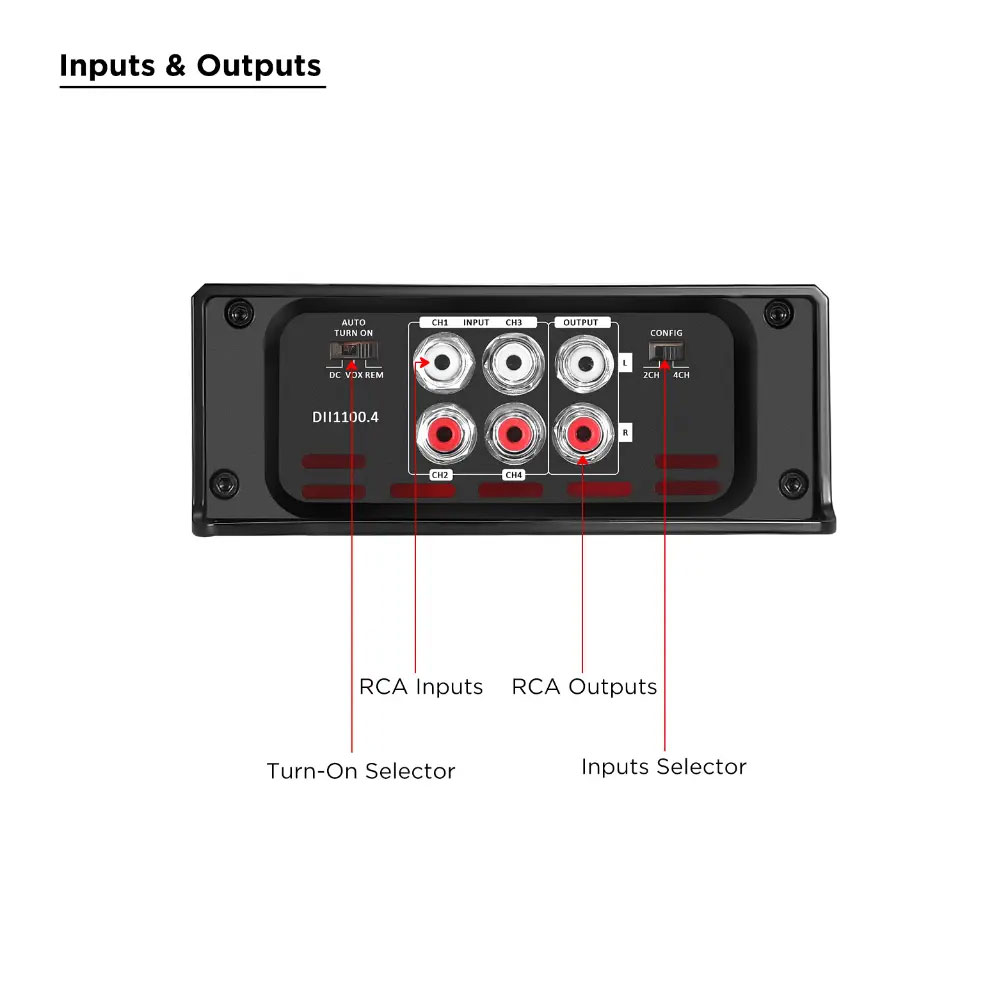

• RCA and speaker-level inputs for versatile installation
• RCA pass-through outputs for system expansion
• Multiple turn-on modes: REM, VOX, and DC

Build & Protection

• Conformal-coated circuit board for protection against dust and moisture
• Advanced thermal, voltage, speaker, and short-circuit protection
• Efficient heatsink design for improved cooling
• Durable construction suitable for automotive and powersports applications

Why Choose the DII1100.4?

• Compact, powerful, and highly versatile, the DII1100.4 is the ideal solution for upgrading your audio system with clean, reliable power—whether you’re running speakers or bridging for subwoofers.
