Recoil 24M1200.5 Class D 5 Channel Car Amplifier 24V 1200W
- Stock Status: In Stock
- Item Condition : New
- Available QTY : 2
- Brand: RECOIL
- Model: 24M1200.5
- EAN: 7427288151188
- Warranty: 1 Year Warranty
£199.99
Ex Tax: £199.99
Free Delivery on this item (Main Land UK only )
We use Royal Mail Tracked 48 post which normally takes 3-5 days to arrive but sometimes can take longer. Get it Fast with DPD Courier Next working day delivery (1-2 DAYS) for £9.99.
Description

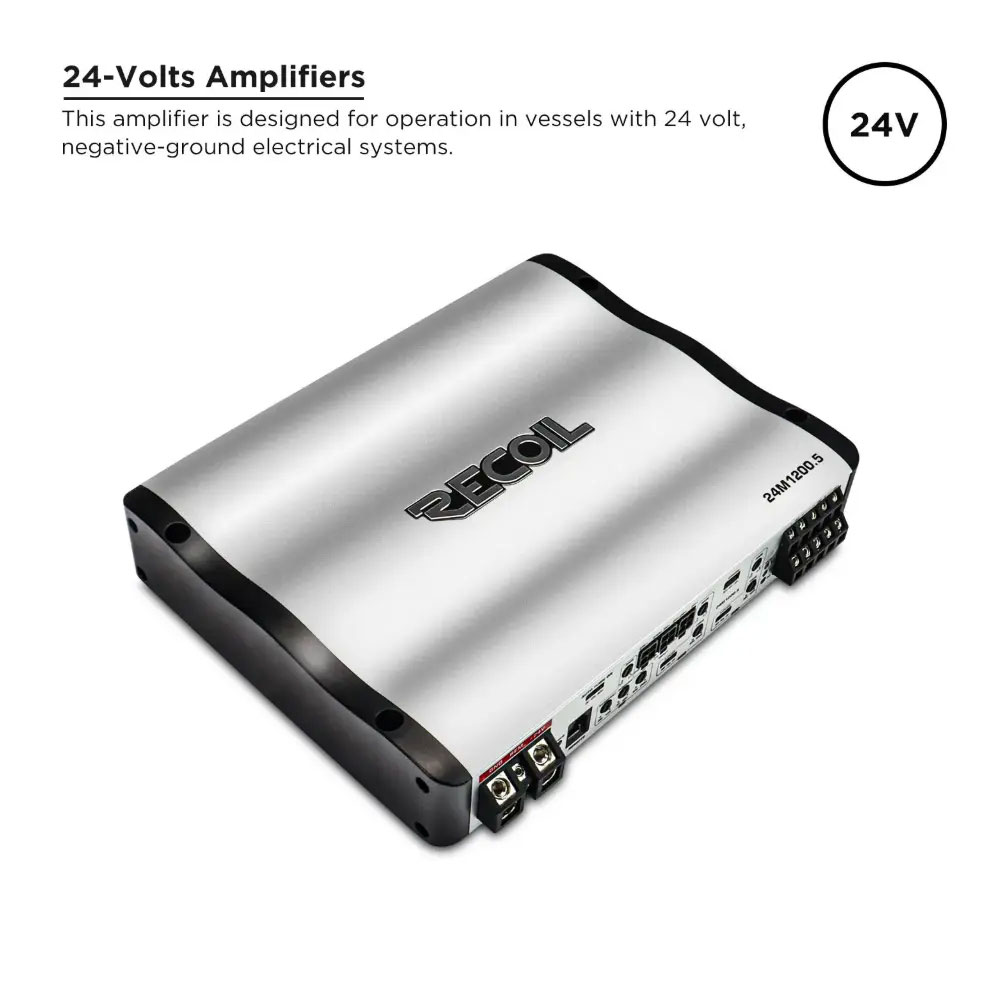

Recoil 24M1200.5 - 5 Channel Amplifier
Upgrade your vehicle's audio with the Recoil 24M1200.5, a powerful 24V Class-D 5-channel amplifier delivering up to 1200W of peak power. Engineered for clean, distortion-free sound, it’s built with advanced protection circuits to safeguard your system while providing reliable performance. Ideal for enthusiasts seeking precision, durability, and deep, dynamic audio.
Key Features
- 5-channel Class-D amplifier delivering up to 1200W of peak power
- 4-way protection circuit: Thermal, Voltage, Speaker, and DC safeguards
- Multi-impedance support: 2Ω and 4Ω speakers, plus bridged modes
- Frequency response: 20Hz–40kHz for full-range clarity, subwoofer mode 10Hz–180Hz
- Low distortion: THD+N <0.21% (4-channel) and <0.41% (mono)
- High signal-to-noise ratio: 93dB (4-channel) and 89dB (mono)

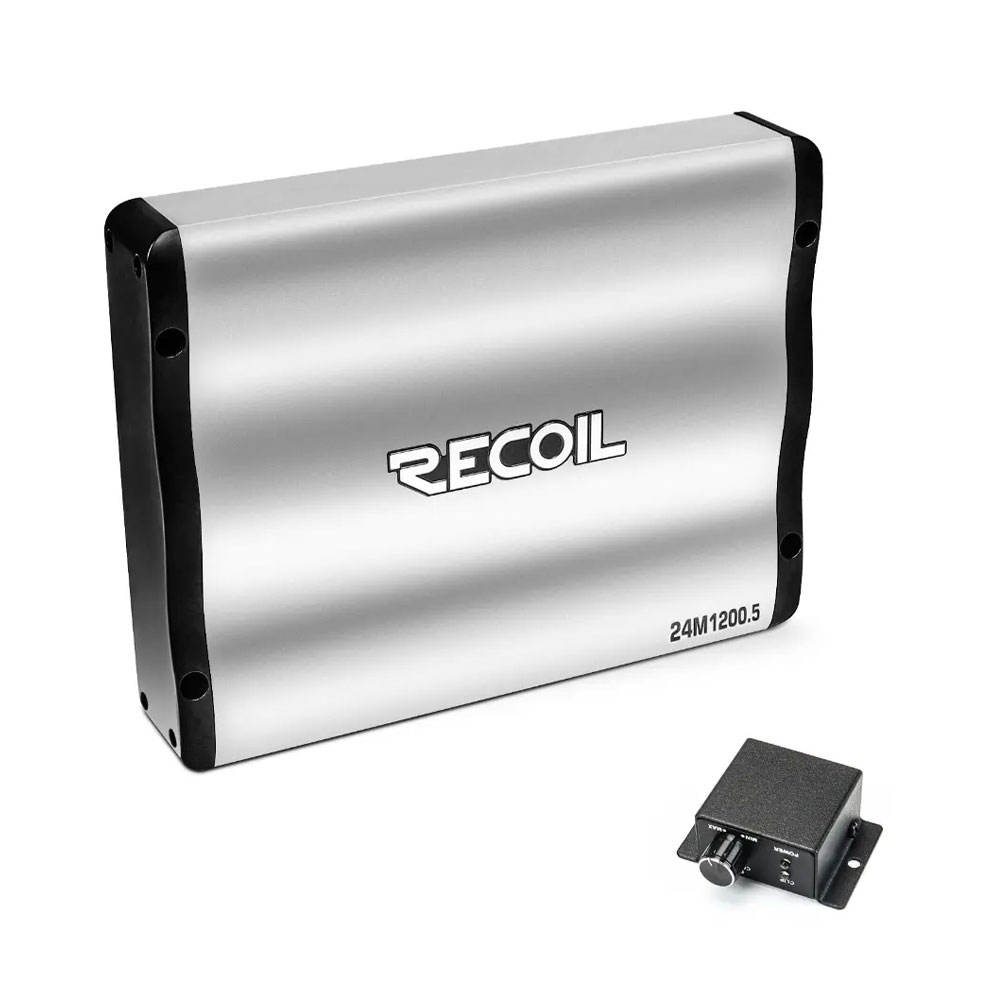

- Bass remote control support for easy adjustment
- Subsonic filter: 10Hz–50Hz (mono)
- Low-pass and high-pass crossovers for precise tuning
- Clip indication for optimal performance monitoring
- Operating voltage range: 18V–30V

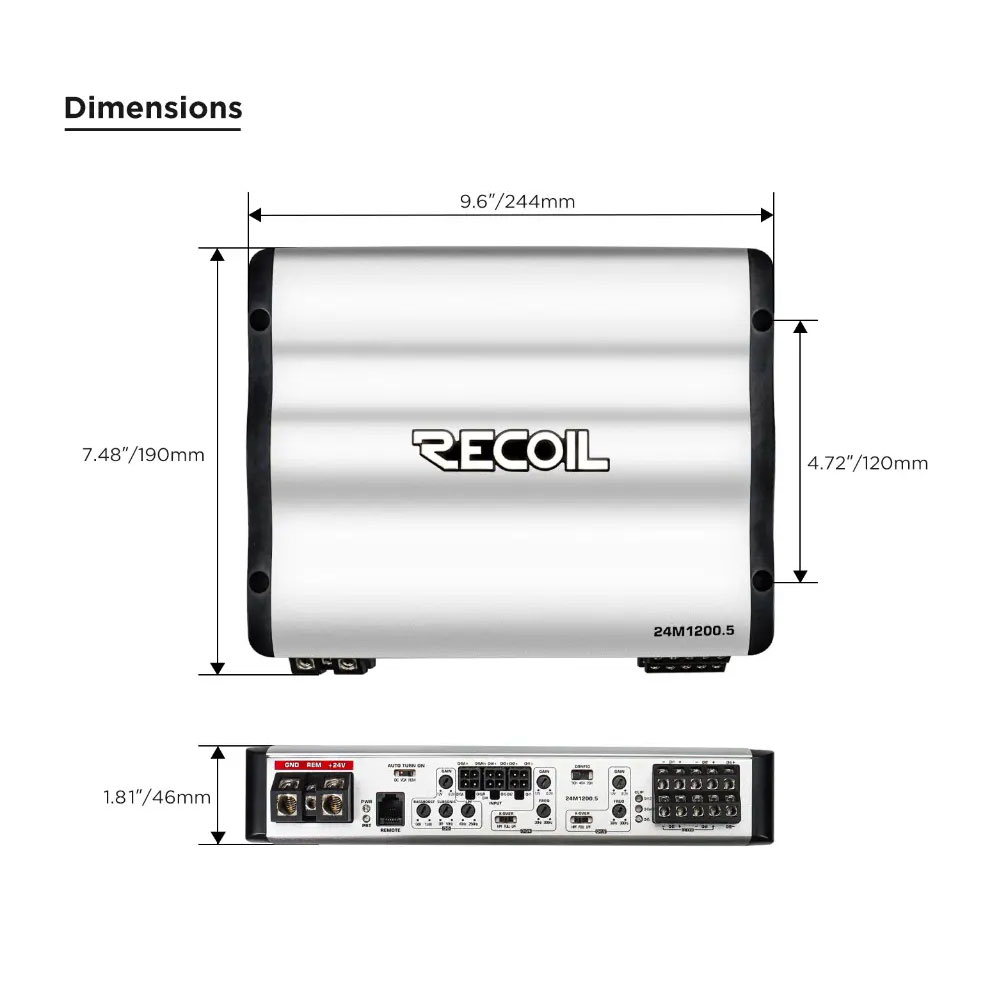

- Compact design: 9.6″ x 7.48″ x 1.81″ (244mm x 190mm x 46mm)
- Robust 70A fuse for safety and reliability

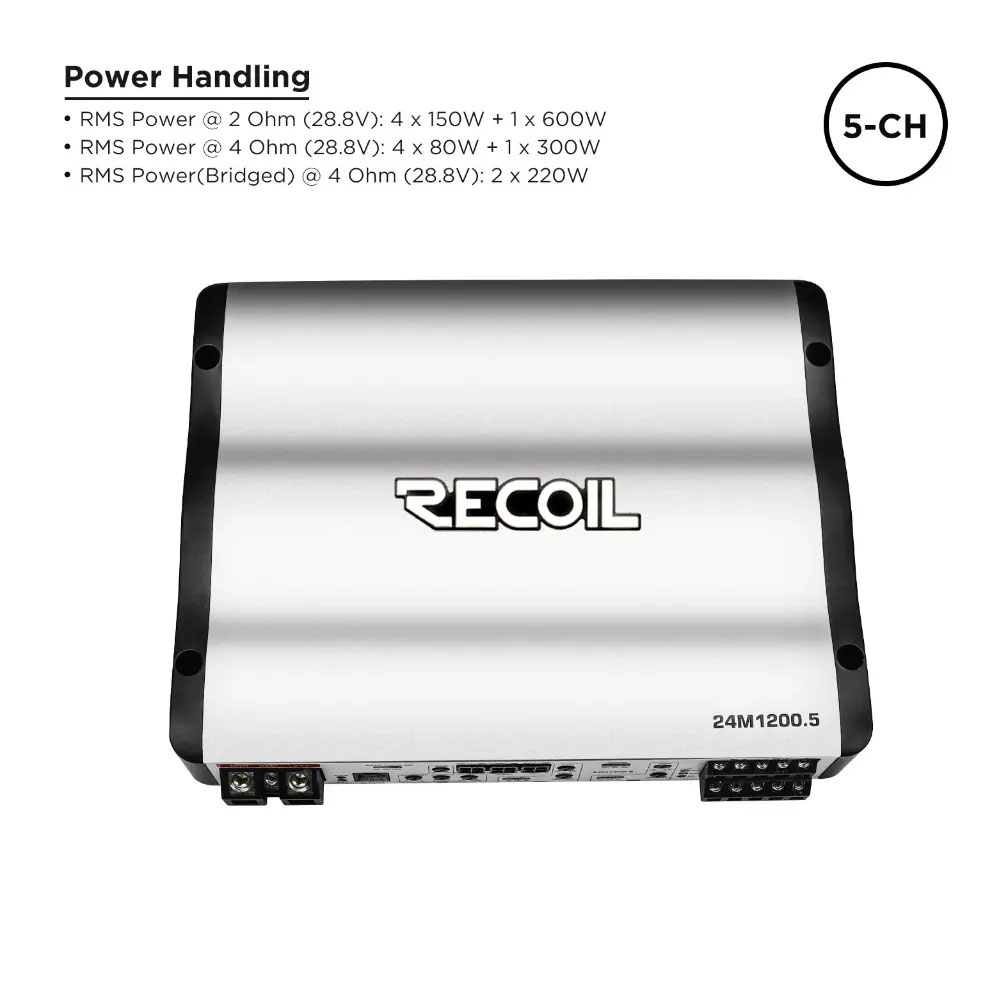

| Specifications | 4-Channel | Mono |
| 4 Way Protection Circuit: | Thermal, Voltage, Speaker, DC | |
| Power @1Ohm (14.4V): | N/A | N/A |
| Power @2Ohm (14.4V): | 150W x 4@28.8V | 600W x 1@28.8V |
| Power @4Ohm (14.4V): | 80W x 4@28.8V | 300W x 1@28.8V |
| Power (Bridged) @4Ohm (14.4V): | 220W x 2@28.8V | N/A |
| Power (Bridged) @2Ohm (14.4V): | N/A | N/A |
| Operating Voltage: | 18V-30V | |
| Idling Current (Power On): | 820mA | |
| Frequency Response: | 20Hz-40kHz | 10Hz-180Hz |
| Signal to Noise Ratio (SNR): | 93dB | 89dB |
| THD+N (@1W): | <0.21% | <0.41% |
| Input Sensitivity(Low Level): | N/A | N/A |
| Input Sensitivity(High Level): | 230mV–12V | |
| Bass Boost: | N/A | 0-12dB |
| Subsonic Filter: | N/A | 10Hz-50Hz |
| Crossover LPF: | 30Hz-300Hz | 40Hz-180Hz |
| Crossover HPF: | 530Hz-300Hz | N/A |
| Bass Remote: | N/A | Yes |
| Clip Indication: | 1% | |
| Fuse Rating: | 70A | |
| Dimensions: | 9.6″x7.48″x1.81″(244mmx190mmx46mm) |
