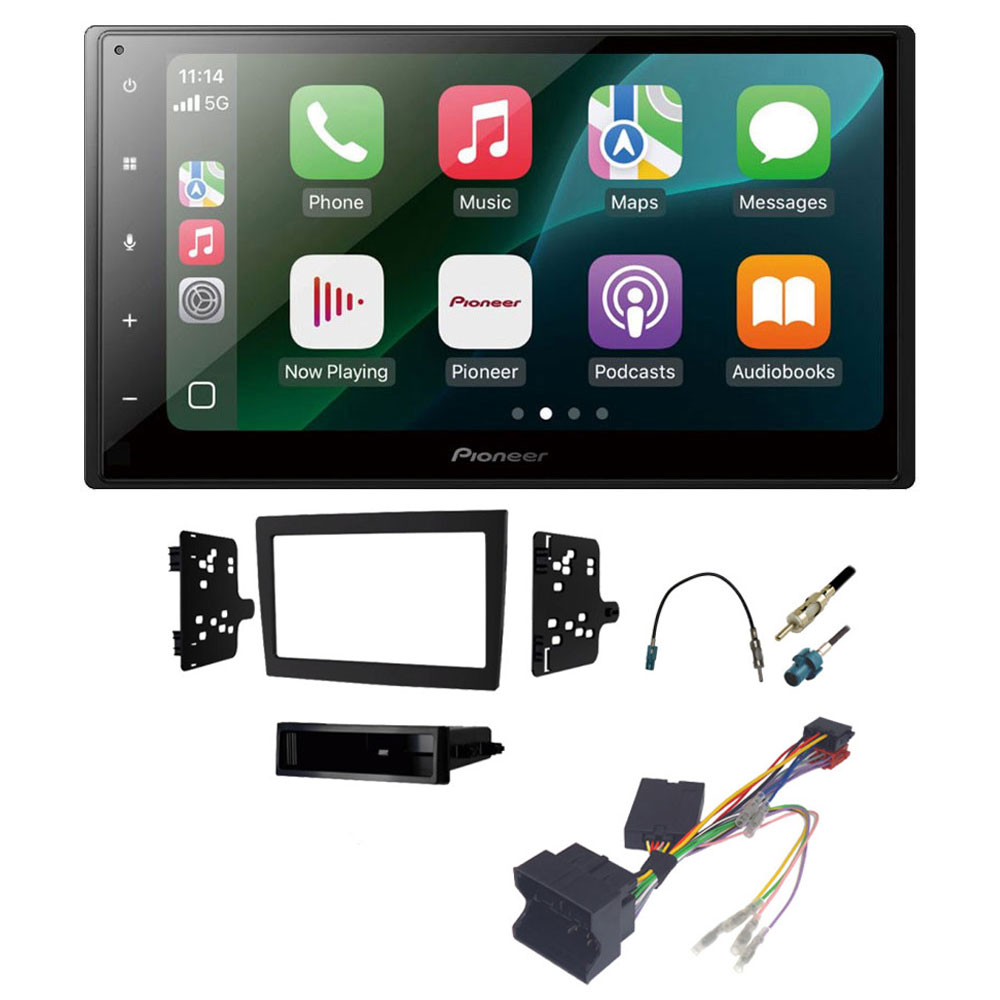

Package Includes

• Pioneer SPH-DA150BT Mechafree 6.8" Capacitive Touchscreen Apple CarPlay / Android Auto Bluetooth Stereo
• Matt Black Flush Mount Fascia Fitting Kit
• Steering Control Interface
• Antenna Adaptor Cable
• Radio Replacement Adaptor Cable
• Stereo Patch Lead

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

This fitting kit includes a matt black car radio fascia adapter panel to allow the fitting of an aftermarket single or double DIN car radio upgrade. The fascia adapter allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio. This fascia kit uses side fixing brackets, the brackets fit directly to the sides of the new radio and the fascia panel. This replaces the need for a fitting cage and gives a flush professional appearance to the installation. Use the supplied pocket for a single DIN installation or remove the pocket for a double DIN installation.

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

A steering wheel control interface and radio fitting adapter cable is in the kit. The cable adapts from the Porsche Quadlock connectors in the car to standard aftermarket ISO connectors. This replaces the need for a separate ISO radio replacement adapter cable. The CANbus steering wheel control interface is built in to the adapter cable. This interface will allow the original audio control buttons on the steering wheel to work with the new aftermarket radio. The interface will work the volume, track skip, source, mute and telephone buttons. Note; the operation of these buttons can be dependent on the vehicle spec and radio compatibility.
The CANbus interface will also provide key present ignition, illumination, reverse gear, handbrake and speed pulse outputs. A key present ignition means the stereo will turn on with the first click of the key and stay on until the key is removed from the ignition barrel.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

This kit includes a male Fakra to Male DIN antenna adapter cable. This cable adapts from a Farka antenna connection at the back of the cars original radio to a standard aftermarket DIN antenna connection to allow the fitting of an aftermarket radio upgrade.

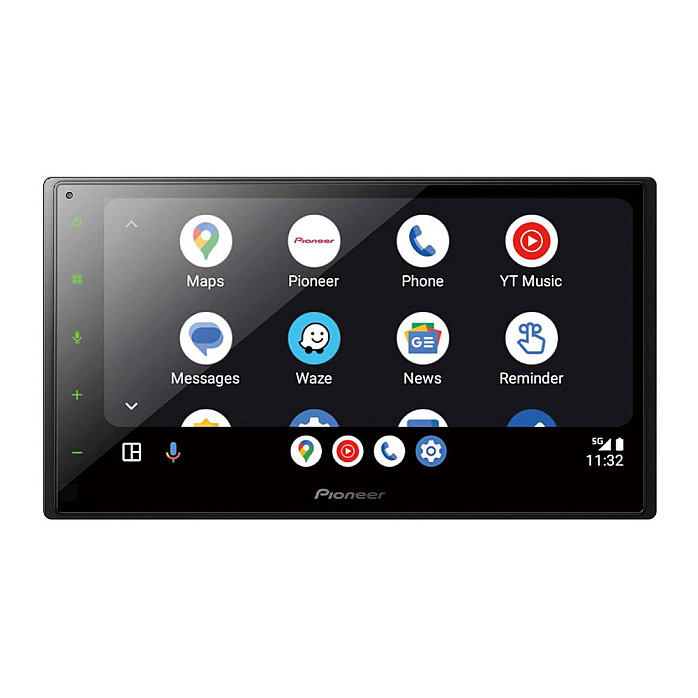

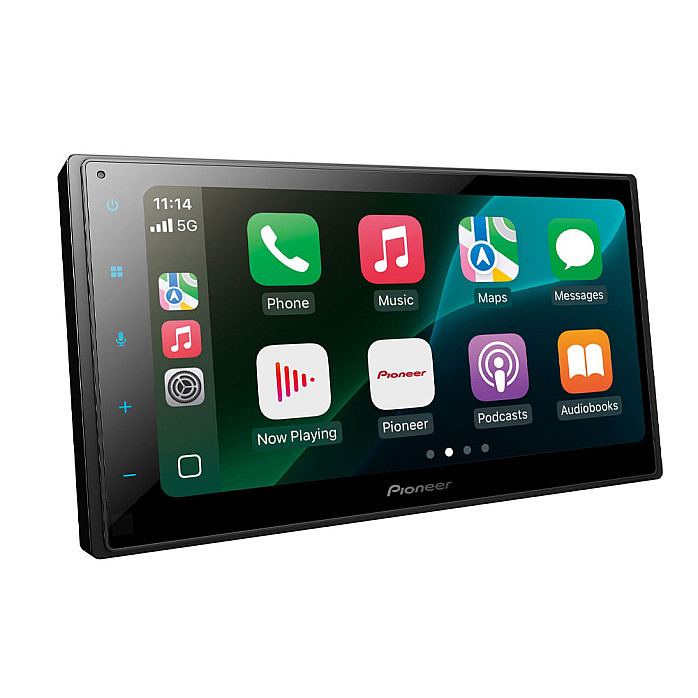

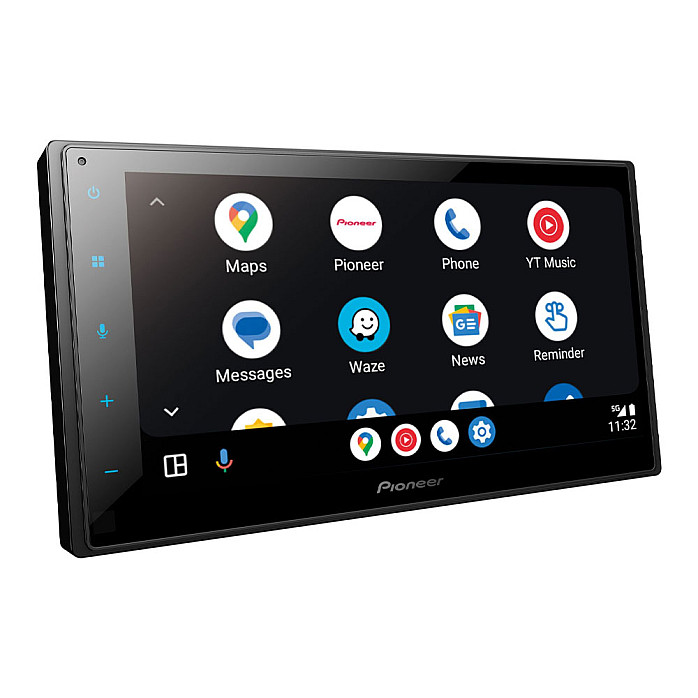

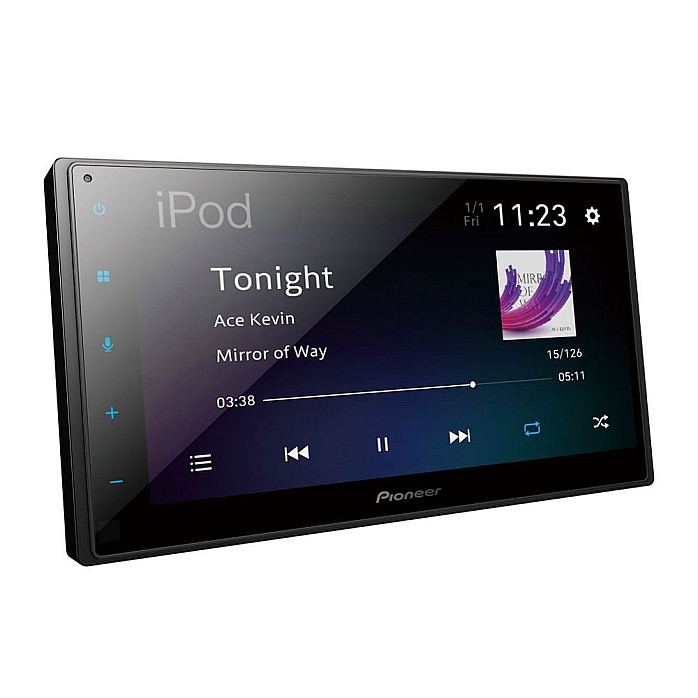

SPH-DA150BT

Mechafree 6.8" Capacitive touchscreen multimedia player, with easy smartphone connectivity via a simple USB cable supporting compatible applications including Apple CarPlay®, Android Auto™ and USB Mirroring for Android®, Bluetooth®, 13-Band GEQ, advanced audio features and premium audio quality.

	Apple CarPlay Apple CarPlay® is a smarter, safer way to use your iPhone in the car. It allows you to stay focused on the road and get directions, make calls, send and receive messages and listen to music.
	Android Auto Android Auto™ automatically brings you useful information and organises it into simple cards that appear just when they’re needed. It’s designed to minimise distraction so you can stay focused on the road ahead.
	Bluetooth® Stay safe and obey local laws with Built‑in Bluetooth® wireless connectivity, providing hands‑free calling and audio streaming.
	FLAC Enjoy FLAC lossless digital audio files in your vehicle with playback output at CD quality, without the need to convert.
	13-band Graphical EQ Adjust acoustic settings in greater details, according to your preferences.
	Aux-in - Plug your compatible device for easy and convenient playback.
	Capacitive Touchscreen - Capacitive Touchscreen allows for very responsive multi-touch gestures like pinch to zoom, plus swipe and scroll controls at your fingertips.

Key Features

• Installation Type: 2-DIN
• Navigation: Via Android Auto , Via Apple CarPlay
• Screen Size: 6.8 inch
• LCD Screen Type: Capacitive Touchscreen
• Apple CarPlay® Connection: Wired
• Android Auto™ Connection: Wired
• DAB Antenna Lorem Ipsum
• Bluetooth
• Customisable Key and Display Illumination
• Multi color illumination:

Audio Features

• Graphic Equaliser: 13-Band
• High Pass Filter
• Low Pass Filter
• FLAC
• Subwoofer Control

Tuner Features

• RDS FM Radio

Connections

• Camera Input: 1
• RCA AV Input: 1
• RCA Rear AV Output:
• RCA Pre Outs: 3. (Front, rear and subwoofer)
• Aux-in: 1 Rear AV Aux-In

Other Specifications

• Rear View Camera: Optional ND-BC9 (Sold Separately)
• Hand Held Remote Control: Optional CD-R33 (Sold separately)
• Steering Wheel Control: Supported
• Mechafree
• Short Chassis

PLEASE NOTE : This stereo does not have DAB radio. If you would like DAB radio then you will need to look at the following stereo Pioneer SPH-DA160DAB

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
