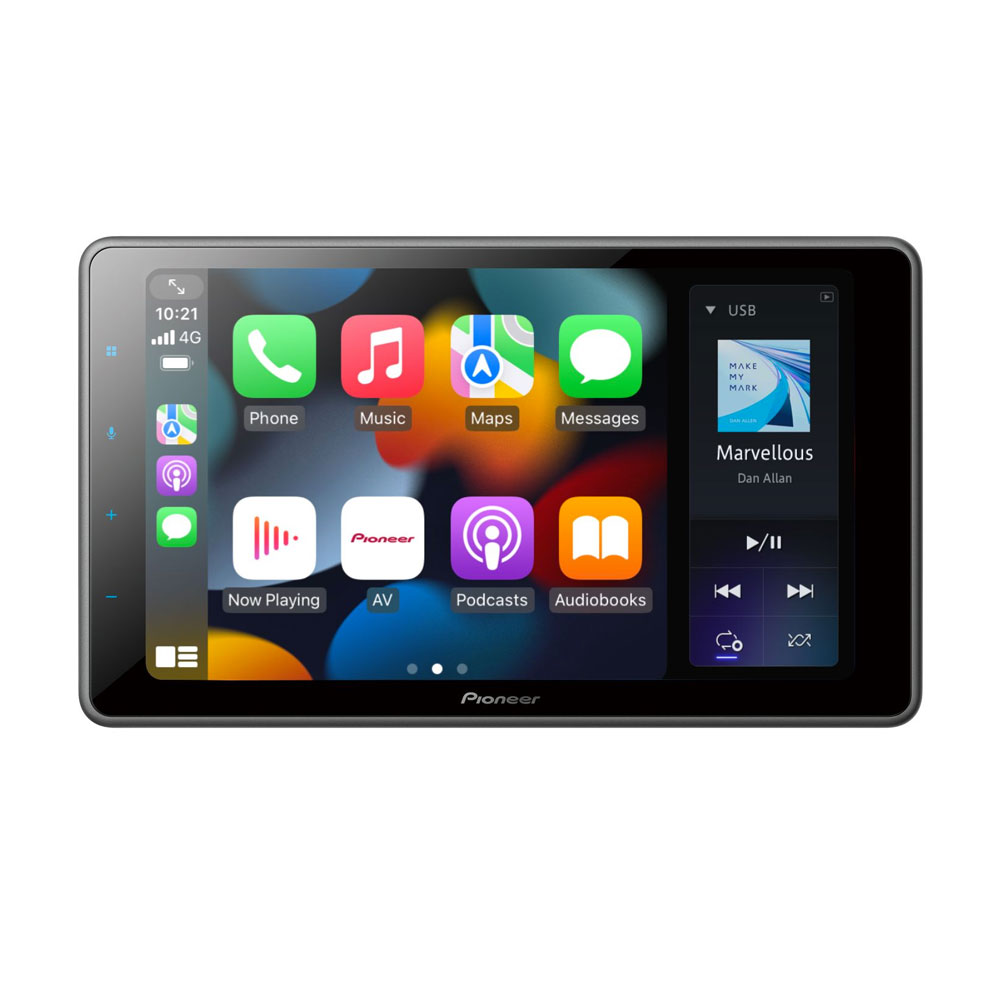

SPH-EVO950DAB-VAG

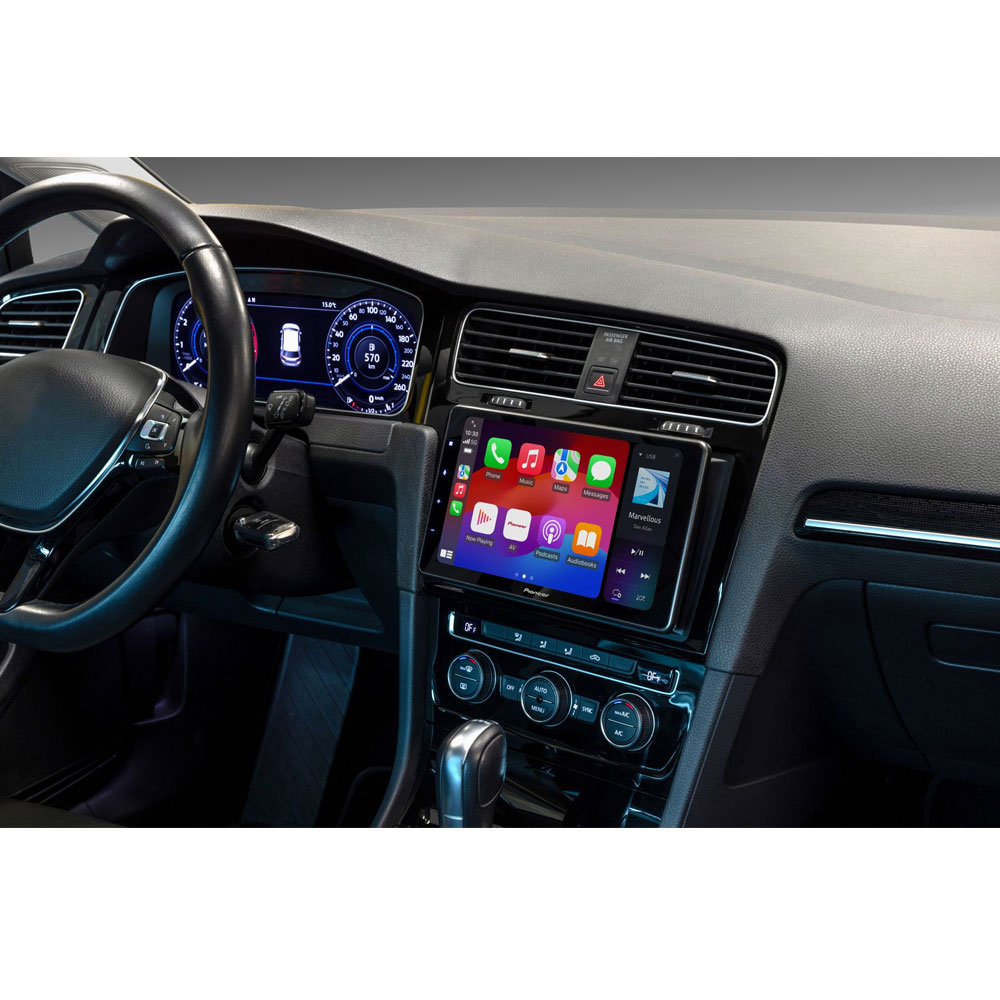

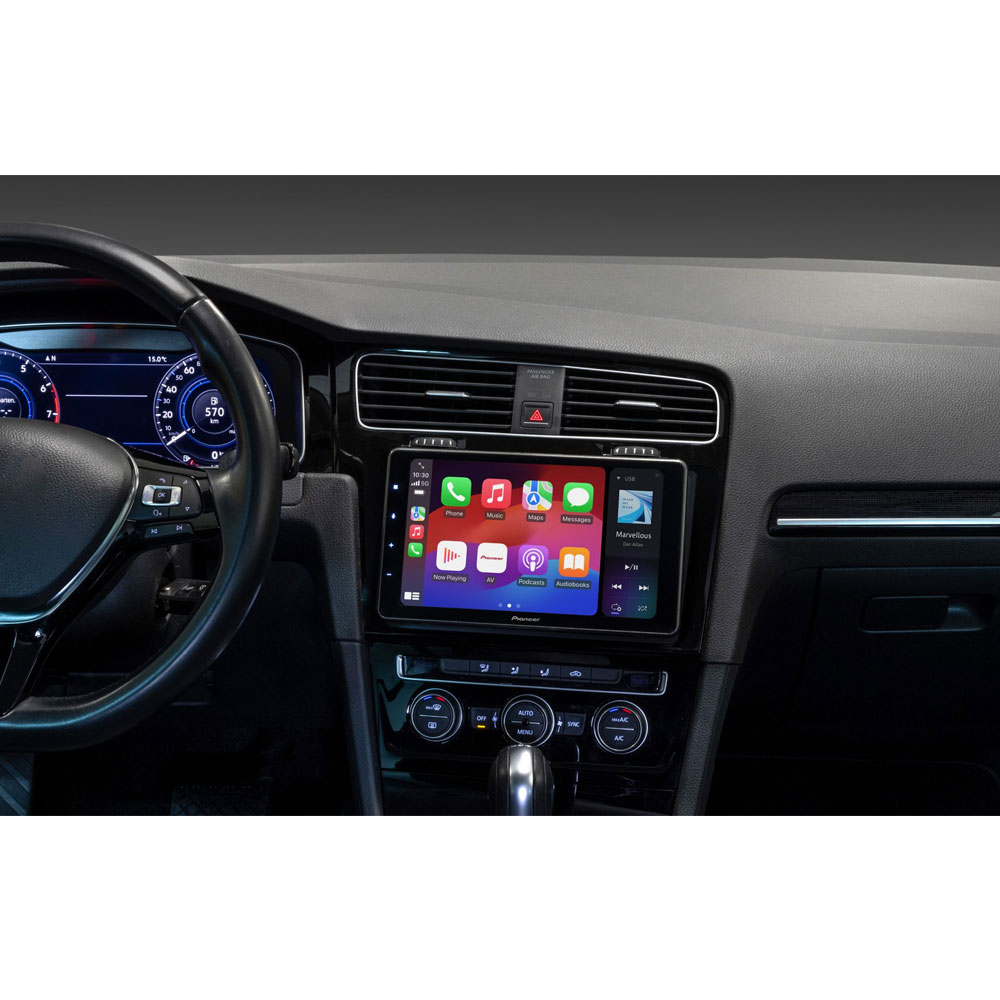

Perfectly integrated for Golf7 (after facelift), Polo, T-Roc, Tiguan, T6.1, Crafter, Taigo, etc.: Our tailor-made media center SPH-EVO950-DAB-VAG, which integrates seamlessly into the dashboard. Media center with capacitive 9" touchscreen (23 cm) and easy-to-use smartphone connectivity including wireless Apple CarPlay® and Android Auto™ as well as DAB/DAB+ digital radio, CarAVAssist app, Waze, Bluetooth® and 13-band graphic equalizer.

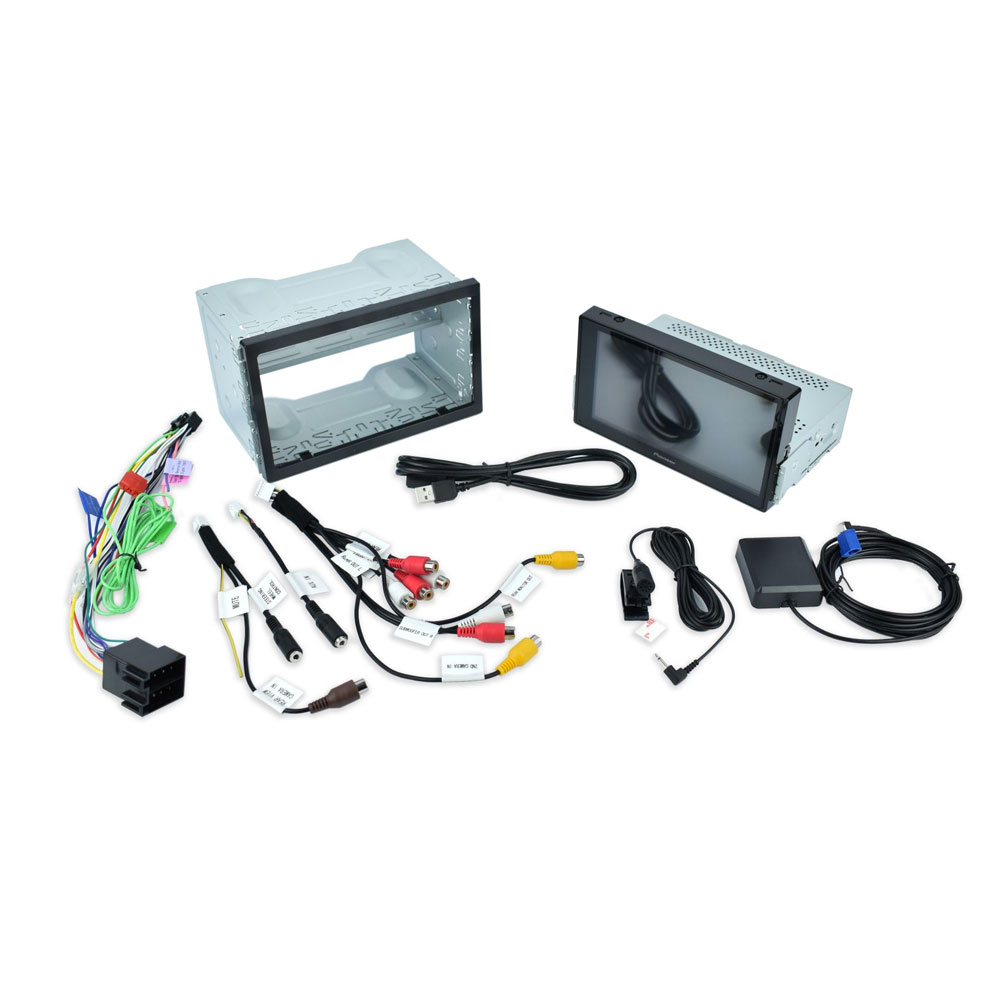

The kit includes SPH-EVO950DAB, installation kit with installation frame, fastening material, interface, antenna adapter.

DAB AERIAL REQUIRED FOR DAB FEATURE TO WORK. (NOT INCLUDED)

	Wi-Fi® Wireless connectivity specifically designed to support a cable free connection between your smartphone and the receiver.
	Apple CarPlay Apple CarPlay® is a smarter, safer way to use your iPhone in the car. It allows you to stay focused on the road and get directions, make calls, send and receive messages and listen to music.

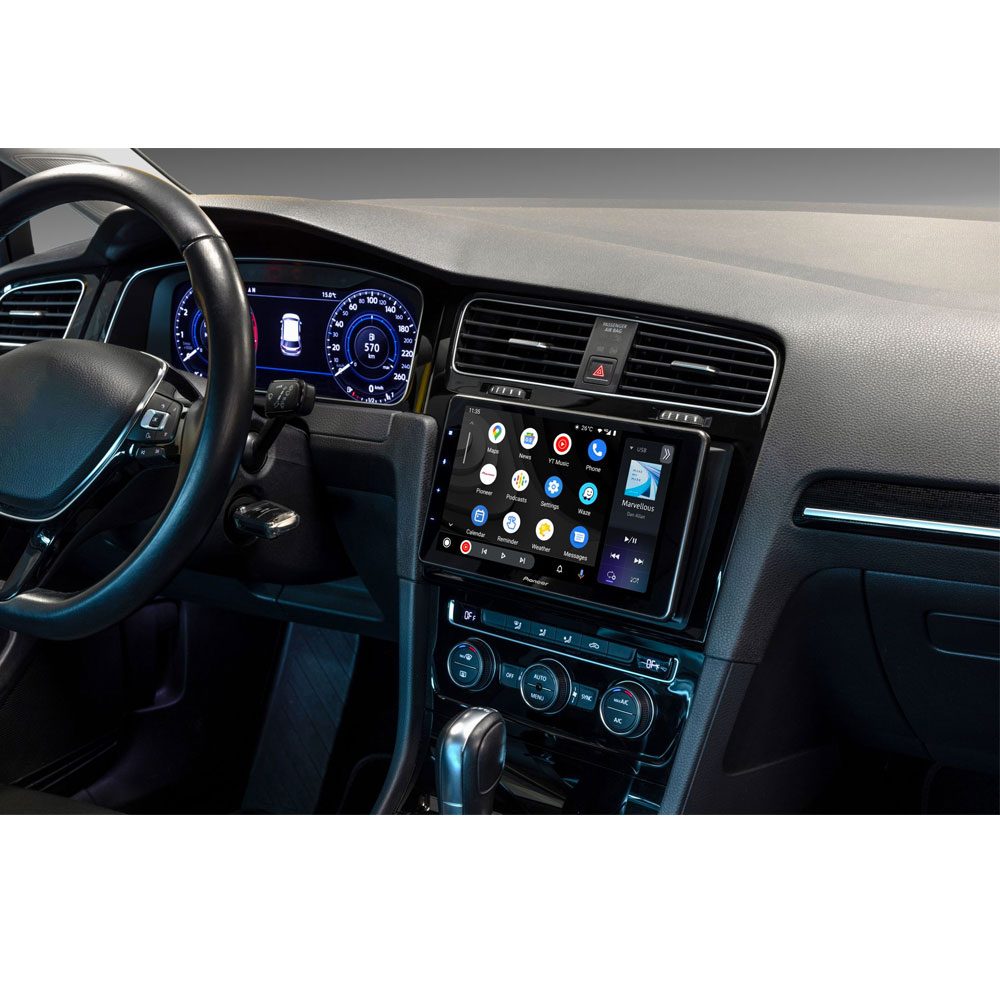

	Android Auto  Android Auto™ automatically brings you useful information and organises it into simple cards that appear just when they’re needed. It’s designed to minimise distraction so you can stay focused on the road ahead.
	DAB+ Enjoy the convenience of listening to your favourite radio stations in crystal clear digital quality thanks to a built-in Digital Radio tuner.
	Digital Radio Tick Mark Approved product Manufacturers must meet the minimum specification, verified by independent testing. All Pioneer products that use this Digital Radio Tick Mark have been independently tested and approved so you can buy with confidence.
	Bluetooth® Stay safe and obey local laws with Built‑in Bluetooth® wireless connectivity, providing hands‑free calling and audio streaming.
	Capacitive Touchscreen Capacitive Touchscreen allows for very responsive multi-touch gestures like pinch to zoom, plus swipe and scroll controls at your fingertips.
	FLAC Enjoy FLAC lossless digital audio files in your vehicle with playback output at CD quality, without the need to convert.
	13-band Graphical EQ Adjust acoustic settings in greater details, according to your preferences.
	Multi colour illumination Match the display or key illumination to your vehicle's interior lighting with a range of colour combinations.
	Modular Design The screen panel can be installed separately from the main unit, useful for cars with no dashboard space expanding your installation options.
	WebLink The new WebLink app expands in-car entertainment with an amazing world of apps. Enjoy personalised music, videos, and other connected content powered by your phone/ tablet and the cloud.
	Aux-in Plug your compatible device for easy and convenient playback.
	Camper Navigation Navigate safely and conveniently across Europe thanks to detailed built-in navigation maps dedicated for Campervan users.
	Vehicle Bus By connecting the optional Vehicle Bus adapter, you can display vehicle information such as gauges, climate control and parking assist. (Optional vehicle adaptor required, sold separately)

Key Features

• Installation Type: Car Specific
• Navigation:
  • Via Android Auto
  • Via Apple CarPlay
• Screen Size: 9.0 inch
• LCD Screen Type: Capacitive Touchscreen
• Apple CarPlay® Connection: Wireless / wired
• Android Auto™ Connection: Wireless / wired
• Wi-Fi®
• Weblink Mirroring
• Pioneer Split Screen Mode: Android Auto™, Apple CarPlay®
• DAB+
• DAB Antenna: Optional CA-AN-DAB.001 (Sold separately)
• Camper Navigation
• Vehicle Bus
• Bluetooth®
• Customisable Key and Display Illumination
• Multi color illumination

Audio Features

• Graphic Equaliser: 13-Band
• Advanced Sound Retriever
• Listening Position Selector
• High Pass Filter
• Low Pass Filter
• FLAC
• Subwoofer Control

Tuner Features

• DAB+
• Digital Radio Tick Mark Approved product
• RDS FM Radio

Connections

• Camera Input: 2
• RCA AV Input: 0
• RCA Rear AV Output:
• RCA Pre Outs: 3. (Front, rear and subwoofer)
• Aux-in
• 1 Rear AV Aux-In

Other Specifications

• Rear View Camera: Optional ND-BC9 (Sold Separately)
• Steering Wheel Control: Supported
• Mechafree
