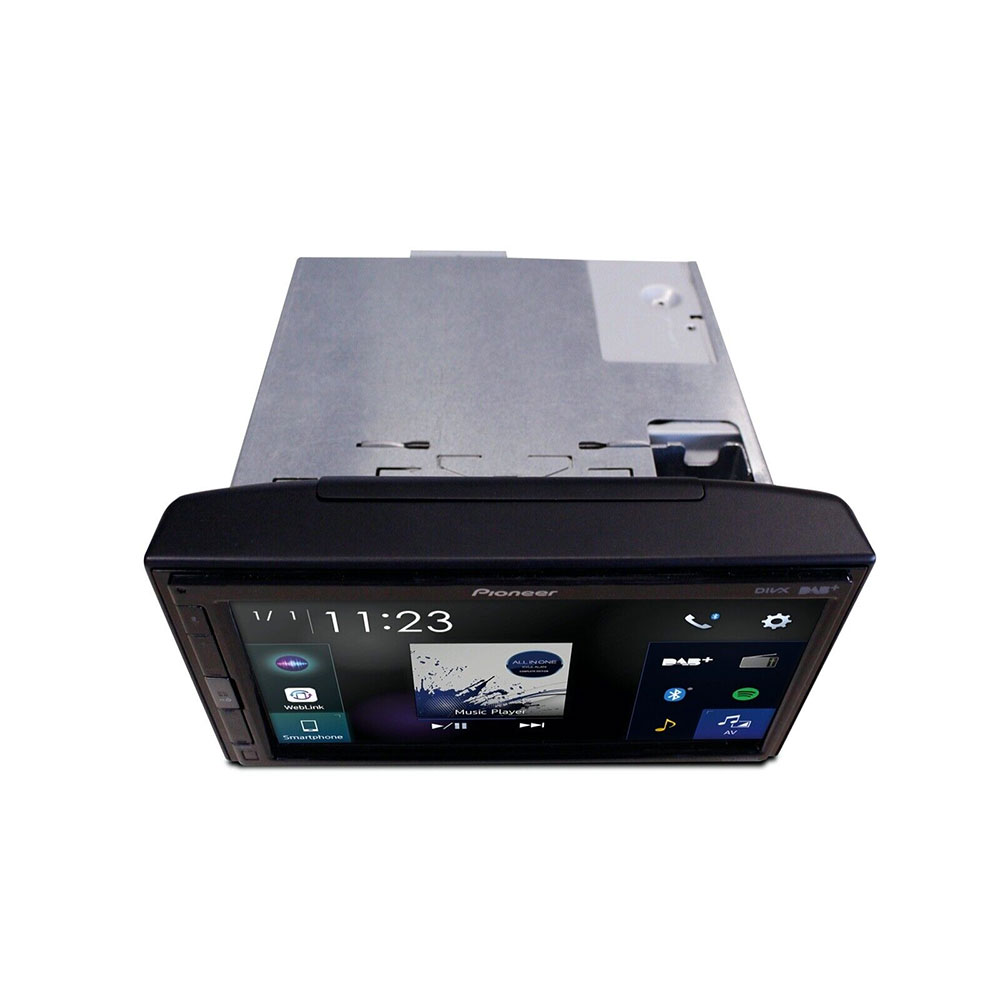

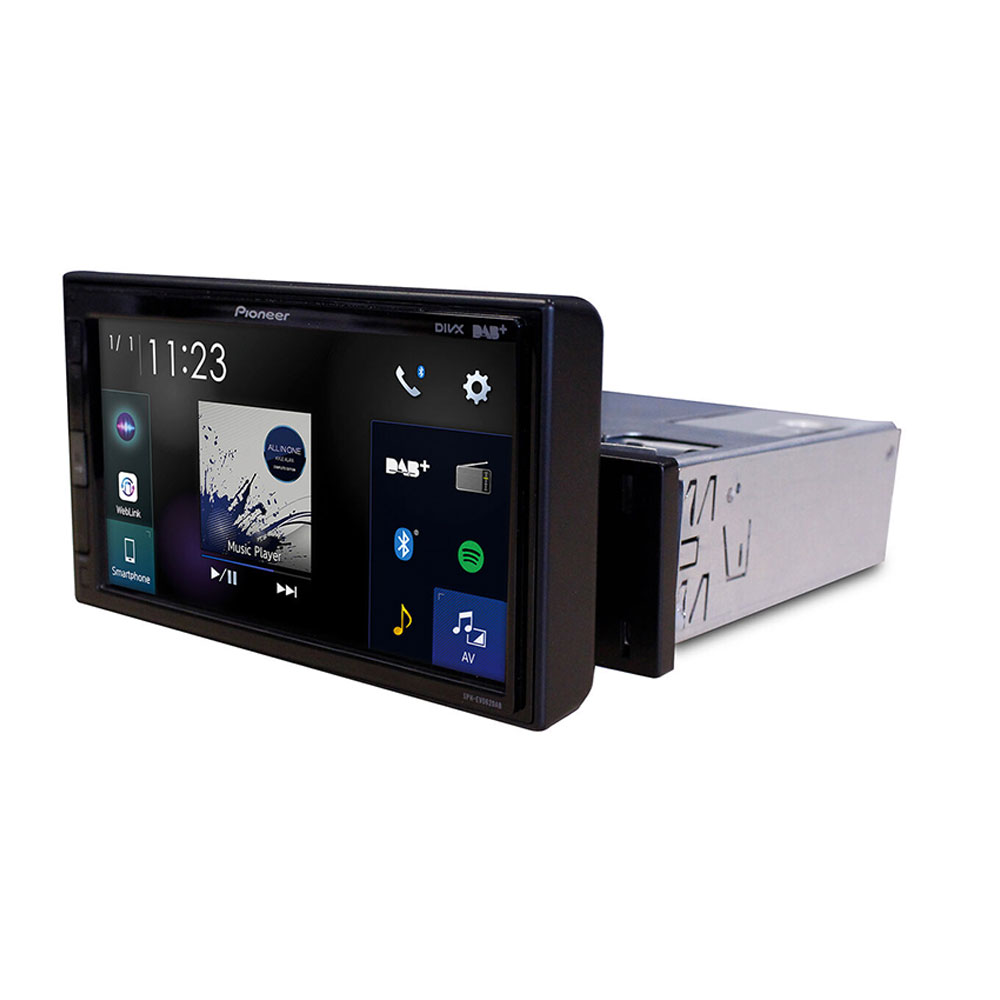

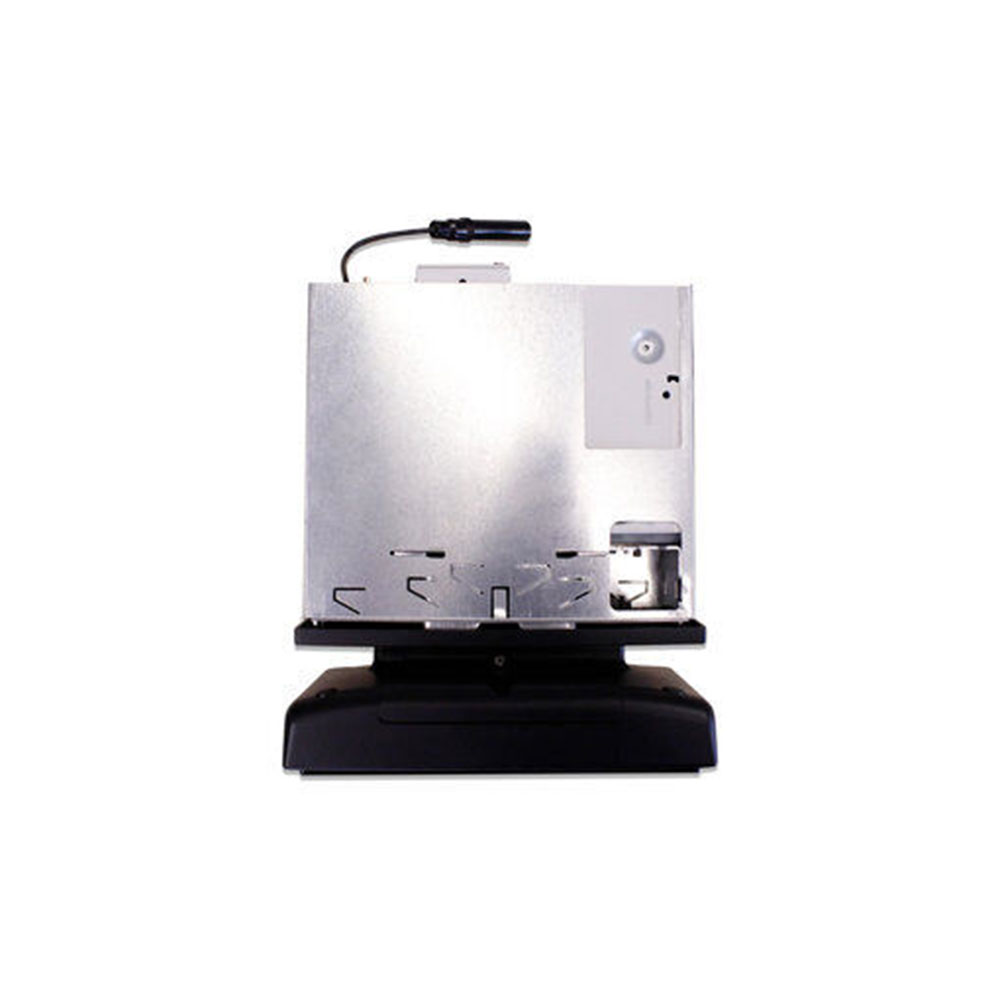

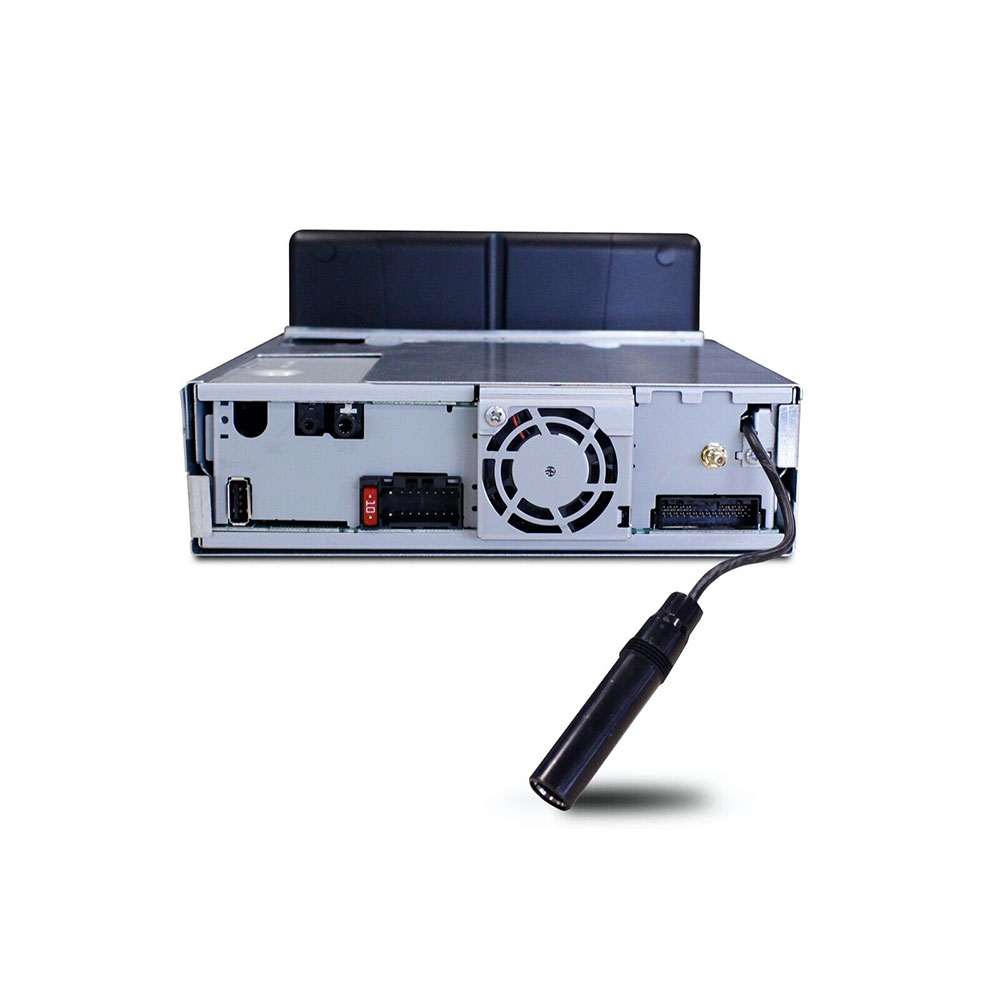

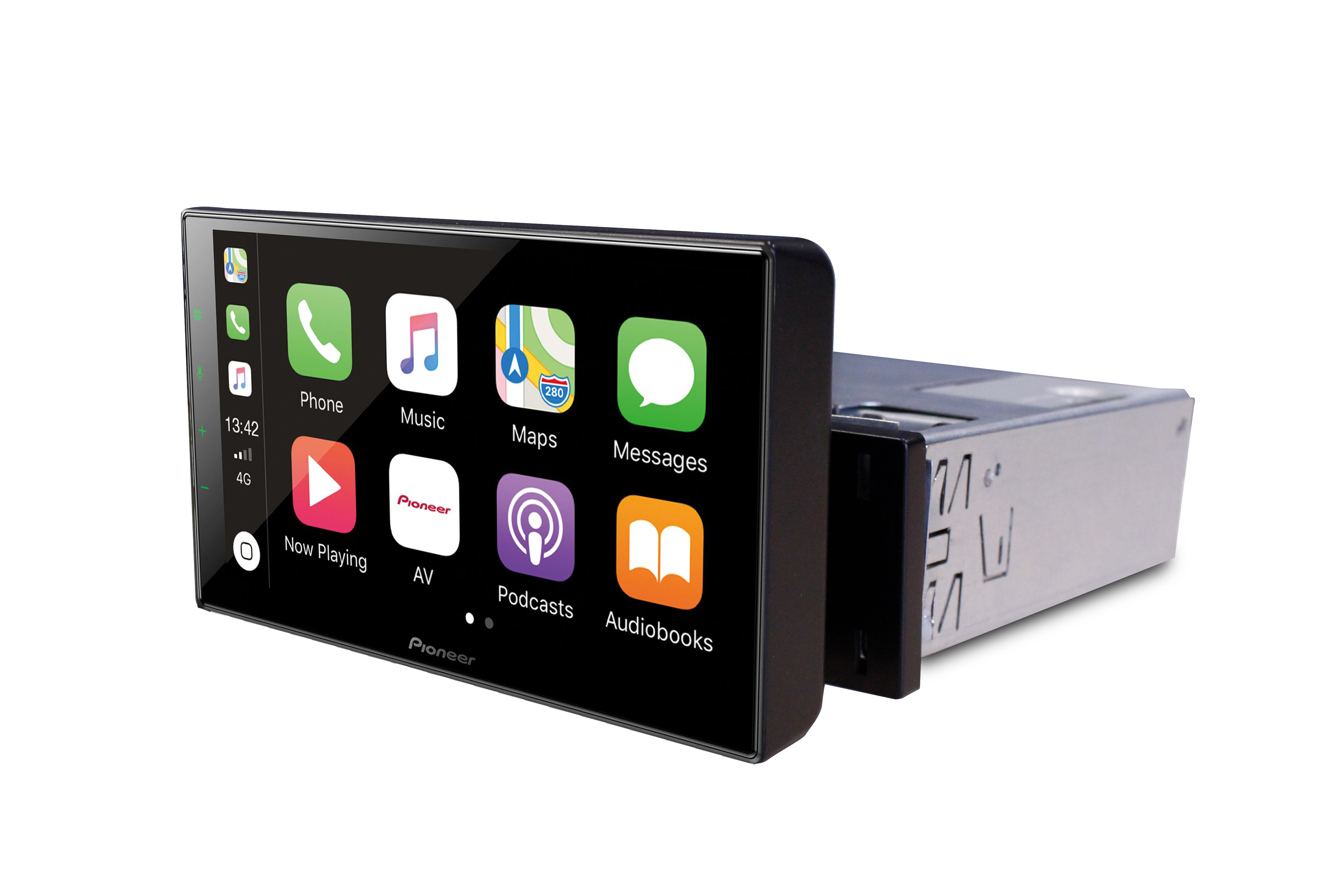

The Wi-Fi® enabled SPH-EVO64DAB-UNI features a modular design combining a 6.8” touchscreen display with a hideaway control unit that installers can tuck into separate compartments of the automobile, providing vehicles with limited dash space a premium upgrade solution for drivers’ entertainment needs. It can also be installed vehicles with standard 2DIN slot. The new receiver features smartphone connectivity - Android Auto™ and Apple CarPlay™ (via wired or wireless connection), voice commands (Alexa built-in), as well as entertainment features such as Spotify®, Bluetooth® streaming, Hybrid Radio, FLAC file playback and more.

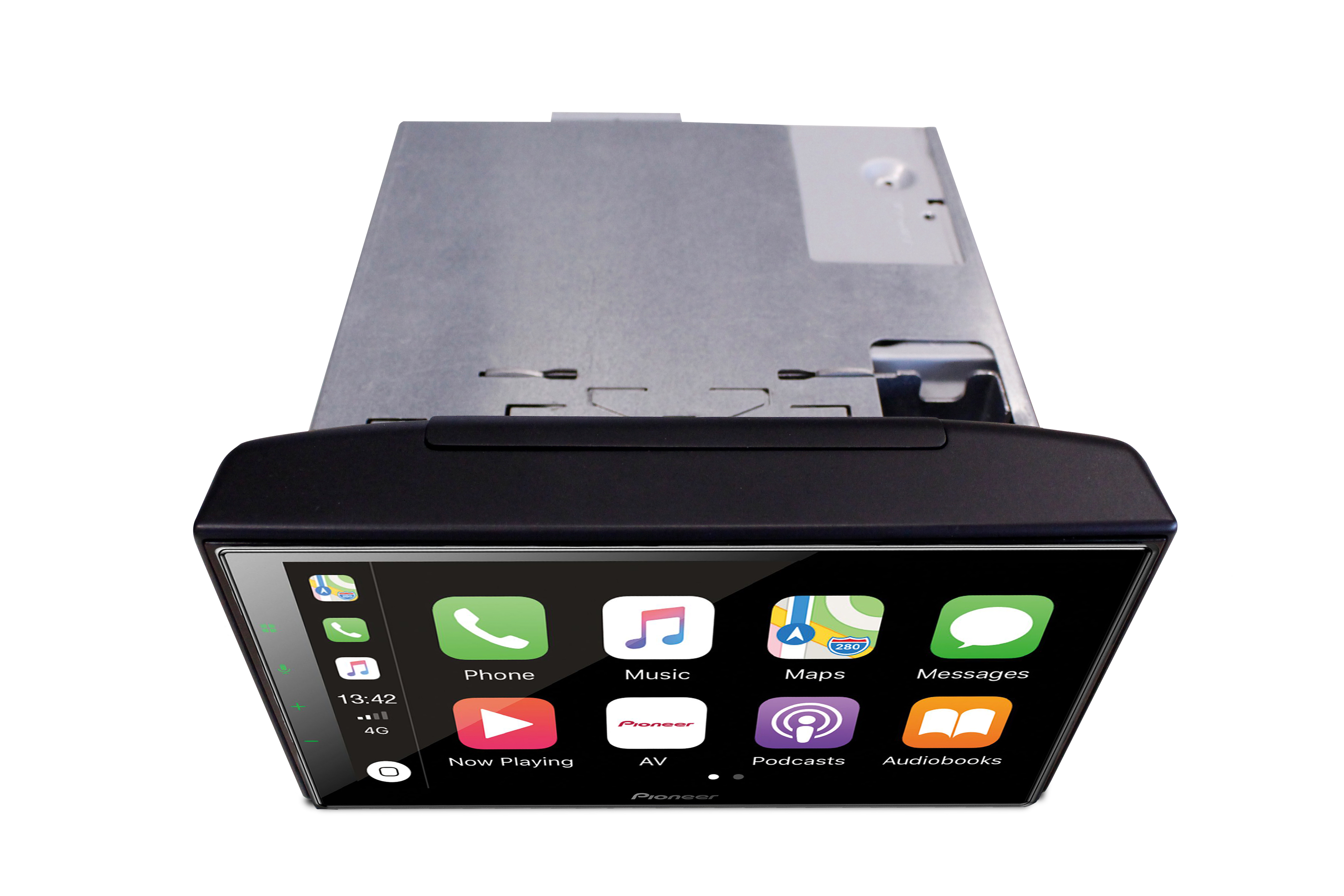

	Apple CarPlay Is the smarter, safer and more fun way to use your iPhone® in the car. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use Maps, listen to music, and access messages with just a word or a touch. Apple CarPlay requires iPhone 5 or newer with the latest version of iOS.

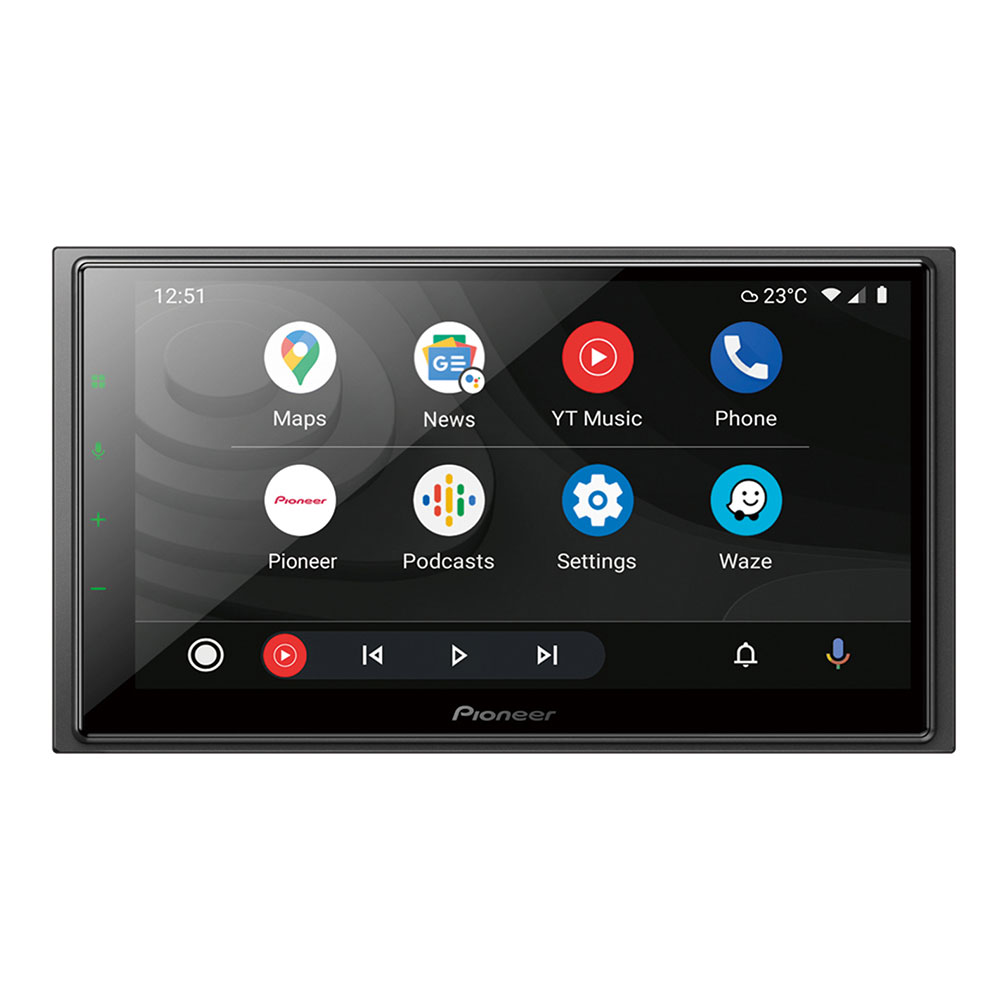

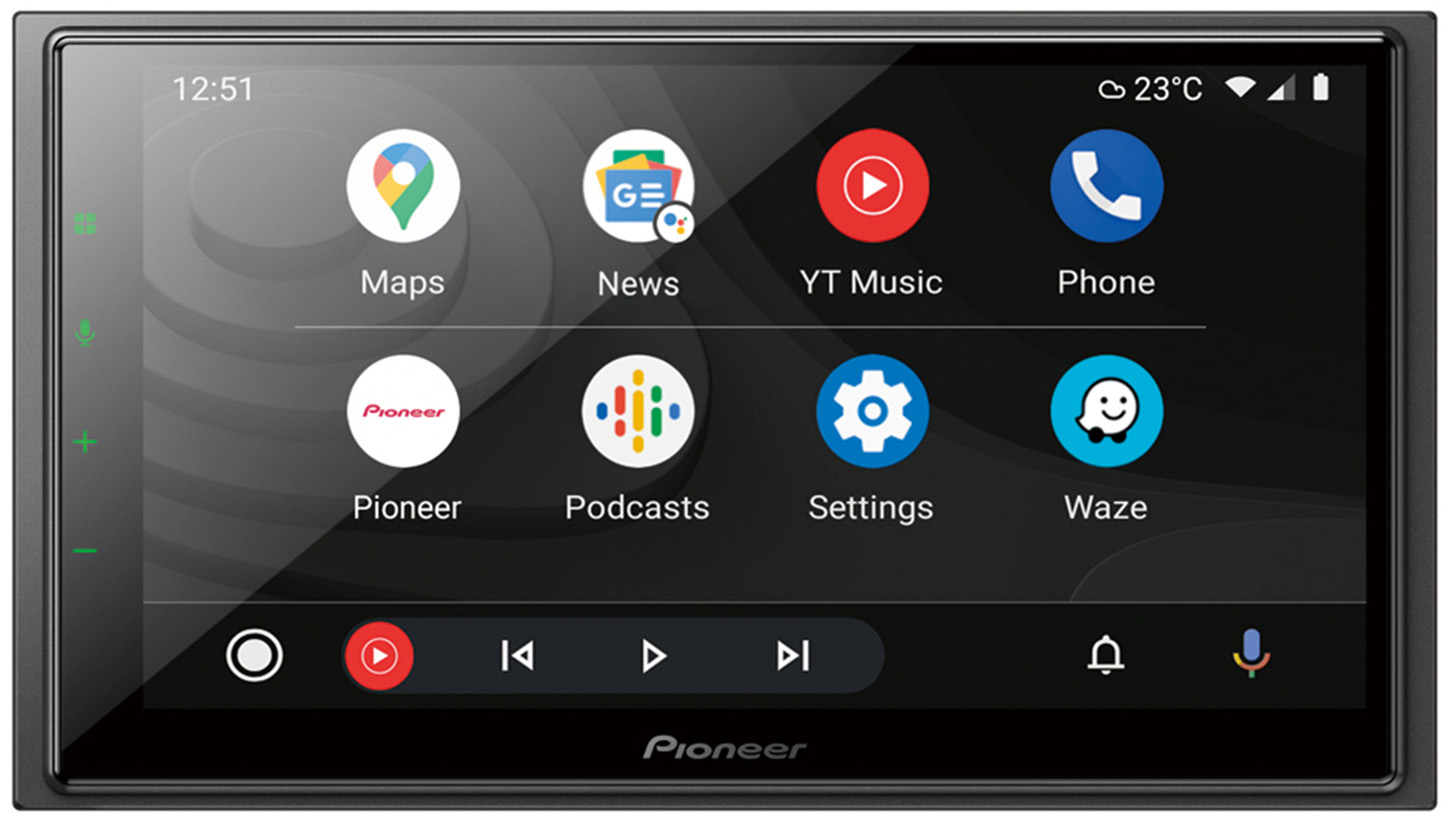

	Android Auto Extends the Android platform into the car in a way that’s purpose-built for driving and automatically brings you useful information and organises it into simple cards that appear just when they’re needed. It’s designed to minimise distraction so you can stay focused on the road ahead. Android Auto is compatible with Android phones running Android 5.0 (Lollipop) or later. Android Auto may not be available on all devices and is not available in all countries or regions.
	CarAVAssist App CarAV Assist App supports web browsing, home screen customization and other functions.
	Waze is a social GPS driving/navigation app that offers map, real-time traffic, and various other information for you to access on the large display of Pioneer compatible multimedia devices .
	Hybrid Radio When you leave the broadcast area of your favourite DAB+ or FM Radio station, internet streaming becomes available automatically. Hybrid Radio makes sure that you can receive your favourite radio station everywhere! At the same time, metadata that is available through internet connection can be displayed also whilst tuned to FM.
	DAB+ Enjoy the convenience of listening to your favourite radio stations in crystal clear digital quality thanks to a built-in Digital Radio tuner.
	Digital Radio Tick Mark Approved product Manufacturers must meet the minimum specification, verified by independent testing. All Pioneer products that use this Digital Radio Tick Mark have been independently tested and approved so you can buy with confidence.
	Bluetooth® Obey local driving laws with built-in Bluetooth (HFP). Wide Band Speech hands-free calling, wireless audio streaming (A2DP) with artist, album, and song search, simple pairing, and control audio (AVRCP), Bluetooth® wireless technology has made life in the vehicle safer and more convenient.

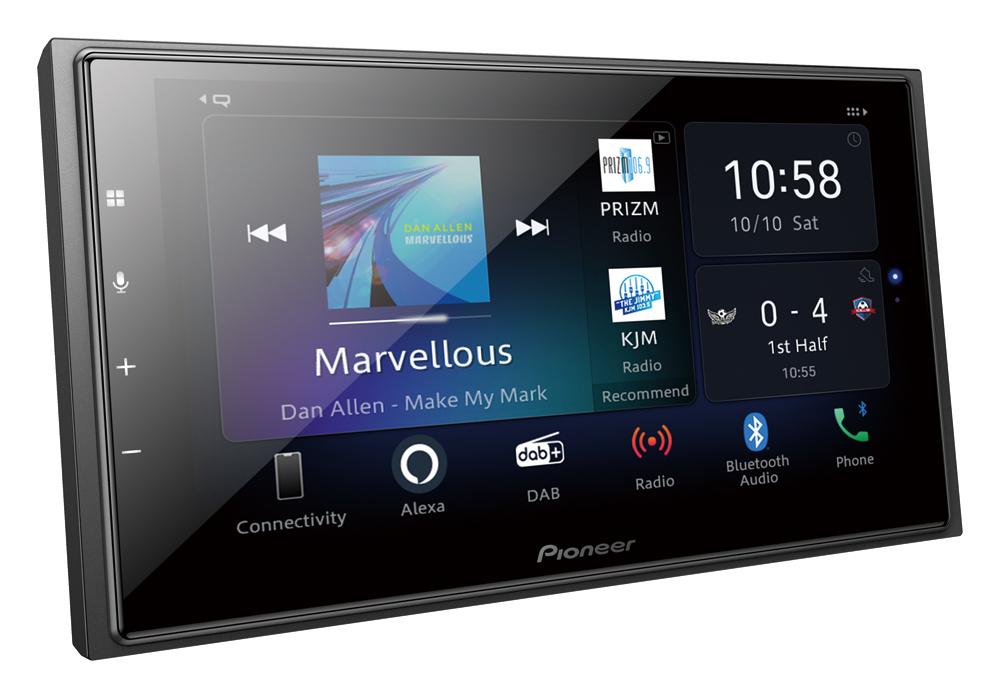

	6.8" Capacitive Touchscreen A fully flat touchscreen that allows for fast and responsive multi-touch gestures like pinch to zoom, plus swipe and scroll controls at your fingertips, in very high detail.
	Made for iPod / iPhone Directly control your iPod / iPhone, for charging, music and video via an optional interface cable (sold separately), depending on your iOS device. Song, artist, time and album information are beautifully displayed on the touchscreen.
	Siri Eyes Free make use of your iPhone's Siri functionality through your unit's external microphone and the speakers of your vehicle
	Compatible with Android Connect and listen to music stored on your device without the need for an app
	Spotify With Spotify, just connect your smartphone to comfortably browse your favourite playlists, albums, tracks and artists using your headunit controls.
	Display Illumination Match the display and key illumination to your vehicle's interior lighting with a range of over 210.000 colours and endless colour combinations.
	USB Input Connect any device with an USB interface cable to charge your device or listen to clean, clear sound.
	FLAC Enjoy FLAC lossless digital audio files in your vehicle with playback output at CD quality, without the need to convert.
	13-band Graphical EQ Adjust your audio output in detail for a music experience tailored to your preferences.

Main Features

• Android Auto
• CarAVAssist App iPhone / Android
• Waze (via Apple CarPlay /Android Auto)
• DAB+
• Digital Radio Tick Mark Approved product
• Bluetooth®
• Spotify
• USB Input
• Wi-Fi®
• Apple CarPlay Connection Wireless connection or USB connection
• HDMI Input
• Dual Camera Input
• Modular design
• Navigation Ready (via AVIC-F160-2 & AVIC-F260-2, sold separately)
• FM Radio
• Screen 6.8” Capacitive multi-touchscreen with Smart UI
• Cellular telephone auto muting
• Front Panel Multi-colour display and screen
• Button Illumination RGB Colour Customisation (210,000 Colours)
• Plays
  • Your iPod, iPhone, Android Smartphone
  • Bluetooth audio
• Via USB:
  • MP3, WMA, AAC, WAV , DSD and FLAC audio files
  • H.264, MKV, FLV and MPEG4 video files in Full HD
  • DivX video files
  • JPEG image files
• Accessories  Included:
  • 1 x USB extension cable
  • 1 x External Bluetooth mic
• Optional:
  • CA-AN-DAB.001 (DAB antenna)
  • CD-RGB150E (1.5m Extension Cable)
  • ND-BC8 (Reverse camera)
  • AVIC-F260 Navigation system
• USB Input Rear USB(-C)

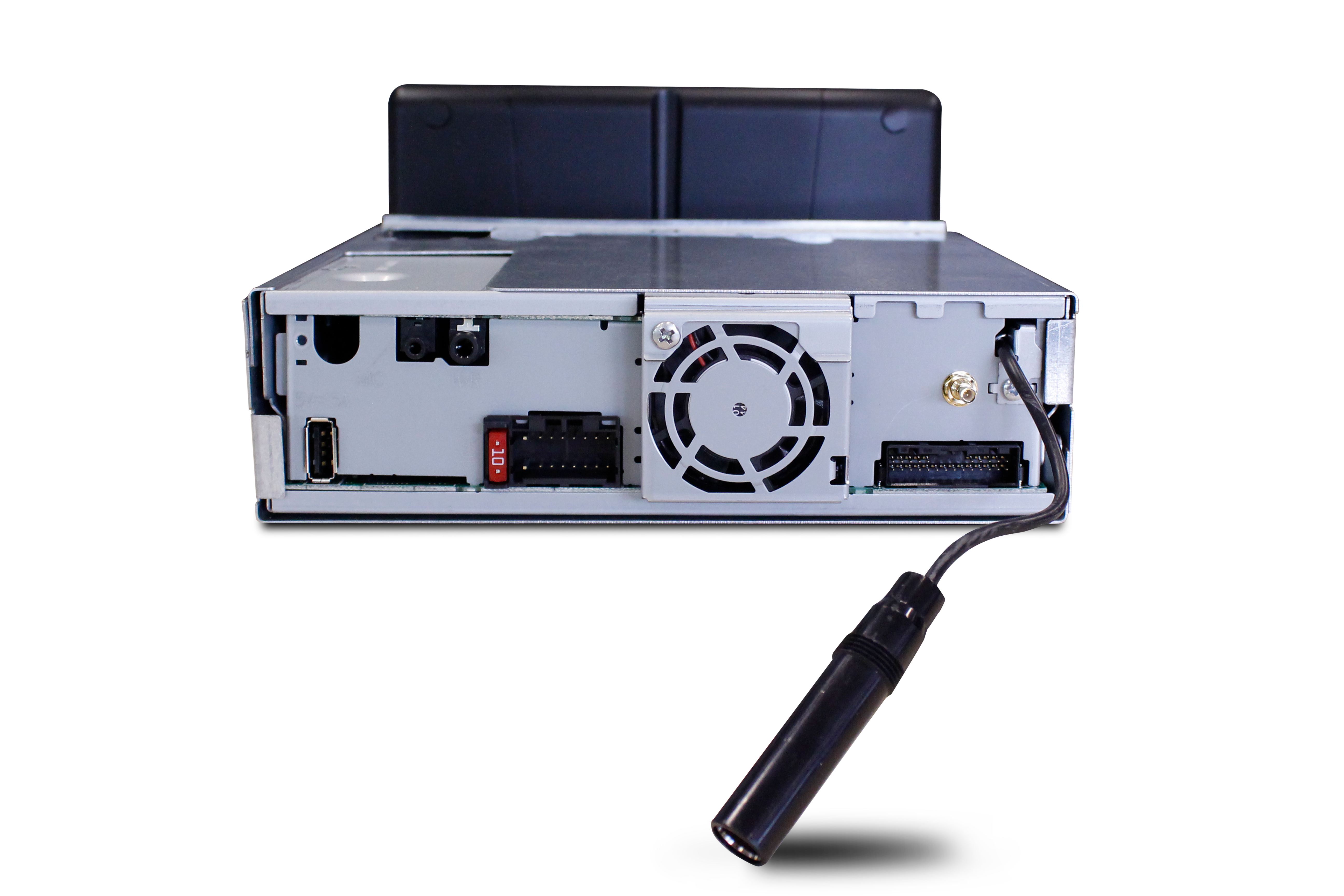

Connections

• Hybrid Radio
  • Metadata for every Radio Source
  • Recommended Radio Station
  • Network Following (DAB+ / FM / IP Radio)
• Aux-in    1 rear AV Aux-In
• Video output    Analog
• Hard Wired Remote Ready
• ISO connector
• RGB input    Yes
• High Voltage Output    5V

Screen Features

• 6.8" Capacitive Touchscreen
• Display Illumination

Apple Compatibility

• Made for iPod / iPhone
• Siri Eyes Free
• Works with iPhone

Android Compatibility

• Compatible with Android

Audio

• FLAC
• 13-band Graphical EQ
• MOSFET 50 W x 4 Amplifier
• RCA Pre-Outs    3 (Front, Rear, Subwoofer) 5V
• 3-Way Network Mode
• Source Level Adjuster
• High Pass Filter
• Low Pass Filter
• Loudness
• Graphic Equaliser    13-band
• Time Alignment
• Subwoofer Control
• Advanced Sound Retriever
• Auto EQ (Equaliser)

Bluetooth

• Pioneer Bluetooth
• Additional Bluetooth Features
  • Audio streaming
  • Automatic Phone book Transfer (5 x 1000 contacts)
  • 2 Phones full time connect
  • Autopairing via USB
• Compatibility HFP/A2DP/AVRCP
• Hands-free calls

Tuner Features

• RDS FM Radio
