Pioneer CD-SVW-UAR.006AE Integration Module CAN Bus Adaptor for SPH-EVO64/93/950DAB
- Stock Status: In Stock
- Item Condition : New
- Available QTY : 1
- Brand: Pioneer
- Model: CD-SVW-UAR.006AE
- EAN: 7427306995510
- Warranty: 2 Years Warranty
Description
Product Compatibility Chart
| Make | Model | Years | Notes |
| MAN | TGE | 2018 onward | (SY-SZ) |
| SEAT | Arona | 2017 - 2021 | |
| SEAT | Arona | 2022 onward | |
| SEAT | Ateca | 2016 - 2019 | |
| SEAT | Ateca | 2020 onward | |
| SEAT | Ibiza | 2015 - 2017 | (6P-KJ) |
| SEAT | Ibiza | 2018 - 2021 | |
| SEAT | Leon | 2012 - 2020 | (5F) |
| SEAT | Leon | 2021 onward | (Mk4) |
| SEAT | Tarraco | 2018 onward | |
| Skoda | Fabia | 2015 - 2021 | (NJ) |
| Skoda | Fabia | 2022 onward | |
| Skoda | Kamiq | 2019 onward | |
| Skoda | Karoq | 2017 onward | |
| Skoda | Kodiaq | 2016 onward | |
| Skoda | Octavia | 2013 - 2020 | (5E) |
| Skoda | Octavia | 2021 onward | |
| Skoda | Superb | 2015 onward | (3V-B8) |
| Volkswagen | Arteon | 2017 onward | |
| Volkswagen | Crafter | 2018 onward | (SY-SZ) |
| Volkswagen | Golf | 2013 - 2020 | |
| Volkswagen | Golf | 2014 - 2020 | (Sportsvan) |
| Volkswagen | Multivan | 2022 onward | |
| Volkswagen | Passat | 2015 onward | |
| Volkswagen | Polo | 2014 - 2017 | (6C) |
| Volkswagen | Polo | 2017 onward | (AW-BZ) |
| Volkswagen | T-Cross | 2019 onward | |
| Volkswagen | T-Roc | 2017 onward | |
| Volkswagen | Taigo | 2022 onward | |
| Volkswagen | Tiguan | 2016 onward | |
| Volkswagen | Touran | 2015 onward | (5T) |
| Volkswagen | Transporter | 2019 onward | (T6.1) |

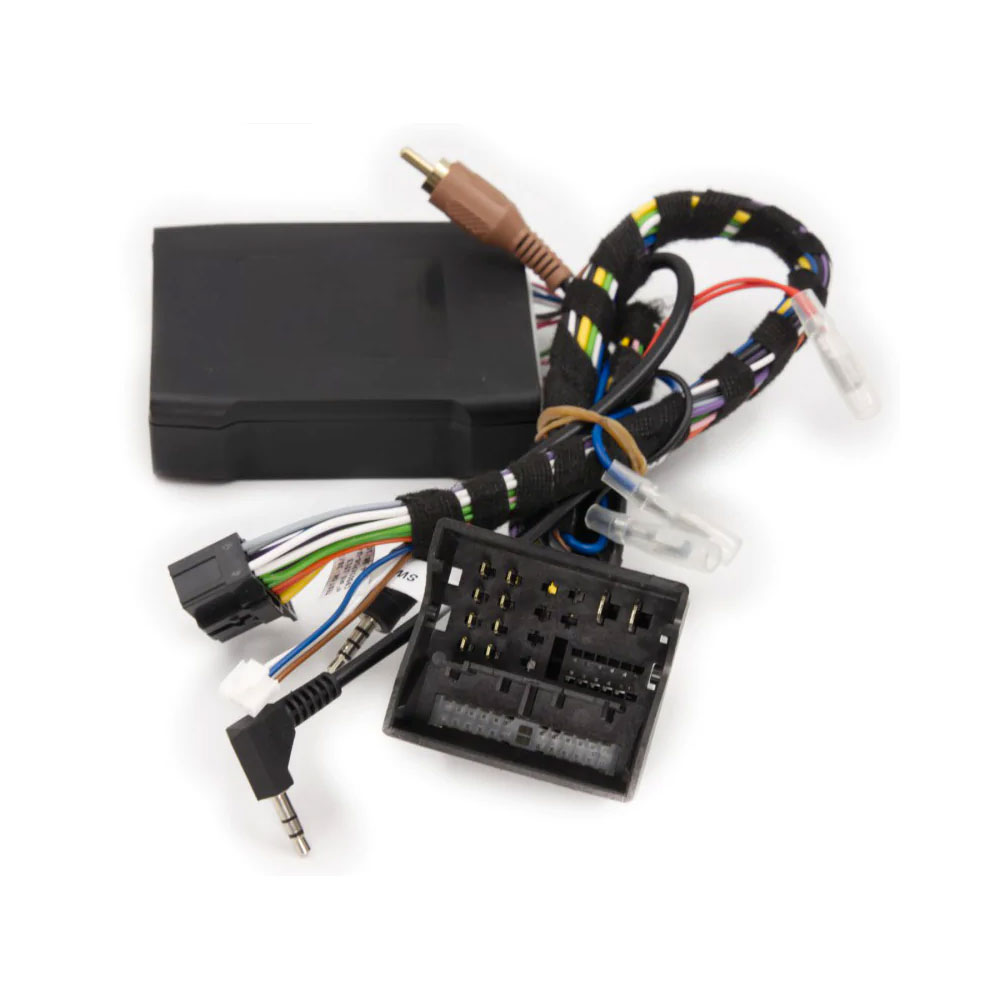

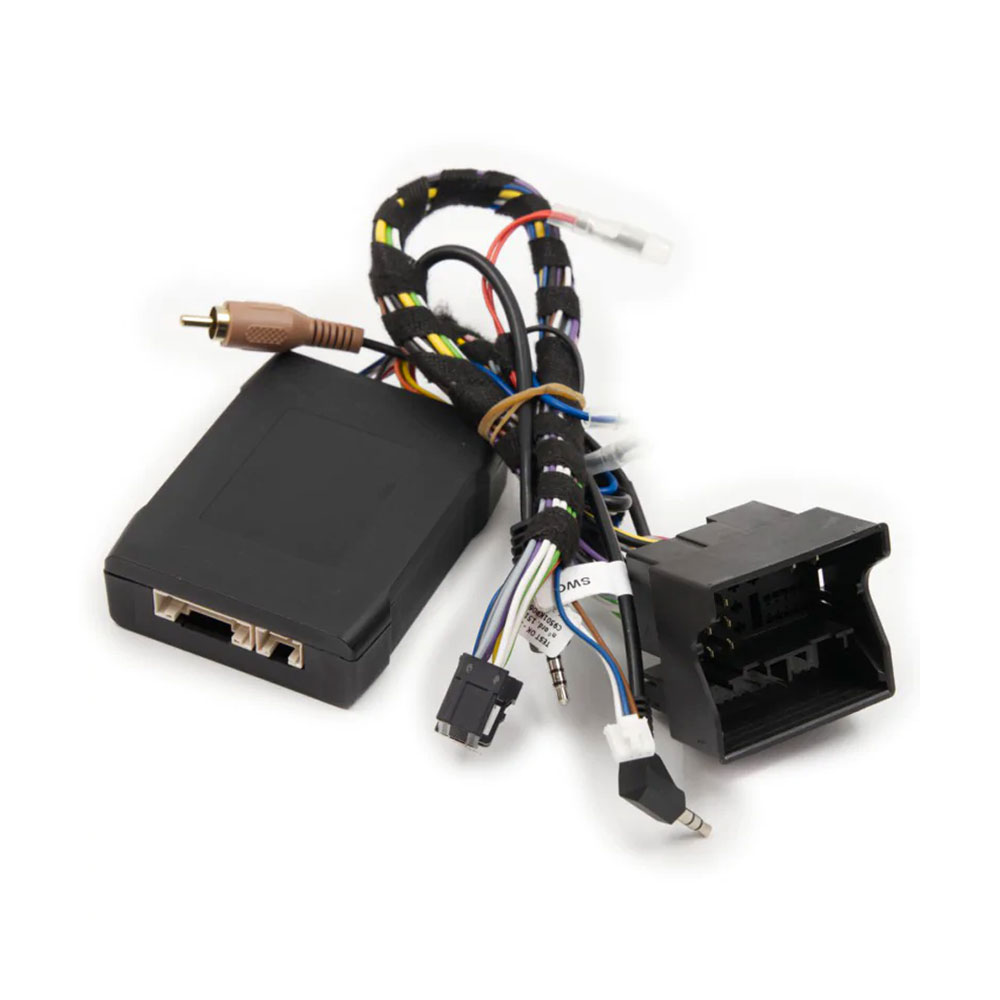

Pioneer CD-SVW-UAR.006AE Integration Module for VAG cars
Interface to the Pioneer station with a UART connector allowing you to obtain control from the steering wheel and transfer some information from the car to a non-factory radio (air conditioning, parking sensors). It also allows you to connect an aftermarket reversing camera (RCA connector). Interface for VAG group cars (VW, Skoda, Seat).

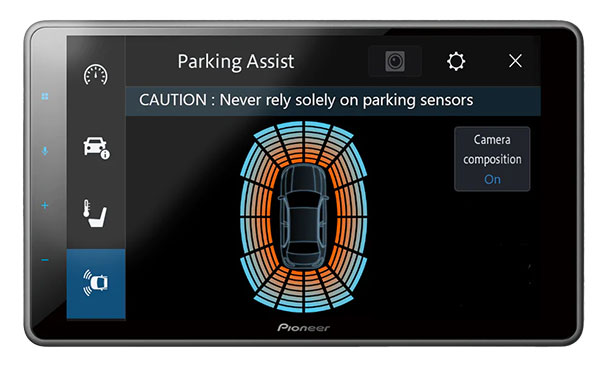

The interface is intended for some Pioneer multimedia stations and VAG group cars. The module allows you to control the new radio from the steering wheel, allows you to visualize the factory parking sensors and visualize the air conditioning settings. If you also connect a non-factory reversing camera (with an RCA connector) to the new radio, you can also use this module to connect.
Please Note

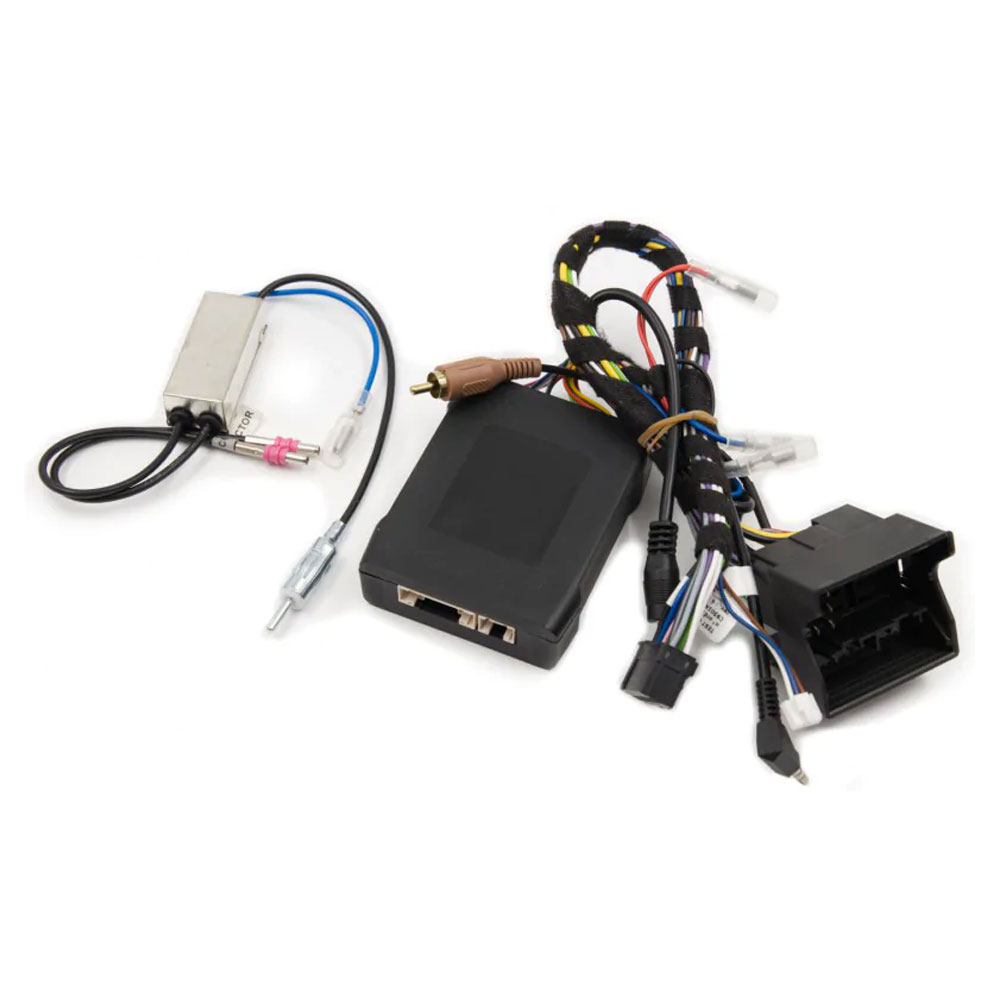

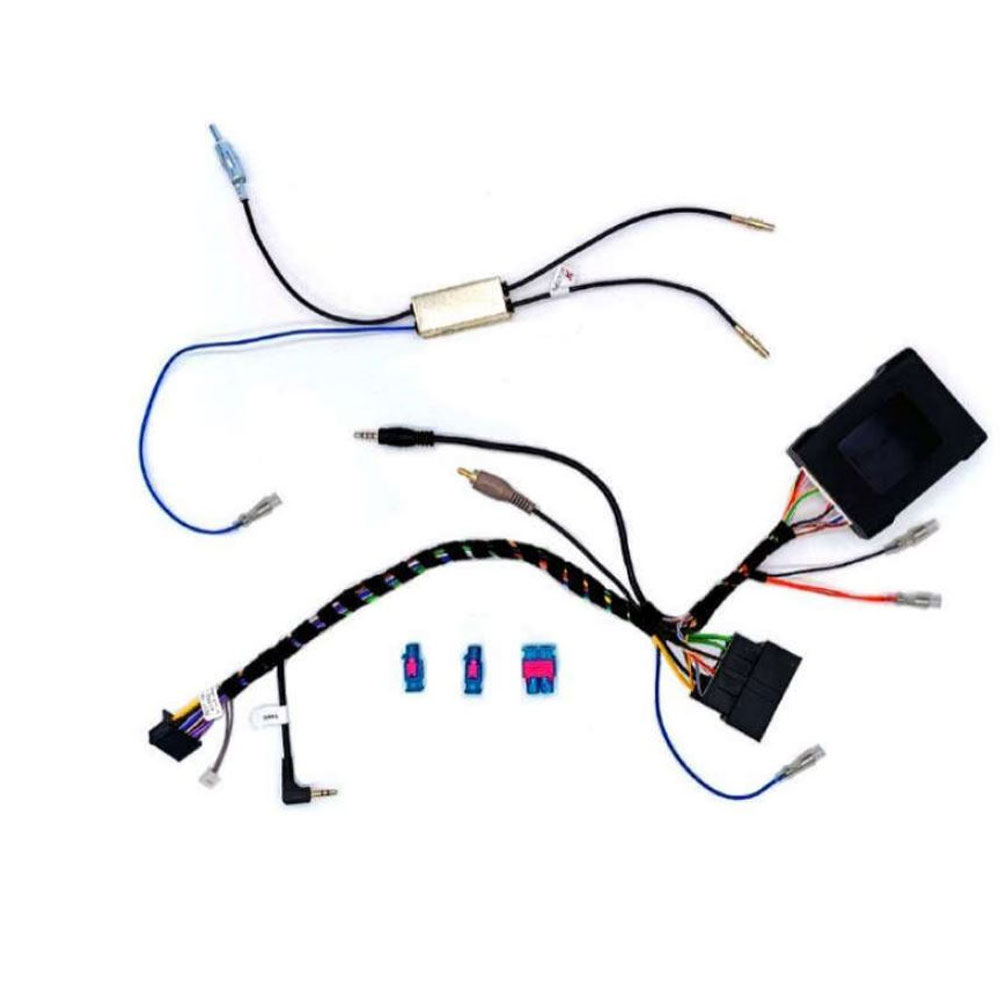

The interface applies to Pioneer units with a UART (4 pin) connector (SPH-EVO64/93), e.g. Pioneer EVO950 radio2. The module does not support Dynaudio or Think Blue systems. Trainer, additional heating, tire pressure, blind spot monitor, personalization options, seat positions, open-close options, hybrid options, etc. If you care about any parameter, ask us (info@sklephadron.pl), because the module software changes and the manufacturer sometimes adds supported functions. Installation and connection of the Pioneer CD-SVW-UAR.006AE moduleThe set includes everything you need to basicly connect a Pioneer radio to your VAG. On one side you connect to the car's installation, on the other to the radio (main connector, UART connector, jack for steering wheel control). The set also includes an antenna separator with adapters (fakra/double fakra). As is usually the case in VAG cars, you will also need a positive switch (ACC), for which the red wire next to the module is used.

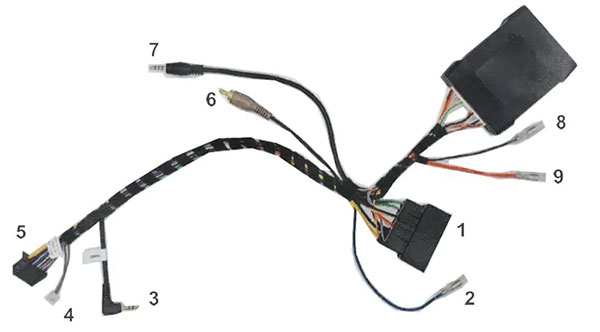

- for car installation
- plus to connect the separator (blue wire to blue wire)
- jack (angle plug) for steering wheel control (to the connector on the radio)
- to the UART
- connector. to radio (main connector)
- input for aftermarket reversing camera (RCA)
- jack (4 poles) - AUX (if present)
- GND (ground)
- ACC (post-ignition)
