Please Note:

This kit is designed to be compatible with most vehicles, though additional fitting parts may be required depending on the car model. We recommend using our “Products By Vehicle” tool to identify any vehicle-specific adapters or accessories needed for a seamless installation.

If in doubt please email us your vehicle details and we will advise you what is required.

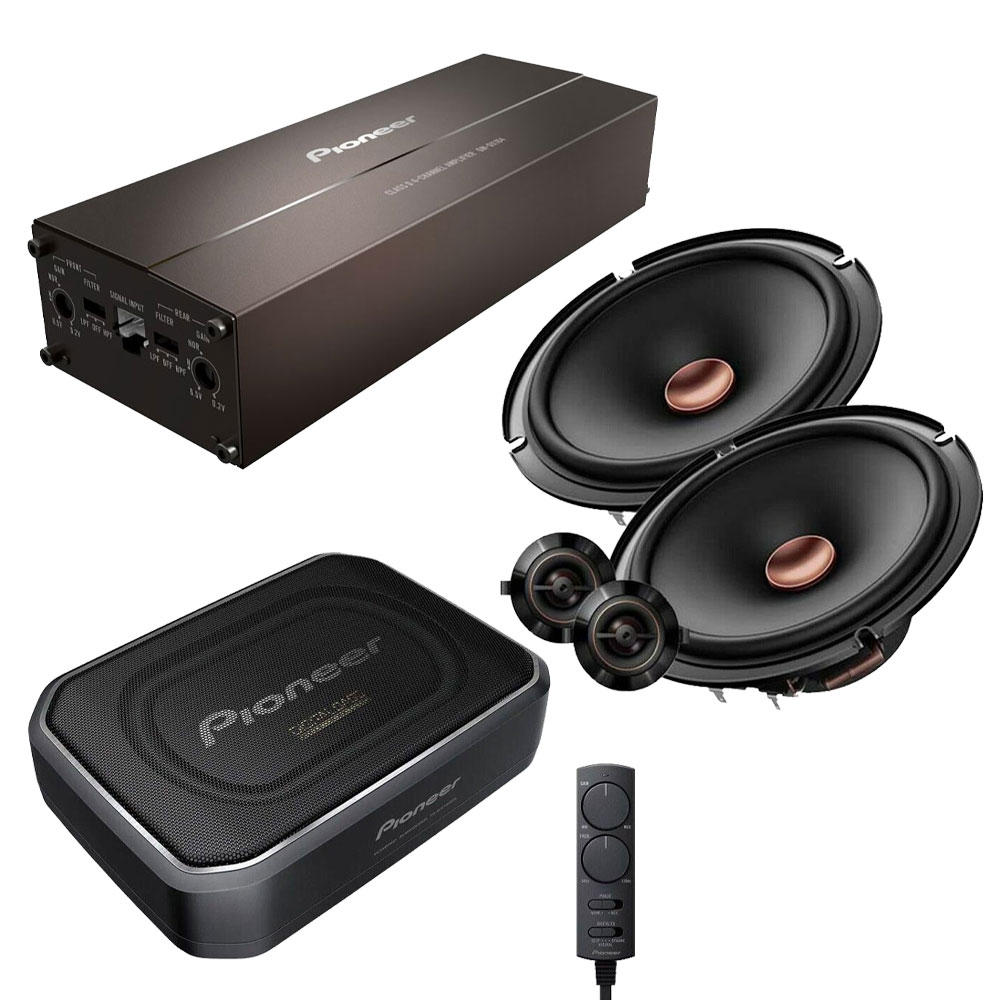

Package Includes

• Pioneer GM-DX104 4 Channel Class D Bridgeable Car Amplifier 400W
• Pioneer TS-WX140DA Class-D Space Saving Sub Under Seat Active Subwoofer 170W
• Pioneer TS-D65C 6.5" 17CM 270W 2 Way Component Car Door Speakers

GM-DX104

Compact, space saving, easy to install micro 4-Channel amplifier (400 W) featuring High Resolution Audio, Class-D Technology and compatible with OEM/Original (or aftermarket) stereos systems, including Electric Vehicles! (EV).

4-Channel

4-Channels to drive multiple speakers and/or subwoofers with total control.

Class D Amplifier

Enjoy first class sound and powerful volume on a versatile system at half the size of other units.

Product Specifications

Step up Logic (Amp)

• High Resolution Audio Certified:

Key Features Amp

• Channel(s): 4-Channel
• High Resolution Audio Certified
• Continuous Output Power: 45 W x 4 (4 Ω), 45 W x 4 (2 Ω), 90 W x 2 (4 Ω)
• Class D Technology
• Frequency Response: 10 Hz - 40 kHz
• Distortion: < 0.05 % >
• S/N Ratio: > 93 dB
• Load Impedance Capability: 2-8 ohm
• High Pass Filter
• Low Pass Filter
• Size: 181 mm (W) x 38 mm (H) x 64 mm (D)

Other Specifications Amp

• Speaker Terminals: ISO-Type

Pioneer TS-WX140DA Class-D Space Saving Sub Under Seat Active Subwoofer

Powerful Bass, without losing space.

Pioneer launches another product in its generation of Class-D amplified subwoofers integrating DIGITAL BASS CONTROL. This unique feature generates three selectable Bass Modes: DEEP, NATURAL and DYNAMIC, producing 170 Watts of strong, rich, deep bass that you can feel, without giving up space. Users can easily control and customise the three bass modes directly from the supplied wired remote control, and you can easily mount the TS-WX140DA under the front seats or in the boot.

Thanks to the inclusion of Class-D technology, Pioneer’s TS-WX140DA is even easier to install, as it is capable of taking both High (Speaker Line Input) and Low (RCA Line Input) input signals, meaning you can connect it to your aftermarket or original factory fitted stereo, to easily upgrade the sound you have now.

TS-WX140DA is a small active subwoofer in a sealed enclosure, delivering 170 W Maximum power and 50 W Nominal Power.

EV Optimized

This compact subwoofer is the perfect solution to add more deep and powerful bass in your Electric Vehicle (EV), without the typical sacrifice in space! With a built-in high-efficiency Class-D amplifier, low power consumption, low weight design and compact size you don't have to worry about lower mileage due to your bass addition.

Car Sound Fit App Car

sound simulator application for an improved in-car sound experience

Digital Bass Control

Selectable "BASS MODE" (DEEP/DYNAMIC) allows you to match the best bass style to your choice of favourite music.

Main Features

• EV Optimized
• CarSoundFit App
• DIGITAL BASS CONTROL
• Size 20 cm
• Maximum power 170 W
• Continuous power output 50 W
• Frequency Response
  • DEEP Bass Mode: 20 - 200 Hz
  • NATURAL Bass Mode: 40 - 200 Hz
  • DYNAMIC Bass Mode: 40 - 160 Hz
• Sensitivity
  • DEEP Bass Mode: 95 dB
  • NATURAL Bass Mode: 98 dB
  • DYNAMIC Bass Mode: 100 dB
• Woofer material Aluminium
• Surround Urethane
• Voice Coil type Copper Round Wire 4-Layer
• Voice Coil bobbin type Glass Imide
• Magnets Strontium
• Weight 3,1 kg
• Dimensions (W x H x D) 280 x 200 x 70

Pioneer TS-D65C 6.5" 17CM 270W 2 Way Component Car Door Speakers

Immerse yourself in open and smooth sound staging.

Discover the Pioneer TS-D Series speakers. Utilising Pioneer's renowned 'Open & Smooth' sound concept, this series offers open-staging, and a smooth transition of driver response making for an immersive experience that truly creates the ultimate in-car sound.

Adding to the sound characteristics, the tweeter on the TS-D Series is designed to swivel once installed, to give you the best direction of sound possible, according to where it is placed in the vehicle.

The Aramid Fiber interlaced with IMPPTM cone material is lightweight, rigid and able to cope with vibrations resulting in a sound that is smooth, clear and rich in linear bass. Every model in the Pioneer TS-D Series also offers flexibility when it comes to easy installation.

Every element of the TS-D65C is designed to offer you a high-quality sound experience that is natural, powerful, and truly immersive with exceptional detail.

Upgrade your sound with the Pioneer TS-D65C. This 17cm 2-Way component speaker system delivers up to 270 W Maximum power and 90 W Nominal power.

During Pioneer’s remarkable 80-year history, our loudspeaker technology has achieved the limits of quality sound reproduction, with an uncompromised design that only Pioneer can provide. Pioneer designs, engineers and manufactures each Pioneer loudspeaker in-house to Pioneer’s exact performance and quality standards. That is why we are proud to call our latest Z and D series ‘High Performance’ automotive loudspeakers. Pioneer is passionate in reproducing music in the purest form, and this can only be achieved if the speakers are correctly installed, maximising their performance, in your specific vehicle. To do this, Pioneer has a team of expert professionals across Europe who have the knowledge, experience and passion to be able to install Pioneer’s Z and D series, giving you the best audio experience possible. These Pioneer partners can sell and install the Pioneer Z and D series. Don’t just listen to your music, HEAR MORE.

Open & Smooth

OPEN and SMOOTH delivers smooth frequency response and an expansive soundstage

PERI Pioneer European Reference Installer

Pioneer has a team of expert professionals across Europe who have the knowledge, experience and passion to be able to sell and install the Pioneer’s Z and D series.

Main Features

• Size 17 cm
• Maximum power 270 W
• Nominal input power 90 W
• Frequency response 32 - 49.000
• Sensitivity 84 dB
• Impedance 4 Ω
• Crossover Frequency 3000 Hz
• Mounting Depth 65 mm. Tweeter: 15 mm
• Cut-out Hole 144 mm
• Woofer material Aramid Fiber interlaced IMPP™ cone
• Voice Coil type Copper Round Wire 2-Layer
• Voice Coil bobbin type Glass Imide
• Lowest resonance frequency 62 Hz
• Tweeter size 26 mm
• Tweeter material Aluminium Soft Dome
• Magnets Woofer: Ferrite
• Tweeter: Neodymium
• Weight 1.01 kg
• Open & SmoothTM
• 2-Way Component
• PERI Pioneer European Reference Installer
  • Pioneer has a team of expert professionals across Europe who have the knowledge, experience and passion to be able to sell and install the Pioneer’s Z and D series.

Note: This item/pack is sold as a pair and contains 2 speakers.
