Pioneer 17cm 165mm Speaker Upgrade Kit for Mazda
- Stock Status: In Stock
- Item Condition : New
- Available QTY : 3
- Brand: Pioneer
- Model: TS-G1720F + CT25MZ01
- EAN: 7427282683159
- Warranty: 2 Year Warranty
Description
Product Compatibility Chart
| Make | Model | Years | Notes |
| Mazda | 2 | 2008 - 2012 | (F+R) |
| Mazda | 3 | 2004 - 2009 | (F+R) |
| Mazda | 323 | 1999 - 2001 | (F) |
| Mazda | 5 | 2006 - 2011 | (F+R) |
| Mazda | 6 | Up to 2012 | 165mm |
| Mazda | BT-50 | 2007 - 2012 | (F+R) |
| Mazda | MPV | 2000 - 2007 | (F) |
| Mazda | MX-5 | Up to 2015 | 165mm |
| Mazda | MX-6 | 1993 - 1997 | (F+R) |
| Mazda | Tribute | 2001 - 2009 | (F+R) |
Speaker Adaptor kits allow aftermarket standard size speakers to be fitted into the original apertures of your car audio system.

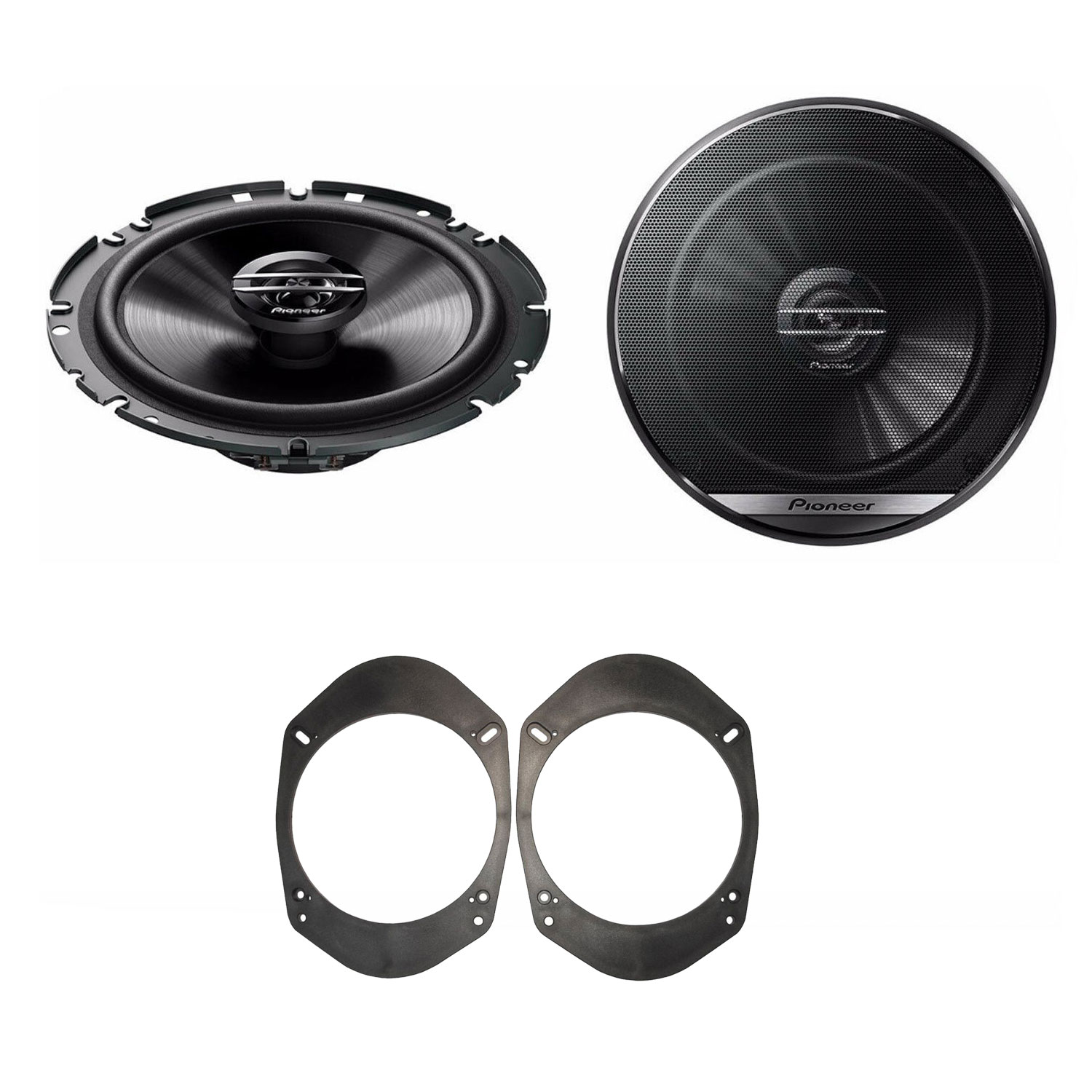

Package Includes
- Pioneer G-series 17cm 6.3/4 inch 2-Way 300W Coaxial Car Speakers
- 165mm 17cm Speaker Adaptor
Pioneer TS-G1720F G-series 17cm 6.3/4 inch 2-Way 300W Coaxial Car Speakers
For better-sounding drives.
Discover the renewed G-series
The improved G-series speaker range is specifically developed for premium and powerful audio, with excellent value for money. Their rigid design has been optimised with multi-bolt patterns, making it very easy to install any G-series speaker in your car. Thanks to their increased power handling and high sensitivity performance, these speakers reproduce deep, impactful bass and natural highs – even at high volumes.
TS-G1720F
Upgrade your in-car sound in a smart and affordable way with the TS-G1720F. This 17cm 2-way coaxial speaker delivers up to 40 Watts of nominal power and has a maximum power output of 300 Watts. It also features:
IMPP Cone
enjoy outstanding midbass response with the Blue Injection Molded Polypropylene Cone.
Main Features
- Weight 0.59 kg
- Coaxial Speakers
- Cut-out Hole 144 mm
- Size 17 cm
- Mounting Depth 49.7 mm
- Impedance 4 Ω
- Frequency response 36 - 18 000 Hz
- 2 Way
- Sensitivity 90 dB
- Lowest resonance frequency 81 Hz
- Maximum power input 300 W
- Nominal input power 40 W
- Woofer material IMPP Composite Cone
- Midrange size 30 mm
- Voice Coil type Copper
- Voice Coil bobbin type KAPTON
- Magnets Y35
