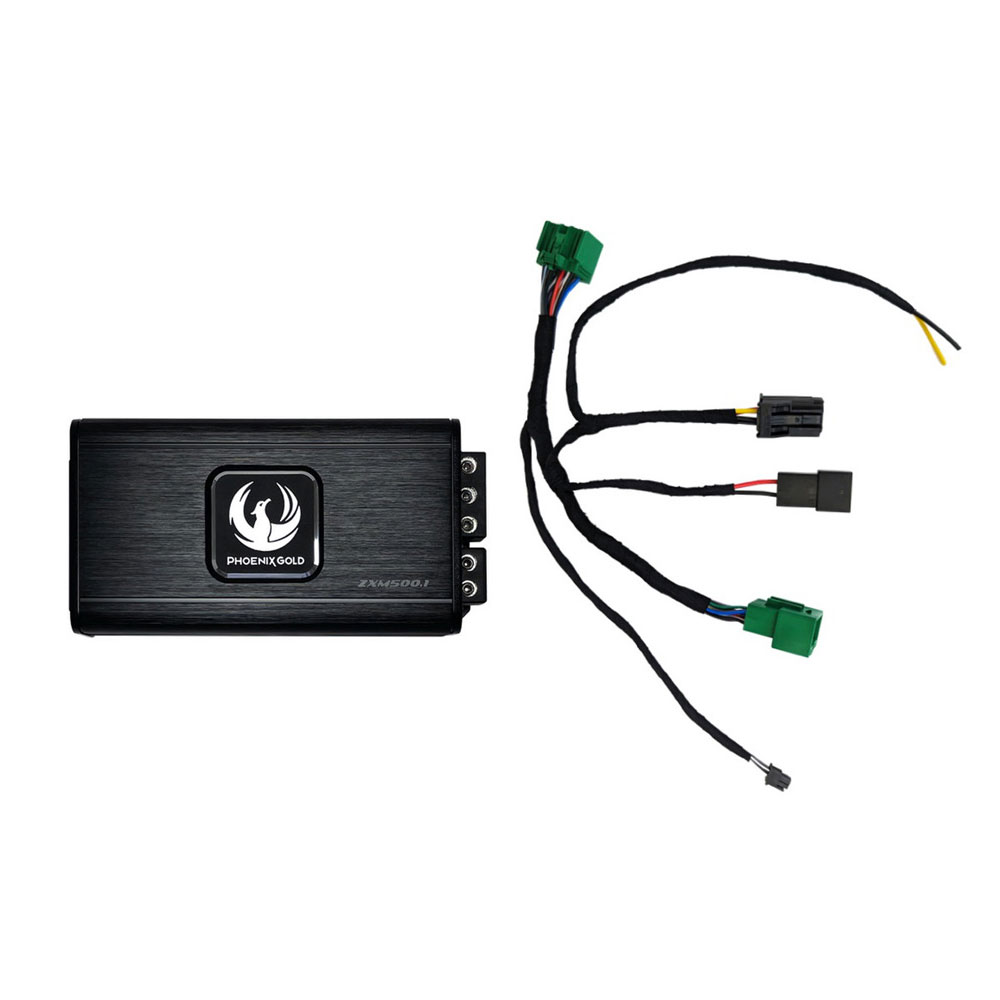

ZXMSV1 is a Plug and Play subwoofer upgrade kit made for Volvo XC40 with High Performance Sound System. This is the easiest way to add bass to your vehicle.

plifier Upgrade, is specifically designed for Volvo XC40 vehicles equipped with the High-Performance Sound System. If you’re looking to add some bass to your vehicle, this kit is the easiest and most efficient solution available.

At the heart of the ZXMSV1 Volvo XC40 Subwoofer Amplifier Upgrade is a powerful 500W monoblock amplifier. This amplifier takes the high-level signal from your car’s audio system and amplifies it to deliver outstanding bass performance. With this upgrade, you can connect an external subwoofer like our ZX18PBS or ZX210PBS for impactful bass that will truly transform your listening experience.

One of the standout features of the ZXMSV1 Volvo XC40 Subwoofer Amplifier Upgrade is the incredibly compact size of the amplifier. This compact design not only makes installation a breeze but also provides flexibility in terms of placement options.

You can easily find a suitable location to install the ZXMSV1 Volvo XC40 Subwoofer Amplifier Upgrade without compromising valuable space in your vehicle. Thanks to the efficient Class-D technology used in the amplifier, there’s no need to worry about overheating or performance issues.

Introducing our Class-D Mono Mini Amplifier, a compact powerhouse designed to deliver impressive audio performance. With a maximum power output of 1000W, this amplifier ensures a dynamic and immersive listening experience. The power ratings of 500W x 1 @ 1Ohm, 360W x 1 @ 2Ohm, and 230W x 1 @ 4Ohm guarantee consistent and reliable power delivery, allowing you to drive your speakers or subwoofers with authority.

Enjoy a wide frequency response range of 20Hz to 500Hz. With a signal-to-noise ratio exceeding 90dB, your music will be free from unwanted background noise.

Total harmonic distortion remains below 0.3%. Take control of your sound with the built-in low pass filter, adjustable from 40Hz to 250Hz with a slope of 24dB/octave. The subsonic filter eliminates unwanted frequencies between 10Hz and 50Hz, enhancing the overall audio quality by removing rumble and distortion.

To add depth and impact to your bass, engage the bass boost function which allows for up to 18dB of boost at 45Hz. The amplifier also features high-level input auto turn-on, seamlessly integrating with your existing audio system and activating automatically when a signal is detected.

Despite its impressive power and features, ZXMSV1 Volvo XC40 Subwoofer Amplifier Upgrade maintains a compact footprint, measuring 165mm in length, 83.1mm in width, and 34.8mm in height. This compact size ensures a hassle-free installation process while providing flexibility in placement options.

The ZXMSV1 Volvo XC40 Subwoofer Amplifier Upgrade is engineered for seamless integration with your Volvo XC40. The plug and play design ensures a hassle-free installation process, allowing you to enjoy the enhanced bass performance in no time. Simply connect the ZXMSV1 Volvo XC40 Subwoofer Amplifier Upgrade kit to your existing audio system, and you’re ready to experience a new level of low-frequency impact.

Not only does the ZXMSV1 Volvo XC40 Subwoofer Amplifier Upgrade deliver exceptional bass performance, but it also ensures reliability. The high-quality components used in the kit are built to withstand the demands of continuous, high-powered audio output. Rest assured that your audio experience will be consistent and reliable, even during extended listening sessions.

Small In Size Big In Power

The ZXM500.1 is an impressive Class-D Mono Mini Amplifier. The ZXM amplifiers are made to be as small as possible without compromising sound quality, power and functions. The ZXM500.1 is a 1-channel amplifier with 500W RMS into 1 Ohm. The power output in 2 Ohm is 360W RMS and in 4 Ohm is 230W RMS. This means it can be loaded between 4-1 Ohm with lots of power.

The ZXM500.1 has 24dB Low pass filter and also an adjustable Subsonic filter. This amazing amplifier also has a bass-boost function and comes with a 5M remote gain controller to adjust the sub-level. The ZXM500.1 amp can handle both RCA and High-level input on the same terminals and the smart-made supplied connectors make it easy to connect. A high level of engineering has gone into making these amps with low EMI emissions to
not interfere with the advanced electronics or FM signal.

Key Features

• Massive Power & Performance
• Full Class-D technology offers efficiency & performance
• Short circuit/thermal and high/low voltage protection
• Excellent signal-to-noise ratio and FM noise rejection
• Remote gain controller included (ZXM500.1)
• Built-in protection LED light status indicator
• Surface mount component technology
• Ultra small size for easy installation
• Autostart on high-level input
• Full adjustable HP & LP filter

Specifications

• Class-D Mono Mini Amplifier
• Power (MAX) 1000W
• Power Ratings (RMS)
• 500W x 1 @ 1Ohm
• 360W x 1 @ 2Ohm
• 230W x 1 @ 4Ohm
• Frequency Response: 20Hz – 500Hz
• Signal to Noise Ratio: >90dB
• Total Harmonic Distortion: <0.3%
• Low Pass Filter: 40Hz – 250Hz (24dB/Oct)
• Subsonic: 10Hz – 50Hz (24dB/Oct)
• Bass Boost: 0 – 18dB @ 45Hz
• High Level Input Auto Turn-On
• Remote Control Included
• Dimensions (L x W x H) 165 x 83.1 x 34.8mm
