Phoenix Gold ZXMPVW1 Volkswagen Power Up Kit with Class-D 4 Channel Mini Amplifier
- Stock Status: Out Of Stock
- Item Condition : New
- Available QTY : 0
- Brand: Phoenix gold
- Model: ZXMPVW1
- EAN: 7427307033525
- Warranty: 2 Years Warranty
Description
Product Compatibility Chart
| Make | Model | Years | Notes |
| Volkswagen | Amarok | 2017 - 2022 | (I) (Facelift) |
| Volkswagen | Amarok | 2022 onward | (II) |
| Volkswagen | Arteon | 2017 onward | (3H7) |
| Volkswagen | Beetle | 2016 - 2019 | (A5) (Facelift) |
| Volkswagen | Caddy | 2015 - 2020 | (III) (2nd Facelift) |
| Volkswagen | Caddy | 2020 onward | (IV) |
| Volkswagen | Crafter | 2017 onward | (II) |
| Volkswagen | Golf | 2012 - 2020 | (VII) |
| Volkswagen | Golf | 2014 - 2020 | Sportsvan |
| Volkswagen | Golf | 2020 onward | (VIII) |
| Volkswagen | ID.3 | 2019 onward | |
| Volkswagen | ID.4 | 2020 onward | |
| Volkswagen | Jetta | 2010 - 2018 | (VI) |
| Volkswagen | Jetta | 2018 onward | (VIII) |
| Volkswagen | Passat | 2014 - 2020 | (B8) |
| Volkswagen | Passat | 2020 onward | (B8) (Facelift) |
| Volkswagen | Polo | 2014 - 2017 | (V (6C)) |
| Volkswagen | Polo | 2017 onward | (VI) |
| Volkswagen | Scirocco | 2014 - 2017 | (III) (Facelift) |
| Volkswagen | Sharan | 2016 - 2022 | (II) (Facelift) |
| Volkswagen | T-Roc | 2017 onward | |
| Volkswagen | Tiguan | 2012 - 2015 | (I) (Facelift) |
| Volkswagen | Tiguan | 2016 onward | (II) |
| Volkswagen | Tiguan | 2017 onward | Allspace |
| Volkswagen | Touareg | 2010 - 2018 | (II) |
| Volkswagen | Touareg | 2018 onward | (III) |
| Volkswagen | Touran | 2015 onward | (II) |
| Volkswagen | Transporter | 2015 - 2019 | (T6) |
| Volkswagen | Transporter | 2019 onward | (T6.1) |
| Volkswagen | UP! | 2016 onward |
Basic Sound System

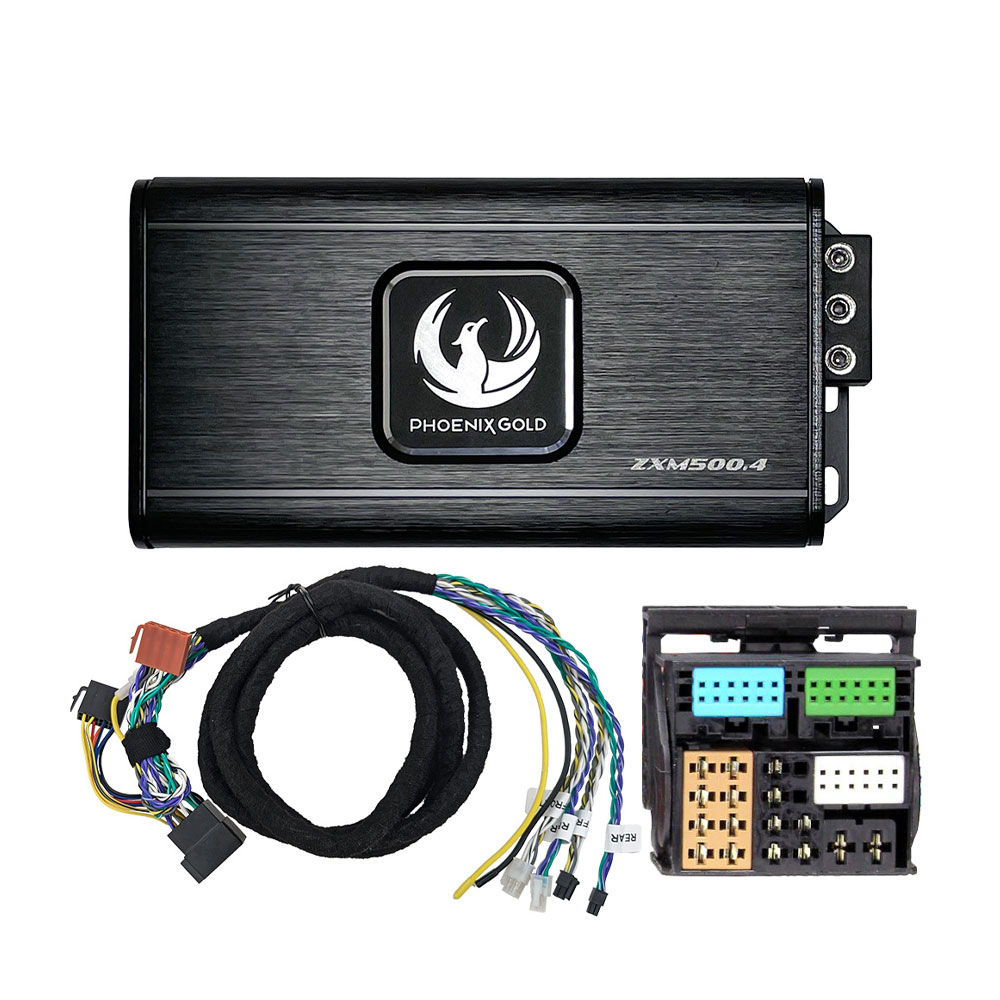

ZXMPVW1 is a Plug and Play power-up kit made for Volkswagen vehicles from 2012 and up (for a full model list please view Vehicle Applications). The ZXMPVW1 power up kit consists of a variety of technology designed to improve the overall audio output of a vehicle. The ZXMPVW1 includes a ZXM500.4 Amplifier and ZXMISOT2 ISO-T harness.
Utilising the high-level signals from your vehicle and passing it through the 4-channel 500W amplifier transforming and amplifying the audio signal before sending it to your speakers, gives them a real boost in both output and performance delivering an all new and improved audio experience. The amplifier boasts a sleek, compact design while delivering substantial power in a remarkably small package. This makes the amplifier easy to install almost anywhere and thanks to the use of class-D technology the amplifier does not run the risk of getting hot or overheating.

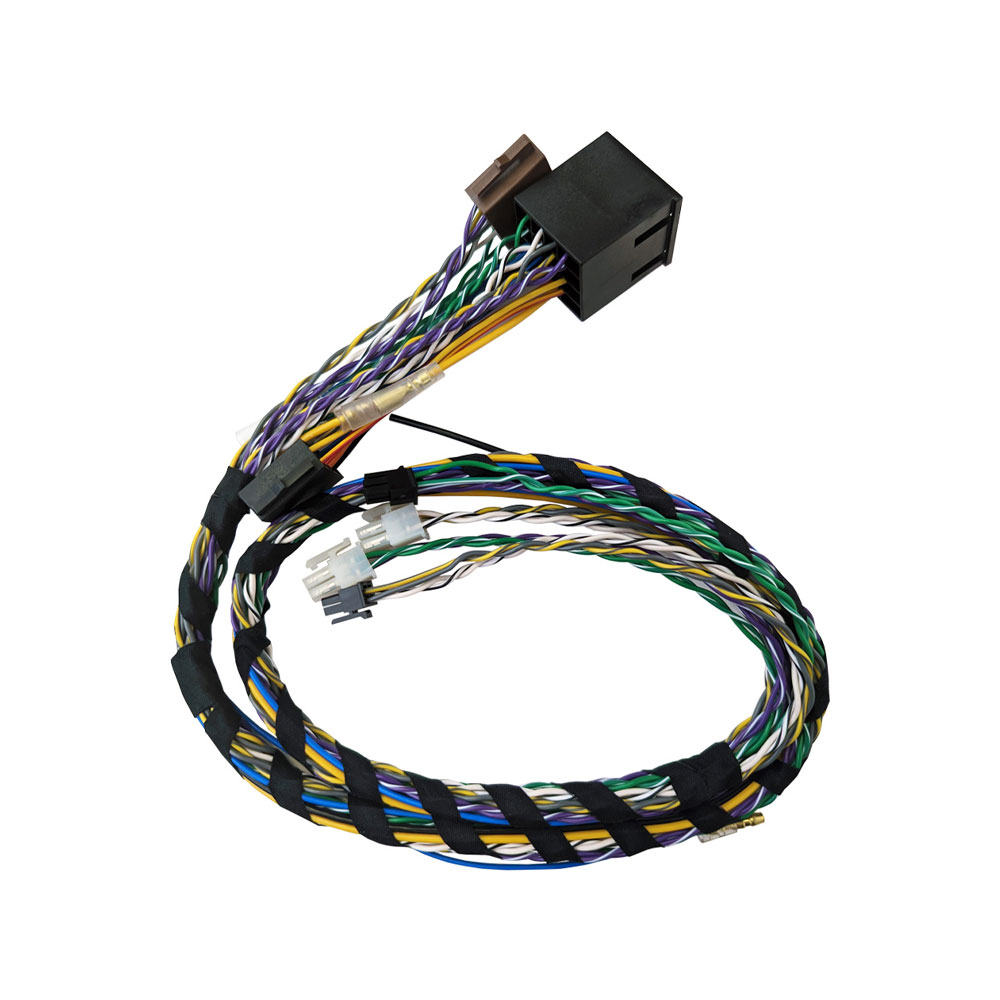

The ZXMISOT2 2.2M ISO-T Harness is the perfect accessory when installing the ZXM500.4 amplifier. This 220cm long plug-and-play harness is installed between the amplifier and vehicle, taking high-level input signal from the car and passing it through the amplifier and sending it to the speakers, giving you extra power.
The amplifier boasts a sleek, compact design while delivering substantial power in a remarkably small package. This makes the amplifier easy to install almost anywhere and thanks to the use of class-D technology the amplifier does not run the risk of getting hot or overheating.
ZXMPVW1 Power-up Kit Key Features
- Quick and easy install
- No modifications needed on the vehicle
- Invisible integration
- ZXMPVW1 Sound quality superior to the original one
- No additional accessories required
- All in one box

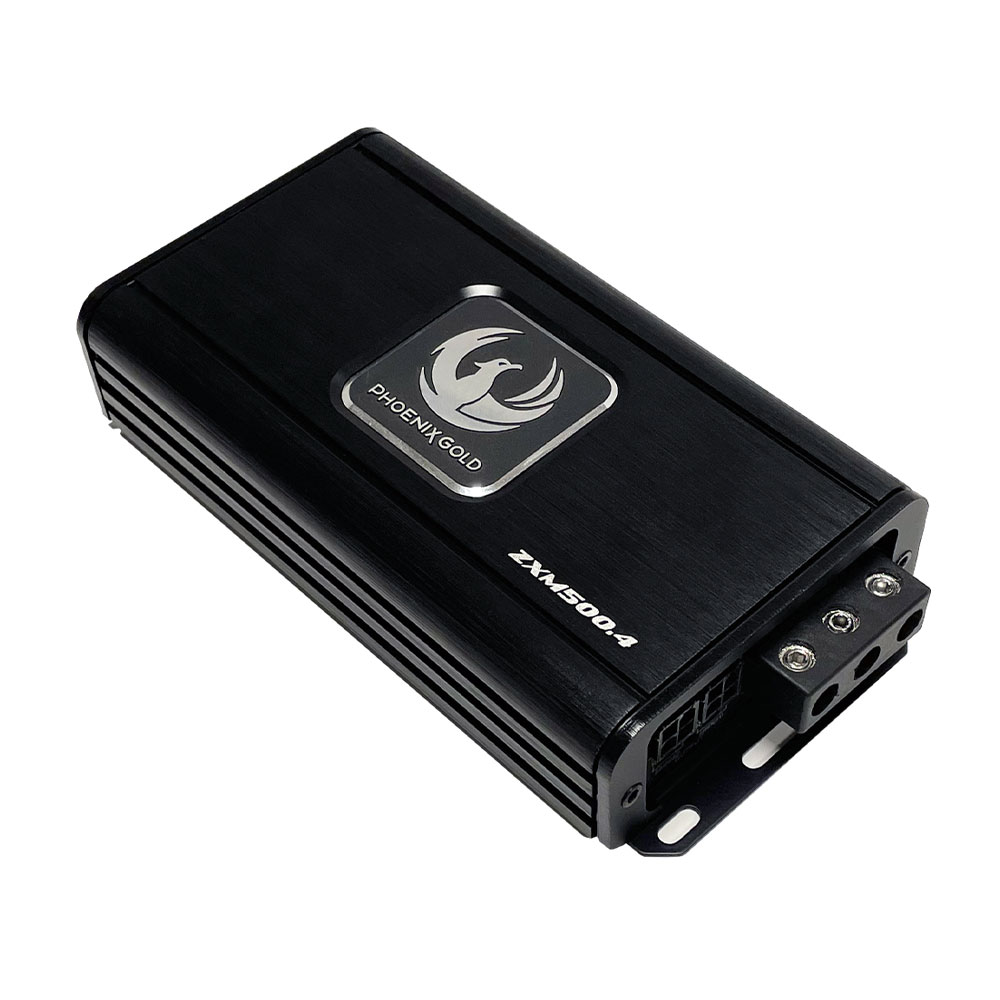

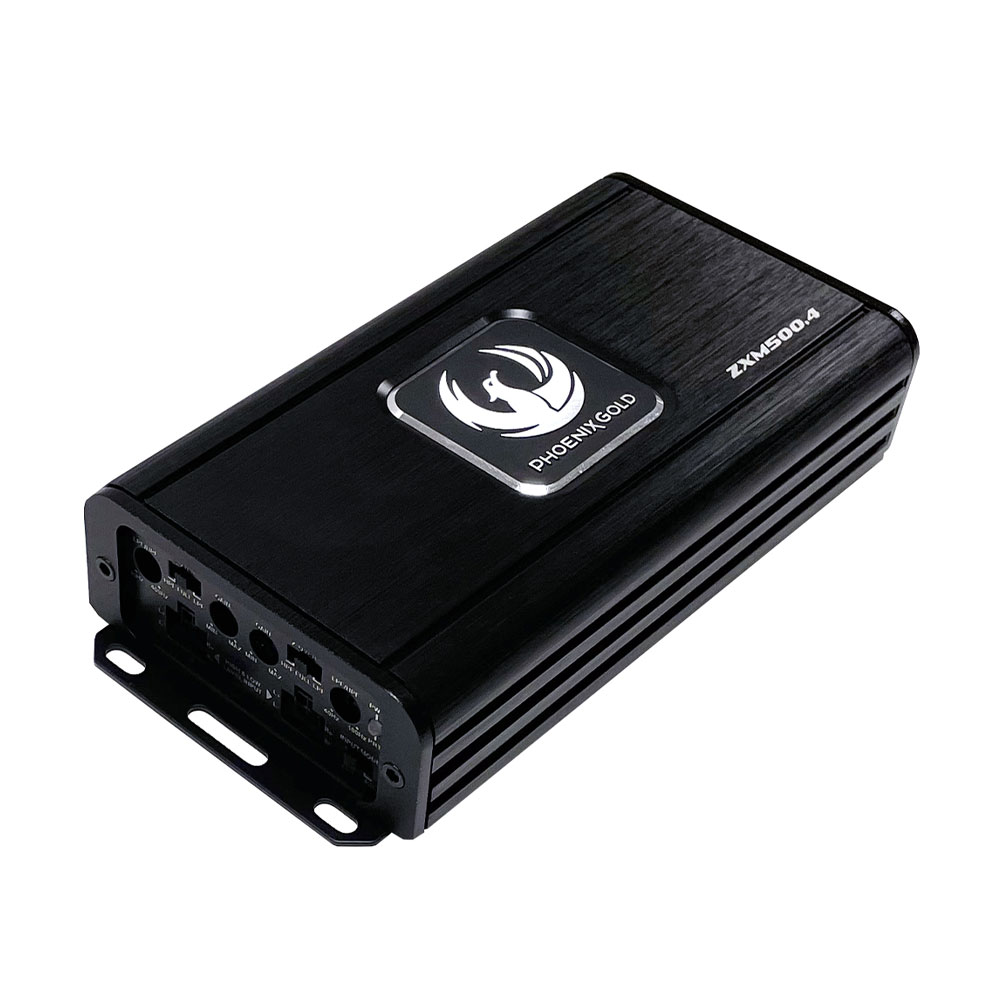

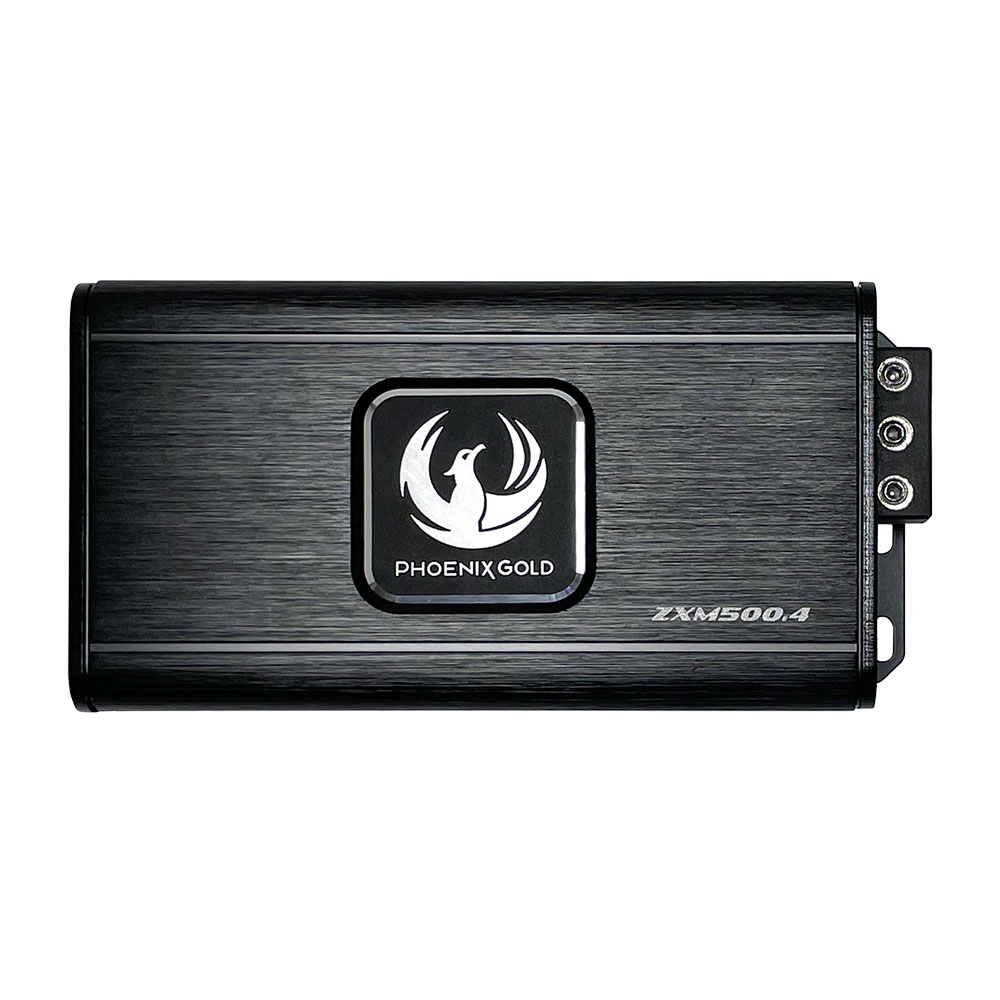

The ZXM500.4 is an impressive Class-D 4-channel Mini Amplifier. The ZXM amplifiers are made to be as small as possible without compromising sound quality, power and functions. The ZXM500.4 is a 4-channel amplifier with a total power of 500W RMS. This equals 4x80W RMS in 4Ohm but the amplifier is stable into 2Ohm and then delivers 4x125W RMS. The 4 channels can also be bridged into 2x250W RMS in 4Ohm. The amplifier comes with adjustable HP/ LP filters and also a switch to use 2ch input or 4ch input low or high level.
A high level of engineering has gone into making these amps with low EMI emissions to not interfere with the advanced electronics or FM signal.
Key Features
- Massive Power & Performance
- Full Class-D technology offers efficiency & performance
- Short circuit/thermal and high/low voltage protection
- Excellent signal-to-noise ratio and FM noise rejection
- Built-in protection LED light status indicator
- Surface mount component technology
- Ultra small size for easy installation
- Autostart on high-level input
- Full adjustable HP & LP filter
Specifications
- Class-D 4-Channel Mini Amplifier
- Power (MAX) 1000W
- Power Ratings (RMS)
- 125W x 4 @ 2Ohm
- 80W x 4 @ 4Ohm
- 250W x 2 @ 4Ohm bridged
- Frequency Response: 20Hz 20kHz
- Signal to Noise Ratio: > 90dB
- Total Harmonic Distortion: < 0.3%
- Low Pass Filter: 40Hz 400Hz (12dB/Oct)
- High Pass Filter: 40Hz 400Hz (12dB/Oct)
- High-Level Input Auto Turn-On
- Dimensions (LxWxH) 165 x 83.1 x 34.8mm
