Phoenix Gold ZXMPCH1 Chrysler, Dodge and Jeep Power Up Kit with Class-D 4 Channel Mini Amplifier
- Stock Status: In Stock
- Item Condition : New
- Available QTY : 1
- Brand: Phoenix gold
- Model: ZXMPCH1
- EAN: 7427307008257
- Warranty: 2 Years Warranty
Description

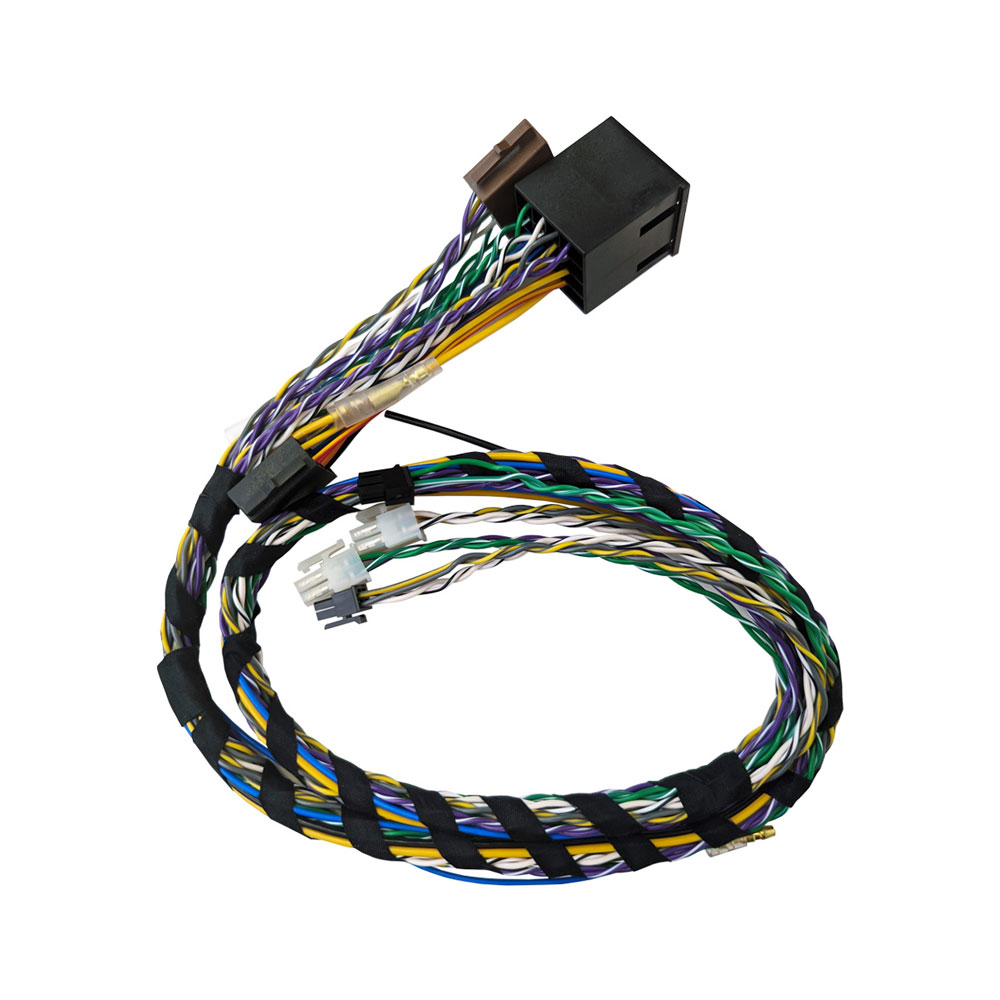

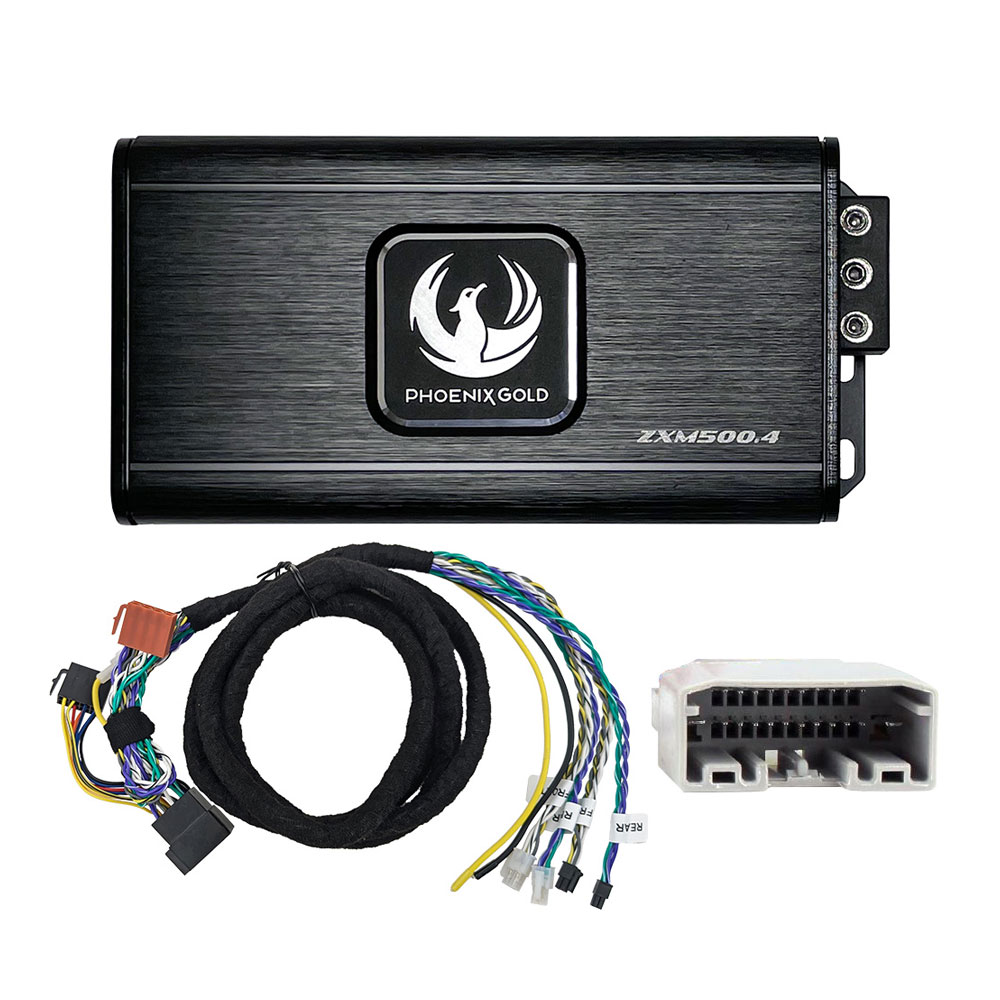

ZXMPCH1 is a Plug and Play power-up kit made for Chrysler, Dodge and Jeep vehicles. This power up kit consists of a variety of technology designed to improve the overall audio output of a vehicle. The ZXMPCH1 includes a ZXM500.4 Amplifier and ZXMISOT2 ISO-T harness.
Utilising the high-level signals from your vehicle and passing it through the 4-channel 500W amplifier transforming and amplifying the audio signal before sending it to your speakers, gives them a real boost in both output and performance delivering an all new and improved audio experience with ZXMPCH1.
The amplifier boasts a sleek, compact design while delivering substantial power in a remarkably small package. This makes the amplifier easy to install almost anywhere and thanks to the use of class-D technology the amplifier does not run the risk of getting hot or overheating.
Product Compatibility Chart
| Make | Model | Years | Notes |
| Chrysler | 300 | 2008 - 2010 | |
| Chrysler | 300C | 2008 - 2010 | |
| Chrysler | Aspen | 2007 - 2009 | |
| Chrysler | Grand Voyager | 2008 - 2016 | (V) |
| Chrysler | Sebring | 2007 - 2010 | (III) |
| Chrysler | Town & Country | 2008 - 2016 | (V) |
| Dodge | Avenger | 2007 - 2014 | |
| Dodge | Caliber | 2009 - 2012 | |
| Dodge | Challenger | 2009 - 2015 | |
| Dodge | Charger | 2008 - 2015 | |
| Dodge | Dakota | 2008 - 2011 | |
| Dodge | Durango | 2007 - 2009 | |
| Dodge | Grand Caravan | 2008 - 2015 | |
| Dodge | Journey | 2008 - 2010 | |
| Dodge | Magnum | 2008 - 2008 | |
| Dodge | Nitro | 2007 - 2012 | |
| Dodge | Ram | 2009 - 2013 | |
| Jeep | Cherokee | 2008 - 2013 | (KK) |
| Jeep | Commander | 2006 - 2010 | (XK) |
| Jeep | Compass | 2011 - 2017 | |
| Jeep | Grand Cherokee | 2008 - 2013 | |
| Jeep | Liberty | 2008 - 2012 | |
| Jeep | Patriot | 2009 - 2017 | |
| Jeep | Wrangler | 2006 - 2017 |
Basic Sound System
ZXMPCH1 Power-up Kit Key Features
- ZXMPCH1 Quick and easy install
- No modifications needed on the vehicle
- Invisible integration
- ZXMPCH1 Sound quality superior to the original one
- No additional accessories required
- All in one box

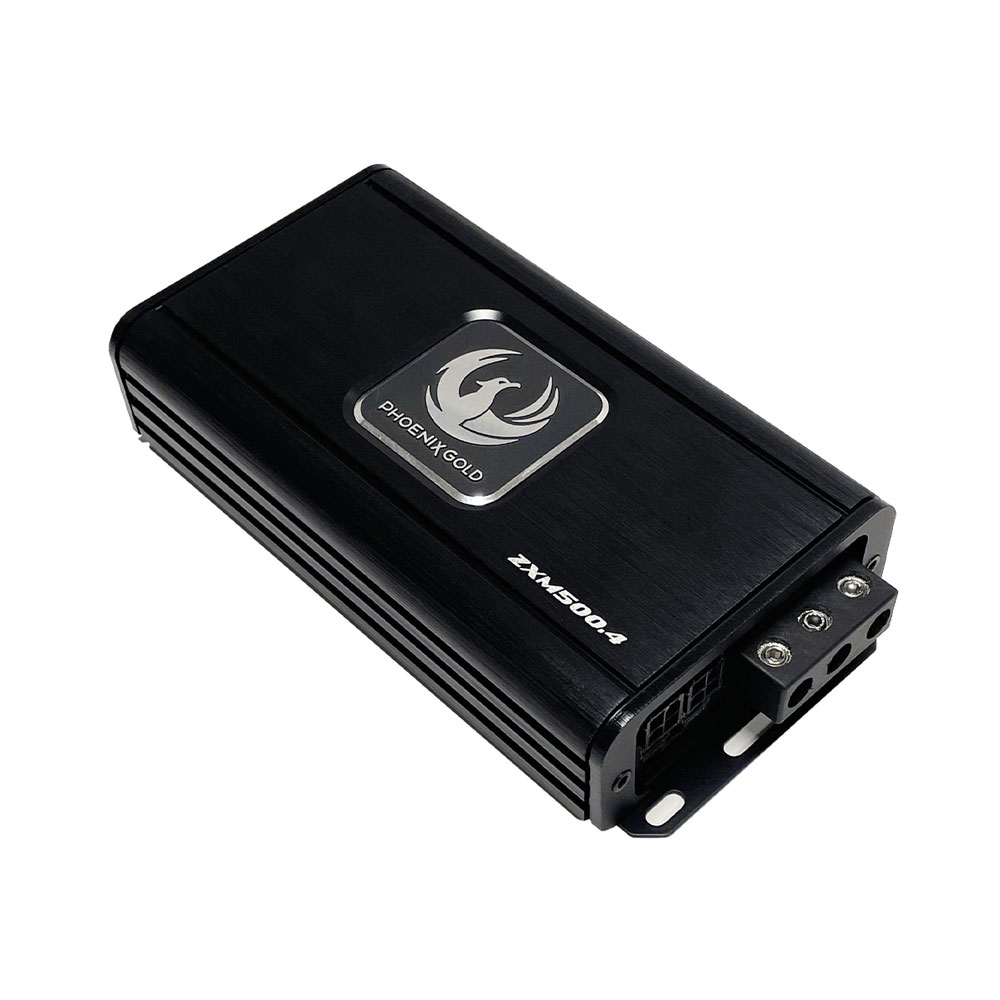

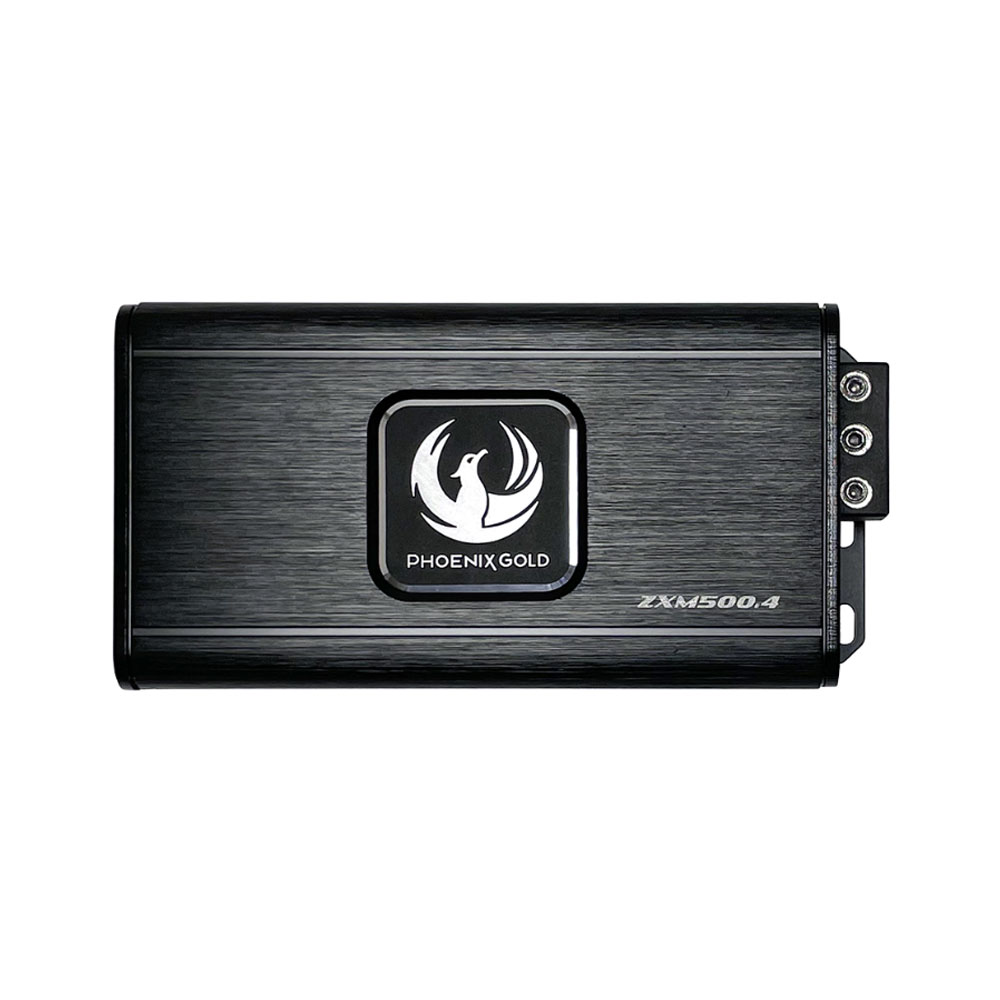

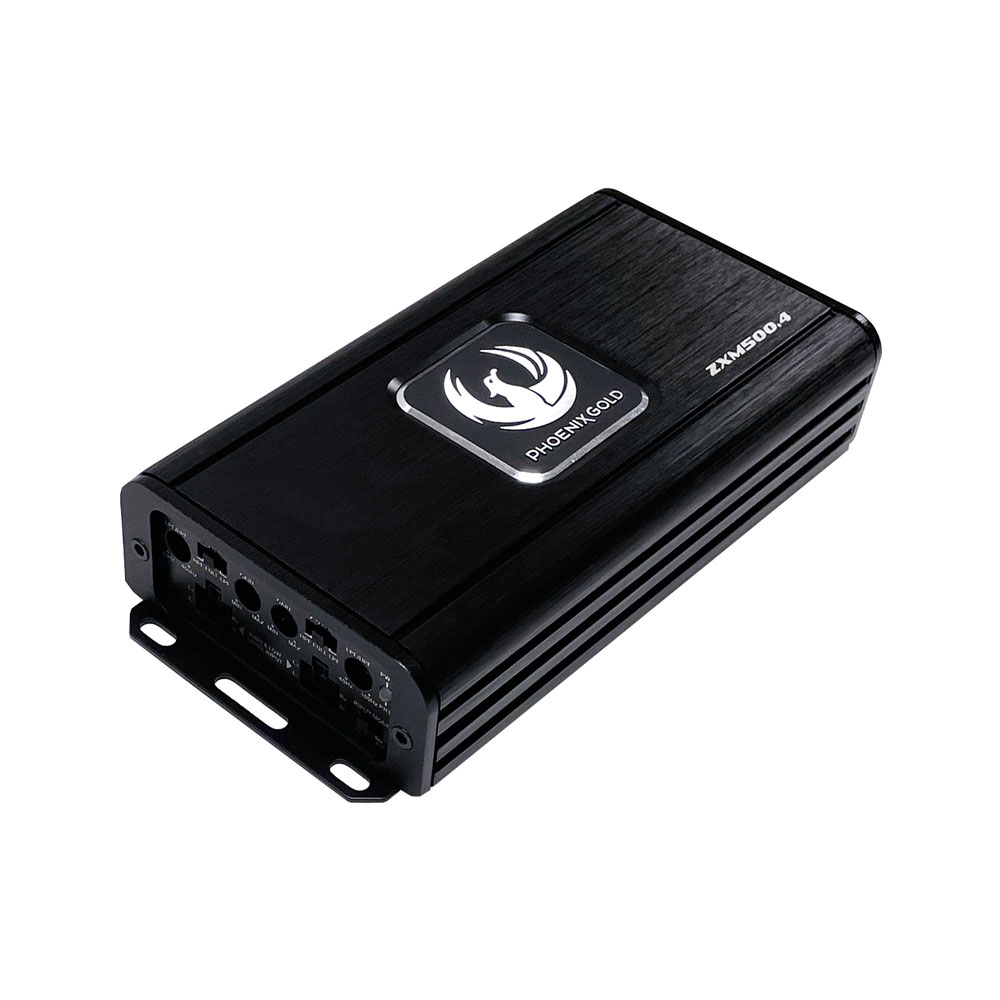

The ZXM500.4 is an impressive Class-D 4-channel Mini Amplifier. The ZXM amplifiers are made to be as small as possible without compromising sound quality, power and functions. The ZXM500.4 is a 4-channel amplifier with a total power of 500W RMS. This equals 4x80W RMS in 4Ohm but the amplifier is stable into 2Ohm and then delivers 4x125W RMS. The 4 channels can also be bridged into 2x250W RMS in 4Ohm. The amplifier comes with adjustable HP/ LP filters and also a switch to use 2ch input or 4ch input low or high level.
A high level of engineering has gone into making these amps with low EMI emissions to not interfere with the advanced electronics or FM signal.
Key Features
- Massive Power & Performance
- Full Class-D technology offers efficiency & performance
- Short circuit/thermal and high/low voltage protection
- Excellent signal-to-noise ratio and FM noise rejection
- Built-in protection LED light status indicator
- Surface mount component technology
- Ultra small size for easy installation
- Autostart on high-level input
- Full adjustable HP & LP filter
Specifications
- Class-D 4-Channel Mini Amplifier
- Power (MAX) 1000W
- Power Ratings (RMS)
- 125W x 4 @ 2Ohm
- 80W x 4 @ 4Ohm
- 250W x 2 @ 4Ohm bridged
- Frequency Response: 20Hz – 20kHz
- Signal to Noise Ratio: > 90dB
- Total Harmonic Distortion: < 0.3%
- Low Pass Filter: 40Hz – 400Hz (12dB/Oct)
- High Pass Filter: 40Hz – 400Hz (12dB/Oct)
- High-Level Input Auto Turn-On
- Dimensions (L x W x H) 165 x 83.1 x 34.8mm
