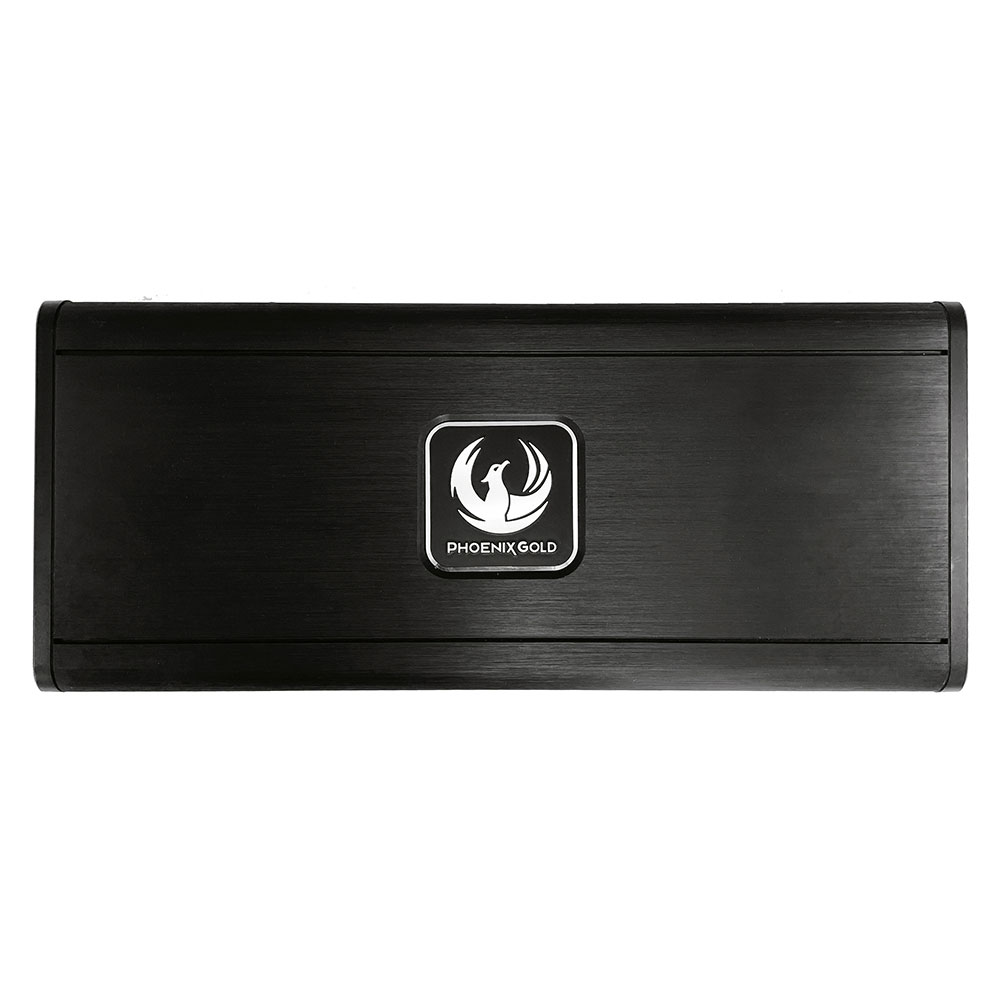

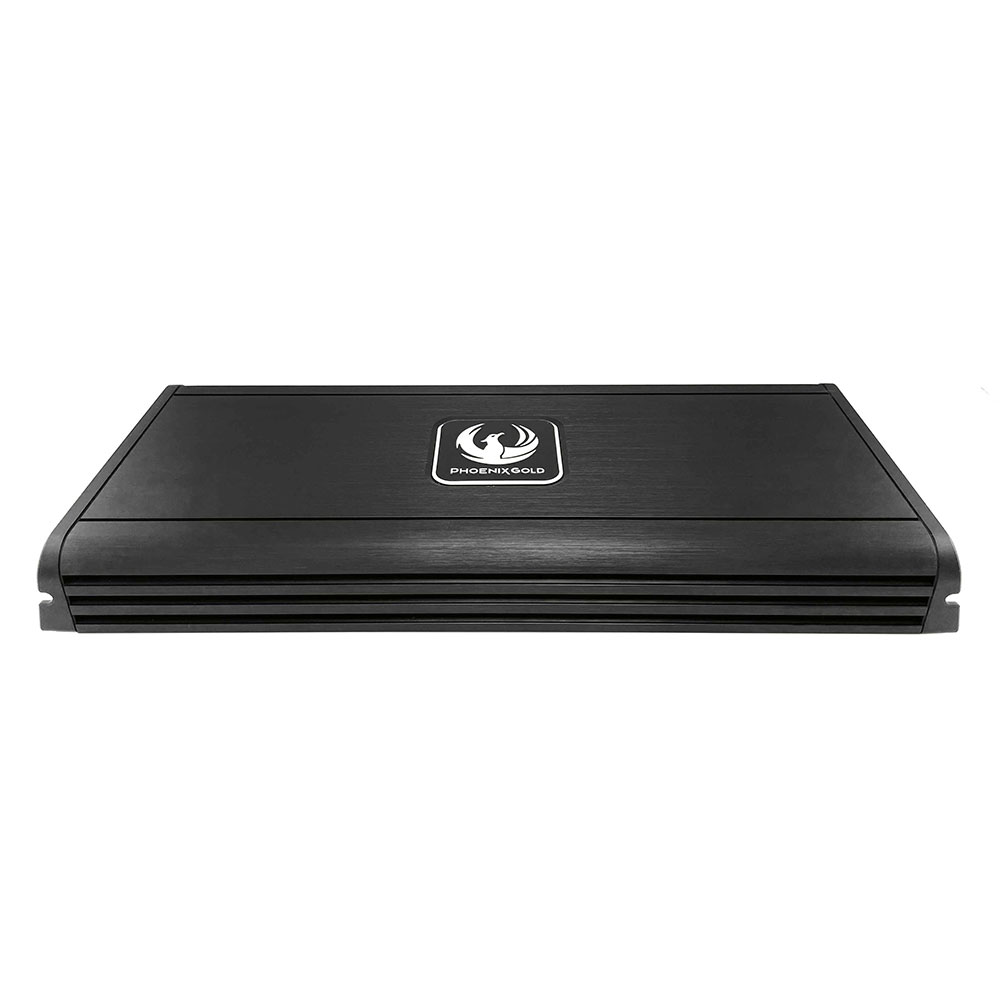

ZT15001 Monoblock 24V Class-D Amplifier 1500W

The ZT15001 is a powerful 1500W monoblock 24V Class-D Amplifier with a fantastic compact design suitable for even the smallest of installs. Featuring our high-quality signature gold design circuit board, the ZT15001 uses its high-grade connection terminal to ensure a clean crisp power delivery to all your components.

The ZT15001 a 1500W monoblock 24V Class-D Amplifier engineered to redefine compact yet powerful sound delivery. This amplifier stands out with its sleek and compact design, perfect for installations where space is at a premium.

Elevate your audio experience to new heights with its cutting-edge features and high-grade components, ensuring unparalleled performance and reliability in any audio setup.

The ZT15001 doesn’t compromise on power. With a robust RMS power rating of 1500W x 1 @ 1Ohm, 1100W x 1 @ 2Ohm, and 600W x 1 @ 4Ohm, this amplifier delivers a dynamic audio output, allowing you to experience music with depth and clarity.

The ZT15001 amplifier offers control over your sound system. Featuring high and low pass crossover filters at 24dB per octave and a versatile crossover range of 50Hz to 250Hz, it enables precise frequency tailoring to suit your audio preferences.

The subsonic crossover filter further enhances the audio quality by eliminating frequencies below 10Hz to 55Hz, ensuring cleaner, distortion-free bass reproduction.

The ZT15001 offers seamless integration into your setup with low to high-level input range from 0.2V to 10V, providing versatile connectivity options. Its phase control feature (0-180) further refines audio precision, ensuring optimal sound synchronization.

The included bass controller adds convenience, allowing remote adjustments for bass levels from your listening position.

Crafted with dimensions of 383 x 160 x 48mm, this amplifier’s compact footprint does not compromise on performance. Its high-grade connection terminals guarantee clean power delivery to your audio components, promising a crisp and powerful audio output in even the most space-restricted installations.

Specification

• Power Ratings (RMS)
• 1500W x 1 @ 1Ohm
• 1100W x 1 @ 2Ohm
• 600W x 1 @ 4Ohm
• Class-D Technology
• Frequency Response: 20Hz 400Hz
• Signal to Noise Ratio: >96dB
• High & Low Pass Crossover 24dB per octave
• Crossover Range: 50Hz 250Hz
• Subsonic Crossover Filter: 10Hz 55Hz
• Bass Boost: @ 45Hz 0 to +18db
• Phase Control: 0-180
• Low-High Level Input Range: 0.2V to 10V
• Min Load Impedance: 1Ohm
• Dimensions (LxWxH): 383 x 160 x 48mm
• Includes Bass Controller
