8 Inch Slim Active Bass Enclosure | Thermal, overload and speaker short protection | Remote subwoofer level control

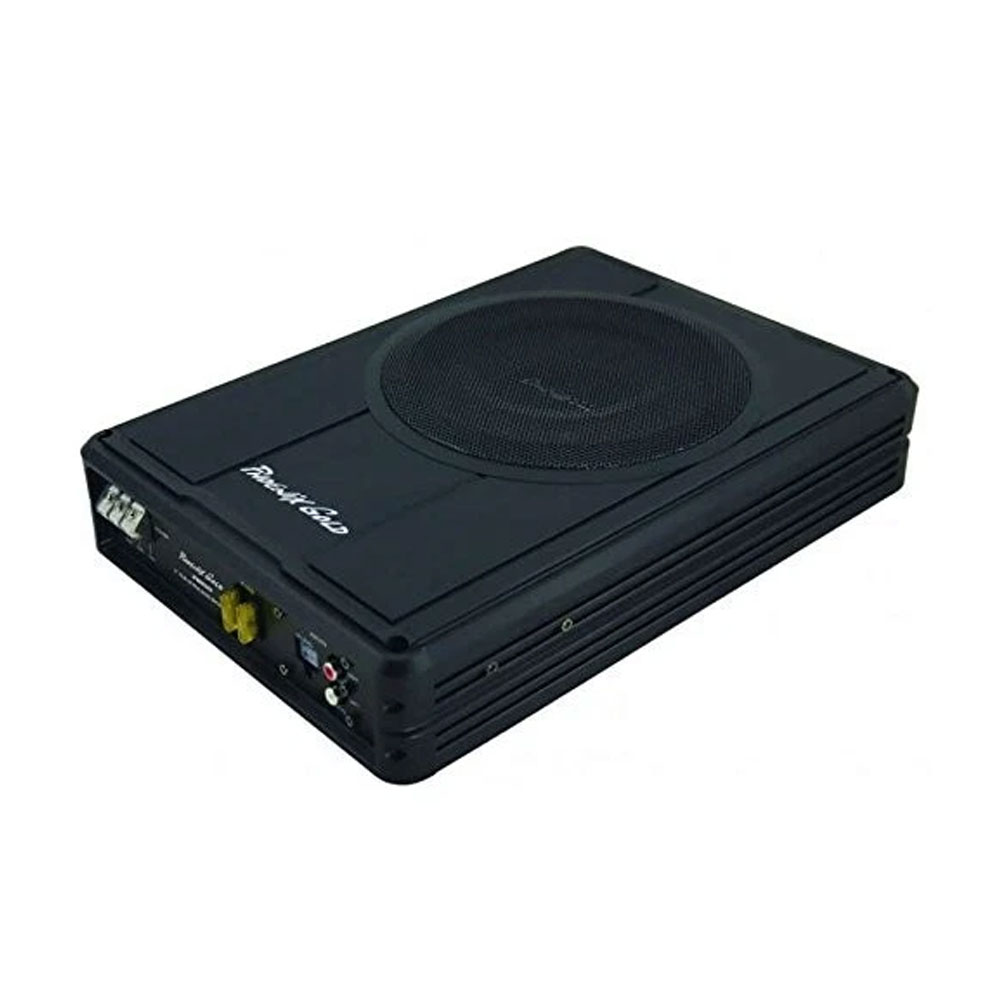

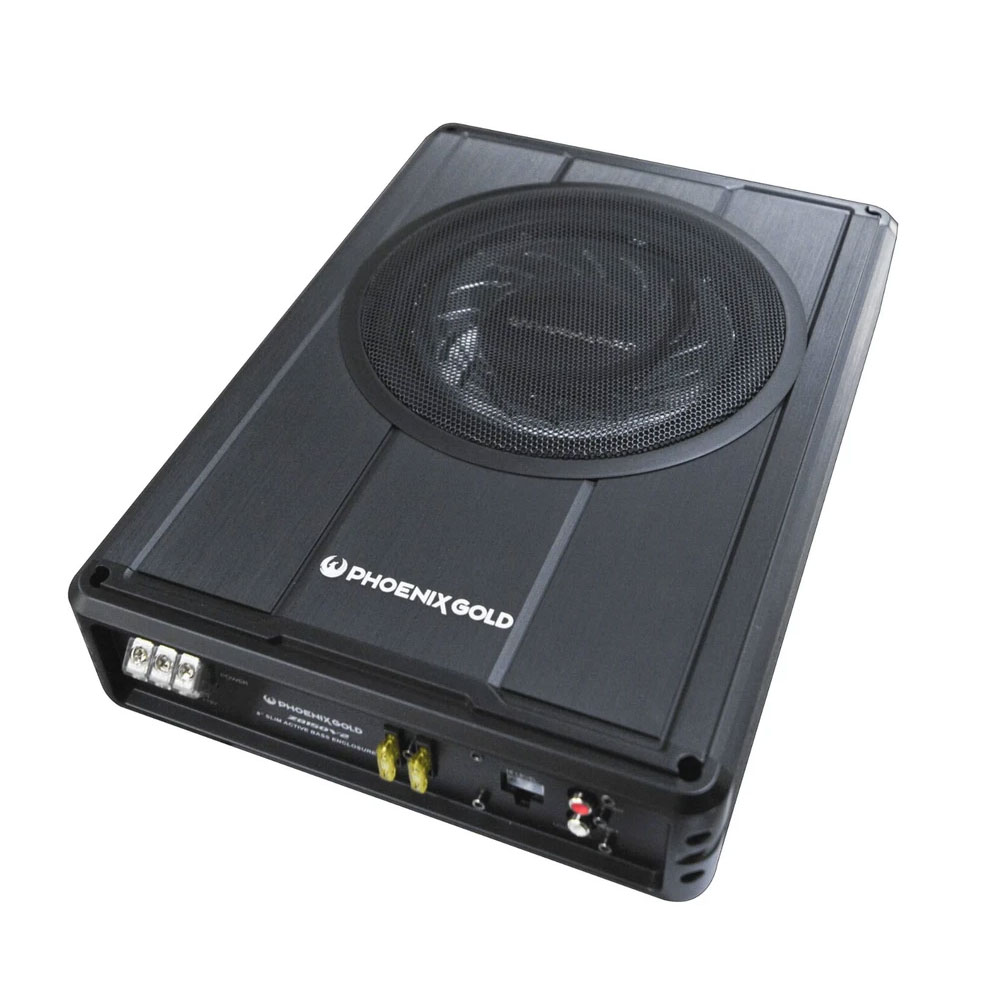

Slim enough to fit under-seat or any other hide away location, the Z8150V2 is an 8″ Slim Active Bass Enclosure which offers a quick and easy way to add a high-powered subwoofer solution to your audio system. The integrated amplifier in the subwoofer features both subsonic and low pass crossovers, and a control for adjusting the input sensitivity from 0.2V to 6V. Both high level (speaker level) and low level (RCA type) inputs are present, making the Z8150V2 a universal solution for use with any head unit or other input source. For further flexibility, a variable bass boost control has been included with the Z8150V2, allowing you to control the subwoofer from the front seat.

Z8150V2 Product Features

• MOSFET PWM (Pulse Width Modulated) Power Supply
• Thermal, overload and speaker short protection
• Soft turn-on circuit u Remote turn-on/turn-off circuit
• Variable input gain control
• Variable low and subsonic crossovers
• Variable bass boost (0 to 18dB)
• Variable phase (0 to 180 degree)
• RCA low level & high level inputs
• Auto Power On: ON/OFF
• LED power & protection indicators

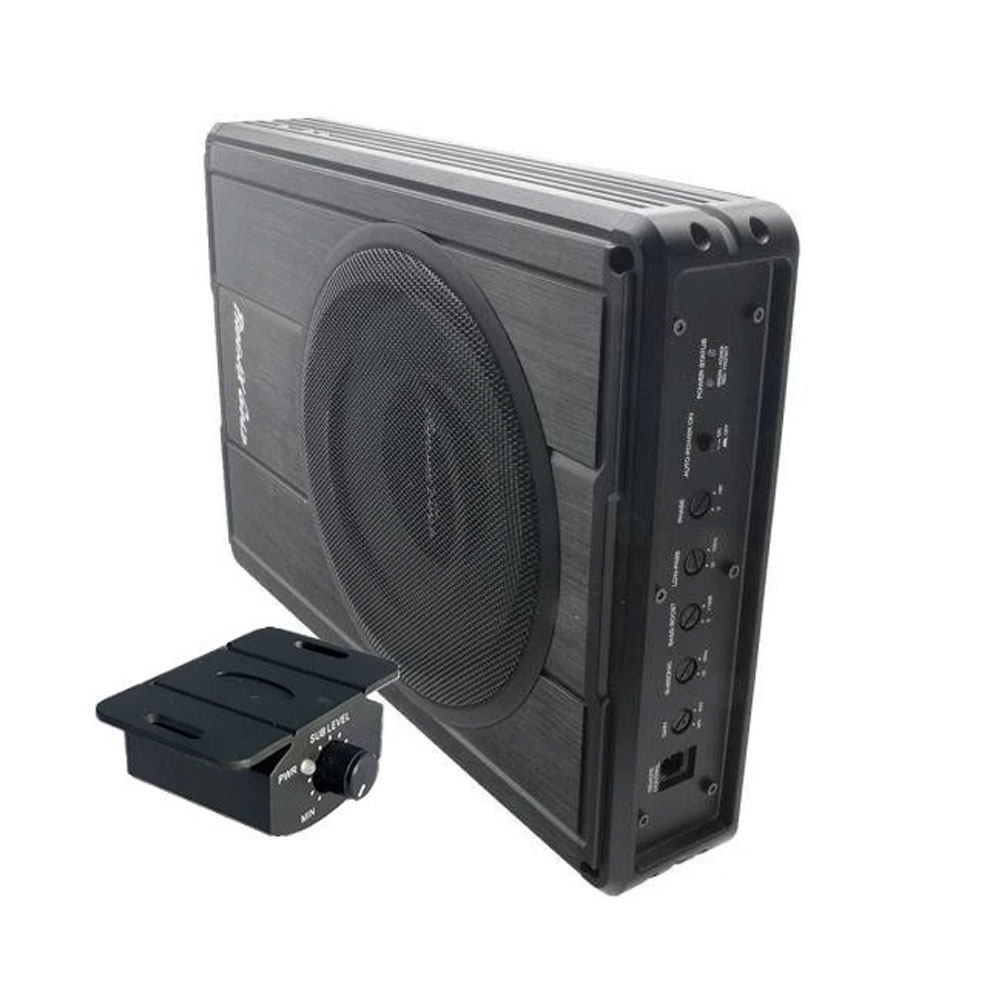

• Remote subwoofer level control

Please note amplifier wiring kit is not included but available separately

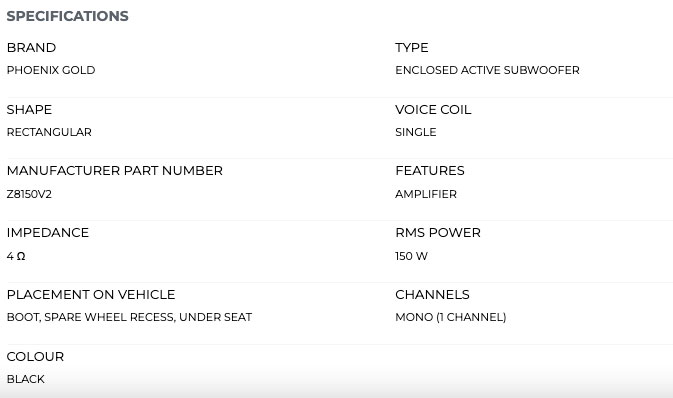

Specifications

• RMS power 150W RMS
• THD <0.4% @ 100Hz
• Signal-to-noise ratio >90dB
• Frequency response 20Hz-150Hz
• Input Sensitivity, High Level 0.5V
• Input Sensitivity, High Level 110mV
• Low Pass Filter 50Hz-150Hz
• Bass Boost 0-18dB @ 45Hz
• Subsonic Filter 20Hz-50Hz
• Variable Phase 0-180 degrees
• Fuse Rating 20A
• Subwoofer 8” - 2 Ohm
• Dimensions (L x W H) mm 354 x 250 x 68

What's in the Box?

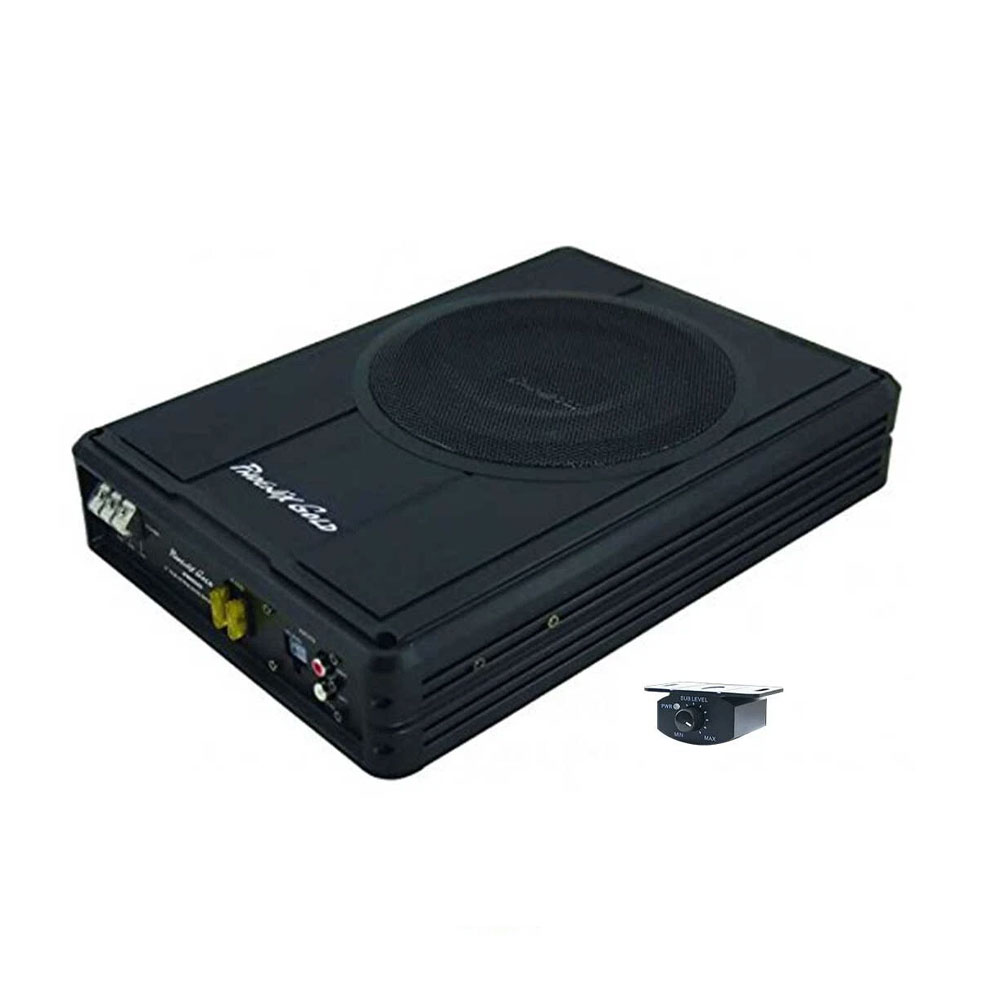

• Phoenix Gold Z8150V2 Amplified subwoofer

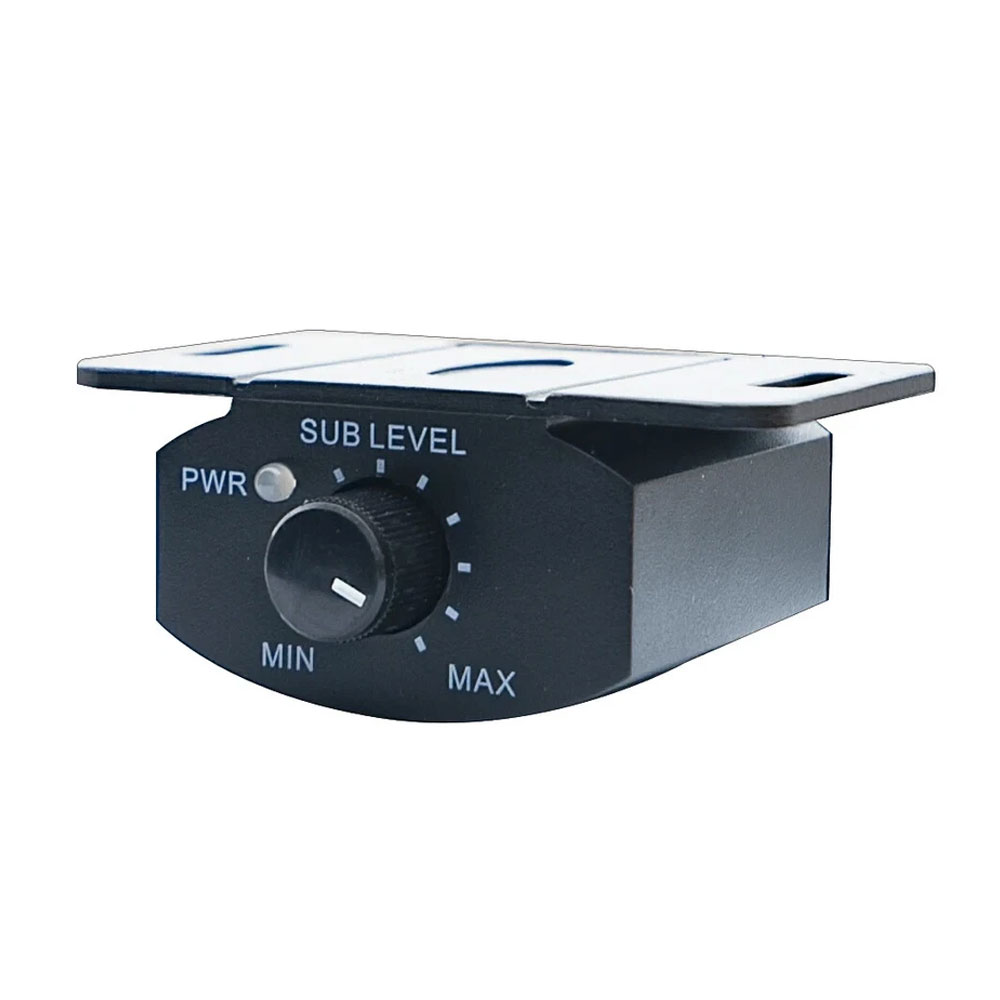

• Remote subwoofer level control
• Remote subwoofer control cable
• High level input harness/wire
• Mounting hardware
• Instruction manual
