Phoenix Gold RX2750.5

750 Watts of Full System Power in a Compact Single Chassis

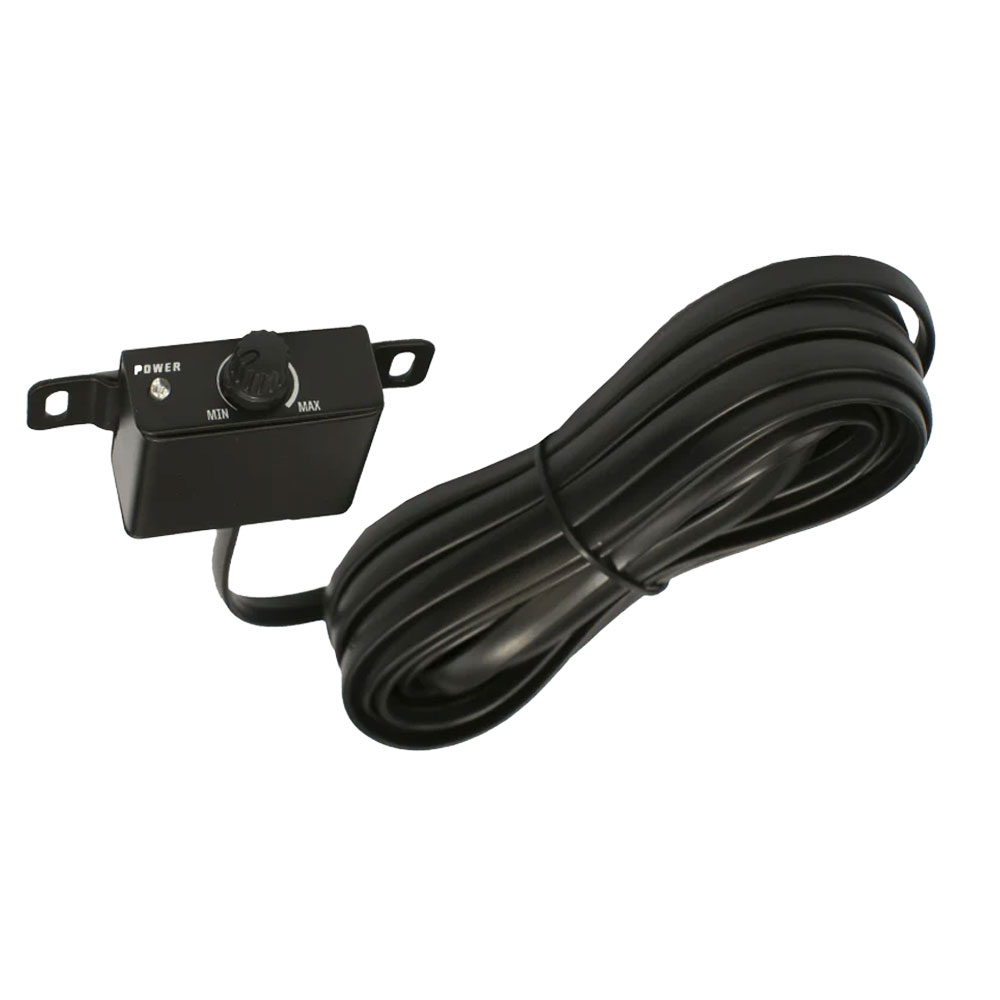

RX2 750.5 is a powerful 750W, full range Class D amplifier, delivering massive power to support your entire system. 5 channels of clean, efficient sound, wrapped in a sleek, low profile chassis designed for versatility and musical quality. When your jam comes on, sometimes it calls for taking your bass up to the next level; and with RX2 750.5 's bass knob you can. Installed near the driver, simply turn it up and enjoy.

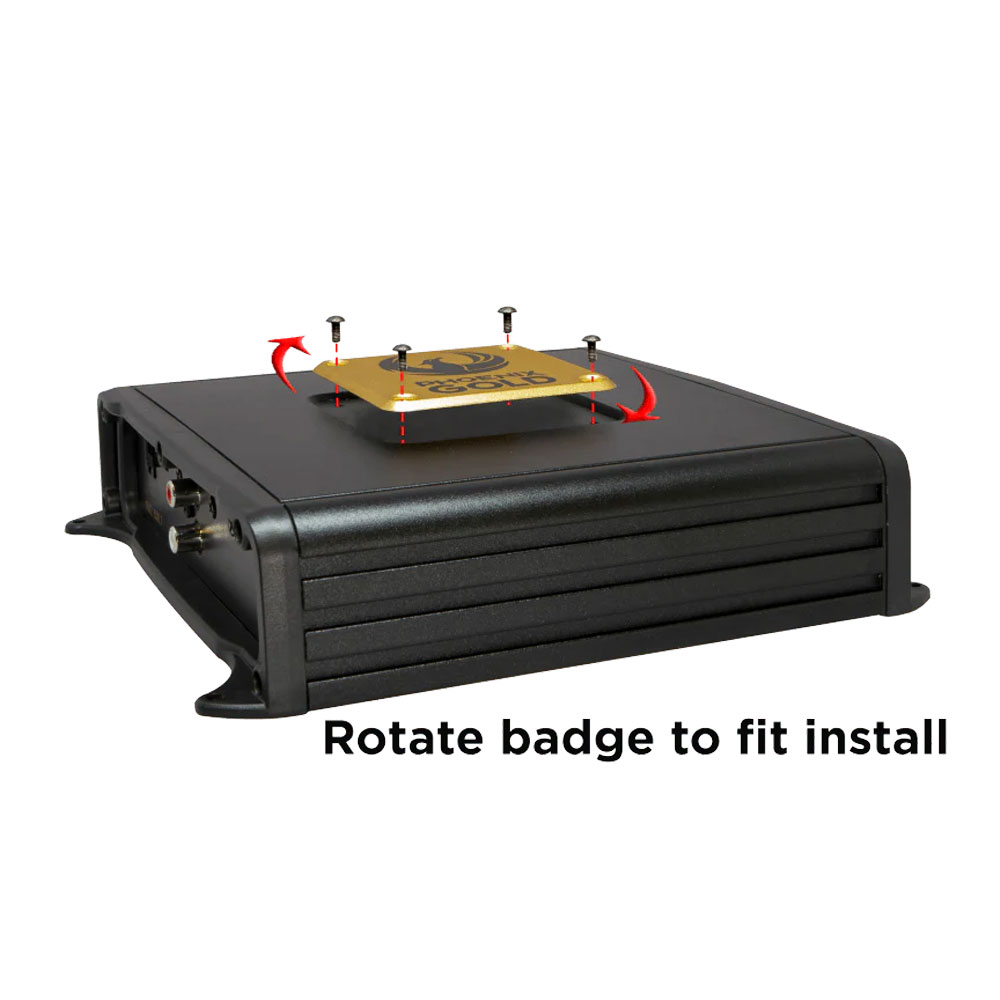

RX2 series amplifiers are the reference for style and value in any installation. Built with the legendary Phoenix Gold reliability, they feature heavy duty heatsinks, robust unregulated power supplies, and oversized direct input power and speaker terminals. They also sound sweet thanks to the audiophile-grade output transistors. We made upgrading your stock system easy by allowing high level inputs, so you can keep that hard to replace radio, and still upgrade the sound. RX2-series amplifiers are ready to impress with their effortless ability to provide power and clarity while keeping the chassis at a convenient size for any installation. The devil is in the details, so it just made sense that we allow the PG name plate to be removed and turned to match the orientation you might need for your install because we know you're going to want show off your system and make all your friends jealous.

Specifications

RMS Power Ratings listed at less than 1% THD @ 14.4v

• Number of Channels: 5
  • 4Ω: CH 1 - 4 60W x 4
  • 2Ω: CH 1 - 4 90W x 4
  • 4Ω: CH 5 250W x 1
  • 2Ω: CH 5 400W x 1
  • 3CH Mode: 1+2 4Ω Bridged & 3+4 4Ω Bridged + CH 5 4Ω 180W x 2 + 250W x 1
  • 3CH Mode: 1+2 4Ω Bridged & 3+4 4Ω Bridged + CH 5 2Ω 180W x 2 + 400W x 1
• Total RMS Power (Sum of rated power): 760W
• Bridgeable
• Crossover Mode: FULL/HP/LP
  • CH 1 - 4 50Hz - 200Hz @ 12dB / Oct Linkwitz Riley
  • CH 5 50Hz - 200Hz @ 12dB / Oct Linkwitz Riley
  • Subsonic 10Hz – 40Hz
• Input Channels: 2CH F, 4CH F/R or 6CH F/R/S
• Input Mode: Unbalanced
• Input Sensitivity: .2v - 6v Unbalanced RCA Low-Level
• Processing: Bass Boost 0dB +6dB +12dB @45hz
• Signal to Noise (@ CEA Standard): >80dB
• Frequency Response:
  • Full Range CH 1 - 4 10Hz - 40kHz
  • CH 5 15Hz - 200Hz
• Topology Class: D
• Heatsink Type: Extruded Aluminum
• Cooling Type: Radiation
• Operating Voltage: 8V to 16V
• Power Supply Type: Unregulated
• Power Terminals: 4 Gauge
• Speaker Terminal: 10 Gauge
• On-Board Fusing: 3 x 35A ATC
• Recommended Inline Fuse: 80A

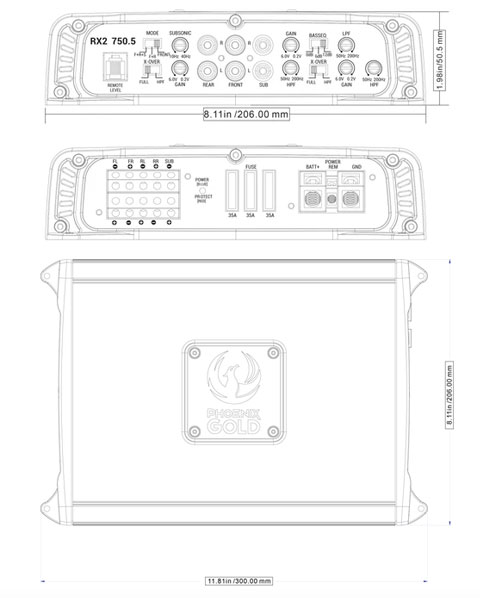

• Dimensions (L x W x H): 11.81” x 8.11” x 1.98” - 300mm x 206mm x 50.5mm
